Pulsar PTX3582R Gen2 - DUAL CERAMIC BALL BEARING TURBOCHARGER


COMPRESSOR HOUSING OPTION: STANDARD
TURBINE HOUSING OPTION: T3 .63 V BAND
Price:
£667.66

Description

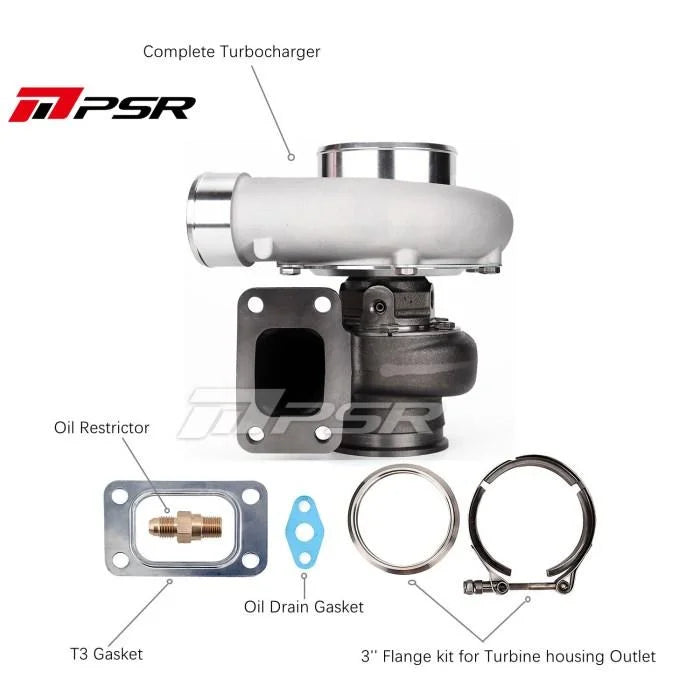

Pulsar PTX3582R Gen 2

  • Please note, T51R housing option requires an extra 7 days handling time
  • Recommended displacement 2.0 to 4.5 litres with power outputs up to 900hp possible.
  • Dual Ceramic Ball Bearing System
  • 10 Blade Gen2 Billet Compressor Wheel with Extended Tapered Tip Technology
  • Inconel 713c Gen2 9 Blade Turbine Wheel
  • Gen2 Cover with integrated speed sesor port.
  • 0.83, 1.01 A/R dual v-band turbine housing, T3 0.63, 0.82 V-Band outlet turbine housings available in options
  • V-Band Flange kit(s) for the exhaust housing included
  • Max Air Flow rate: ~85 lb/min, rated @ 880 FWHP
  • SPEC
  • Compressor Wheel: 66*82mm
  • Turbine Wheel: 68*62mm
  • Compressor Inlet: 4.0 Hose
  • Compressor Outlet: 2.5 Hose
  • Turbine Inlet: T3, T4 or 2″ V-Band
  • Turbine Outlet: 3″ V-Band
  • Oil Feed: -4 AN connect to the Oil Restrictor
  • Oil Drain: Std T3 Flange
  • Water In/Outlet: M14*1.5


It's strongly recommended to run water cooling to aid reliability.



Replaces OE part number:

856801-5067S

856801-5068S

856801-5069S

856801-5070S

856801-5071S

856801-5072S

856801-5079S

856801-5080S

856801-5081S
