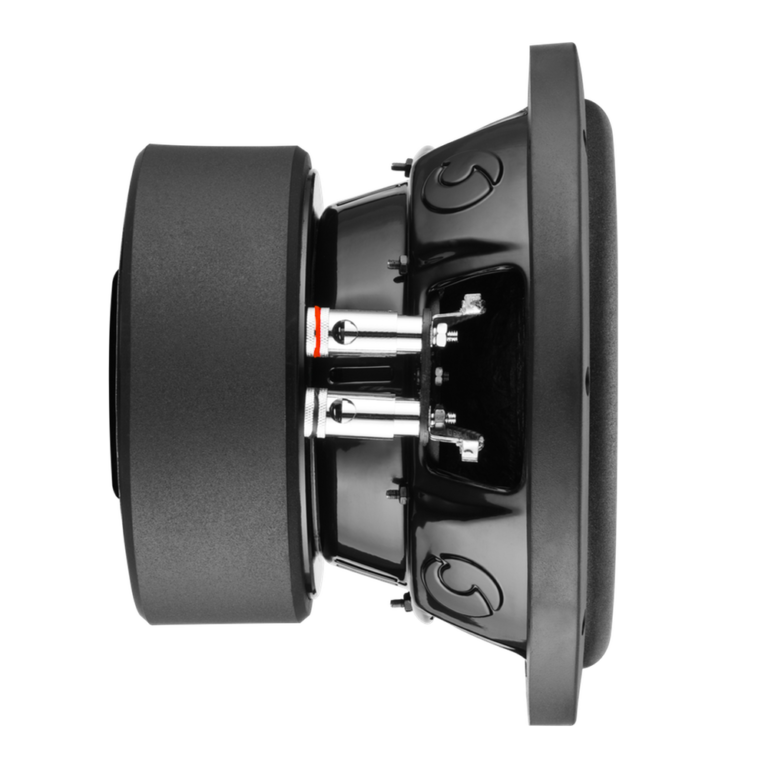

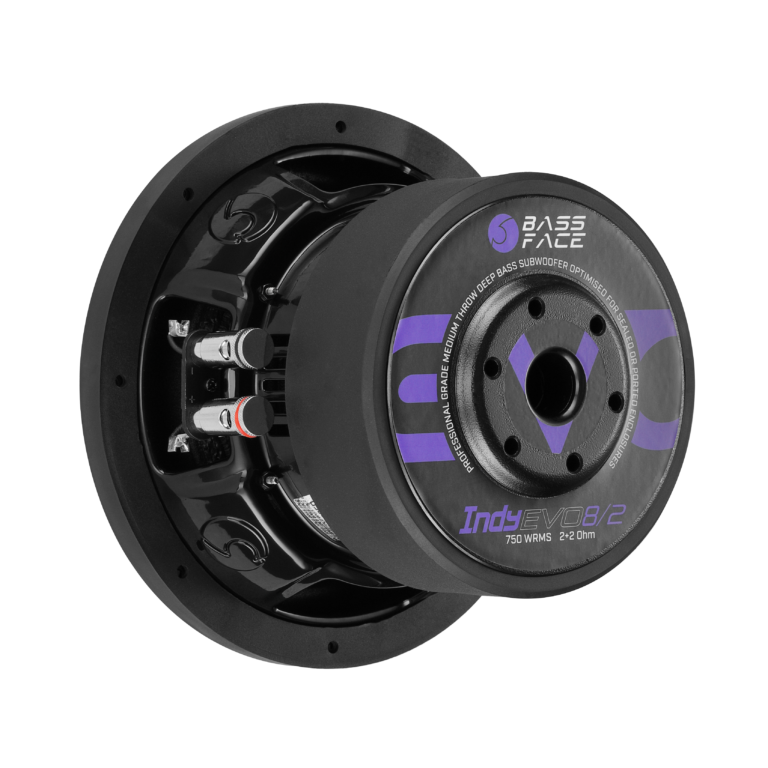

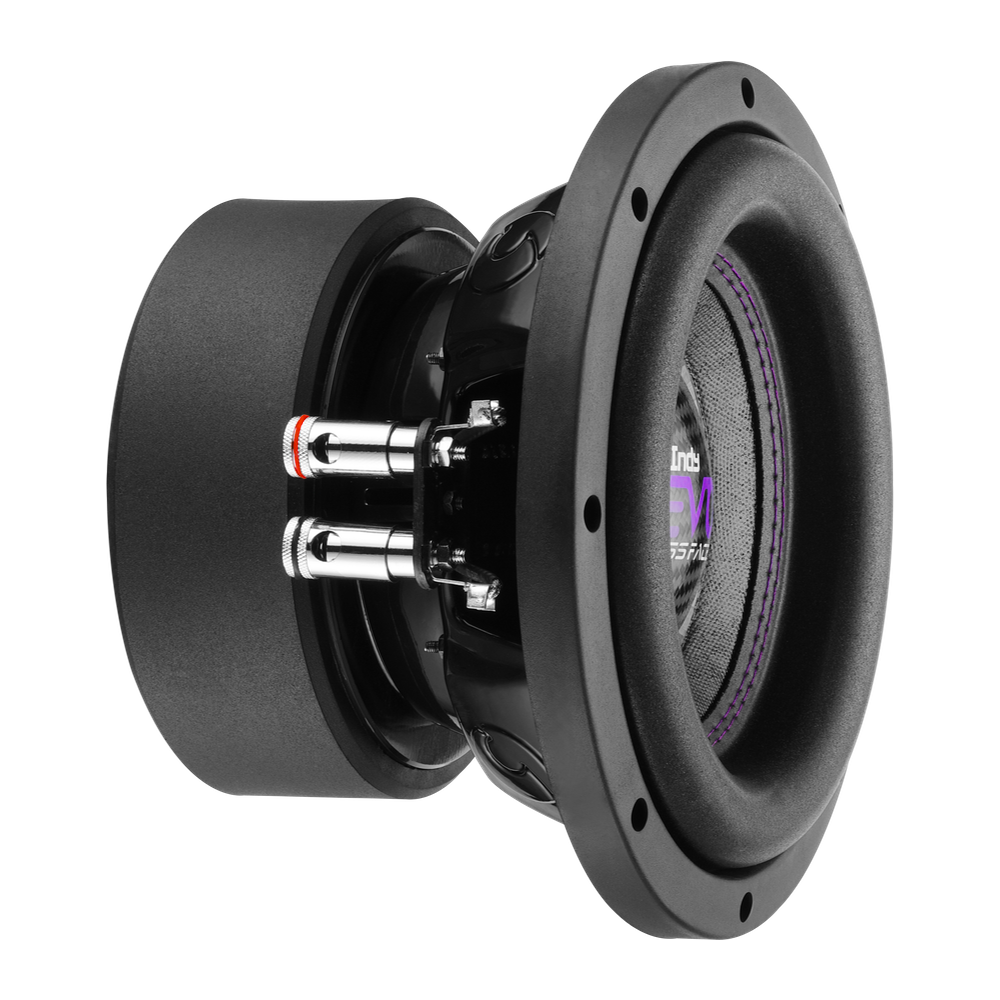

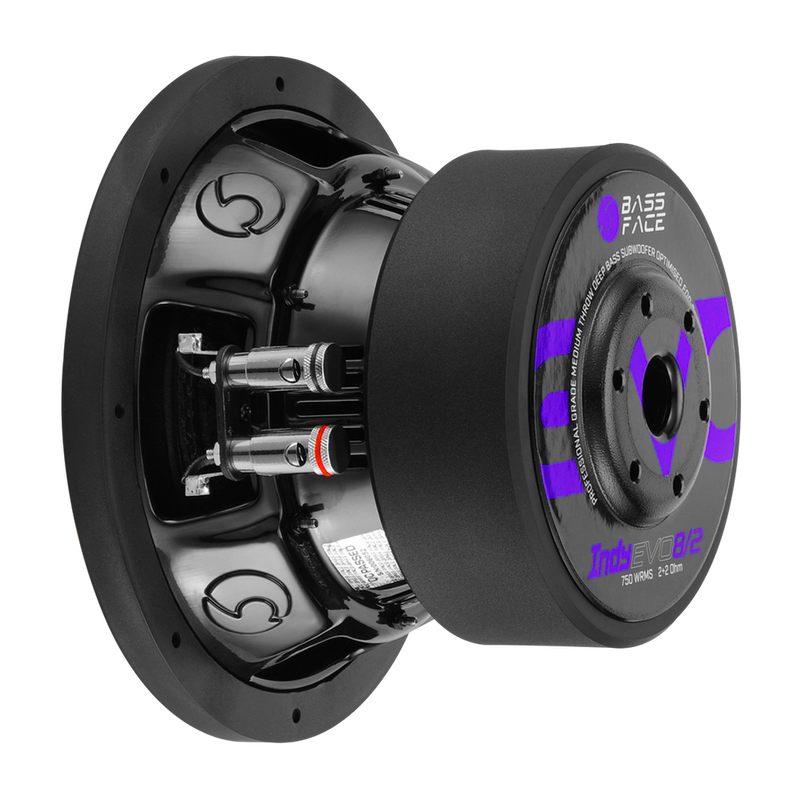

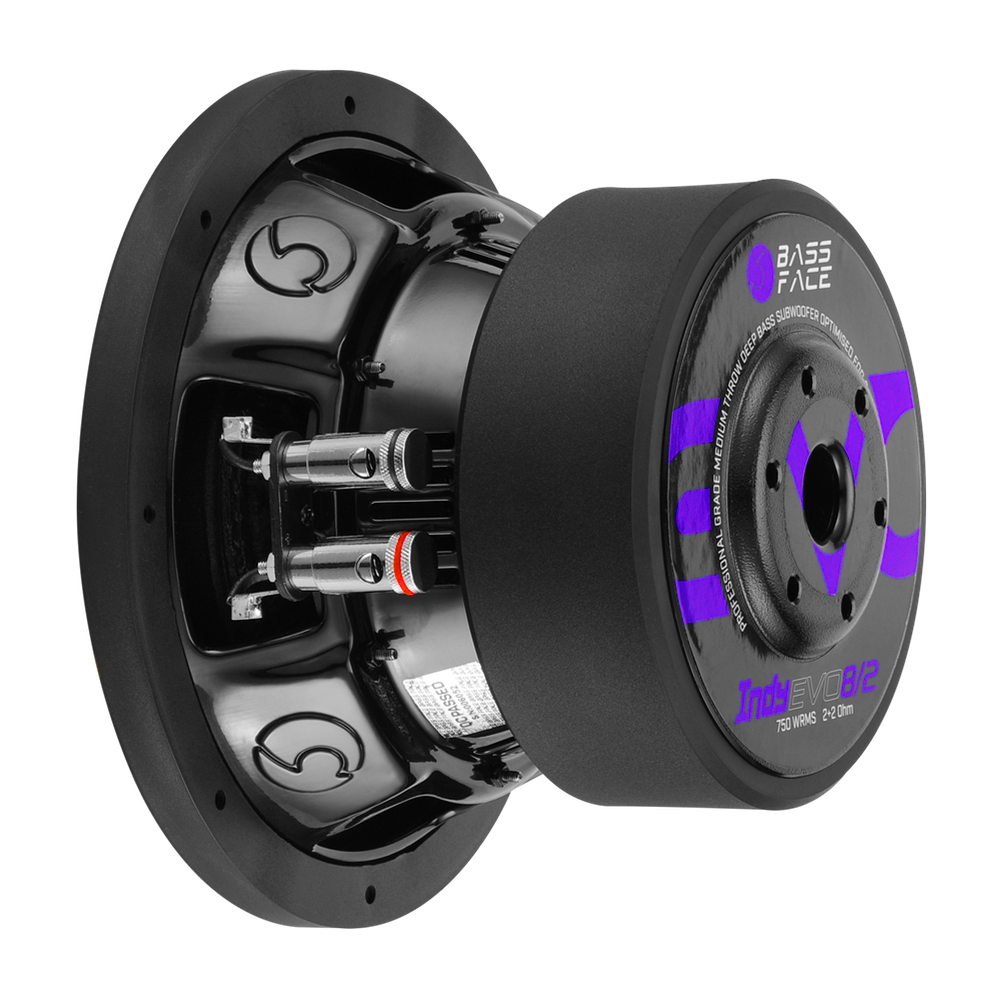

BASSFACE IndyEVO8/2 - 8" Deep Bass Subwoofer For Sealed Or Ported Enclosures


Price:
£111.99

Description

IndyEVO8/2 8" 2x2Ohm DVC 750WRMS Professional Deep Bass Subwoofer For Sealed Or Ported Enclosures

KEY FACTS


Product Category Subwoofers
Version 1
Series Indy
Date Added 08/01/2020
Date Modified 16/02/2022
Barcode 5060905110698
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 5500
Product Height (mm) 162
Product Length (mm) 215
Product Width (mm) 215
Complete Product Pack Weight (g) 6500
Retail Carton L (mm) 260
Retail Carton W (mm) 260
Retail Carton H (mm) 230
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

SPEAKER DATA


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 750
Overall Diameter (mm) 215
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 145
Installation Cut-out Diameter (mm) 185
Overall Depth (mm) 157
Mounting Depth (mm) 132
Front Protrusion From Mounting Plane (mm) 25
Optimum Frequency Range (Hz) 25-150
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 83.92
Total Magnet Weight (Oz) 90
Magnet Size (mm) 145*20
Magnet Type Y38
Magnet Qty 2
Top Plate thickness (mm) 10
Back Plate thickness (mm) 8 And Bump
Recommended Bass Enclosure Type Ported
Recommended Bass Enclosure Volume (CuFt) 0.75-2
Recommended Bass Enclosure Tuning Frequency (Hz) 40
Voice Coil Former Spec Aluminium
Voice Coil Type CCA Flat Wire
Voice Coil Diameter (mm) 54.8
Voice Coil Internal Diameter (mm) 50.8
Voice Coil External Diameter (mm) 54.8
Voice Coil Winding Hight (mm) 28
Voice Coil Winding (Layers) 8
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 110
Spider Design 1x2
Surround Tall smooth
Surround Material Foam
Tinsel Wire Double round wire stitched
Terminal Push

TECHNICAL HIGHLIGHTS


  • Custom Tooled Spiders For Added Coil Control
  • High Roll Surround To Allow For High Excursion And Cone Area
  • Soft Suspension For Deep Low Notes

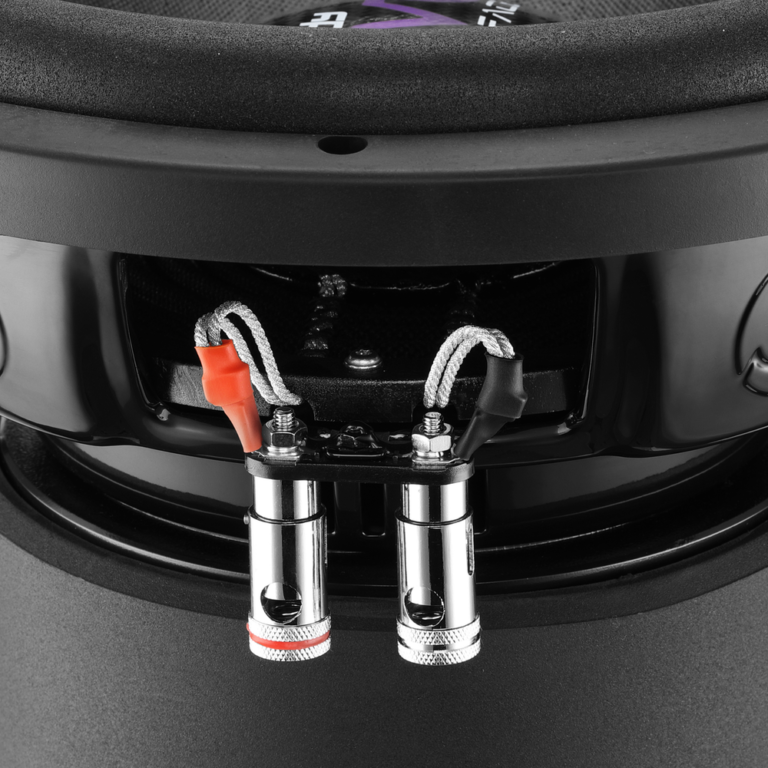

  • Oversized 4 AWG Inputs For Easy Use
  • Dual Tinsel leads For Fail-Safe In Extreme Use
  • Extreme Duty Non Pressed Paper Cone

WHAT'S IN THE BOX?


  • 1 x Subwoofer
  • 1 x Comprehensive Datasheet
  • 1 x Detailed Box Design Manual
  • 1 x Series Window Sticker
