AudioControl LCQ1 - 6 Channel Line Output Converter with Equalisation and AccuBASS


Price:
£349.99

Description

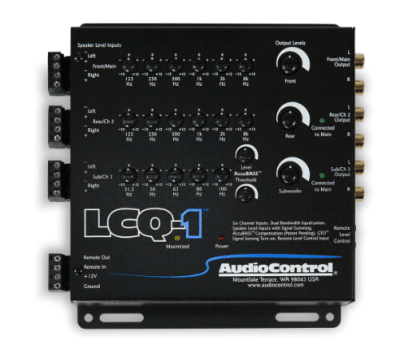

AudioControl LCQ1

Audio enthusiasts can now rejoice with the introduction of AudioControl?s LCQ-1, a powerful six-channel signal processor that provides a gateway between factory installed source units and after-market amplifiers. The LCQ-1 allows Mobile Electronics enthusiasts to easily ?tune? their audio systems and receive truly amazing sound quality. An ideal combination of discrete equalization controls combined with AudioControl?s unique OEM integration circuitry, the LCQ-1 maximizes the performance of factory installed audio systems. Enthusiasts, who want amazing audio performance that only comes from custom-tuned audio systems, will truly enjoy the LCQ-1

Inputs
Speaker Level Inputs: 3 (6 channels)
Maximum Input (speaker level): 400W per channel at 4 Ohm
Input Impedance: 20k Ohm

Outputs
Preamp Outputs: 3 (6 channels)
Maximum Output Level: 7.5Vrms
Output Gain: ?12dB
Output Impedance: 150 Ohm

Performance
Total Harmonic Distortion: 0.01%
Frequency Response: 10Hz-22kHz
Equalizer Frequencies (front/rear): 125Hz, 250Hz, 500Hz, 1kHz, 2kHz, 8kHz
Equalizer Frequencies (sub): 31.5Hz, 50Hz, 63Hz, 80Hz, 100Hz

Control
Remote In
12VDC Remote Out (always active when unit is on)

General
Power Supply: High Headroom PWM Switching
Current Draw: 350mA
Recommended Fuse Rating: 2A
weights & dimensions
Dimensions: 6"W x 5.875"D x 1.2"H
Weight: 3.0lbs (1.4kg)
