Description
YGGDRASILL
Yggdrasill is a central and deeply revered tree in Norse cosmology. Often referred to as the “World Tree” and sometimes the “Tree of Life,” it connects the nine worlds of Norse mythology, f

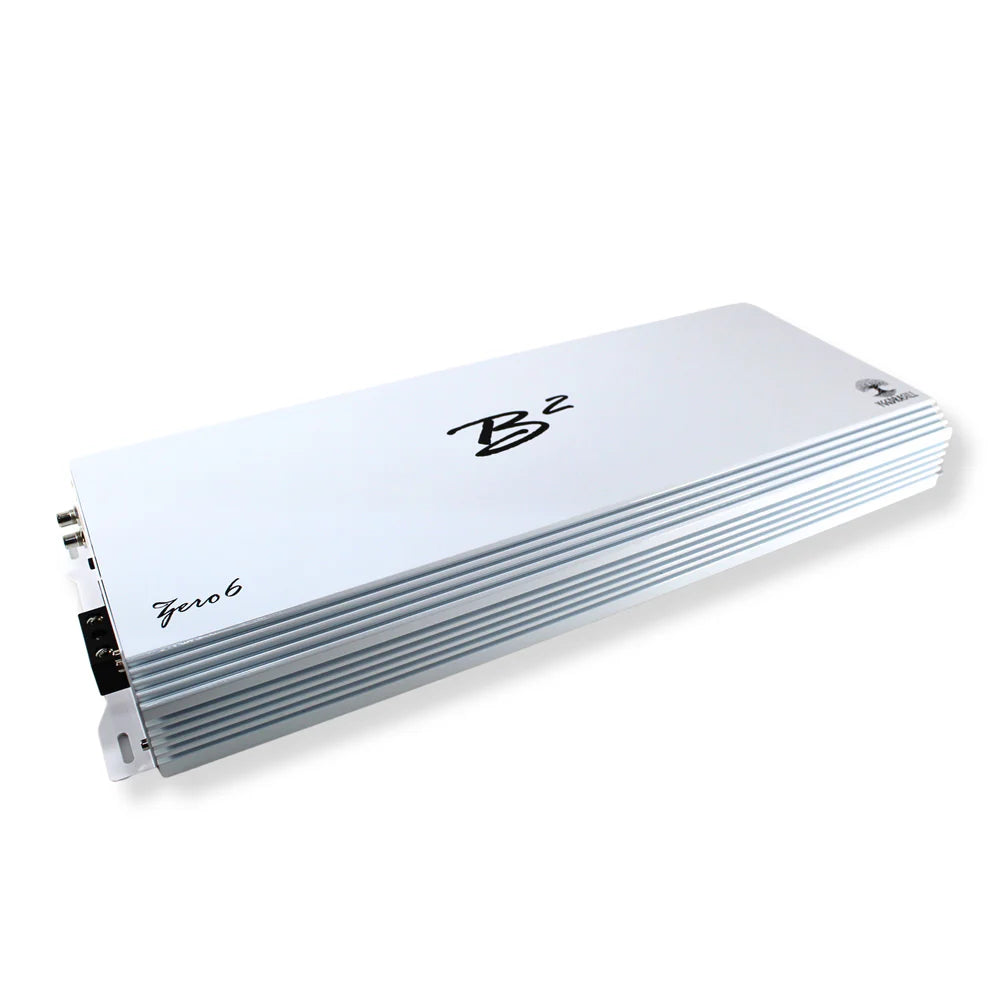

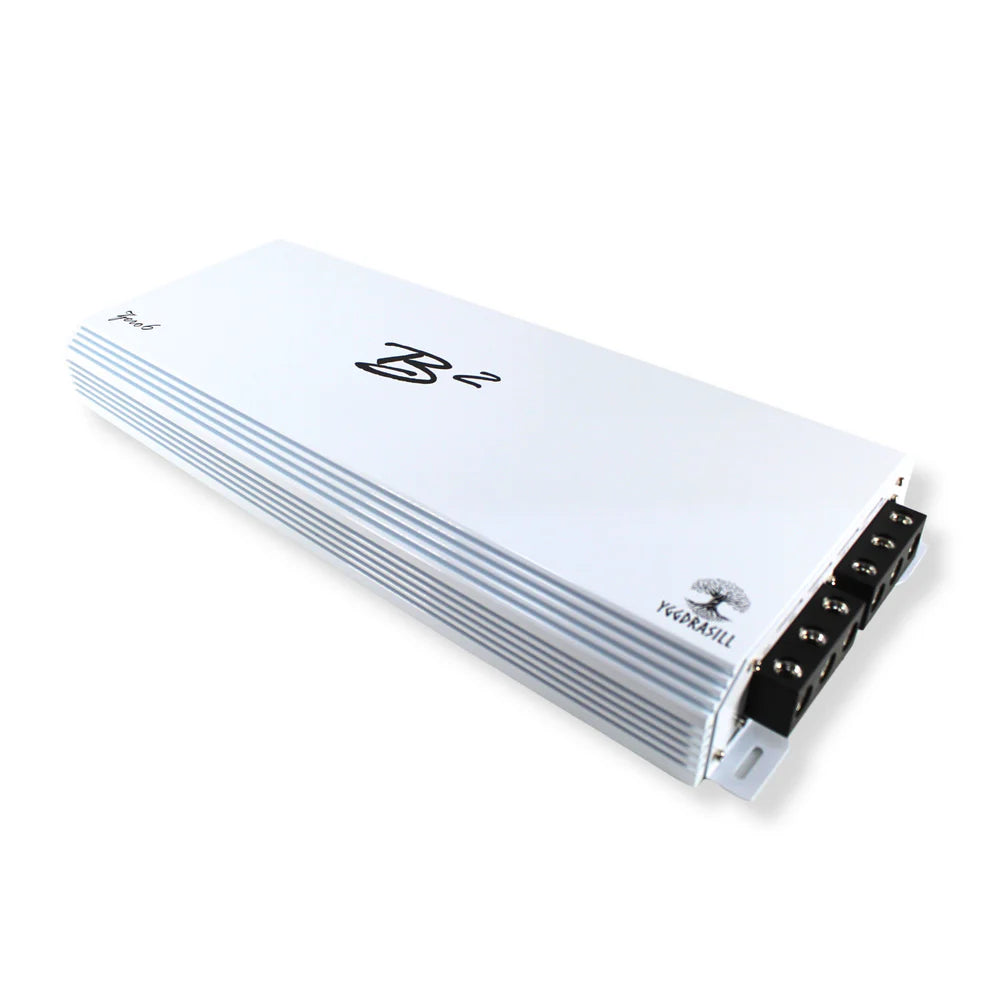

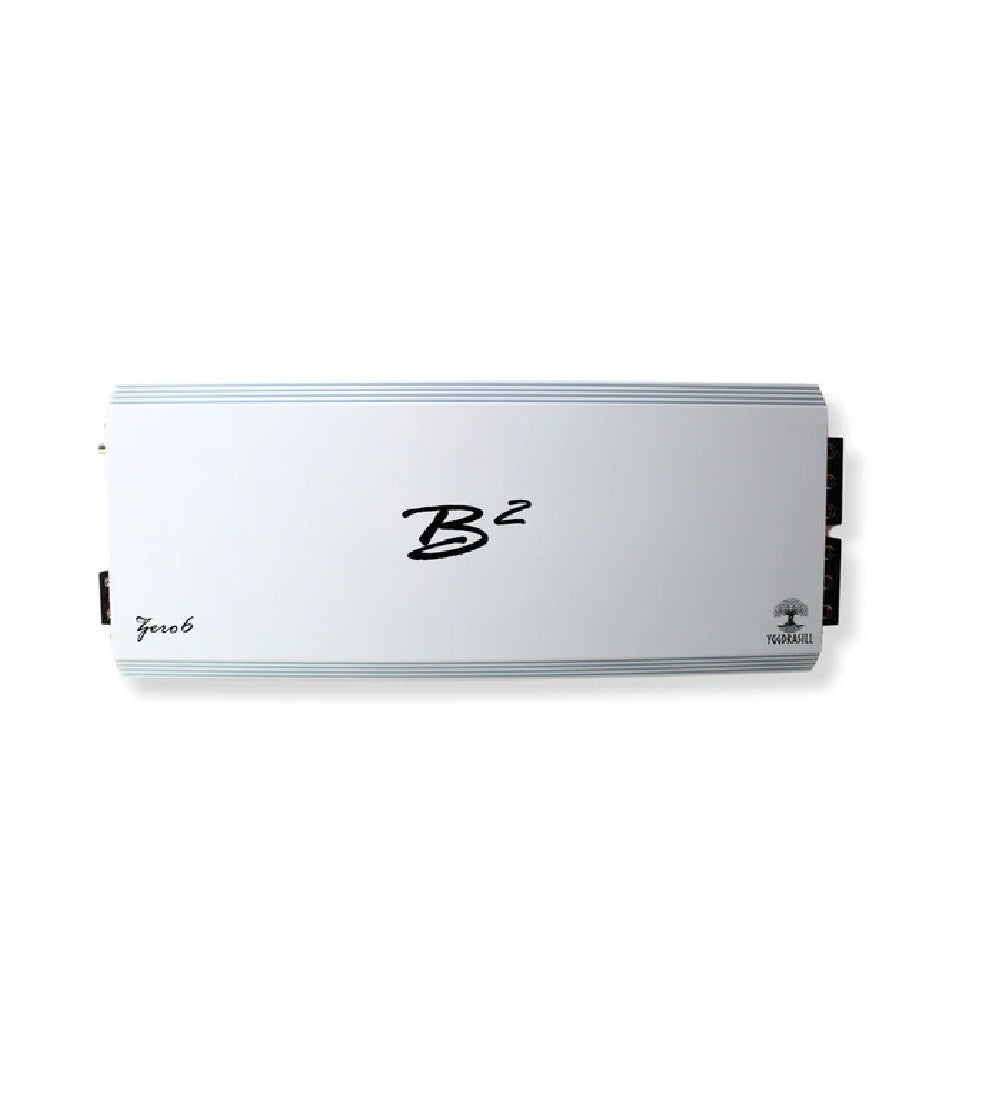

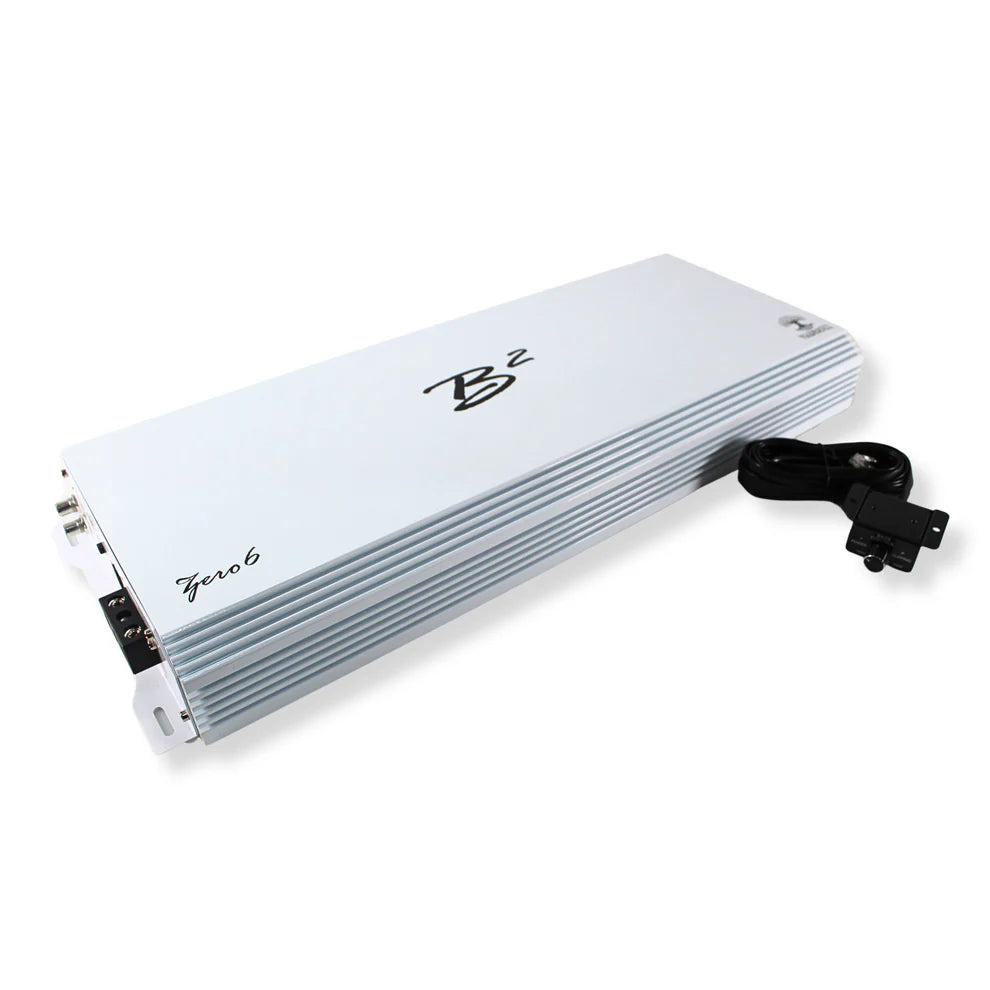

What does this have to do with an amplifier, you ask? If you’ve missed this, you might not have been paying attention. Our Nordic heritage has always been a core theme in our products. The Zero6 – Yggdrasill amplifier is designed to be the centerpiece of your audio system, capable of powering any B2 audio subwoofer with authority and precision.
TRIPLE SIMPLE

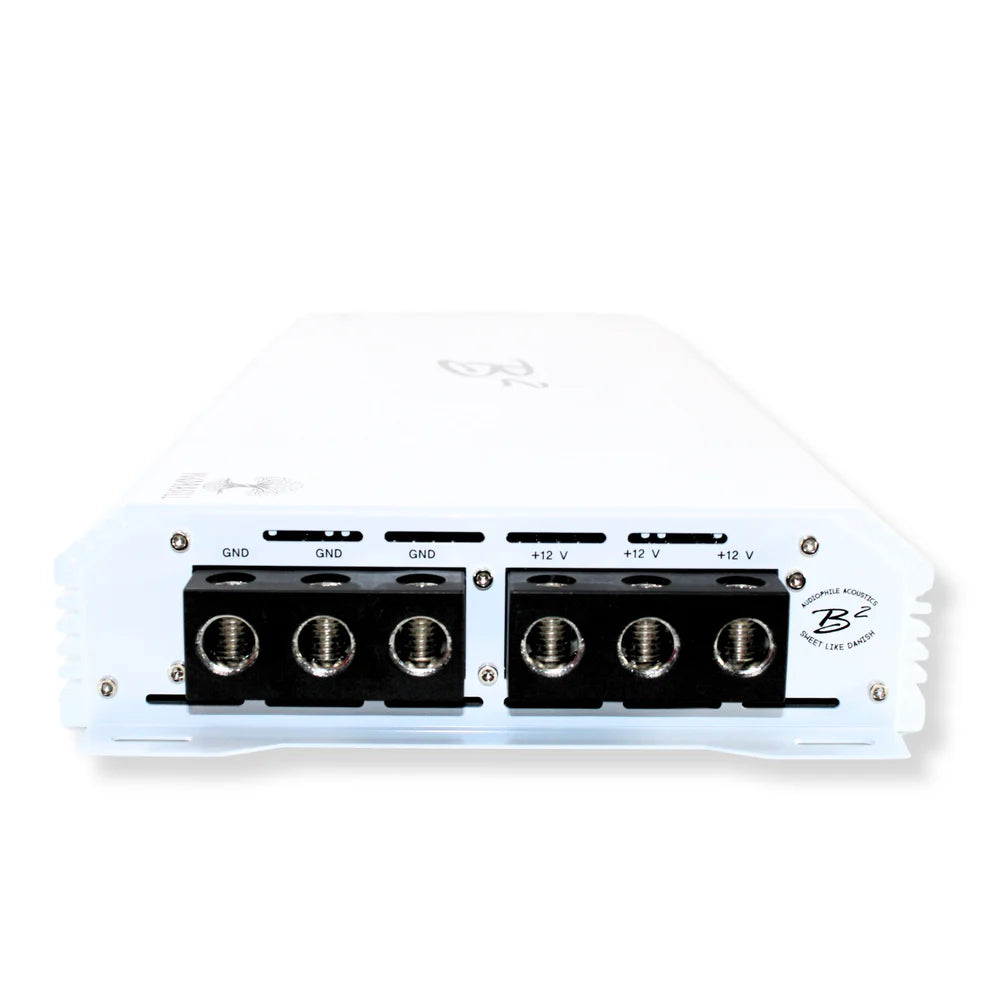

While most amplifiers up to 7kW settle for dual oversized 0 GA inputs for power and ground, we don’t compromise. Our commitment to enhancing performance for our customers has led us to the logical solution—triples. By incorporating three positive inputs on one side and three ground inputs on the opposite side, all oversized 0 GA, we ensure unparalleled power, connectivity and clean installs.
| 14.4v <1% THD | ||
|---|---|---|
| Power @ 4 Ω: | 1 x 2100 w | |
| Power @ 2 Ω: | 1 x 3800 w | |
| Power @ 1 Ω: | 1 x 6000 w | |
| Power @ 0.50 Ω 13.1v (burst): | 1 x 9200w |
Specification

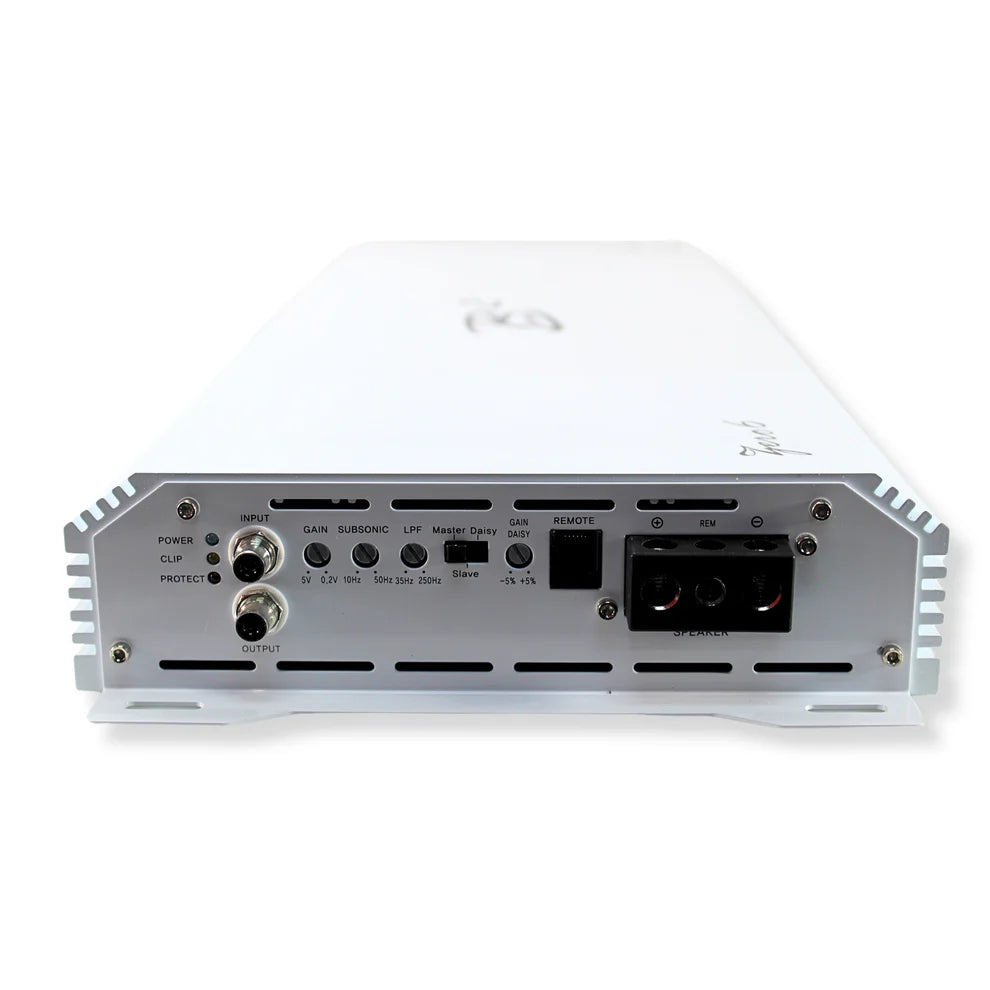

| Frequency Response: | 10 Hz ~ 300Hz |
| Signal to Noise Ratio: | > 95 dB |
| Input Sensitivity: | 5 ~ 0.2 V |
| Crossover: | 24 dB / Oct |
| Subsonic Crossover: | 10Hz – 50Hz |
| Low Pass Crossover: | 35 Hz – 250Hz |
| Damping Factor: | >400 |
| Power Terminal Gauge: | 0 GA x4 |
| Fuse Rating: | 500 A |
| Operational voltage: | 9.5 V ~ 17.5 V |
| Dimensions: | 545 x 220 x 65 MM |
