DSP Processor
System Tuning DSP with Digital Optical Input / 8-ch. Stereo RCA Outputs / 1 Digital Optical Output

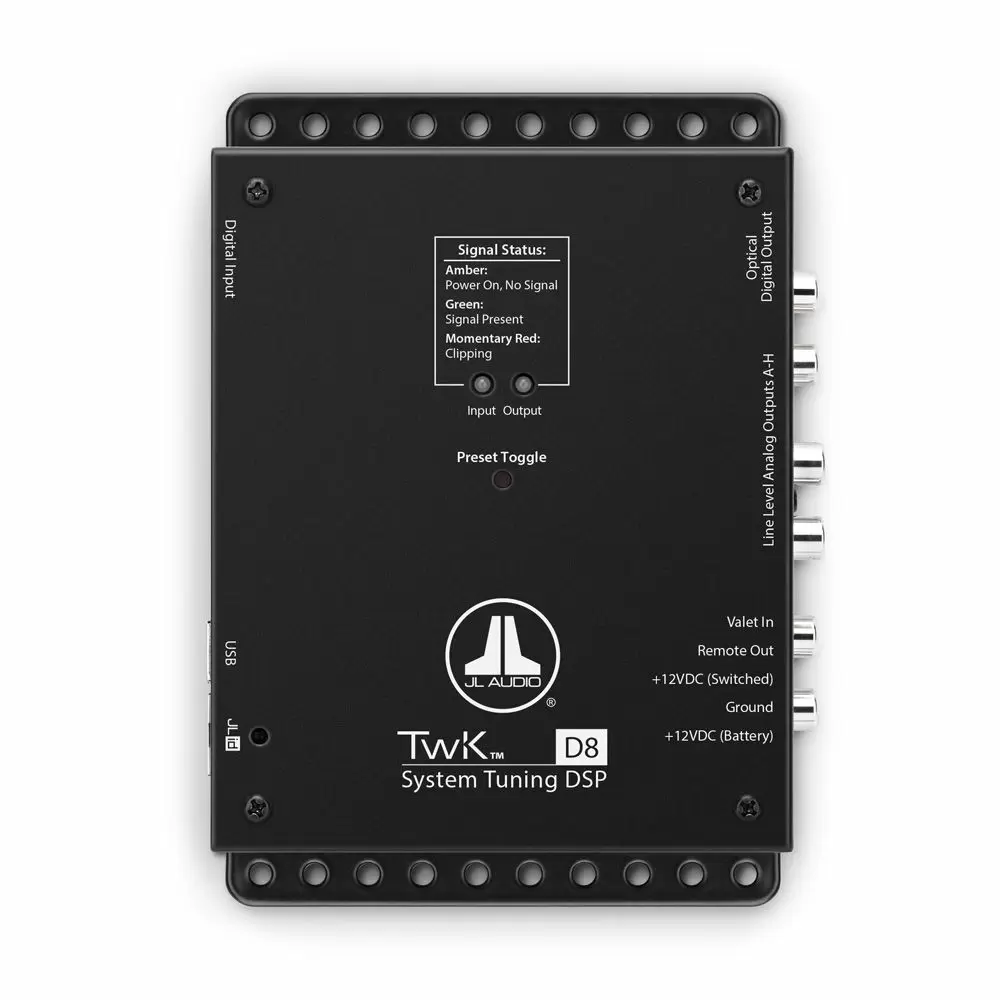

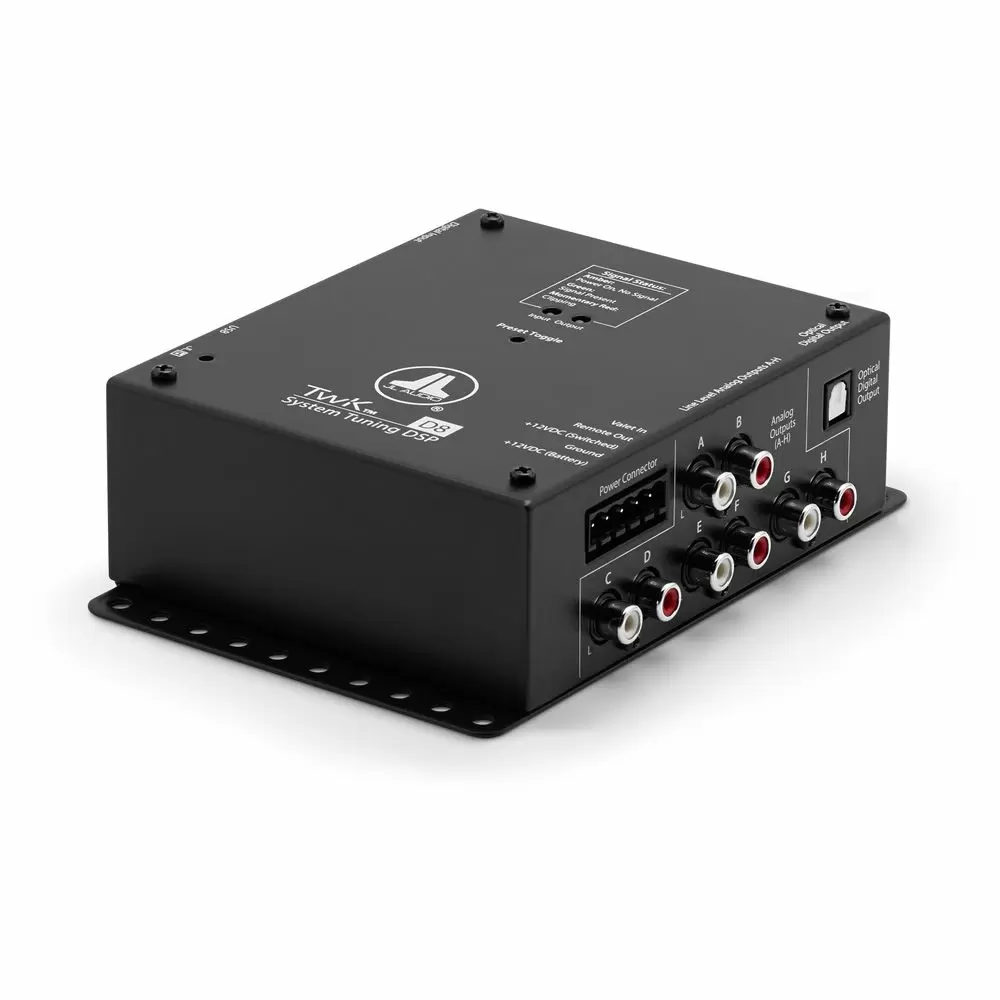

The TwK® D8 is a state-of-the-art digital signal processor engineered to deliver world-class system tuning capabilities in an easy-to-use format. Equipped with an advanced 24-bit DSP processor, the TwK® D8 is equipped with a digital optical (Toslink) input and connects directly to our FiX® 82 OEM Integration DSP, or any 2-channel digital (S/PDIF) output, to maintain an all-digital signal path.
The TwK® D8 is also equipped with flexible output options, 80 total bands of equalization and powerful mixing tools. The included DRC-200 Digital Remote Controller offers dual level controls, toggles up to six presets, and has an LED indicator.
Control the TwK® D8’s entire feature set by connecting it to your PC via USB, using the companion TüN® Software interface.
- Power Supply Type: Regulated DC-DC SMPS
- Input Operating Voltage: 10 - 16 VDC
- Standby Current Draw: < 1.5 mA
- Operating Current Draw: 0.7 A
- Recommended Fuse Value: 1 A

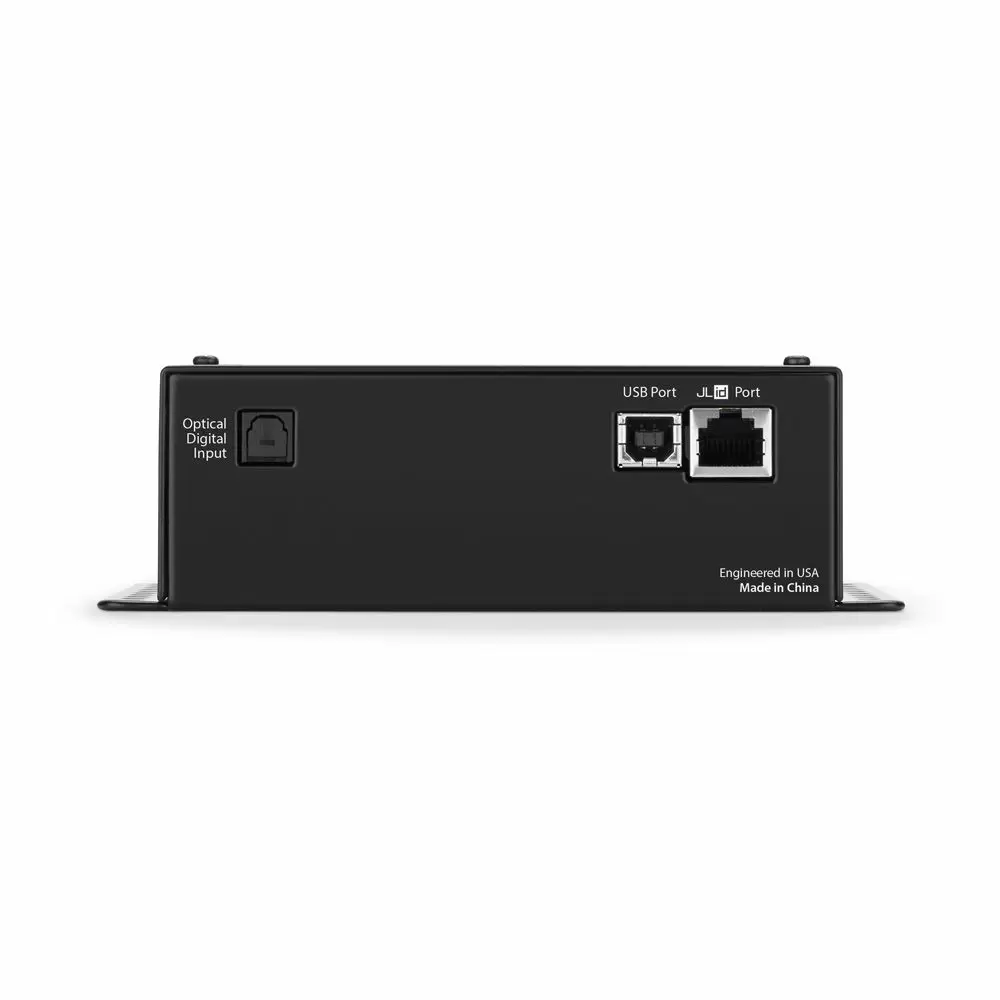

- Input Channels: Single Digital Input
- Input Type: Differential-Balanced
- Input Voltage Range: 250 mV - 7.1 V RMS
- Minimum Input Voltage: 10 mV RMS
- Input Level Setting: N/A

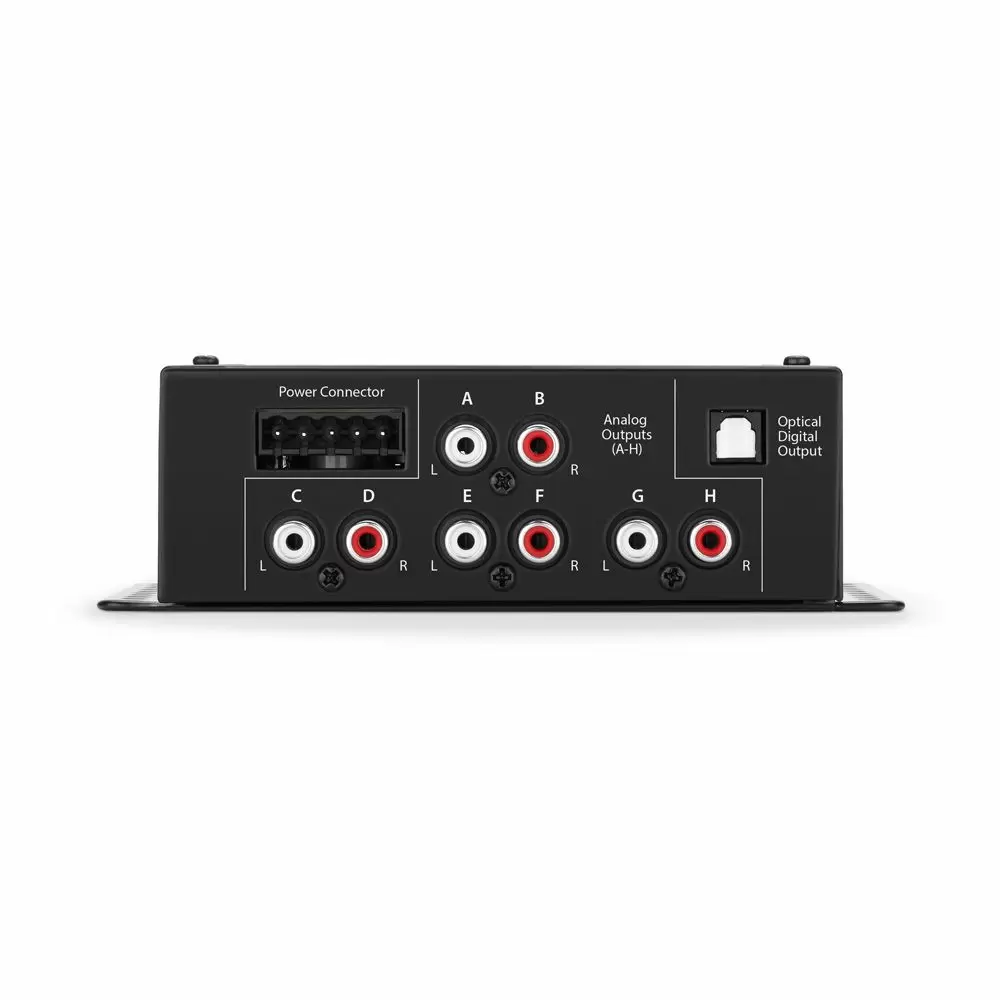

- Output Channels: Eight
- Analog Output: Unbalanced, stereo RCA jacks
- Digital Output: Optical (Toslink) output (S/PDIF)
- Output Impedance: 450 Ω
- Latency: Optical - Optical: 4.860 mS, Optical - Analog: 4.805 mS
- S/N Ratio: 96 dB (A-Weighted, referred to 4V RMS Output)
- THD+N @ Rated Output: 0.02% (20 Hz - 20 kHz)
