MOSCONI GLADEN ATOMO 1_24v - Mono Amplifier For 24v Power Supply


Price:
£319

Description

OVERVIEW MOSCONI ATOMO 1 24V

ATOMO 1 - Maximum performance in the smallest of spaces

  • Extremely compact, powerful 1-channel amplifier.
  • Wide input voltage range 0.4Vrms - 5Vrms (low level) / 1.6Vrms - 20Vrms (high level).
  • Inputs flexibly configurable (floating / fixed ground, switchable load resistors).
  • Remote detection (BTL)
  • High pass / low pass filter. Inputs designed in Molex industry standard (Micro-Fit).
  • 12V and 24V versions

TECHNICAL DATA MOSCONI ATOMO 1

POWER SUPPLY:

  • Power supply voltage:
    10 - 16V
  • DC-DC converter typology:
    Unregulated – Push Pull
  • External fuse:

    1 x 20A

  • Power-on/Power-off voltage threshold:
    9V / 6V
  • Mute delay time:
    3secs
  • Autosense power-on (HL only):
    BTL source only
  • Overall efficiency:
    > 75%
  • Standby current:
    < 0.1mA (typical)
  • Idle current:

    0.45A @ 14.4V

  • Thermal cutoff threshold:
    93°C (±5%)

OUTPUT POWER RMS @ 14.4V (1% THD)

  • Output power RMS @ 4Ω:

    1 x 205W (250W @ 16V)

  • Output power RMS @ 2Ω:

    1 x 350W

  • T.H.D. @ 4Ohm:

    < 0.08% (1KHZ / 90 Power rating ref)

  • T.H.D. @ 2Ohm:

    < 0.1% (1KHZ / 90 Power rating ref)

  • Minimum load:
    2Ohm with musical signal

SIGNAL INPUT

  • Low level input sensitivity range:

    0.26 ÷ 0.7Vrms

  • High level input sensitivity range:

    1.3 ÷ 3.5Vrms

  • Bandwidth (-3dB ÷ 10W):

    5Hz ÷ 35KHz

  • Low level Input impedance:
    >15KOhm
  • High level input impedance:
    21Ohm (dummy load with jumper)
  • Ground reference (LL only):
    OPEN - 21Ohm
  • S/N (AP filter 10Hz - 22KHz):


FEATURES

  • Onboard filter configuration:

    OFF - LP

  • Onboard filter slope:
    12dB/oct
  • Onboard filter frequency:
    80Hz
  • Autosense power-on (HL only):
    BTL source only
  • Start&Stop compliance:
    YES

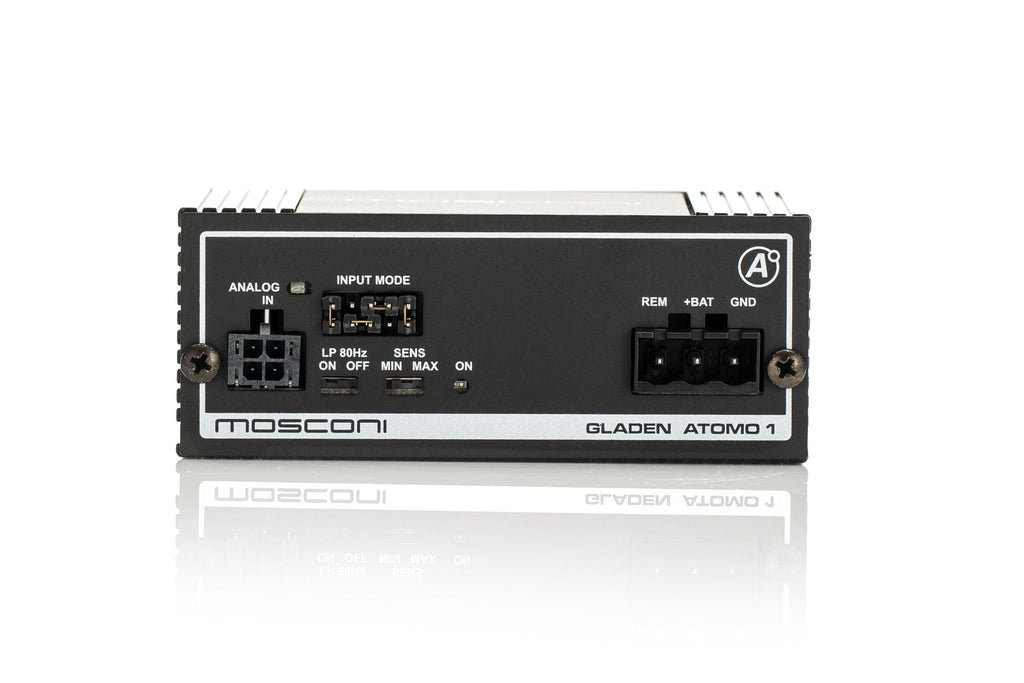

CONNECTIONS

  • Low/High level input :
    Micro-Fit

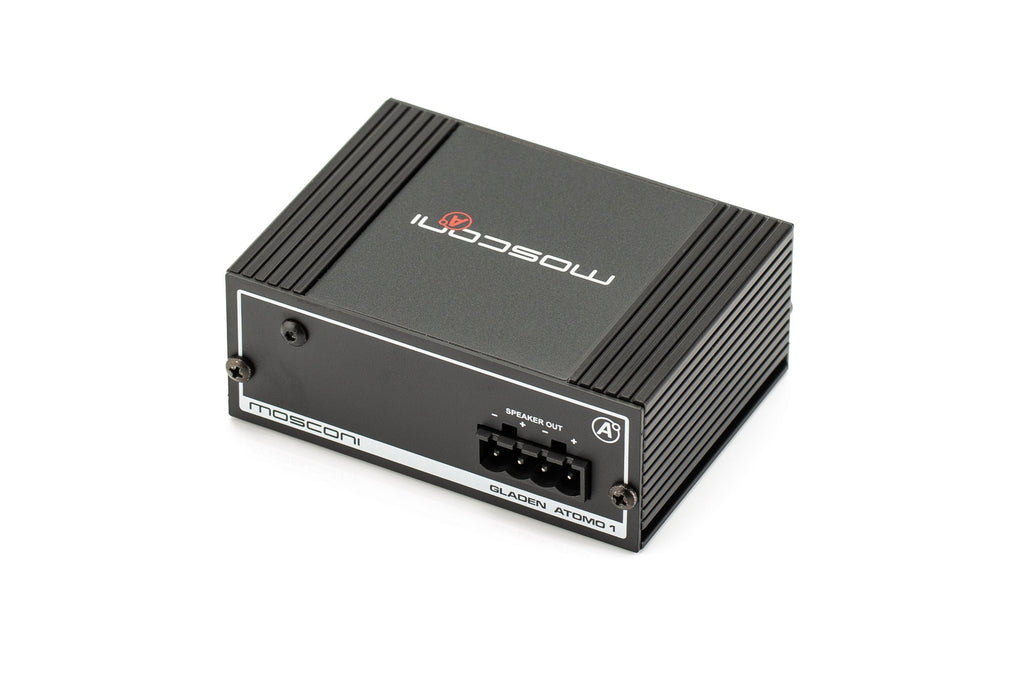

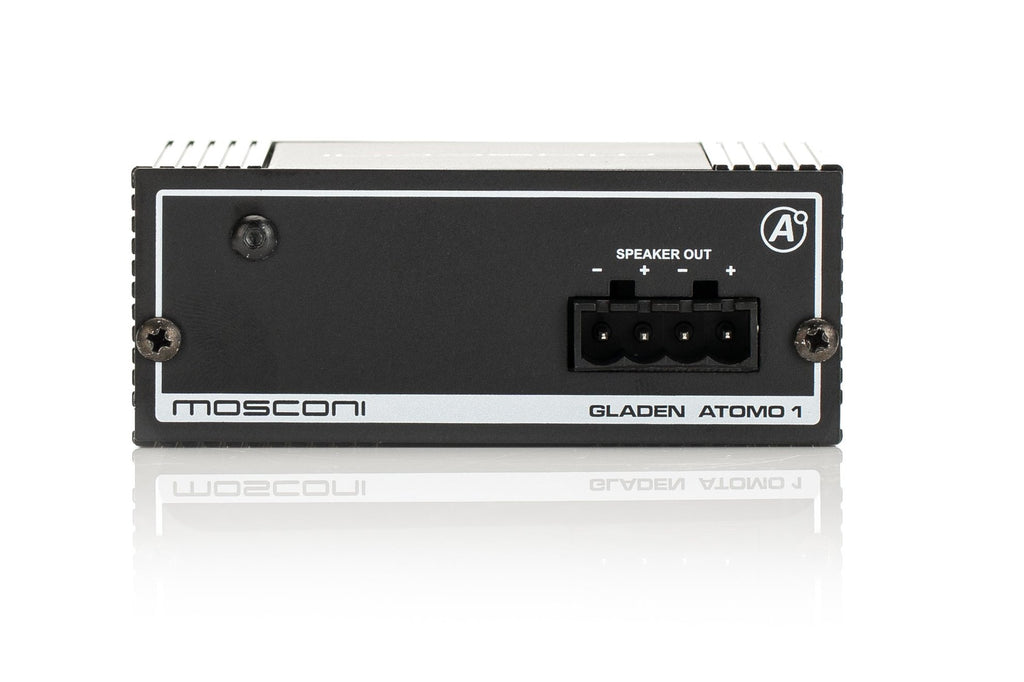

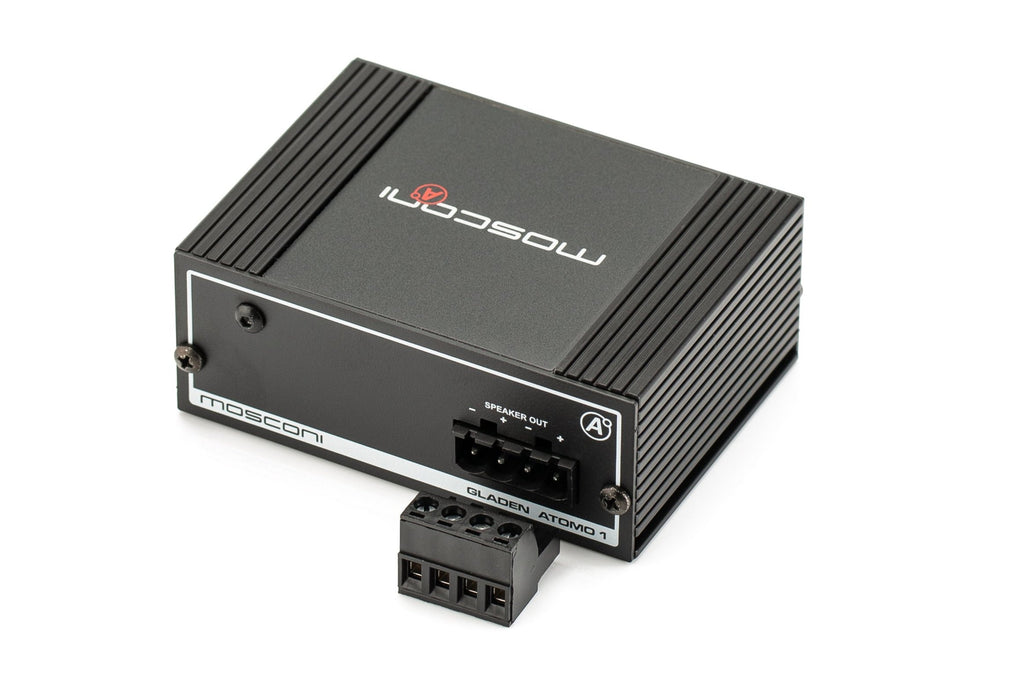

  • Speaker out:
    Mini-Fit

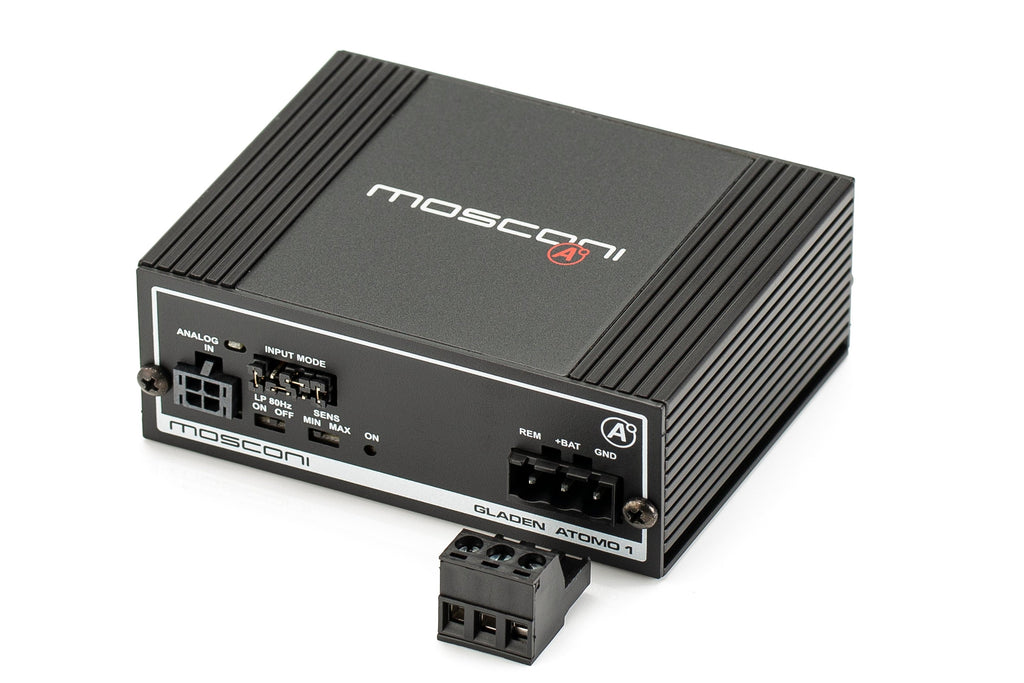

  • Power supply:
    Mini-Fit

APPEARANCE

  • Dimensions:

    86x65x34mm

  • Weight:

    280g

  • Finishing:
    Black anodized
