Description
THIS ITEM IS A SPECIAL ORDER WHICH MEANS IT CAN TAKE UP TO 2 WEEKS FOR DISPATCH. PLEASE NOTE ONCE WE HAVE ORDERED WE ARE UNABLE TO CANCEL YOUR ORDER

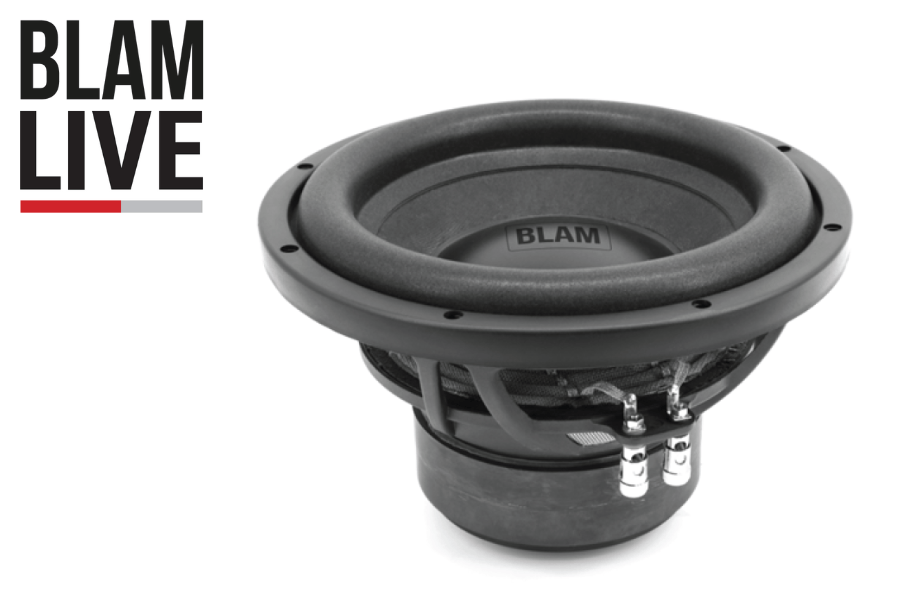

The LIVE L20 DB from BLAM is an impressive 8" (20cm) Dual Voice Coil subwoofer that stands out with its special combination of high-quality features. Crafted in a robust aluminium basket, it features a treated paper cone, a foam surround and a durable "Conex "-Spider. Thanks to its double magnet motor and its optimized adaptation to 10 L to 25 L closed enclosures, it offers remarkable sound quality. With a maximum power of 500 W and a high sensitivity of 89 dB, the LIVE L20 DB reproduces low frequencies with high efficiency and volume, making it a first-class addition to any car audio setup.
Why choose a passive car subwoofer?
For car audio enthusiasts looking to elevate their sound experience, combining a passive subwoofer with a high-quality amplifier is a game-changer. This setup not only maximizes the quality and power of low frequencies but also offers unparalleled customization options. By carefully selecting an amplifier that meets your specific power and audio quality requirements, you can tailor your sound system to deliver a rich, immersive audio experience. While the installation may require a bit more effort, the payoff is immense. Enjoy deep, resonant bass that transforms every drive into a concert-like experience. Dive into the world of high-performance audio and take your car's sound system to the next level!
Product Features
- 200 mm (8 Inch) subwoofer
- 500 W max power
- 250 W nominal power

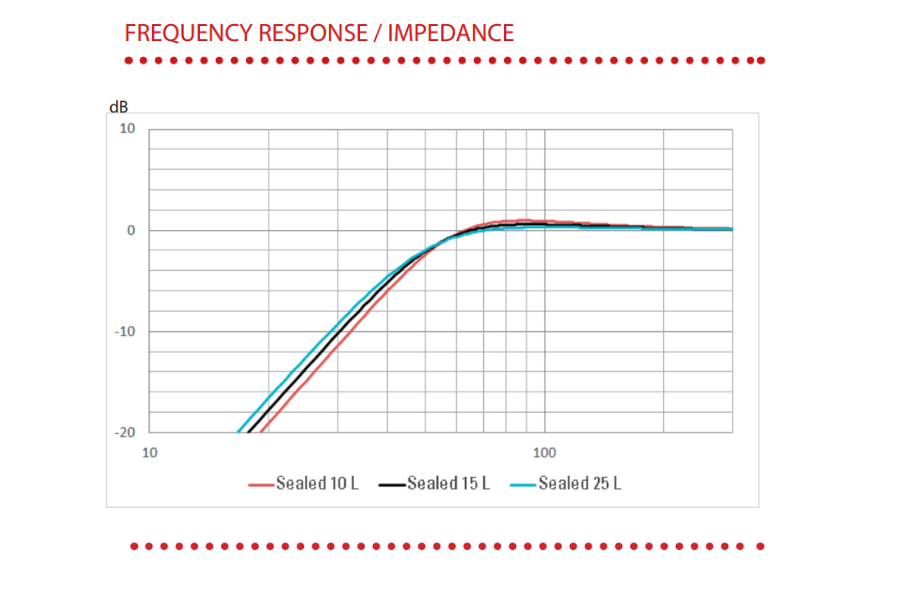

- Frequency response 45 Hz to 500 Hz
- Sensitivity 89 dB
- Impedance 2 x 2 Ω
Composition
- Aluminium basket
- Treated paper membrane
- Foam surround
- Long life “conex” spider
- Dual 50 mm voice coil on aluminium former
- 120 mm x 20 mm dual magnetic motor
- Extended T-yoke

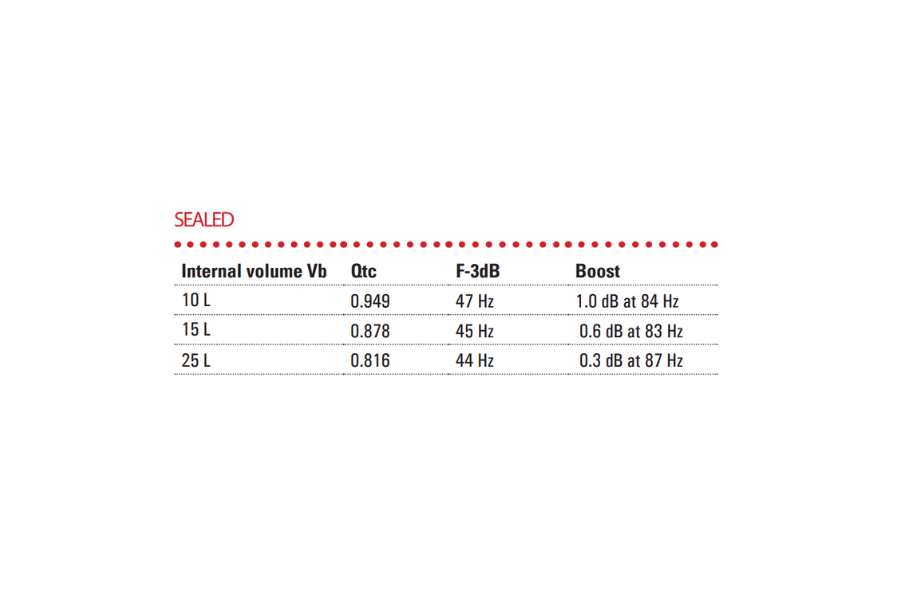

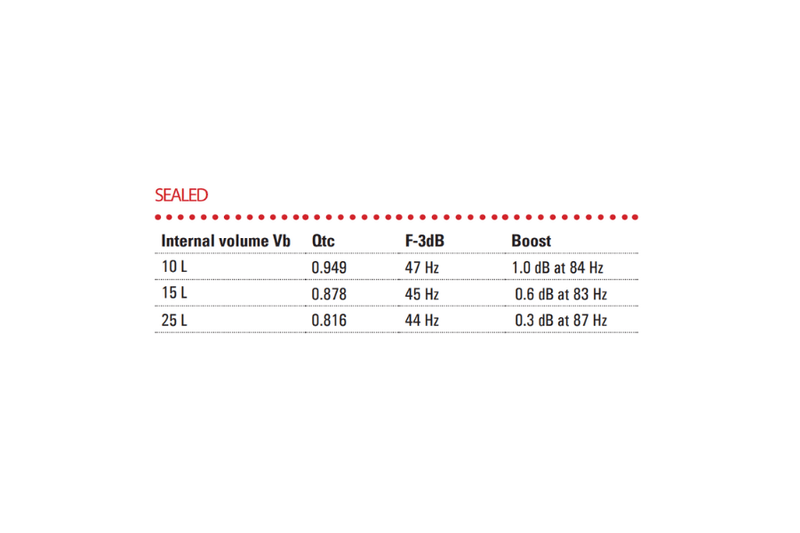

- Subwoofer optimized for 10 L to 25 L sealed enclosure

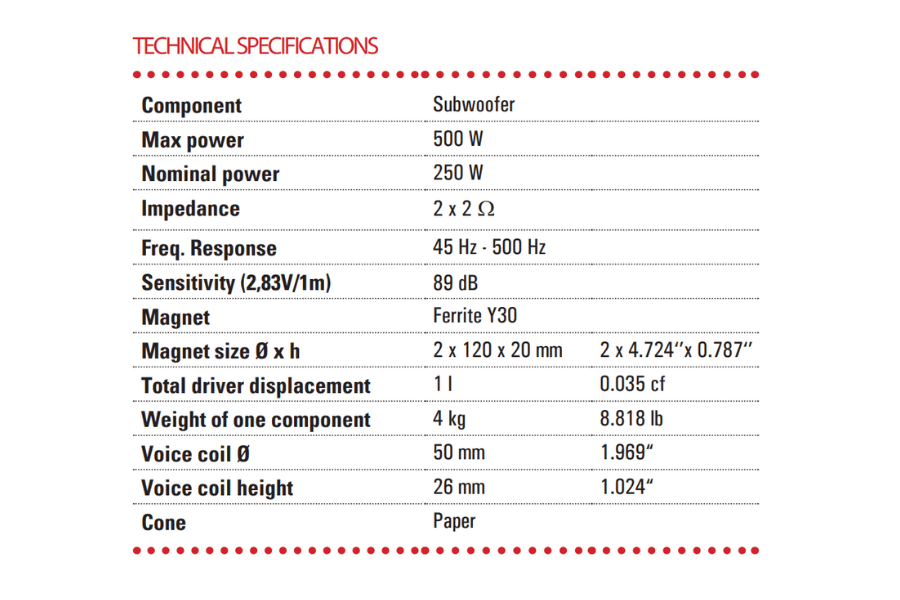

Technical Specifications
- Component Subwoofer
- Max power 500 W
- Nominal power 250 W
- Impedance 2 x 2 Ω
- Freq. Response 45 Hz - 500 Hz
- Sensitivity (2,83V/1m) 89 dB
- Magnet Ferrite Y30
- Magnet size Ø x h 2 x 120 x 20 mm 2 x 4.724‘’x 0.787‘’
- Total driver displacement 1 l 0.035 cf
- Weight of one component 4 kg 8.818 lb
- Voice coil Ø 50 mm 1.969“
- Voice coil height 26 mm 1.024“
- Cone Paper
Supplied Accessories
- User manual
