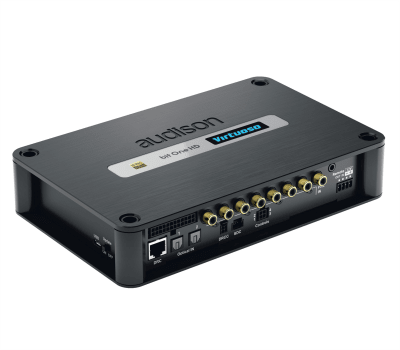

AUDISON BIT ONE HD - MULTI CHANNEL HI-RESOLUTION DIGITAL AUDIO PROCESSOR


Price:
£1,444.99

Description

Audison bit One HD, equipped with latest generation 450 MHz / 32 bit floating point DSP microprocessor, processes sound with 24 bit resolution at 96 kHz sampling frequency, achieving studio master quality in your car. The management software user interface makes the system configuration and calibration processes as user-friendly as possible, according to specific criteria required by the Car Audio industry. Twelve input channels for four different signal typologies (amplified, pre-amplified and TOSLINK optical digital) and six different sources managed through DRC MP remote control (provided), making the bit One HD a unique interface suitable for any need. Thirteen analogue and/or digital output channels ensure vast expandability for any audio system configuration.

DRC MP - Digital Remote Control Multimedia Play INCLUDED


The new Audison DRC MP (Digital Remote Control Multimedia Play) is compatible with all the Audison electronics featuring AC Link bus. Its slim profile along with the holder supplied with it eases the installation in the best position inside the car. Thanks to the new Joystick, “Rubber Touch” finished for best control of the movements along the four direction axes, the 'DRC Settings' menu can be adjusted and navigation is also possible through the 'Navy Command' function if the system features an Audison bit Play HD with video output connected to a monitor.

Audio DSP and converters
Analog Devices DSP (ADSP-21489), 32 bit floating-point Sharc series (450 MHz clock). Cirrus Logic (CS5368 8ch and CS4365 6ch) A/D and D/A
converters (24 bit/192 kHz) providing very high level performance

Inputs
12 independent high-level channels (signal-summing) or 6 independent analog low-level channels
2 analog low-level stereo auxiliary inputs
2 optical digital inputs (TOSLINK)

Memory
8 Preset separately managed and recalled from the DRC MP

Outputs
13 independent low-level analog channels and 2 AD Link outputs (13 independent digital audio channels to be connected through two CAT 5.S LAN
cables for use with AD Link provided amplifiers)

Turn on Controls
ART™, Automatic Remote turn On/Off for high level inputs through the DRC MP

Configuration
Guided procedure for the calibration and “signal routing” of the input channels to the output channels based on type and number of inputs,
loudspeakers and amplifiers, for the system setup to be developed

Signal summing, De-Equalization and Delay compensation
Automatic algorithms dedicated to the reconstruction of a stereo signal from a multi-channel signal and to fine-tune the signal in advanced OEM
systems: time delay compensation (De-Ta); sum of multi-amplified and limited bandwidth signals; signal de-equalization (De-Eq)

In/Out
Volume Input sensitivity automatically adjusted for the main inputs (Wizard with CD and DVD Test)
Manual input sensitivity adjustment for auxiliary inputs (SW)
Independent level control for each output channel for system fine-tuning (-40 ÷ 0 dB)

Dynamic Equalizer
Automatic system for the dynamic equalization between low and high listening levels, to be selected by the user via DRC MP

Equalizers
Four 5-poles parametric FIR type equalizers, one for each source
Thirteen 11-poles parametric IIR equalizers, one for each output channel
One 5-poles parametric FIR type main equalizer

Bass Boost
Low frequencies enhancement based on parametric equalizer, bound to the Woofer and Sub sections, to be set up by the user and selectable via DRC MP

Crossover filter
Filter type: Hi-Pass, Lo-Pass, Band-Pass, Full Range
Cut-off frequency: 70 steps available from 10 ÷ 20 kHz
Cut-off slope: 6 ÷ 48 dB Oct.
Alignments: Linkwitz, Butterworth, Bessel
Mute/Solo: for each output (On/Off)
Phase: for each output (0°/180°)

Time alignment
Procedure to set up the time delays on the real distances between the loudspeakers and the listening point (0÷22 ms max). The system also provides
for a manual fine-tuning in steps of 0.01 ms

Auto restart
Auto restart in case of DSP fault

DRC MP
Control: Master Volume (-60 ÷ 0 dB), Subwoofer Volume (-12 ÷ 0 dB), Balance, Fader; Inputs selection; Management of the pre-sets stored;
Bass Boost function turn on/off

PC Connection
1 micro USB connector (1.1/2.0/ 3.0 compatible) to connect to the PC

bit One HD software
Windows-based software (32/64 bit): Windows XP, Vista, 7, 8, 8.1, 10 available in “Standard” or “Expert” mode
Minimum resolution: 800 x 600



POWER SUPPLY
Voltage 11÷15 VDC
Operating power supply voltage 7.5 ÷ 14.4VDC
Idling current 0.75 A
Switched off without DRC MP 2 mA
Switched off with DRC MP 5 mA
Remote IN voltage 6.5 ÷ 15 VDC (1mA)
Remote OUT voltage 10 ÷ 15 VDC (130 mA)
ART (Automatic Remote Turn ON) 4÷7 VDC
Fuse 2 A

SIGNAL STAGE
Distortion - THD @ 1 kHz, 1 VRMS Output 0.004 %
Bandwidth @ -3 dB 4.5 Hz ÷ 32k Hz
S/N ratio @ A weighted
Master Input 96 dBA
AUX Input 95 dBA
OPTICAL IN1 / IN2 Inputs 105 dBA
Channel Separation @ 1 kHz 77 dBA
Input sensitivity Pre Master 0.7 ÷ 6.5 V RMS
Input sensitivity Speaker Master 2 ÷ 16 V RMS
Input sensitivity AUX Master 0.3 ÷ 5 V RMS
Input impedance Pre In / Speaker In / AUX 15 kΩ
Max Output Level (RMS) @ 0.1% THD 4V

INPUT STAGE
Low level (Pre) Ch1÷Ch6, AUX L/R
High Level (Speaker In) Ch1÷Ch12
Digital 2 x Optical (S/PDIF; Max 192 kHz/24 bit)

OUTPUT STAGE
Low level (Pre) Ch1÷Ch13
Digital AD Link 1 Ch1÷Ch8
Digital AD Link 2 Ch9÷Ch13

CONNECTION
From / To Personal Computer 1 x micro USB
To Audison Amplifiers 2 x (AC Link/AD LINK) control bus
To Audison DRC MP 1 x AC Link

CROSSOVER
Filter type Full / High-Pass / Low-Pass / Band-Pass
Filter mode and slope
Linkwitz @ 12 / 24 / 36 / 48 dB
Butterworth @ 6 / 12 / 18 / 24 / 30 / 36 /
42 / 48 dB
Bessel @ 6 / 12 / 18 / 24 / 30 / 36 dB
Crossover Frequency 70 steps @ 10 ÷ 20k Hz
Phase control 0° / 180°

EQUALIZER (20 ÷ 20K Hz)
High Level Inputs (Speaker In) Automatic De-Equalization and Delay
compensation
AUX Input Parametric Equalizer: ±12 dB;5 poles
OPTICAL IN1/IN 2 Inputs Parametric Equalizer: ±12 dB;5 poles
OUTPUTS N.13 Parametric Equalizers: ±12 dB;11 poles
MAIN EQ Parametric Equalizer: ±12 dB;5 poles
Dynamic Equalization Self-adjusting System between low and high
listening levels
Bass Boost Adjustable parametric pole (±12 dB; 10 ÷
500 Hz)

TIME ALIGNMENT
Distance 1.4 ÷ 756 cm / 0.6 ÷ 297.7 inches
Delay 0 ÷ 22 ms
Step 0.04 ms, 1.4 cm, 0.6 inch
Fine step 0.01 ms, 3.5 mm, 0.15 inches

GENERAL REQUIREMENTS
PC connections USB 1.1 / 2.0 / 3.0 Compatible
Software/PC requirements Microsoft Windows (32/64 bit): XP, Vista,
Windows 7, Windows 8, Windows 10
Video Resolution with screen resize min. 800 x 600
Ambient operating temperature range 0 °C to 55 °C (32°F to 131°F)

SIZE
W (Width) x H (Height) x D (Depth)
mm/inch 148 x 43.6 x 233 / 5.82” x 1. 7” x 9.17”
Weight kg/lb 1.775 / 3.9
