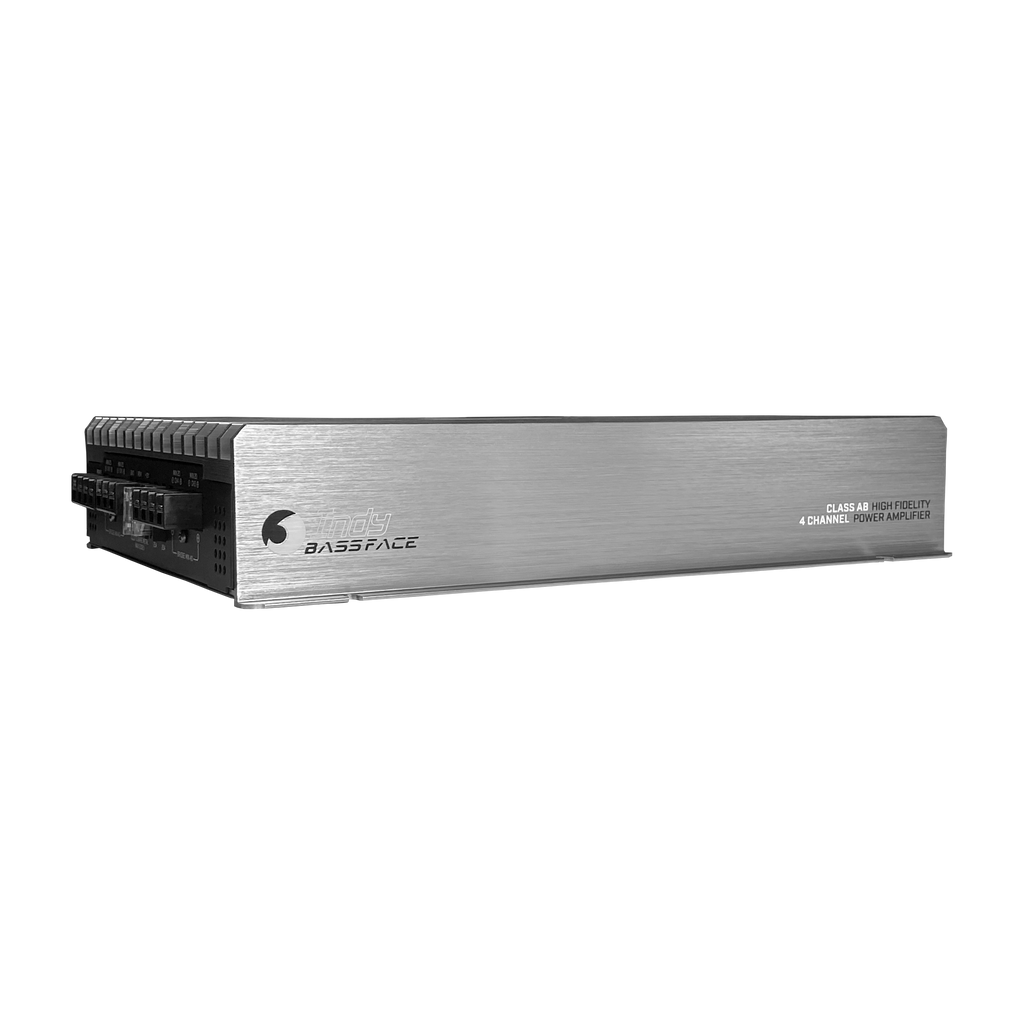

Bassface Indy DB4.1X 4/3/2 Channel Bridgeable Stereo 12v Power Amplifier 340w Verified RMS @13.8v 0.05%THD
TECHNICAL HIGHLIGHTS
- Class AB Amplifier
- High Quality RCA Connectors
- Heavy Duty Screw Terminals
- High Class Presentation Box (Safe Transit)
- Printed Instruction Manual & Data Sheet
- 6V Stable RCA Inputs
- High Level inputs
- Variable Low-Pass Crossover
- Variable High-Pass Crossover
- Line Output For Daisy Chain Amplifier Applications
WHAT'S IN THE BOX?
- 1 x High Performance Amplifier
- 1 x BFS.2 Bassface Sticker
- 2 x Replacement Fuse
- 4 x Mounting Screws
- 1 x Set Instruction & Data Sheets
- 1 x High Level Input Cable
KEY FACTS
| Product Category | Amplifiers |
| Version | 1 |
| Series | Indy |
| Date Modified | 08/09/2020 |
| Barcode | 685757152327 |
| Production Status | Current |
| Retail Carton L (mm) | 450 |
| Retail Carton W (mm) | 400 |
| Retail Carton H (mm) | 150 |
| Warranty (Months) | 12 |
| Sold As | Single |
AMPLIFIER DATA
| Frequency Response (Hz) | 20>22,000 |
| Signal To Noise Ratio (db) | 82 |
| LPF (Hz) | 30>250 |
| HPF (Hz) | 60>1,200 |
| Bass Boost (Db) | 0>12 |
| Audio Signal Input Voltage (V) | 0.2>5 |
| Amplifier Topology | Class A/B |
| Fuse Rating (Amps) | 4X25 |
| Power Wire Input Gauge (AWG) | 8 |
| Minimum Recommend Final Load Per Channel (Ohms) | 2 |
EXTENDED AMPLIFIER DATA
| Verified RMS 13.8V Per Channel 4Ohm (Watts)@(THD), (Amps), (Version) | 4X65 |
| Verified RMS 13.8V Per Channel 2Ohm (Watts)@(THD), (Amps), (Version) | 4X85 |
