Description

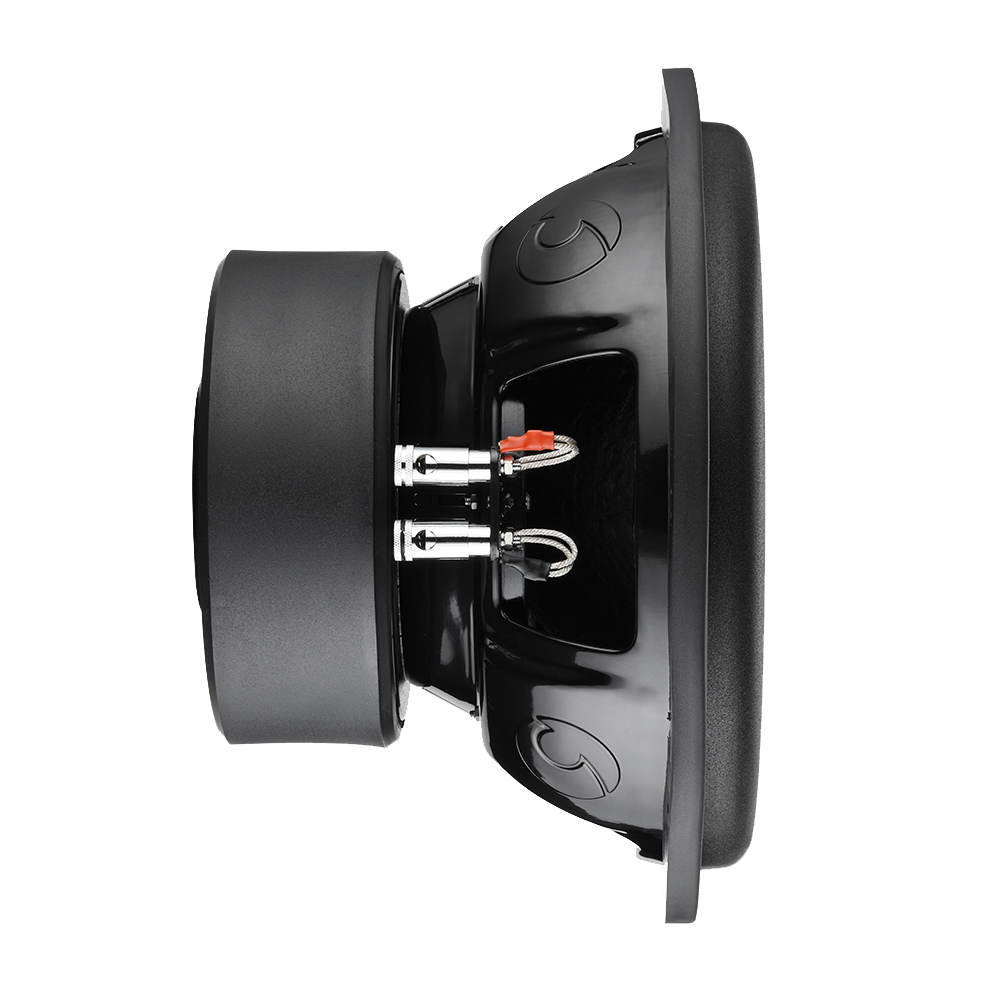

IndyEVO12/2 12" 2x2Ohm DVC 1500WRMS Professional Deep Bass Subwoofer For Sealed Or Ported Enclosures
KEY FACTS
Product Category | Subwoofers |
Version | 1 |
Series | Indy |
Date Added | 08/01/2020 |
Date Modified | 16/02/2022 |
Barcode | 5060905110643 |
Production Status | Current |
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) | 10000 |
Product Height (mm) | 203 |
Product Length (mm) | 325 |
Product Width (mm) | 325 |
Complete Product Pack Weight (g) | 13000 |
Retail Carton L (mm) | 377 |
Retail Carton W (mm) | 377 |
Retail Carton H (mm) | 295 |
Operating Temperature (Degrees Celsius) | 0-50 |
Warranty (Months) | 12 |
Sold As | Single |
SPEAKER DATA
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) | 1500 |
Overall Diameter (mm) | 325 |
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) | 180 |
Installation Cut-out Diameter (mm) | 280 |
Overall Depth (mm) | 198 |
Mounting Depth (mm) | 173 |
Front Protrusion From Mounting Plane (mm) | 30 |
Optimum Frequency Range (Hz) | 20-80 |
Impedance (Ohm) (Nominal) | 2+2 |
Sensitivity (db/1Wm) | 85.97 |
Total Magnet Weight (Oz) | 168 |
Magnet Size (mm) | 180*25 |
Magnet Type | Y38 |
Magnet Qty | 2 |
Top Plate thickness (mm) | 10 |
Back Plate thickness (mm) | 8 And Bump |
Recommended Bass Enclosure Type | Ported |
Recommended Bass Enclosure Volume (CuFt) | 1-2.5 |
Recommended Bass Enclosure Tuning Frequency (Hz) | 35 |
Voice Coil Former Spec | Aluminium |
Voice Coil Type | CCA Flat Wire |
Voice Coil Diameter (mm) | 80.5 |
Voice Coil Internal Diameter (mm) | 75 |
Voice Coil External Diameter (mm) | 80.5 |
Voice Coil Winding Hight (mm) | 36 |
Voice Coil Winding (Layers) | 8 |
Cone Type | Non Pressed Paper |
Spider Compliance | Medium |
Spider Type | Progressive |
Spider Diameter (mm) | 188 |
Spider Design | 1x1, spacer, 1x1 |
Surround | Tall smooth |
Surround Material | Foam |
Tinsel Wire | Double round wire stitched |
Terminal | Push |
TECHNICAL HIGHLIGHTS
- Custom Tooled Spiders For Added Coil Control
- High RollSurround To Allow For High Excursion And Cone Area
- Soft Suspension For Deep Low Notes
- Oversized 4 AWG Inputs For Easy Use
- Dual Tinsel Leads For Fail-safe In Extreme Use
- Extreme Duty Non Pressed Paper Cone
WHAT'S IN THE BOX?
- 1 x Subwoofer
- 1 x Comprehensive Datasheet
- 1 x Detailed Box Design Manual
- 1 x Series Window Sticker
