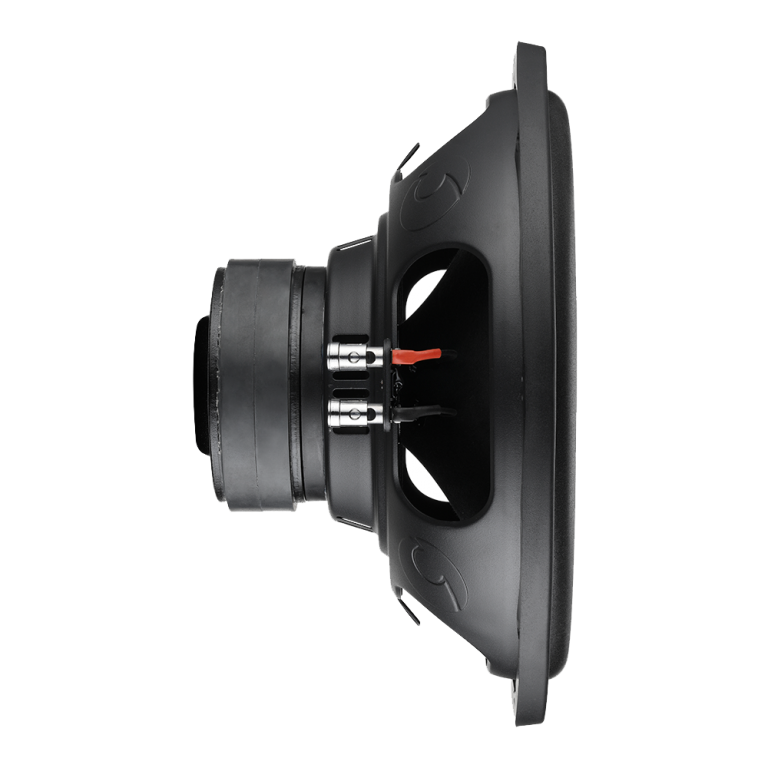

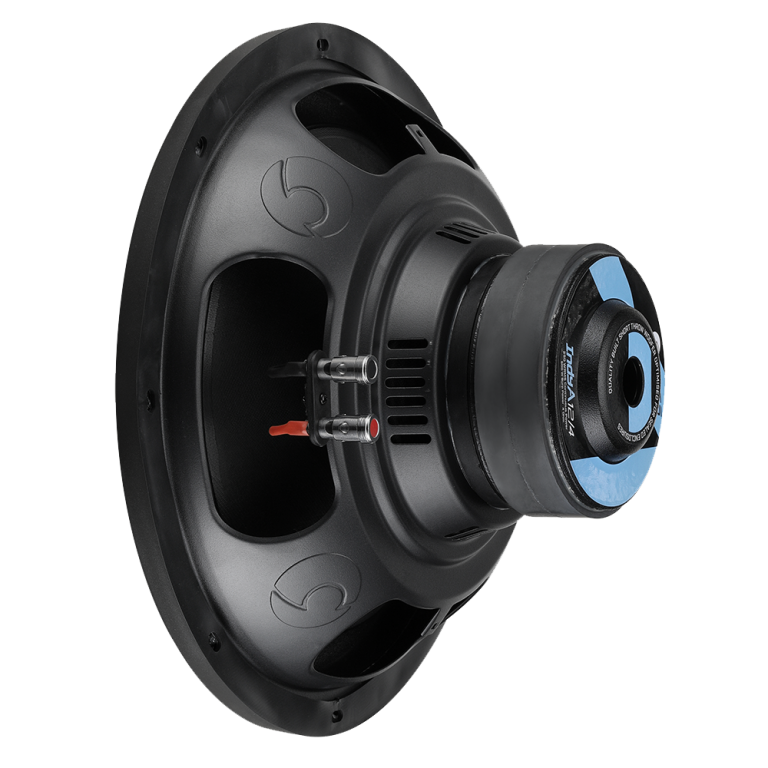

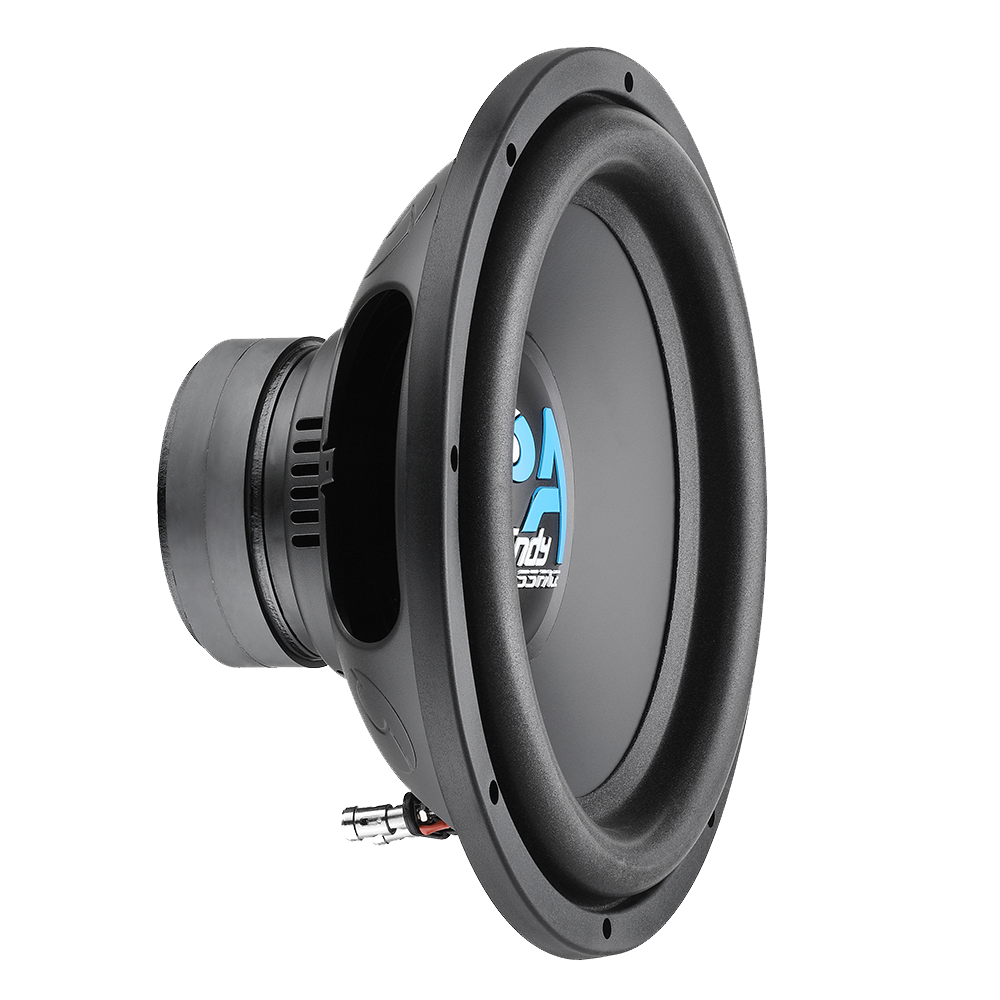

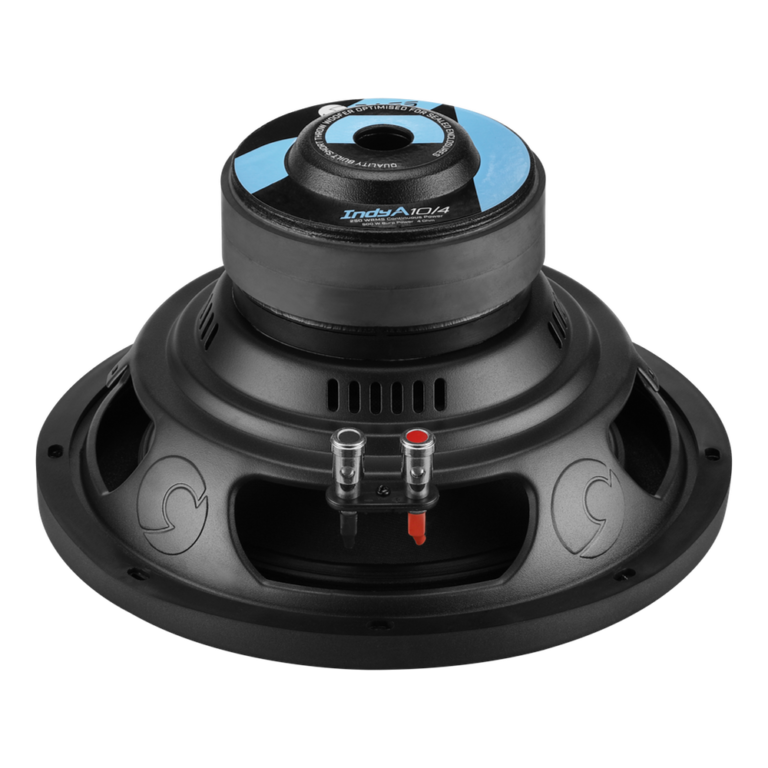

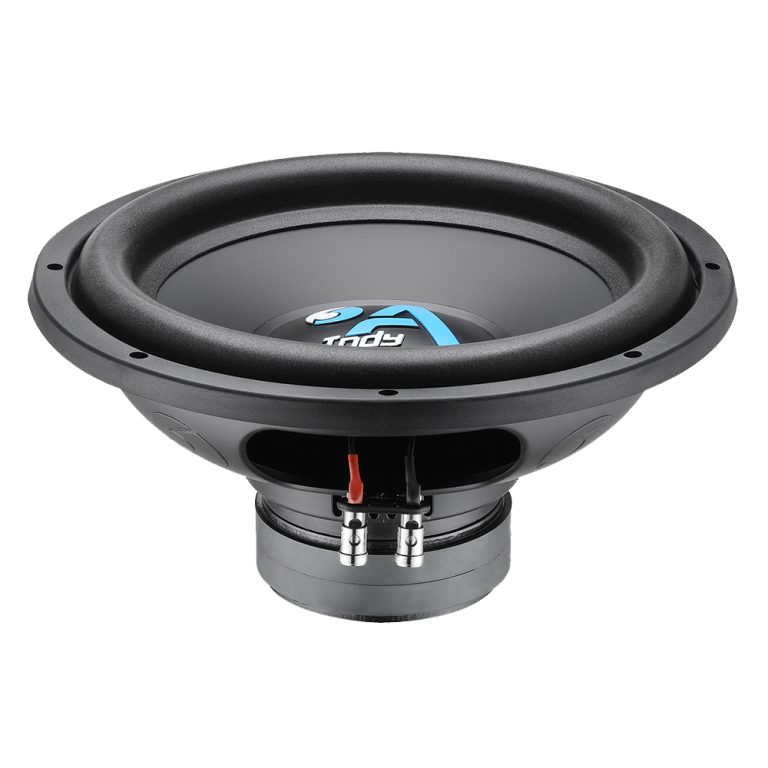

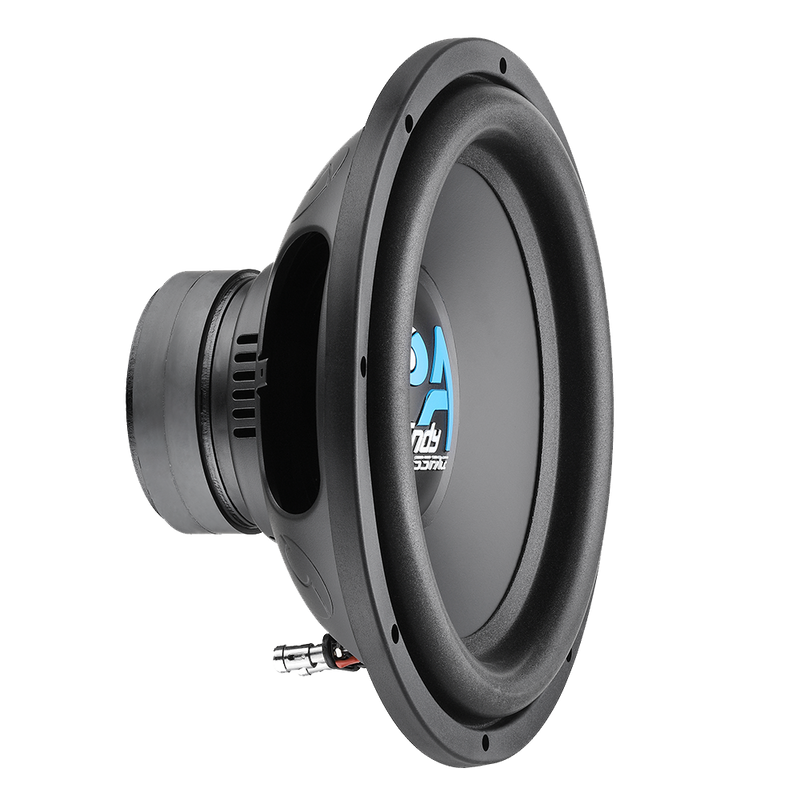

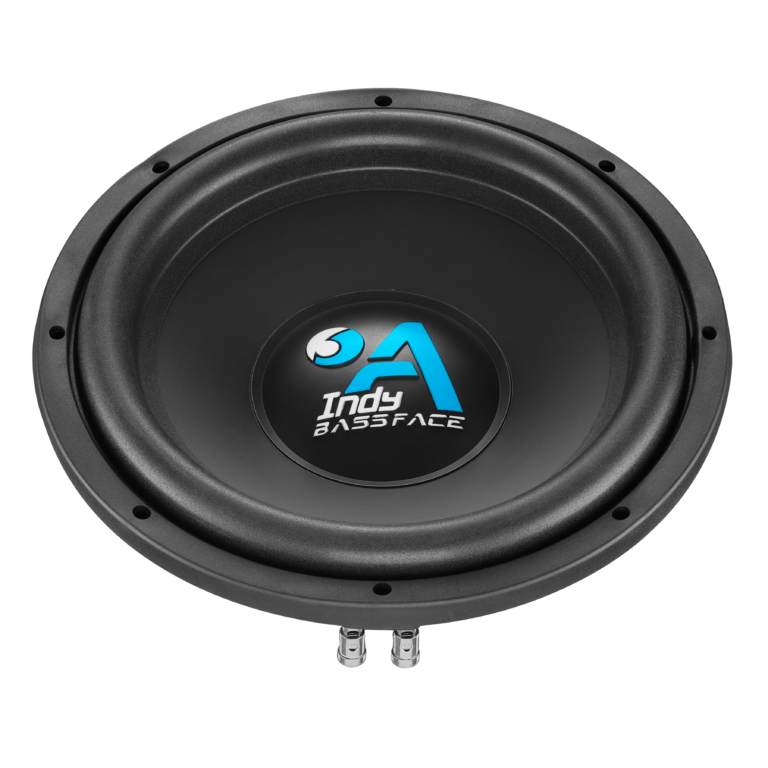

BASSFACE IndyA12/4 - 12" Subwoofer For Sealed Enclosures


Price:
£44.99

Description

 IndyA12/4 12" 1x4Ohm SVC 250WRMS Quality Subwoofer For Sealed Enclosures

KEY FACTS


Product Category Subwoofers
Version 1
Series Indy
Date Added 08/01/2020
Date Modified 03/09/2021
Barcode 685757152945
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 3500
Product Height (mm) 148
Product Length (mm) 315
Product Width (mm) 315

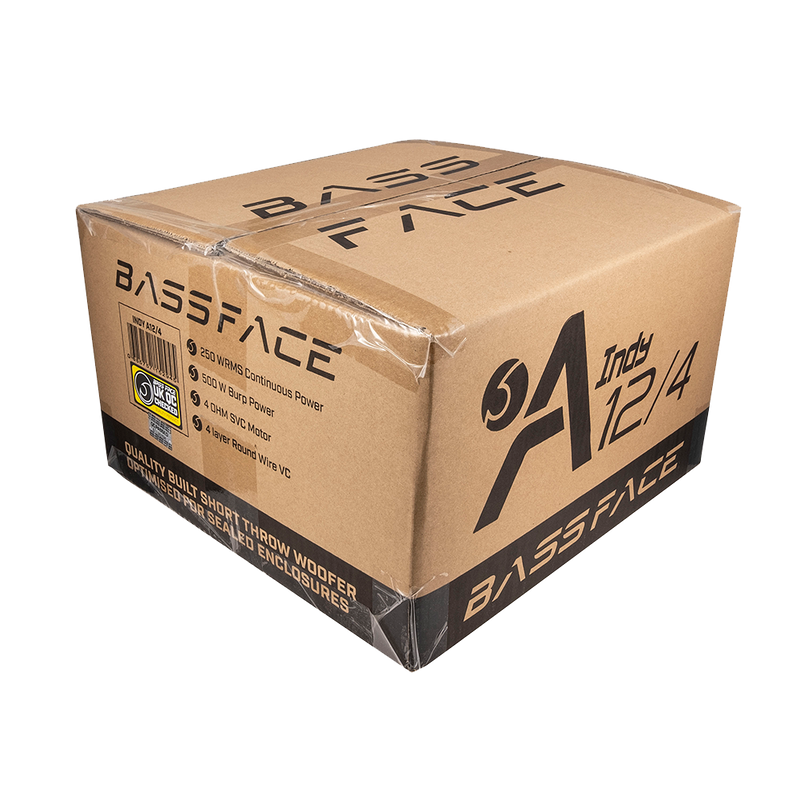

Complete Product Pack Weight (g) 4200
Retail Carton L (mm) 350
Retail Carton W (mm) 350
Retail Carton H (mm) 215
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

SPEAKER DATA


Speaker Maximum Burst Power (Watts) (One Speaker, Using Appropriate Crossover) 500
Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 250
Overall Diameter (mm) 315
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 120
Installation Cut-out Diameter (mm) 280
Overall Depth (mm) 168
Mounting Depth (mm) 148
Front Protrusion From Mounting Plane (mm) 30
Optimum Frequency Range (Hz) 25>80
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 87.61
Total Magnet Weight (Oz) 45
Magnet Size (mm) 120*15
Magnet Type y25
Magnet Qty 2
Top Plate thickness (mm) 6
Back Plate thickness (mm) 6 And Bump
Recommended Cable 12AWG/OFC
Recommended Bass Enclosure Type Sealed
Recommended Bass Enclosure Volume (CuFt) 0.8>2.5
Recommended Box Design Credit Bassface Distribution Ltd
Voice Coil Former Spec Aluminium
Voice Coil Type Copper Round Wire
Voice Coil Diameter (mm) 54.2
Voice Coil Internal Diameter (mm) 50.8
Voice Coil External Diameter (mm) 54.2
Voice Coil Winding Hight (mm) 16
Voice Coil Winding (Layers) 4
Cone Type Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 152
Spider Design 1*2,spacer,1*2
Surround Tall Smooth
Surround Material Foam
Tinsel Wire Single

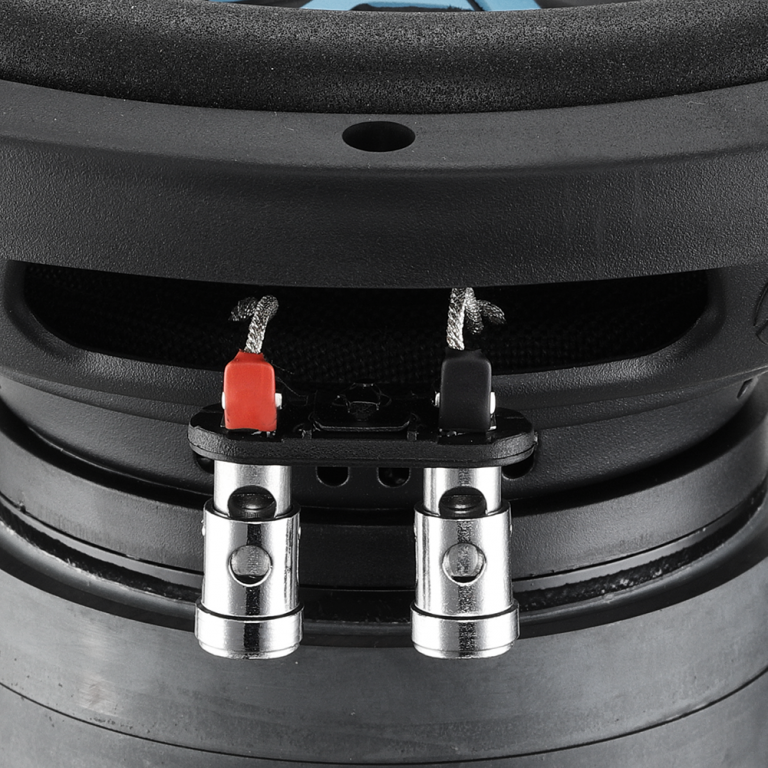

Terminal Push

Indy A concept was designed to offer an all-round high performance woofer at a reasonable price point. The new engineering team drew up a wish list of specification points and made several prototypes before settling on the current basket, motor and cone layout. From there detail changes were made to almost every aspect of the basic design focussing on each detail. The Indy A branding was originally conceived in mid-2020, with outline specifications in place by the end of that year. Prototypes were built throughout late 2020 and first production models were made available Q3 2021
