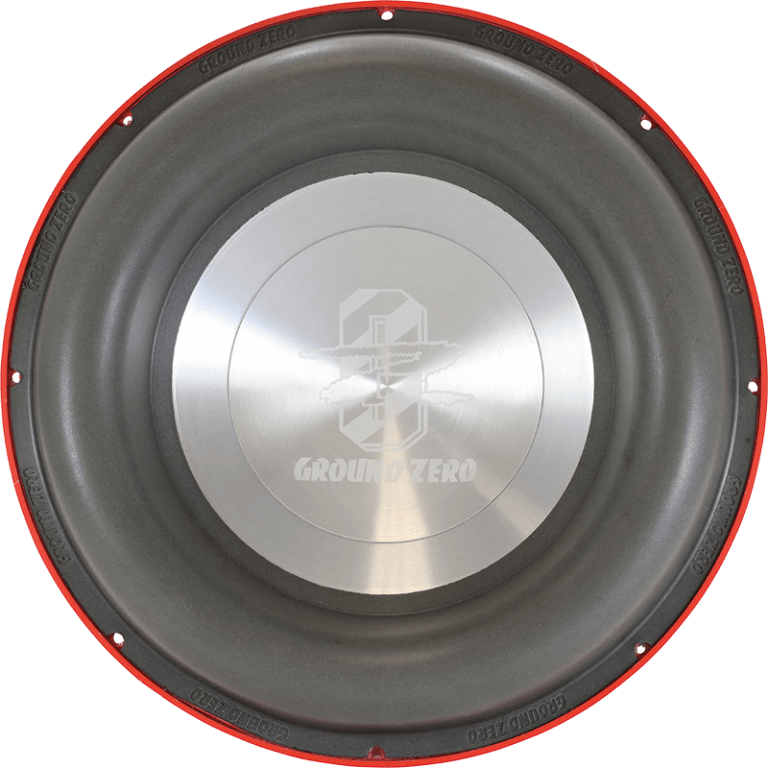

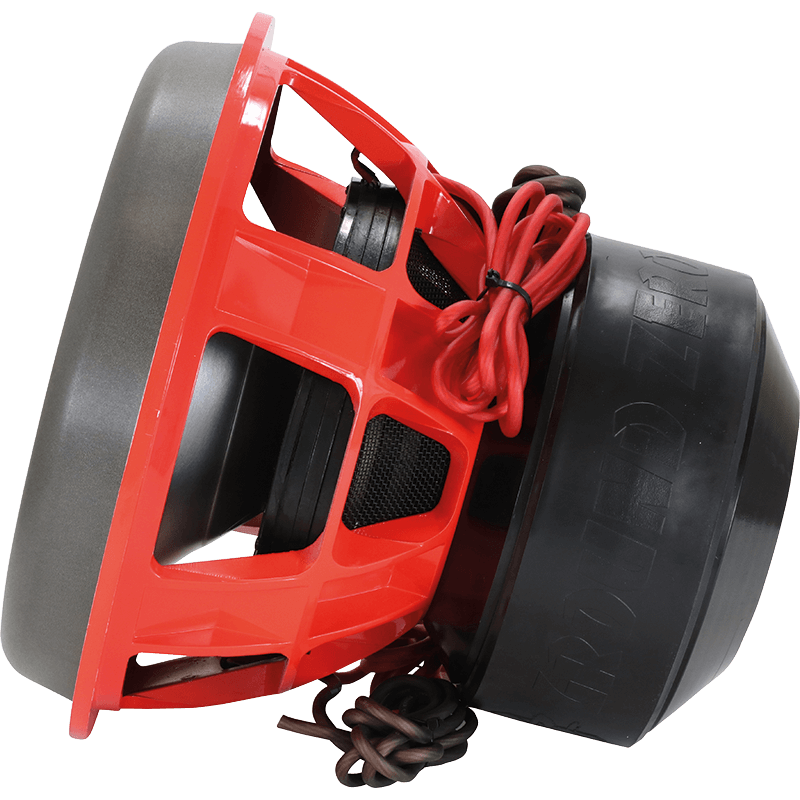

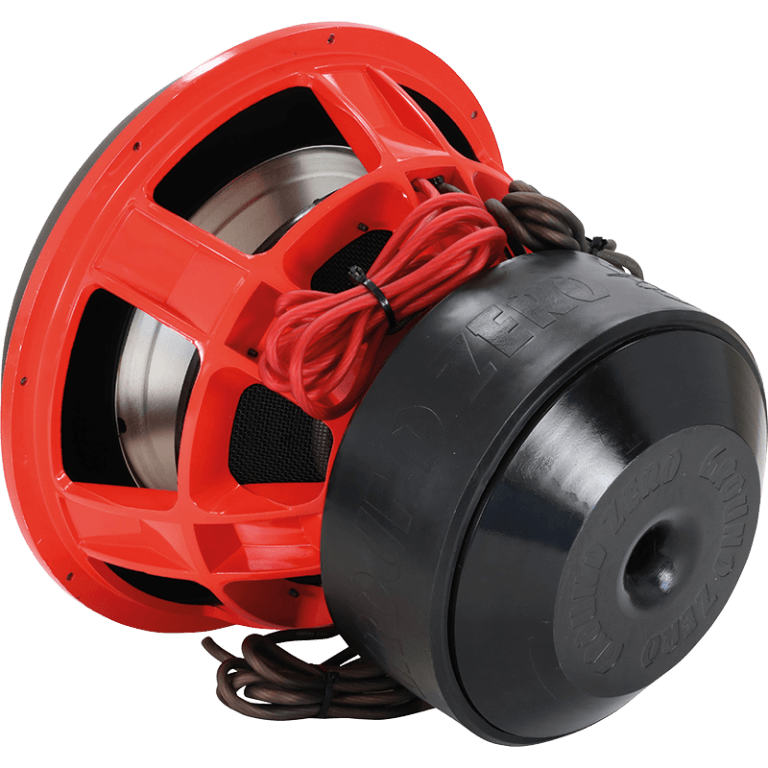

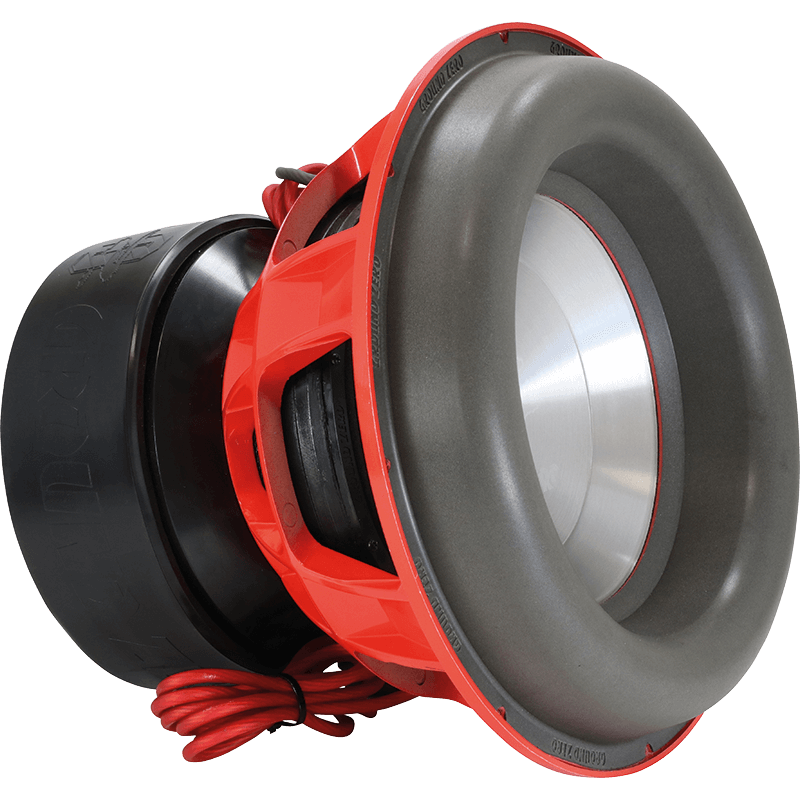

38 cm / 15″ high power long stroke subwoofer
6000 Watts RMS
15″ high power low bass subwoofer with aluminium cast basket and Xmax surround
- 15″ high power long stroke subwoofer
- Klippel® optimized
- Aluminium cone
- Long stroke foam surround
- Solid aluminium cast basket
- 100 mm / 4″ flat wire voice coil
- 4-layer Nomex spider
- Aluminum dust cap
| Model |
High-Power Low-Bass-Subwoofer |
|---|---|
| Diameter |
38 cm / 15" |
| Belastbarkeit (RMS) |
6000 Watts |
| Impedanz |
2x 1 Ohms |
| Effizienz |
85 dB |
| Power recommendation |
4000 – 8000 Watts |
| Voice coil |
100 mm / 4" CCA |
| Cone |
Aluminium |
| Max. Excursion (Xmax) |
80 mm |
| Einbautiefe |
313 mm |
| Resonance frequency (Fs) |
33.3 Hz |
| Dämpfungsgrad (Qts) |
0.442 |
| Äquiv. Luftvolumen (Vas) |
22.8 L |
