Description
Entering a new dimension
The name says it all – the new HELIX DSP ULTRA is anything but another signal processor with just more channels.
Rather, it is the next technological milestone that impressively demonstrates Audiotec Fischer's expertise in the field of DSP technology.
TwinDSP Power
Computing power can only be replaced by even more computing power – and that's why the DSP ULTRA is equipped with two of the most powerful 64 Bit audio signal processors from Analog Devices. Incredible 2.4 billion MAC operations per second make the twelve separately processed channels and the multitude of new sound features in combination with the high sampling rate of 96 kHz (resulting in an audio bandwidth of over 40 kHz) possible.
ACO – Advanced 32 Bit platform
Rapid processing power not only in the signal path – the particularly fast 32 Bit ACO platform takes over all control tasks and ensures the decisive speed increase, especially for data communication with our DSP PC-Tool software, but also for the lightning-fast switching between up to ten possible sound setups. But ACO offers much more – fantastic sound effects such as Augmented Bass Processing or StageXpander are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup ex works.
Even further improved audio performance
The HELIX DSP ULRA justifies its name not only in terms of functionality, but also with respect to sound quality. An extremely complex and newly designed analog input stage ensures phenomenal sound characteristics with full high-res audio bandwidth up to more than 40 kHz. But that's not all – tremendous effort was put into filtering out any unwanted interference in the power supply of the individual stages. In addition, only particularly low-noise operational amplifiers from TI / BurrBrown's legendary "OPA series" are now used.
Virtual Channel Processing – a new era of signal routing begins
The adaptation to modern OE sound systems via an increasing number of inputs has a significant impact on the complexity of the signal routing inside the processor. Especially when several input signals are mixed together and then split again into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. Audiotec Fischer's new, multi-stage "Virtual Channel Processing", in conjunction with the recognized user-friendly DSP PC-Tool software, makes it easy to realize even highly complex system configurations. Besides that it allows to freely assign our proprietary FX sound features such as "RealCenter" or "StageEQ".
Absolute connectivity
The simple adaptation to existing factory radios or multi-channel OE sound systems is more important than ever before – and that's why the DSP ULTRA is not only equipped with the latest generation ADEP.3 circuit, but also offers a particularly large adjustment range for the input sensitivity. The enormous range of 1 - 8 Volts (RCA) or 4 - 32 Volts (highlevel) allows the combination with almost any imaginable analog signal source, even with high-power OE amplifiers.
Elegant, smart and compact
Despite its vast range of functions, the new HELIX DSP ULTRA inspires with its straightforward and timeless design that is still compact – ideal for a simple installation. The sum of its characteristics makes the HELIX DSP ULTRA the perfect "tool" for every uncompromising audiophile music lover with highest demands.
- TwinDSP Power – two extremely powerful “fixed point” Audio DSPs with 64 Bit resolution and 2.4 billion MAC operations per second
- State-of-the art 32 Bit AD and DA signal converters from AKM
- Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
- ACO – Advanced 32 Bit CoProcessor platform for numerous new system an DSP features like:
- ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
- SFX (DSP Sound Effects) – Augmented Bass Processing, StageXpander, RealCenter & Co.
- 10 internal memory locations for sound setups
- HELIX Extension Card slot (HEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
- Smart 8-channel highlevel input with ADEP.3 circuit
- Start-Stop capability down to 6V supply voltage
- “Ground lift” switch to avoid ground loops
- Control input for connecting remote controls and accessories
- Time alignment with up to 20 ms delay time per channel, additionally reverse time alignment for in-phase summation of the inputs
- Freely definable signal routing with separate matrices for line, SPDIF and HEC/AUX

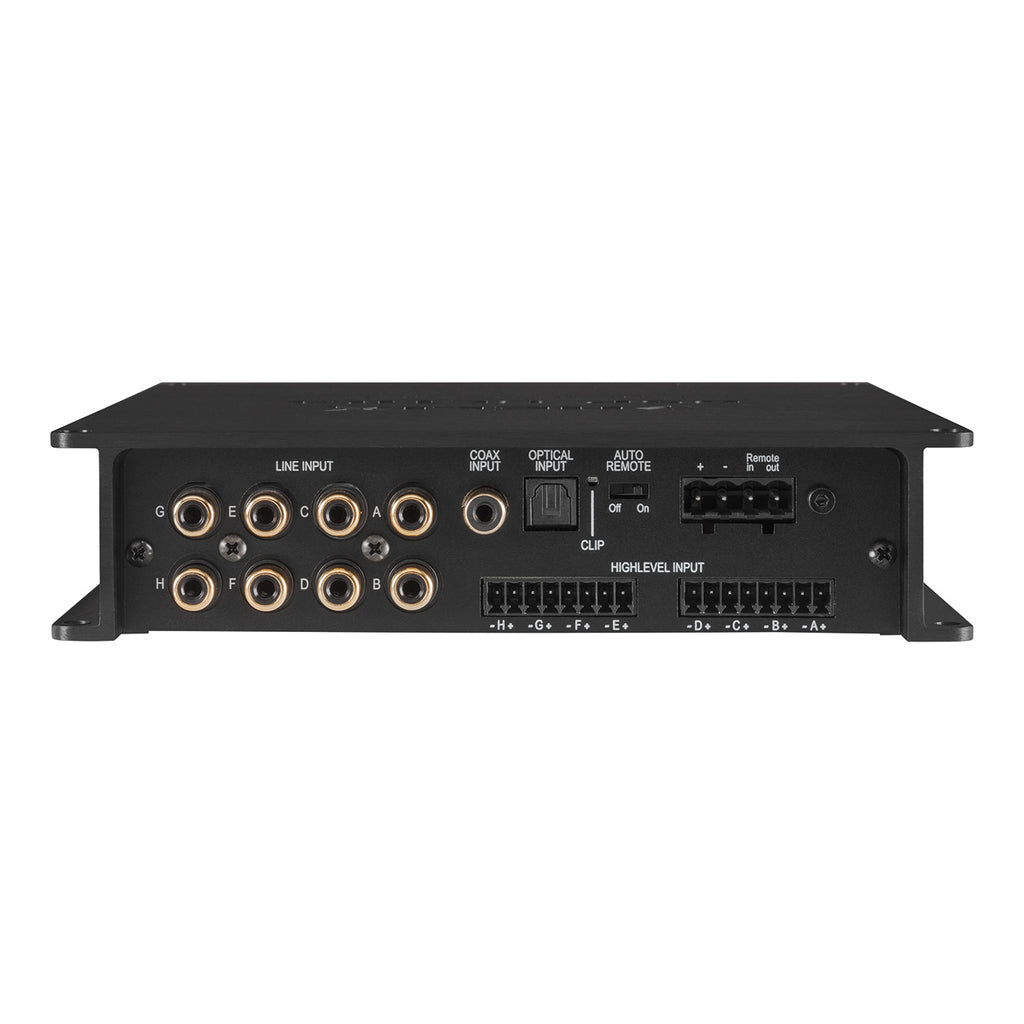

- Inputs: 8 x RCA/Cinch, 8 x Highlevel, 1 x optical SPDIF and 1 x coaxial SPDIF

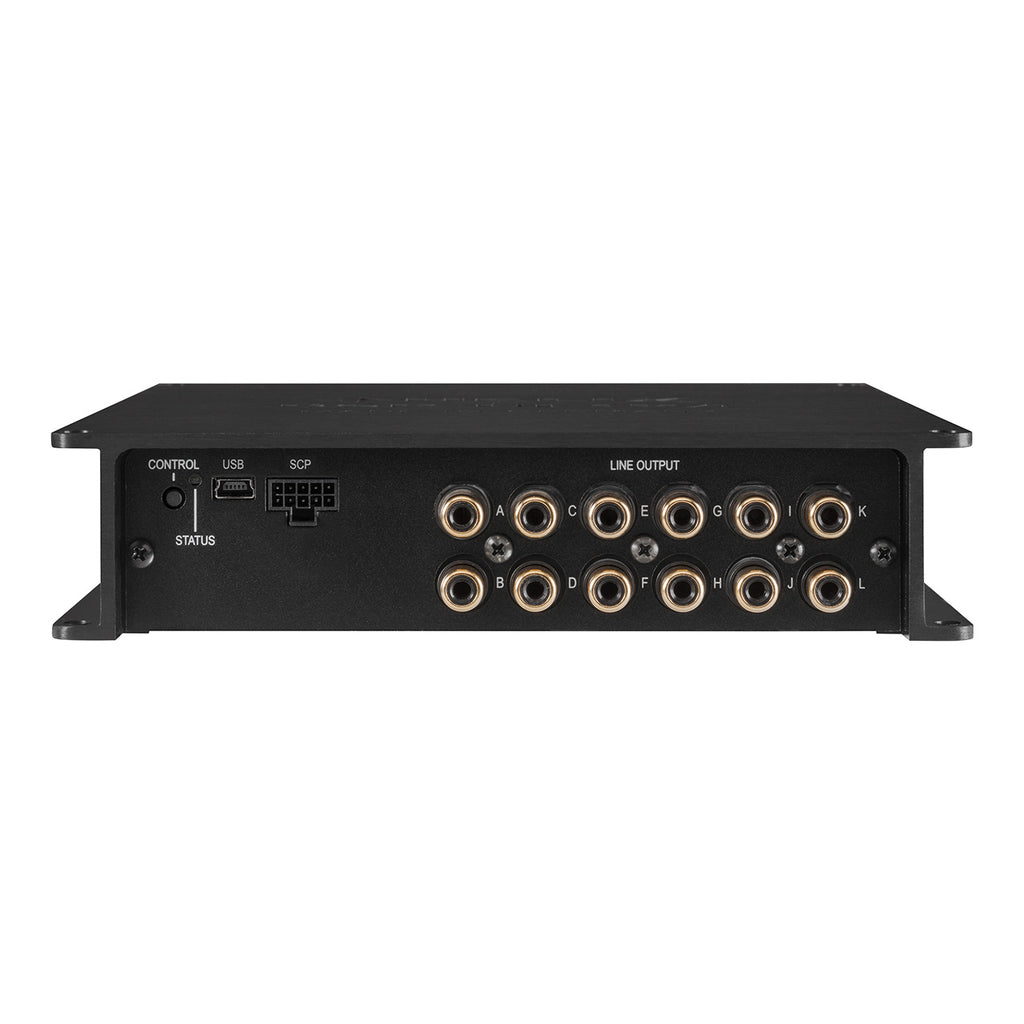

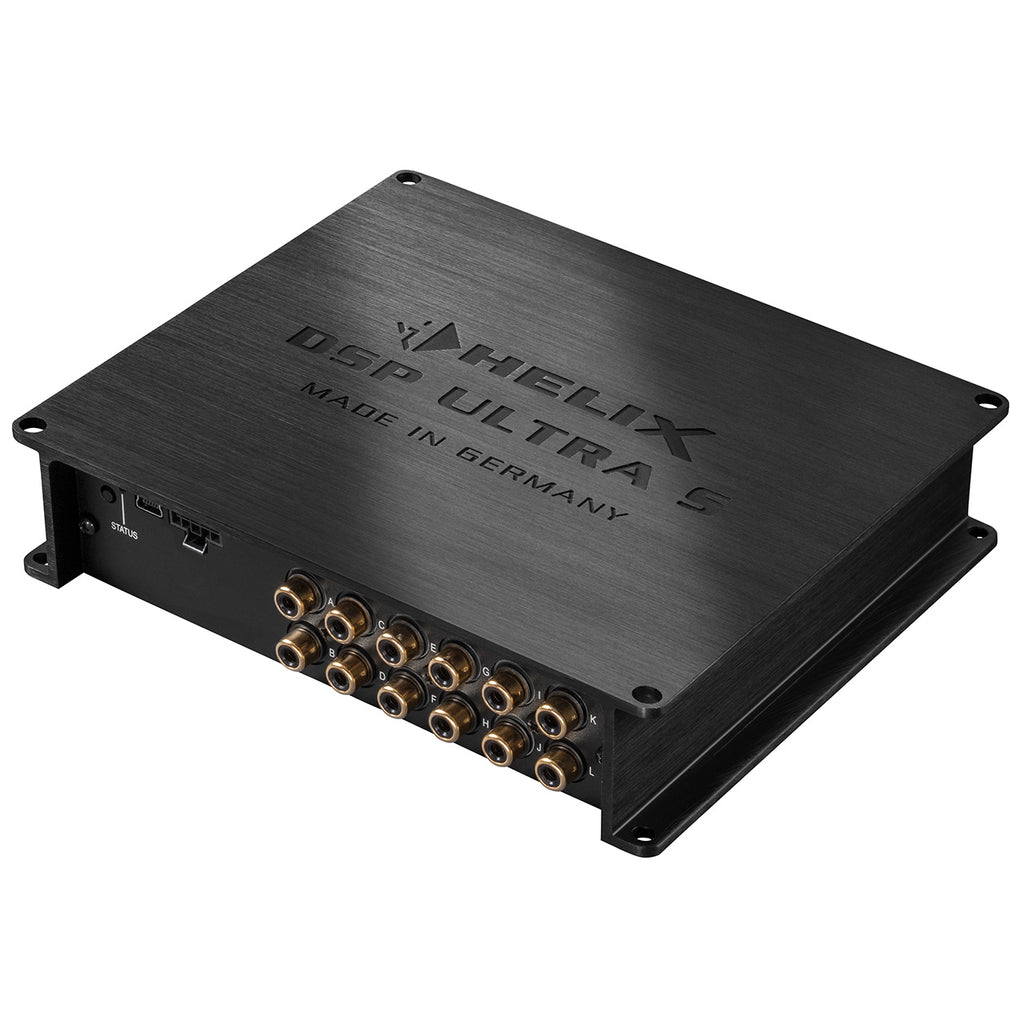

- Outputs: 12 x RCA/Cinch with max. 8 Volts output voltage
Special features:
TwinDSP Power
The DSP ULTRA contains two of the most powerful 64 Bit audio signal processors from Analog Devices with the outstanding overall calculating power of 2.4 billion MAC operations per second. The TwinDSP Power concept makes the twelve separately processed channels and the numerous new sound features in combination with the extended sampling rate of 96 kHz (resulting in an audio bandwidth of more than 40 kHz) possible.
ACO – Advanced 32 Bit CoProcessor
The HELIX DSP ULTRA incorporates an extraordinary powerful 32 Bit CoProcessor of the latest generation for all monitoring and communication tasks, both internally and externally. In opposite to the 8 Bit predecessor generation this MCU achieves way higher speeds with respect to setup switching and data communication with our DSP PC-Tool software. A further significant advantage is the integrated, native boot loader of the CoProcessor. It allows software upgrades of all components of the DSP in order to adjust the microcontroller-controlled ADEP.3 circuit for example at future modifications / changes in the diagnostic system of factory radios or if the device will be extended with additional interfaces. In addition, thanks to the new flash memory, the ACO offers 10 memory locations for sound setups instead of the common two.
Smart highlevel input ADEP.3
Modern, factory-installed car radios incorporate sophisticated possibilities of diagnosing the connected speakers. In particular the latest generation of car radios are equipped with additional monitoring functions so that failure messages and loss of specific features (e.g. fader function) quite often appear if a signal processor will be hooked up – but not with the DSP ULTRA.
The new ADEP.3 circuit (Advanced Diagnostics Error Protection, 3rd Generation) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX DSP ULTRA assures a constant internal supply voltage even if the battery’s voltage drops to 6 Volts during engine crank.
Power Save Mode
The Power Save Mode is incorporated in the basic setup. It allows to significantly reduce the power consumption of the amplifiers that are connected to the HELIX DSP ULTRA once there’s no input signal present for more than 60 seconds. Please note that in many up-to-date cars with “CAN” or any other internal
bus structures it may happen that the radio remains “invisibly” turned on for up to 45 min. even after locking and leaving the car! Once the “Power Save Mode“ is active the remote output and therefore the connected amplifiers will be turned off. The HELIX DSP ULTRA will reactivate the remote output within a second if a music signal is applied. It is possible to either modify the turn-off time of 60 sec. or completely deactivate the “Power Save Mode” via the DSP PC-Tool software.
Inputs | 8 x RCA / Cinch 8 x Highlevel speaker input 1 x Optical SPDIF (12 - 96 kHz) 1 x Coax SPDIF (12 - 192 kHz) 1 x Remote In |
Input sensitivity | RCA / Cinch 1 - 8 Volts Highlevel 4 - 32 Volts |
Outputs | 12 x RCA / Cinch 1 x Remote Out |
Output voltage | 8 Volts |
Frequency response | 10 Hz - 44,000 Hz |
DSP resolution | 64 Bit |
DSP power | 2 x 295 MHz (2.4 billion MAC operations/second) |
Sampling rate | 96 kHz |
DSP type | 2 x Audio signal processor |
Signal converters | A/D: Asahi Kasei 32 Bit D/A: Asahi Kasei 32 Bit |
Signal-to-noise ratio digital input | 117 dB (A-weighted) |
Signal-to-noise ratio analog input | 111 dB (A-weighted) |
Total harmonic distortion (THD+N) digital input | < 0.0004 % |
Total harmonic distortion (THD+N) analog input | < 0.001 % |
IM distortion (IMD) digital input | < 0.002 % |
IM distortion (IMD) analog input | < 0.004 % |
Crosstalk | > 90 dB |
Operating voltage | 9.6 - 18 Volts (max. 5 sec. down to 6 Volts) |
Current draw | 650 mA |
Max. remote output current | 500 mA |
Additional features | HEC slot, Ground lift switch, Control Input, 32 Bit CoProcessor, ADEP.3 circuit, Auto Remote switch |
Dimensions (H x W x D) | 40 x 177 x 170 mm / 1.58 x 6.97 x 6.69“ |
