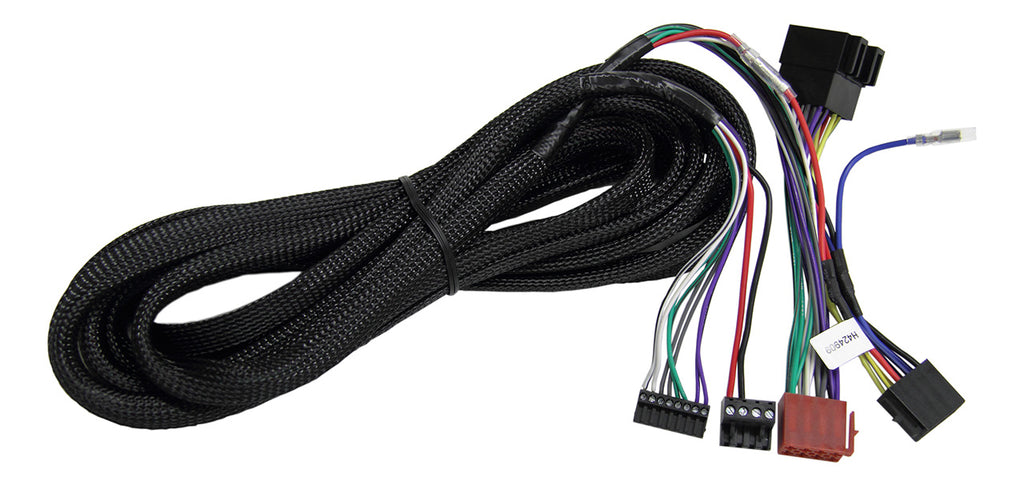

The ideal cable harness that dramatically simplifies the connection of additional devices to factory car radios.
The Easy Plug Cable (EPC 5.2) feeds our HELIX amplifier P SIX DSP / MK2 and HELIX V EIGHT DSP with the four channel highlevel (speaker level input) signals or our digital signal processors like HELIX DSP PRO / MK2, HELIX DSP.2, HELIX DSP or MATCH DSP with supply voltage from the car radio and the highlevel signals to ensure they turn on and off when your radio does.
An added benefit: Not even a remote signal is required for activating the above listed devices.
- Plug & Play-connector for an easy connection (8 pole RIA connector)
- ISO-connection (for connecting the factory car radio via ISO-connector and socket)*
- Cable length 5.00 Meters
*For car radios without ISO connectors an additional ISO-adaptor (PP-AC cable harness) is needed, which has to be connected between the EPC 5.2 cable harness and the car radio. The needed ISO-adaptor can easily be found in our Upgrade Finder.
|HELIX||DSP PRO / MK2
P SIX DSP / MK2
V EIGHT DSP
