500W x 1 @ 1Ω – 14.4V
300W x 1 @ 2Ω – 14.4V
150W x 1 @ 4Ω – 14.4V
KEY500.1 Smart Mono Amplifier (bass reveal/processor)
The KEY500.1 is a smart subwoofer amplifier and audio processor in one, featuring an AI-driven DSP (digital signal processing).
Using KICKER's supplied test tones, the KEY automatically analyses the audio being fed into the amplifier. Once this signal has been analysed, the amp will automatically fix peaks in the signal coming in and restore the low bass that is typically missing. In a matter of moments, you get a clean, even bass response from your amp!
For the KEY500.1 auto set-up, you will need to download the free test tones available HERE
- Dimensions cm (H x W x L) 4.3 x 9.2 x 20.7
- Frequency Response (Hz): 10-160
- Input Sensitivity: high level: 1V-40V / low level: 125mV-5V
- Signal-to-Noise Ratio: >90dB, a-weighted, re: rated power
- Selectable Electronic Crossover: Variable Low Pass 40-160 Hz, Variable High Pass 10-40 Hz
What's in the Box?
Microphone cable with switch
Manual and installation hardware
While we suggest this list for the ultimate bass experience, KEY500.1 will actually work with all KICKER subwoofers up to 12 inches; see your sales associate for the ideal subwoofer in your particular system, because every system is unique.
4Ω = 150 Watts RMS
2Ω = 300 Watts RMS
1Ω = 500 Watts RMS
COMP RT: TCWRT674, TCWRT82, TCWRT102, TCWRT122, CWTB102, CWTB82, TRTP122, TRTP102, TRTP82
L7T: TL7T122, TL7T102, TL7T82

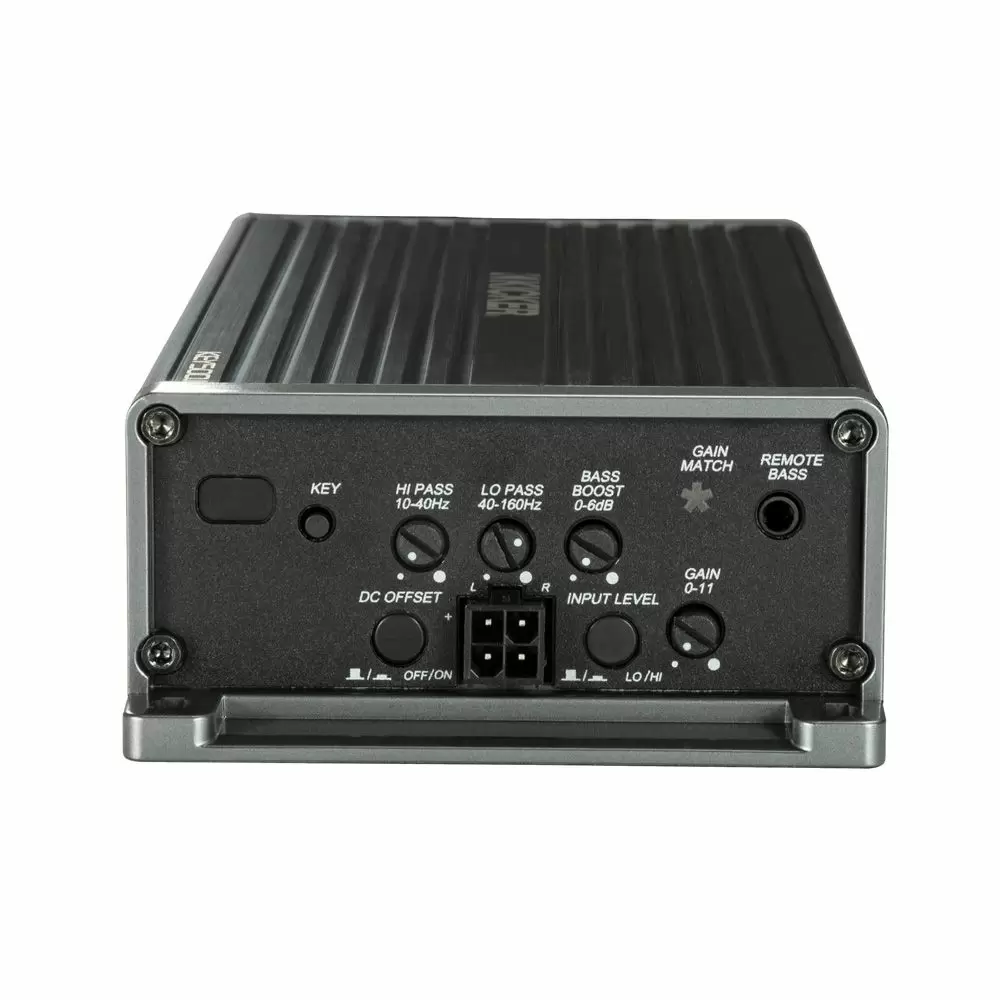

All the Control
Craft your sound with ease! The KEY500.1 comes with 24dB sub-sonic and low-pass crossovers, bass boost and gain controls.
Measuring about eight inches long and less than two inches high, the KEY500.1 fits nearly anywhere. Mount it behind your glove box, under the seat, or in your trunk with ease.
Start. Don't Stop.
The amplifier also features FIT 2+™ (Fail-safe Integration Technology 2 PLUS) - which provides nearly universal compatibility with stock or aftermarket radios. Another industry first, the KEY500.1 is uniquely suited to accept factory input signals as high as 40 volts (400 watts). The KEY amplifier will work with almost every car on the road today, whether you have a factory or aftermarket audio system.
Your KEY500.1 amplifier is compatible with the CXARC remote control. Use it to customize your bass on the fly with just a turn of a knob!
|RMS Power @ 14.4V||150W x 1 @ 4Ω
300W x 1 @ 2Ω
500W x 1 @ 1Ω
|Features||Built in Self Calibrating DSP
|Fuse Rating (A)||60A
|Cable Gauge (AWG)||8
|Amp Turn-On||DC Offset
|Frequency Response (Hz)||10-160
|Signal-to-Noise Ratio (dB)||90
|Controller||CXARC (Sold Separately)
|Input Type||High & Low Level
|Input Sensitivity Low Level||125mV-5V
|Input Sensitivity High Level||1V-40V
