Description

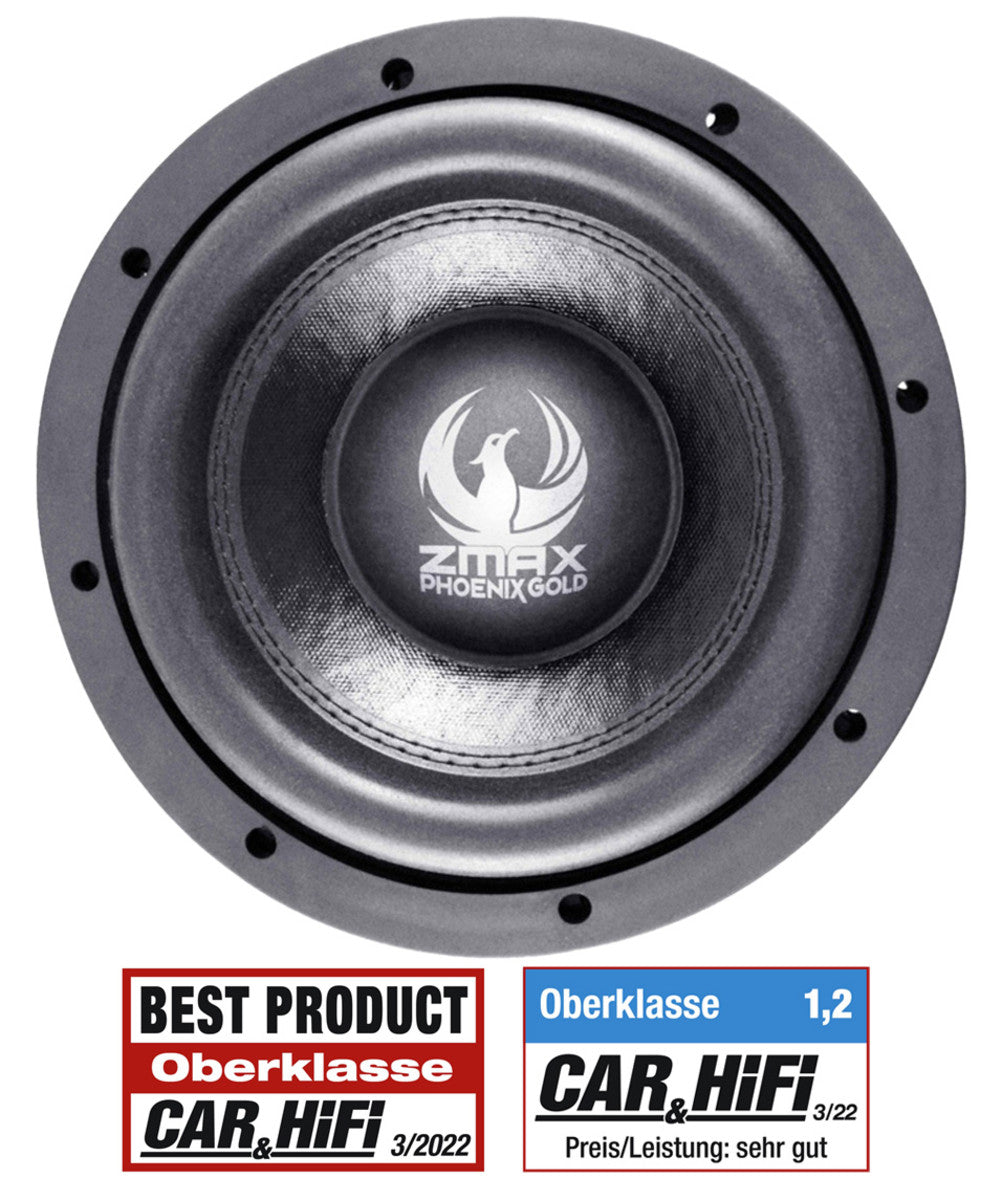

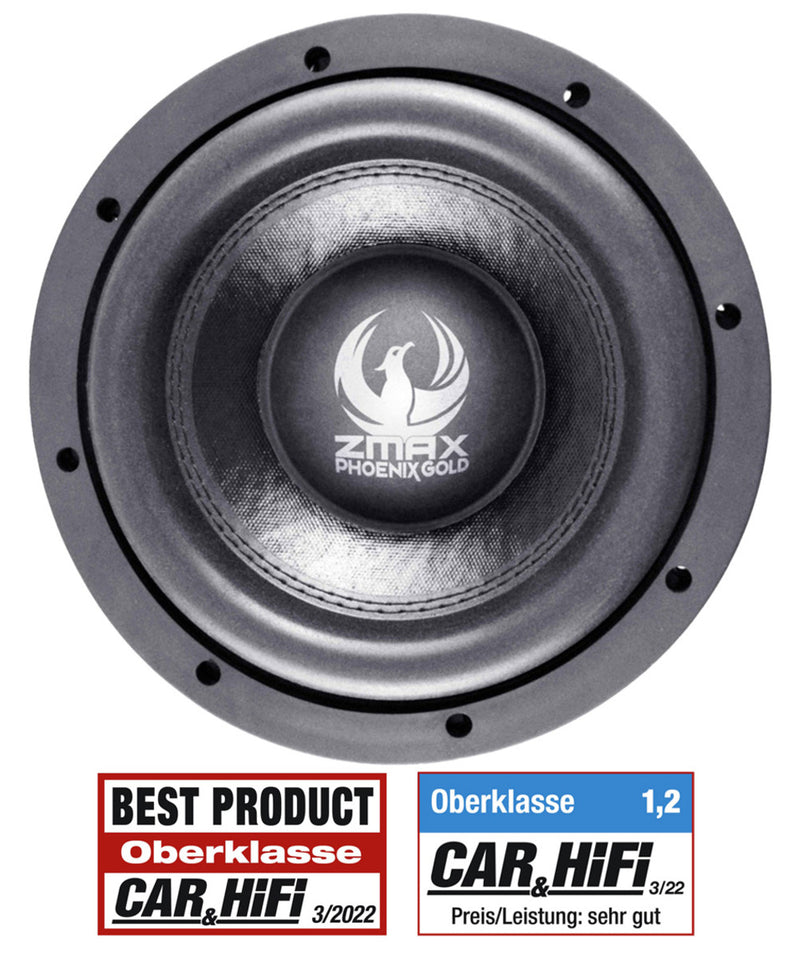

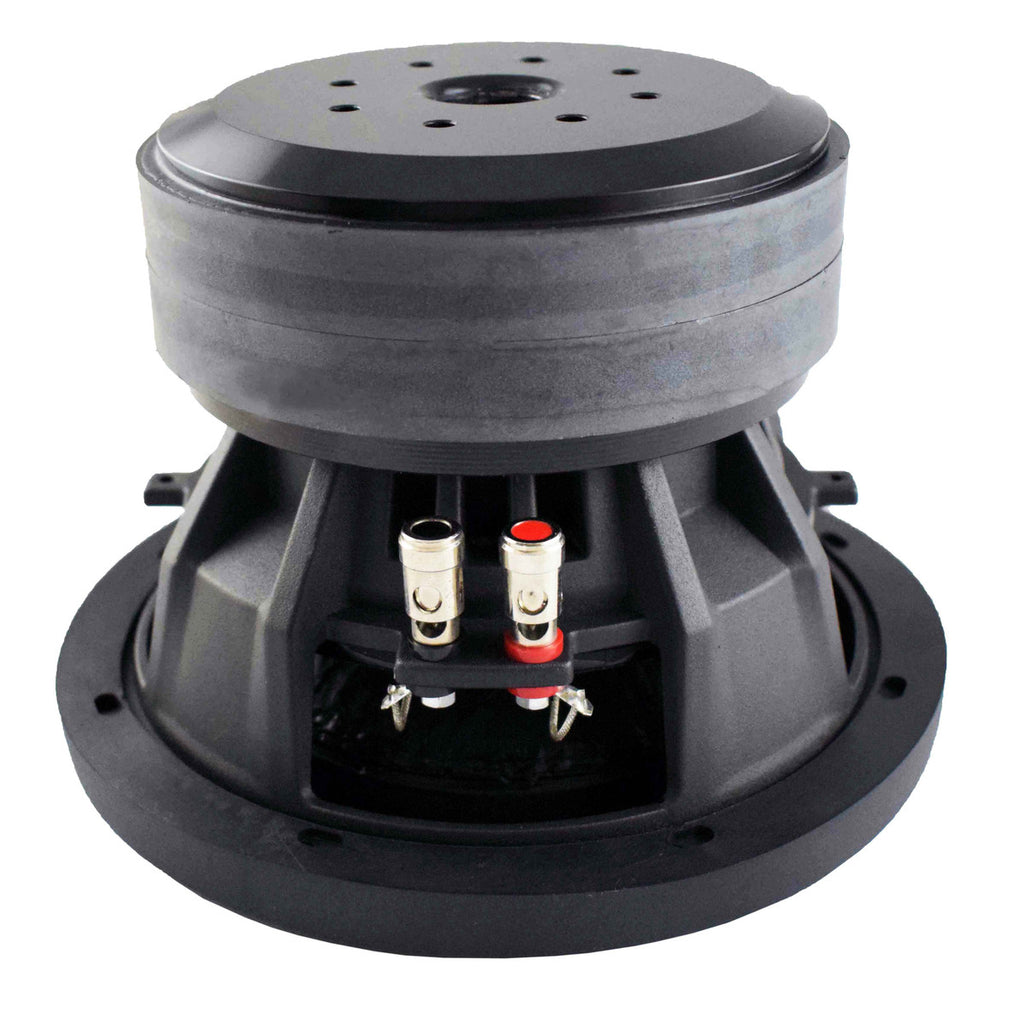

The ZMAX82 is a high SPL 8 inch Subwoofer and is the most competitive one on the market. Featuring a 2.5” voice coil with 8mm2 cables, the ZMAX82 uses a super-strong 100oz magnet to pump out truly impressive bass whilst keeping the purity of the sound quality.
SUBWOOFER SPECS
Product Specifications:
HIGH Power SPL Subwoofer
500W RMS
1500W Max power
2.5” Voice coil
8mm 2 cables from voice coil
Stitched surround
High roll surround for massive Mechanical – XMAX
Super-strong 100oz magnet
Hi-Grade Quality triple stacked
Why choose Phoenix Gold:
Phoenix Gold exists to give you a car audio experience of musical realism that will have you questioning if you’re riding around in a music studio or are sitting in the front row of a rock concert. Our product line is the result of a continued dedication to our key values of performance, innovation, quality, and excellence, bringing you The Gold Standard in Sound.

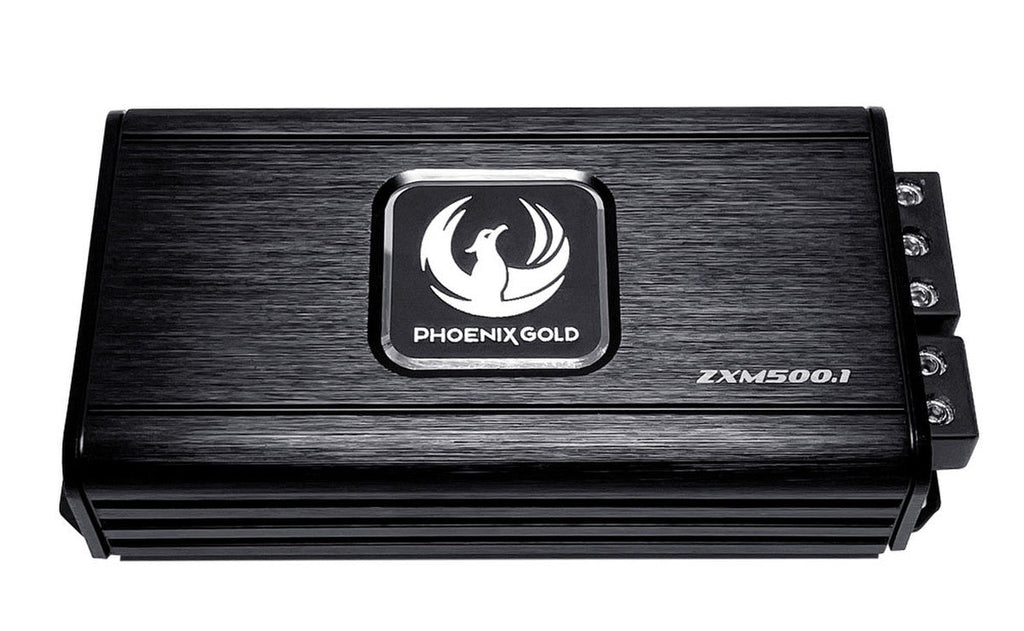

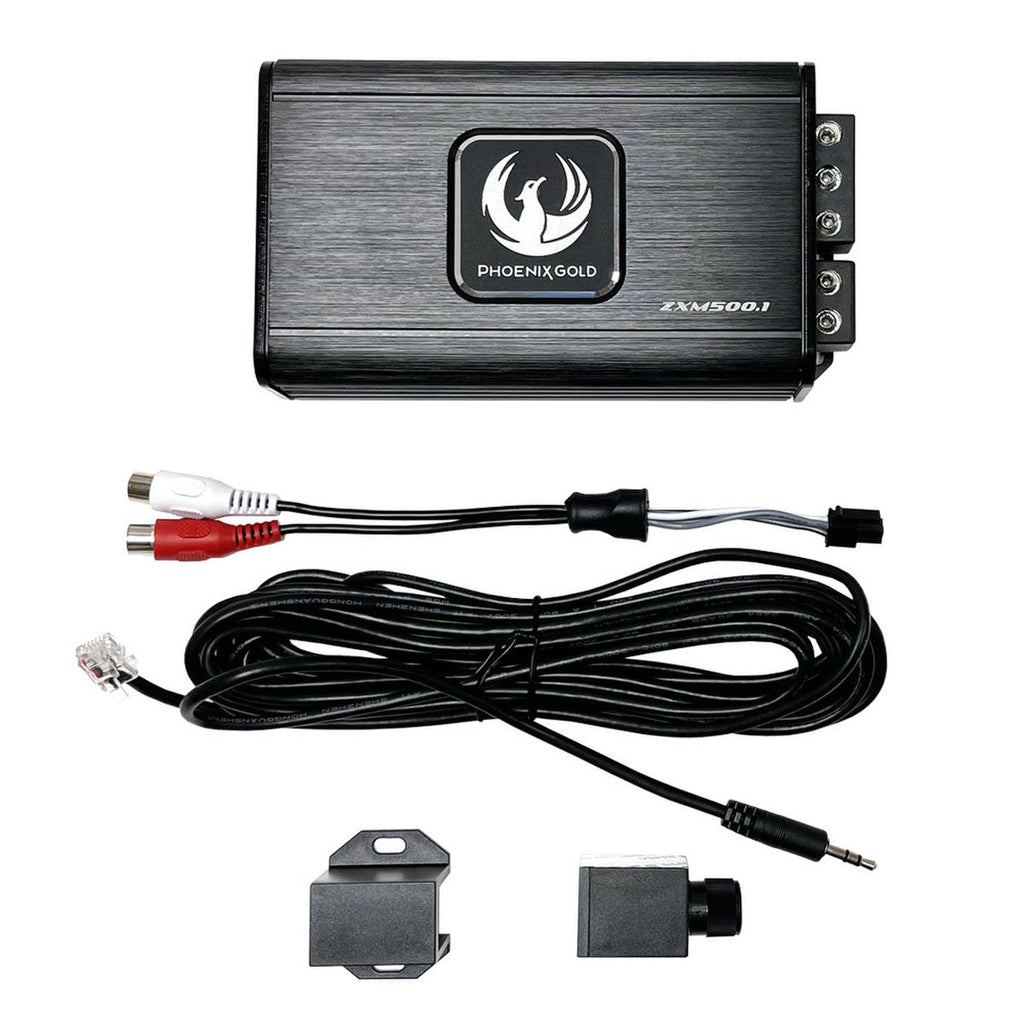

The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.
The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can
handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to
not interfere with the advanced electronics or FM signal.
KEY FEATURES
• Massive Power & Performance
• Full Class-D technology offers efficiency & performance
• Short circuit/thermal and high/low voltage protection
• Excellent signal-to-noise ratio and FM noise rejection
• Remote gain controller included (ZXM500.1)
• Built-in protection LED light status indicator
• Surface mount component technology
• Ultra small size for easy installation
• Autostart on high-level input
• Full adjustable HP & LP filter.
SPECIFICATIONS
• Class-D Mono Mini Amplifier
• Power (MAX) 1000W
• Power Ratings (RMS)
• 500W x 1 @ 1Ohm
• 360W x 1 @ 2Ohm
• 230W x 1 @ 4Ohm
• Frequency Response: 20Hz – 500Hz
• Signal to Noise Ratio: >90dB
• Total Harmonic Distortion: <0.3%
• Low Pass Filter: 40Hz – 250Hz (24dB/Oct)
• Subsonic: 10Hz – 50Hz (24dB/Oct)
• Bass Boost: 0 – 18dB @ 45Hz
• High Level Input Auto Turn-On
• Remote Control Included
• Dimensions (L x W x H) 165 x 83.1 x 34.8mm

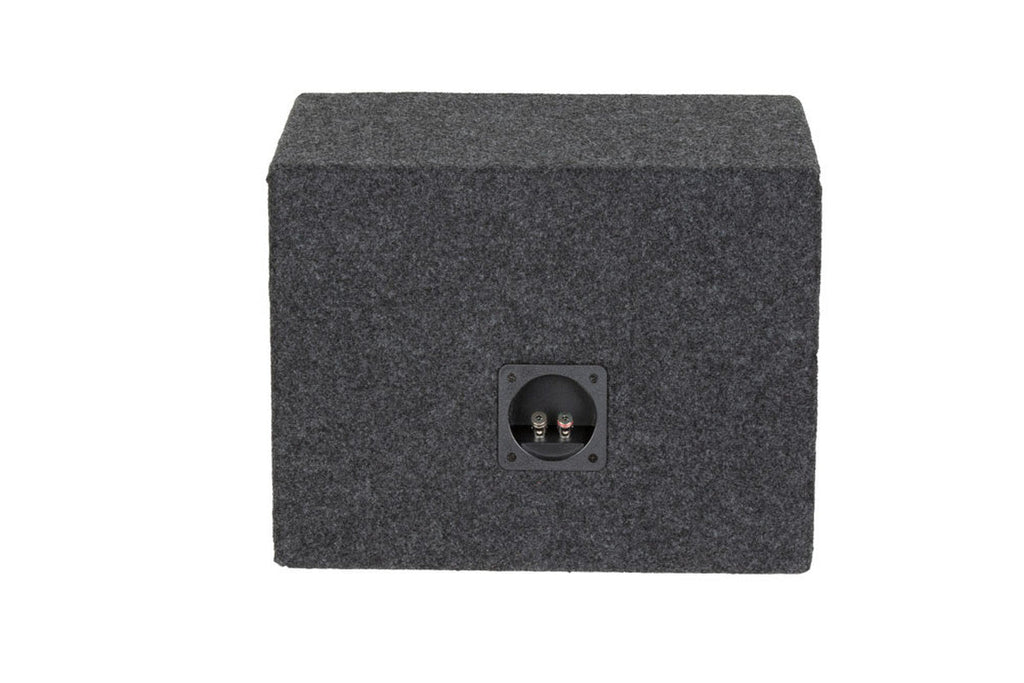

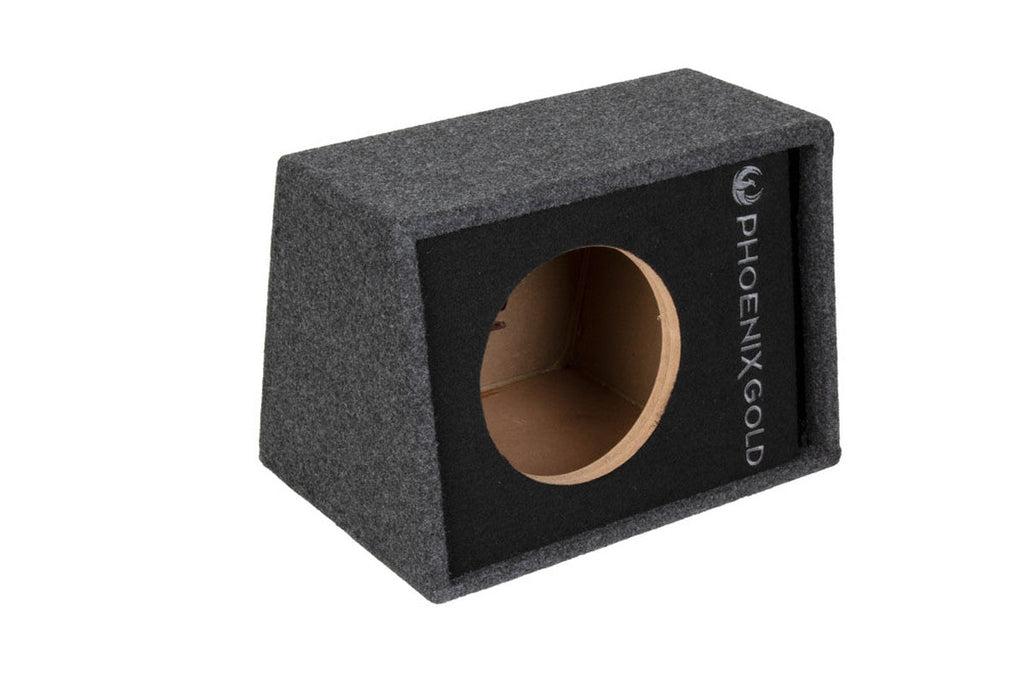

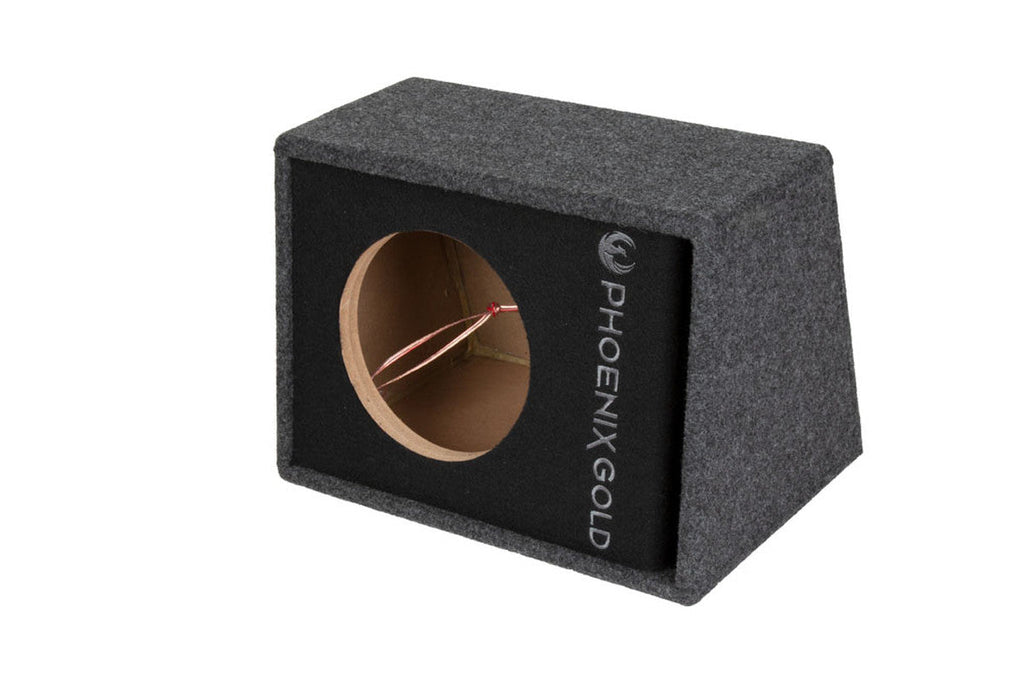

Ported enclosure SPECS
• MDF Cabinet 18mm (12mm in
ZB18P)
• Stitched logo Phoenix Gold
• Slot port design for maximum
performance
• Recessed mounting of speaker
• Internal bracing
• 1.5mm2 pre-terminated speaker
cable
• Heavy-duty wood screws for woofer
mounting included
• Recommended Subwoofers: ZMAX
and Z-series
• Ported enclosure
• Dimensions (L x W x H)
• 400 x 180/290 x 291mm
