Phoenix Gold ZXM500.1 - Mono Mini Amplifier



The ZXM500.1 is an impressive Class-D Mono Mini Amplifier. The ZXM amplifiers are made to be as small as possible without compromising sound quality, power and functions. The ZXM500.1 is a 1-channel amplifier with 500W RMS into 1 Ohm. The power output in 2 Ohm is 360W RMS and in 4 Ohm is 230W RMS. This means it can be loaded between 4-1 Ohm with lots of power.

The ZXM500.1 has 24dB Low pass filter and also an adjustable Subsonic filter. This amazing amplifier also has a bass-boost function and comes with a 5M remote gain controller to adjust the sub-level. The ZXM500.1 amp can

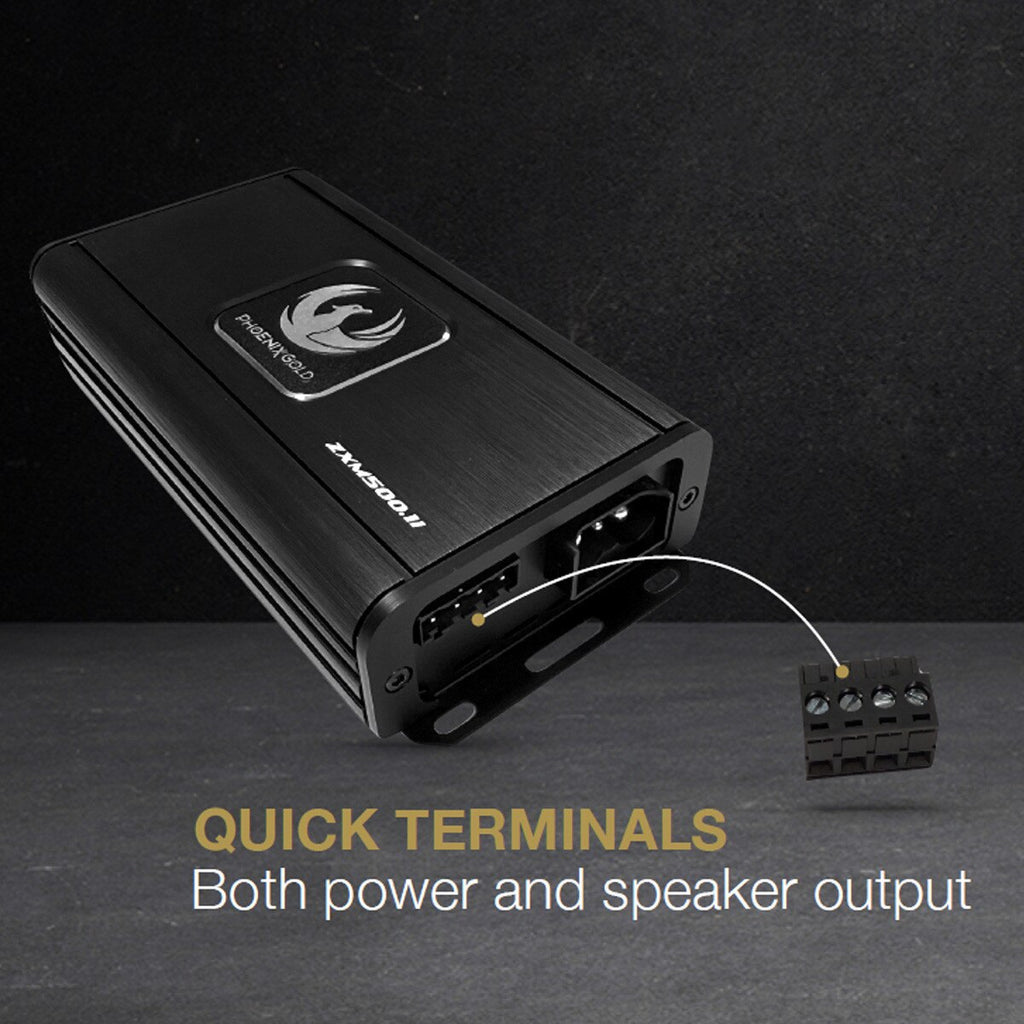

handle both RCA and High-level input on the same terminals and the smart-made supplied connectors make it easy to connect. A high level of engineering has gone into making these amps with low EMI emissions to
not interfere with the advanced electronics or FM signal.

Key Features

• Massive Power & Performance
• Full Class-D technology offers efficiency & performance
• Short circuit/thermal and high/low voltage protection
• Excellent signal-to-noise ratio and FM noise rejection
• Remote gain controller included (ZXM500.1)
• Built-in protection LED light status indicator
• Surface mount component technology
• Ultra small size for easy installation

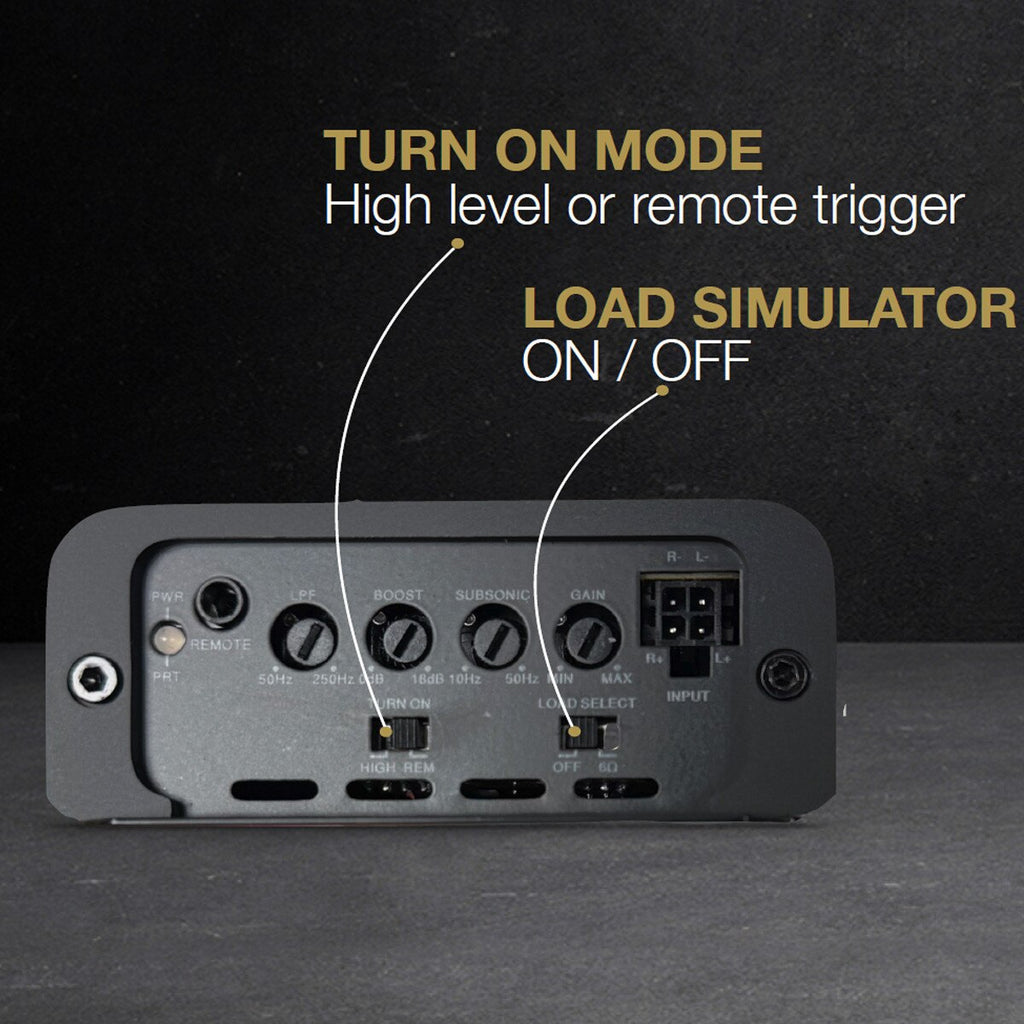

• Autostart on high-level input

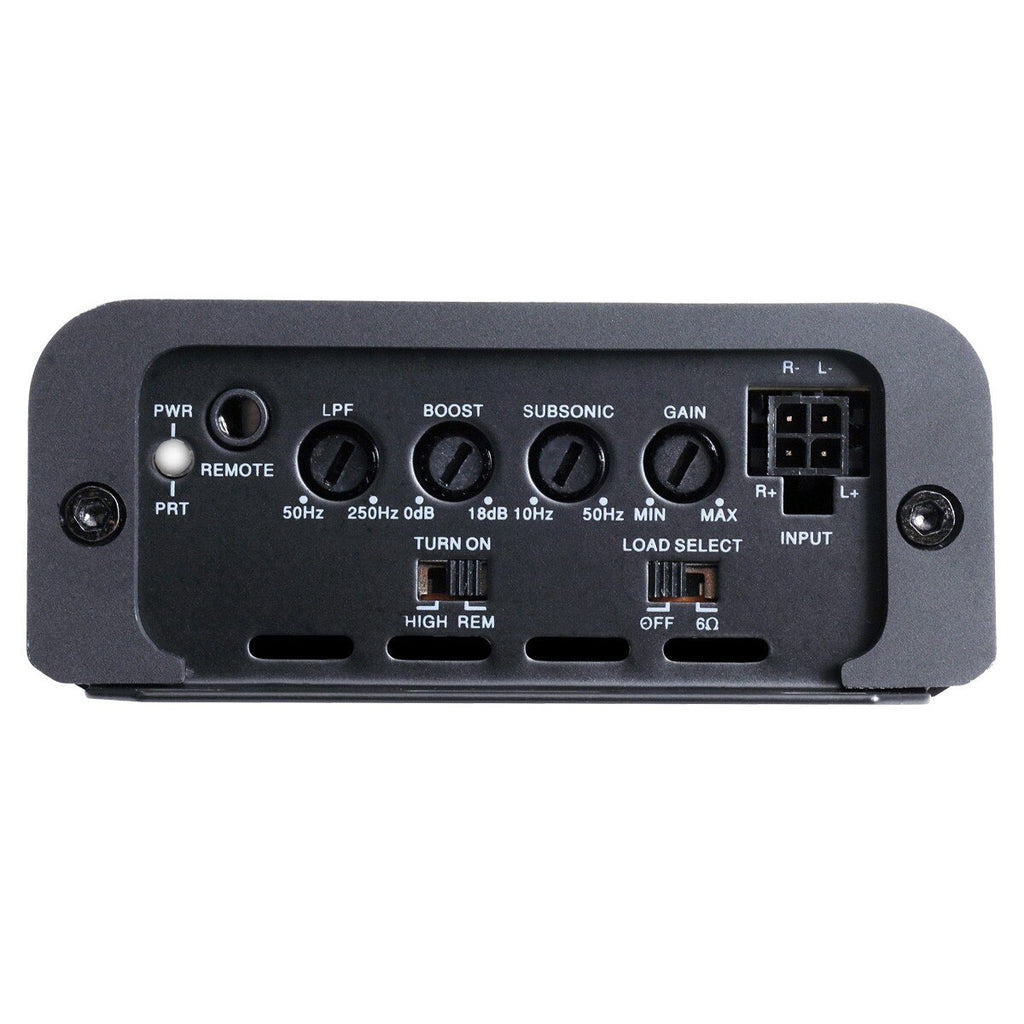

• Full adjustable HP & LP filter


• Class-D Mono Mini Amplifier
• Power (MAX) 1000W
• Power Ratings (RMS)
• 500W x 1 @ 1Ohm
• 360W x 1 @ 2Ohm
• 230W x 1 @ 4Ohm
• Frequency Response: 20Hz – 500Hz
• Signal to Noise Ratio: >90dB
• Total Harmonic Distortion: <0.3%
• Low Pass Filter: 40Hz – 250Hz (24dB/Oct)
• Subsonic: 10Hz – 50Hz (24dB/Oct)
• Bass Boost: 0 – 18dB @ 45Hz
• High Level Input Auto Turn-On
• Remote Control Included
• Dimensions (L x W x H) 165 x 83.1 x 34.8mm
