Rockford Fosgate Punch P500X1BD - Mono Amplifier


Price:
$464

Description

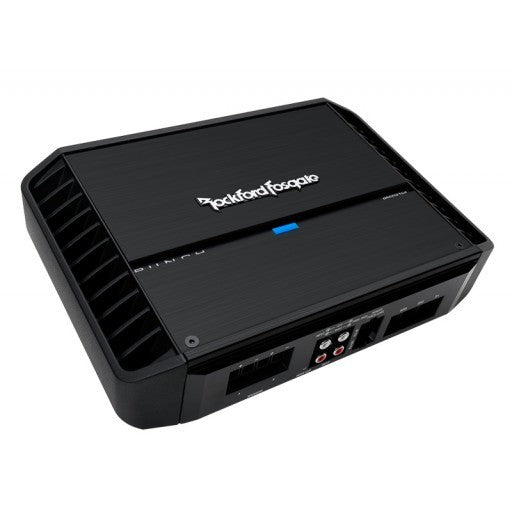

Rockford Fosgate Punch P500X1BD - Mono Amplifier 500 Watts Class BD Amp

The Punch P500X1BD is a mono amplifier capable of 500 Watts into a 1-Ohm load. The Class-BD technology produces bass more efficiently over traditional amps, and its frequency response allows it to be optimized for subwoofers.

  • High level input capable with Auto Turn-On circuit
  • Features C.L.E.A.N. Set-up
  • Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
  • RCA pass-thru outputs
  • 12dB/octave Butterworth crossover
  • On-board Punch EQ with +18dB boost @ 45Hz.
  • Muted turn on
  • Stealth top mounted control panel
  • Cast aluminum heatsink
  • Short circuit protection
  • Over current protection
  • Infrasonic filter
  • Number of Channels 1
  • Rated Power (RMS Continuous Power):
  • 150 Watts x 1 @ 4-Ohm
  • 300 Watts x 1 @ 2-Ohm
  • 500 Watts x 1 @ 1-Ohm
  • Total Power (Sum of Rated Power): 500 Watts RMS
  • Dynamic Power (PVC/PowerCube® Measurement):
  • 224 Watts x 1 @ 4-Ohm
  • 410 Watts x 1 @ 2-Ohm
  • 787 Watts x 1 @ 1-Ohm
  • Bridgeable: no
  • Efficiency (average):
  • 84% @ 4-Ohm
  • Crossover Controls:
  • Low-Pass (LP):
  • Low-Pass (LP): 50-250Hz @ 12dB/octave Butterworth
  • Infrasonic Filter (IF): 28Hz @ 12dB/Octave
  • All-Pass (AP): No
  • Tone Controls:
  • Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Signal Input: Low level: 1 RCA pair
  • Signal Output Low level: 1 RCA pair
  • Power Input Connector: Captive C-Clamp
  • Power Wire Gauge: 4 AWG
  • Speaker Output Connector: Captive C-Clamp
  • Speaker Wire Gauge: 8 AWG to 18 AWG
  • Heat Sink Type: Cast aluminum
  • Cooling: Convection
  • Remote Controls: Optional Punch Level Control (PLC2) Ready
  • Visual Indicators:
  • Power
  • Thermal
  • Protect
  • Circuit Topology Class: Class bd
  • Frequency Response: 20Hz to 250Hz +/- 1.0dB
  • Shipping Weight: 10.8 Lbs. (4.89 Kg.)
  • Dimensions (HxWxL): 2.38 x 7.76 x 11.03 (in)
  • 6.05 x 19.71 x 28.02 (cm)
