Description

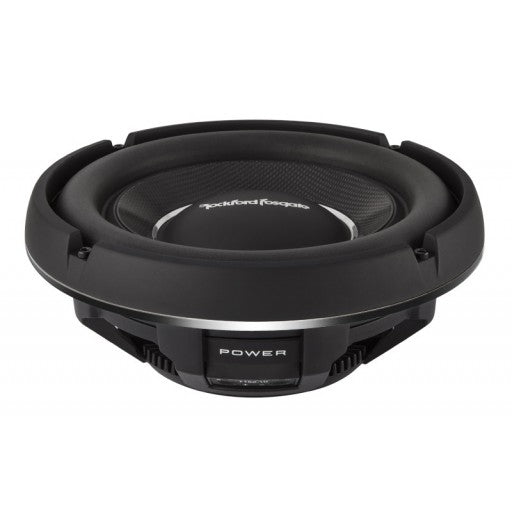

The Power T1S1-10 is a slimline 10" subwoofer designed for spaces where traditional sized woofers will not fit. Features a single 1-ohm voice coil for simplified wiring configurations.
- Carbon fiber/PMI/glass fiber cone with aluminum dustcap
 - Injection molded foam surround with VAST™
 - Dual Nomex progressive spiders with integrated lead wires
 - Aluminum diecast frame with integrated heat sink fins
 - Custom insulated push spring 10 AWG terminals
 - Dual wound 2.5" voice coil with interior/exterior windings
 - Encapsulating voice coil to former coupling technology (patent pending)
 - Detachable die cast aluminum trim ring
 - Vented pole piece
 - High temp high energy neodymium motor structure
 - Proprietary split yoke pass thru motor technology (patent pending)
 - Integrated copper cap heat sinking shorting ring (IDHS)
 - Optional grille insert available
 - Optimized for sealed enclosures

- CEA-2031 Compliant: CEA-2031 Guidelines
 - Size: 10"
 - Nominal Impedance: 1-Ohm
 - Power Handling (Watts RMS): 500 Watts RMS
 - 1000 Watts Max
 - Voice Coil Diameter: 2.28" (58 mm)
 - Magnet Weight (oz): 15.10 oz. (0.43 Kg)
 - Speaker Connector: 10 AWG slot loaded
 - Fs (Hz): 42
 - Re (Ohms): 0.9
 - Le (mH): 0.28
 - Qms: 9.43
 - Qes: 1.05
 - Qts: 0.95
 - Vas (Liters): 13.1
 - Sd (cm2): 356
 - SPL (dB @ 1w/1m): 82
 - Xmax (mm): 15
 - Woofer Displacement (in): 0.03 cu. ft. (0.82 Liters)
 - Cutout Diameter (in): 9.13 in. (232 mm)
 - Mounting Depth (in): 3.01 in. (76.5 mm)
