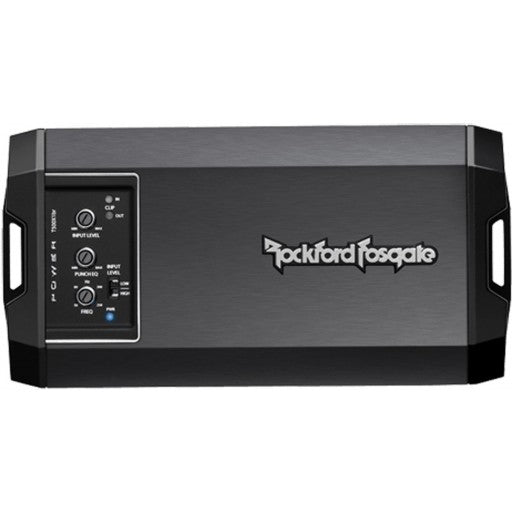

Rockford Fosgate T750X1BD - Mono Amplifier


Price:
£429.99

Description

Features

  • (RMS Continuous Power): 500 Watts x 1 @ 4-Ohm
  • 750 Watts x 1 @ 2-Ohm
  • 750 Watts x 1 @ 1-Ohm
  • Total Power
  • (Sum of Rated Power): 750 Watts
  • Bridgeable: No

The Power T750X1bd 750 Watt mono, ultra-compact amplifier is built on Rockford Fosgate’s patented Class bd technology platform. This design creates a highly efficient design that reduces the electrical impact on the vehicles charging system by using the efficient Class D technology while maintaining fidelity combining it with Class b topology.

Flexible vehicle integration is achieved via a configurable input harness with Molex style connectivity that accepts both RCA and speaker level signals while our differential input circuitry eliminates signal noise from entering the amplifier resulting in a clean audio signal. When using speaker level input signals, the amplifier also has integrated auto turn-on capabilities and converts its remote input terminal to an output that can be used to turn-on additional amplifiers.

This can eliminate the need of sourcing a separate remote turn-on signal for the amplifier from the vehicle. Top mounted controls allow easy access to the built-in low pass crossover, patented Punch EQ boost circuit and our patented C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while our real-time thermal/protection schemes safeguard the amplifier in the event of overheating or short circuit conditions. The unit is also compatible with our Punch PLC2 remote level controller and is ideal for those installations where you need a compact amplifier that can produce high output power.

Features

  • Class-bd technology
  • Rockford Fosgate proprietary low impedance Constant Power
  • Differential inputs with high level auto turn-on feature
  • Upgraded RCA connectors
  • 8 AWG Power/Ground connector. 10 AWG speaker connector
  • Remote-Out feature when using high level inputs
  • 2013 PLC2 remote ready
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Top mounted controls
  • Dual fan cooled
  • Real time thermal sensing with Rollback technology
  • Dual extruded heat sinks
  • All other normal Rockford protection schemes
  • CEA-2006 and CE compliant
  • Discrete surface mount technology
  • CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
  • 500W x 1 @ 4Ω
  • ≤1.0% THD+N
  • Number of Channels: 1
  • Rated Power
  • (RMS Continuous Power): 500 Watts x 1 @ 4-Ohm
  • 750 Watts x 1 @ 2-Ohm
  • 750 Watts x 1 @ 1-Ohm
  • Total Power
  • (Sum of Rated Power): 750 Watts
  • Bridgeable: No
  • Frequency Response: 20Hz - 230Hz +/-1dB
  • Efficiency (average):            >85%
  • Total Harmonic Distortion (THD+Noise):   4-Ohm: <1.0%
  • 2-Ohm: <1.0%
  • 1-Ohm: <1.0% above 35 Hz
  • Crossover Controls:   Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
  • Tone Controls: Bass: 0 to +18 dB @ 45 Hz
  • Input Sensitivity: 150 mV to 12 V
  • Signal Input: High/Low Level Input: 4-Pin harness
  • Signal Output: —
  • Power Input Connector: Detachable Compression Terminal
  • Power Wire Gauge: 8 AWG
  • Speaker Output Connector: Detachable Compression erminal
  • Speaker Wire Gauge: 10 AWG
  • Heat Sink Type:  Extruded Aluminum
  • Cooling:  Dual Fan Cooled
  • Remote Controls: Optional PLC2 provides Punch Level Control
  • Visual Indicators: Power: Blue LED
  • Protect: Red LED
  • Input Clip: Red LED3
  • Output Clip: Blue/Violet/Red LED1,2,3
  • LED Color Legend:
  • 1BLUE: <0.5% THD
  • 2VIOLET: 1% THD
  • 3RED: 10%+ THD
  • Circuit Topology Class:         Class-BD
  • Operating Voltage:    9 - 16 VDC
  • Recommended Fuse
  • (not included):          100 A
  • Max. Current Draw (13.8V Sinewave):
  • Average Current Draw (13.8V Music):
  • Suggested Alternator:
  • Shipping Weight:      3.44 Lbs. (1.56 Kg.)
  • Dimensions (H x W x D):      1.6 x 4.3 x 8.3 (in.)
  • 4.1 x 10.8 x 21.1 (cm)
