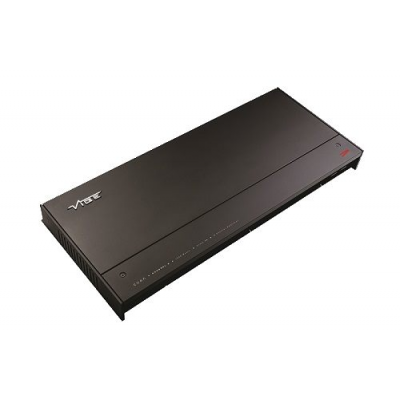

Vibe CVEN: 6 Channel Amplifier CVENCH6-V4
Each CVEN product is manufactured with material specifically selected for their inherent qualities to perform without any constraint of cost.
6 Channel, class AB amplifier
CLASS AB TOPOLOGY: Class AB topology delivers natural and dynamic sound quality.

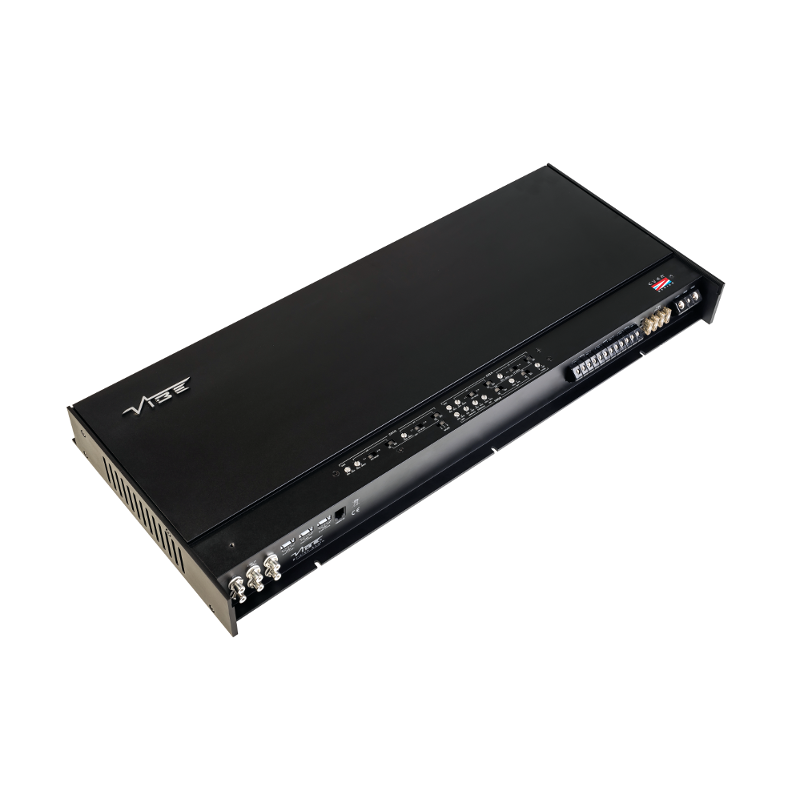

TOP MOUNTED CONTROLS: Top mount controls make setup after installation much more convenient than traditional designs.
WIDEBAND CROSSOVER: Fully configurable HPF / LPF / BPF crossovers with frequency multiplier allows fully active drive of component speaker systems
|Dimensions (H x W x D)||2.4” x 25.5” x 11.4” (60mm x 647mm x 290mm)|
|RMS @ 4Ω Stereo (14.4v 1% THD)||4 x 70 + 2 x 130 watts|
|RMS @ 2Ω Stereo (14.4v 1% THD)||4 x 100 + 2 x 180 watts|
|RMS @ 1Ω Stereo (14.4v 1% THD)||N/A|
|RMS @ 4Ω Mono (14.4v 1% THD)||4 x 70 + 1 x 360 watts|
|RMS @ 2Ω Mono (14.4v 1% THD)||N/A|
|RMS @ 1Ω Mono (14.4v 1% THD)||N/A|
|RMS @ 0.5Ω Mono (14.4v 1% THD)||N/A|
|Maximum Power||1520 watts|
|Frequency Response||10Hz - 20kHz|
|Crossover Type||LP / HP / BP / Flat|
|Crossover Range||15Hz - 6kHz|
