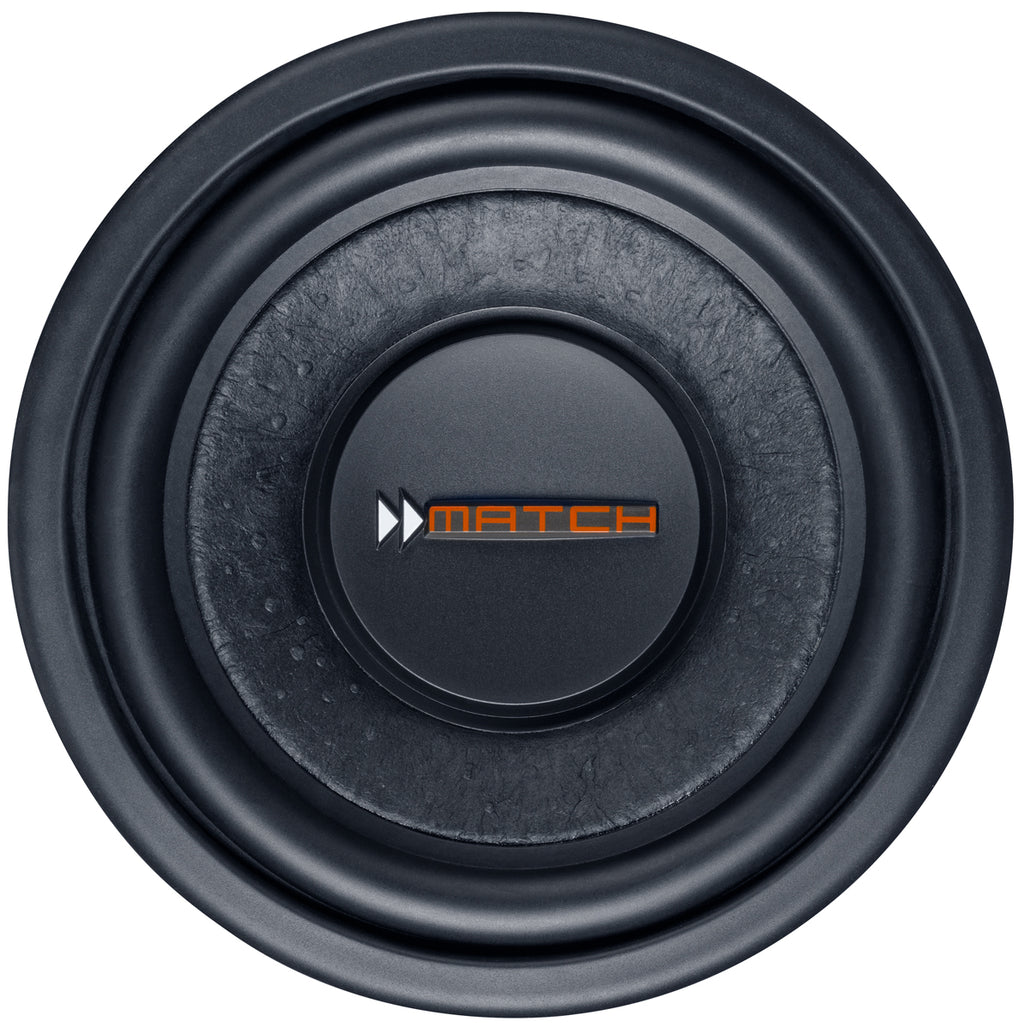

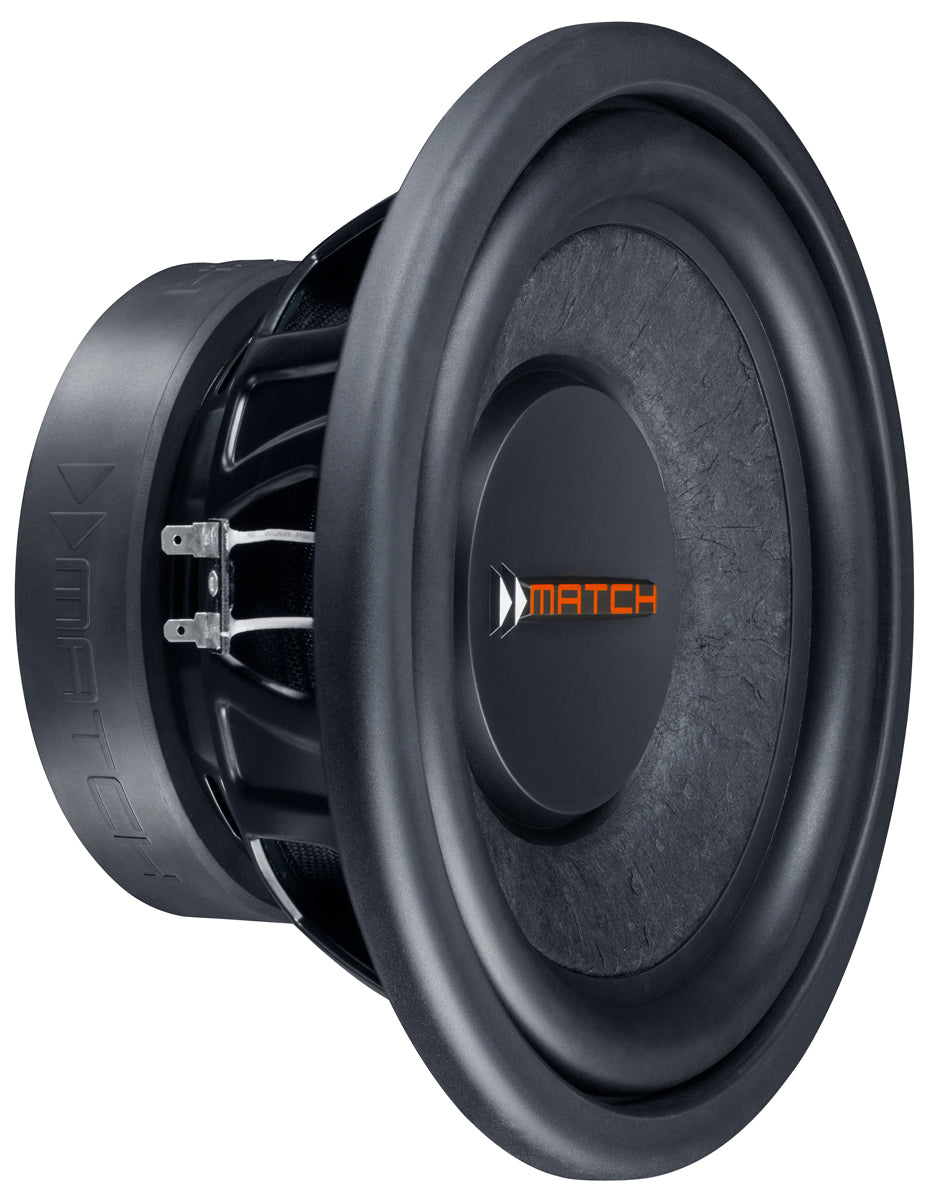

MATCH PP 10W-Q - 10" Subwoofer


Price:
£124.99

Description

10" Plug & Play Subwoofer

You didn't find the type of enclosure sub you are looking for? – If none of the MATCH Plug & Play enclosure subs fits in your car with respect to shape and / or size, then you have the chance to build your “personalized” version by yourself. Therefore, we offer the single woofers of our Plug & Play series, which are 100 % identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.

  • 10” / 250 mm Plug & Play subwoofer with quad voice coil for compact vented enclosures
  • Extremely stiff hand-scooped paper cone for maximum sound pressure
  • Double ventilated voice-coil for minimum compression effects
  • Powerful magnet for compact-sized vented enclosures
  • Optimized for the perfect interaction with MATCH Plug & Play amplifiers
  • Connection terminal for MATCH subwoofer cable (PP-SC) included in delivery
Power RMS / max. P 300 / 600 Watts
Impedance  Z 4 x 3 Ω
DC resistance  Re 4 x 3.0 Ω
Frequency response
Resonance frequency  Fs 29 Hz
Mechanical Q factor  Qms 3.12
Electrical Q factor  Qes 0.40
Total Q factor Qts 0.35
Compliance Cms 299  µm/N
Equivalent air volume Vas 46 L
Force factor  B*I 23.5 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area  Sd 333 cm²
Moving mass  Mms 98 g
Cone material   Hand-scooped paper cone
Mechanical resistance  Rms 5.8 kg/s
Voice coil diameter ø 50.8 mm
Voice coil winding height   21 mm
Max. linear excursion  Xmax +/- 6.5 mm
Outer diameter ø 265 mm / 10.43"
Installation diameter ø 232 mm / 9.13"
Installation depth   128.5 mm / 5.06"

Recommended enclosure volumes
Sealed box    Not recommended
Net volume
Lower limiting frequency (-3dB)
DSP settings

Vented box
Net volume   18 L
Port diameter ø 70 mm / 2.75"
Port area   28 cm²
Port length   33 cm / 13"
Port tuning frequency Fb 39 Hz
Lower limiting frequency (-3dB)   36 Hz
DSP settings   - Highpass: Self-Define; crossover frequency 33 Hz; Q factor 1.3
- Lowpass: Butterworth; 24 dB/octave; crossover frequency 80 - 100 Hz
