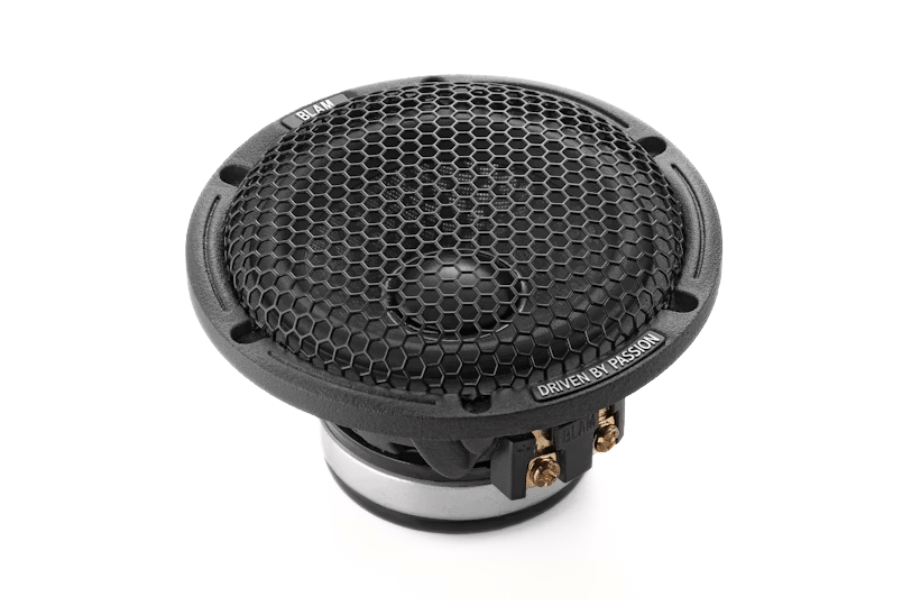

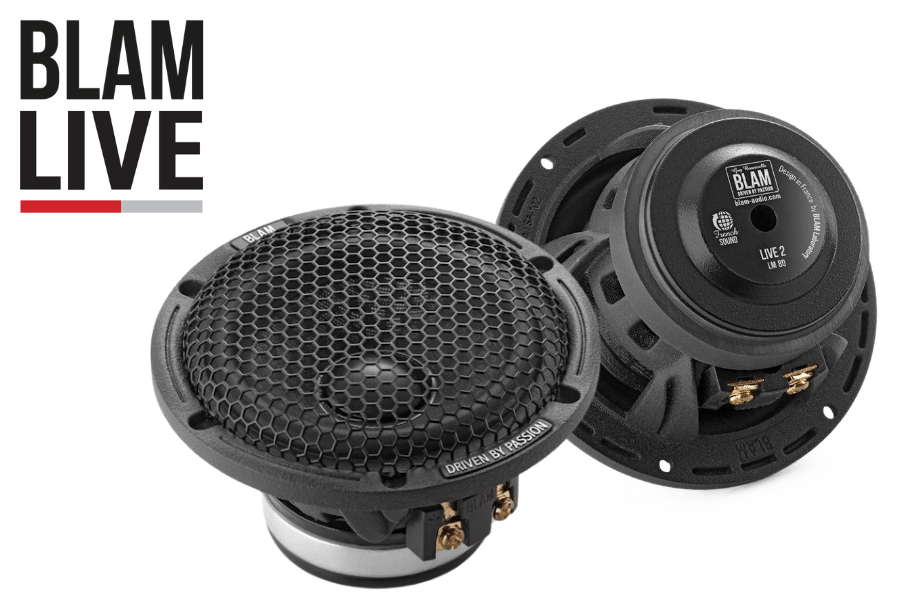

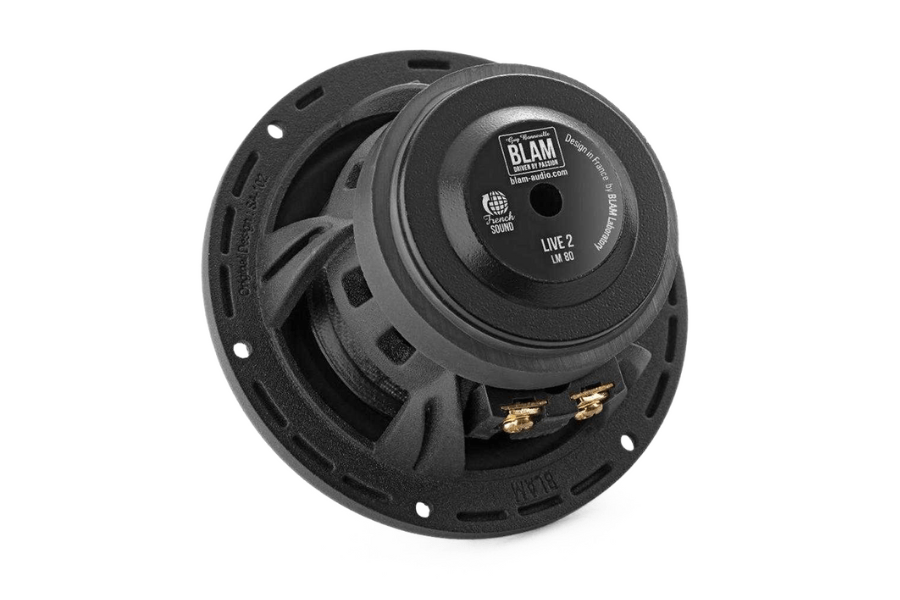

BLAM LIVE LM80 - 3" Midrange Speakers (PAIR)


Price:
£118.99

Description

The LIVE LM80 is the latest 3 Inch (80mm) mid-range speaker from BLAM which boasts impressive technical specifications. The maximum output is 100 W with a nominal power of 25 W and an impedance of 3 ohms. Its frequency response ranges from 100 Hz to 25 kHz and it has a sensitivity of 92 dB at 2.83 V / 1 m. With a ferrite magnet, a magnet size of 55 x 10 mm, a voice coil of 20 mm diameter and 6 mm height and a cone made of carbon, this midrange driver sets new standards in the industry. With a very linear frequency response and extended high frequency range, the LM80 reproduces music with an incredible resolution that will make you want to rediscover all your favourite songs.

PLEASE NOTE: Depending on the cut-off frequency, 25W RMS is filtered above 300 Hz at 12 dB/octave

Composition
  • Max Power 100 W
  • Nominal Power 25 W*.

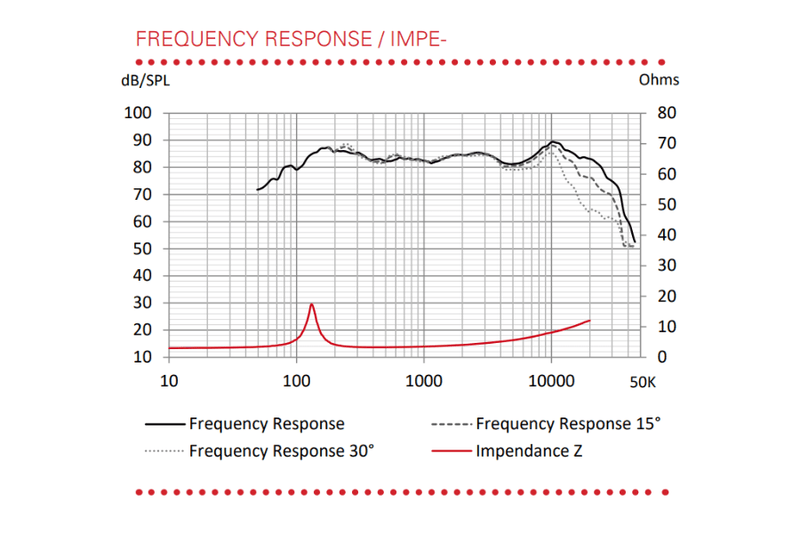

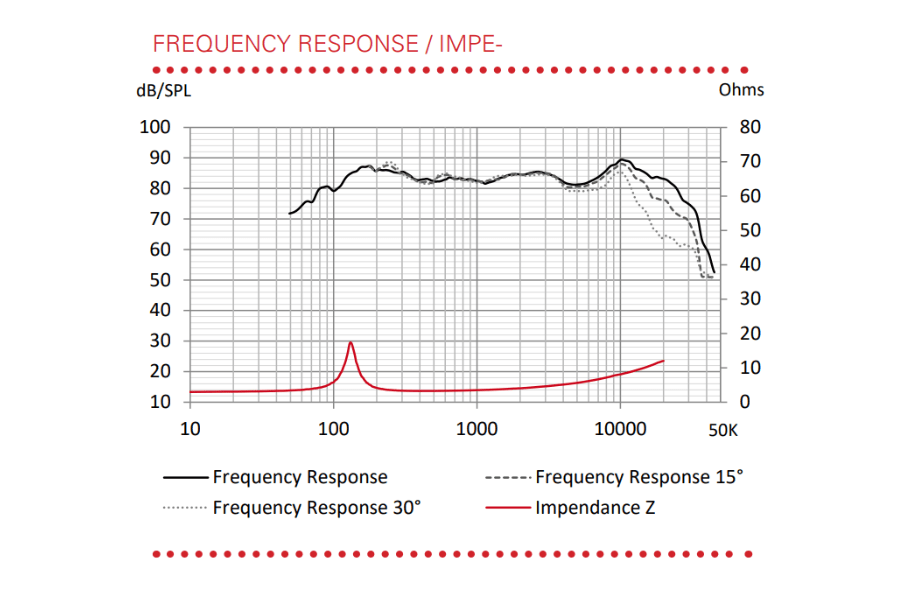

  • Frequency response 100 Hz – 25 kHz
  • Sensitivity 87.6 dB
  • Impedance 3 Ω

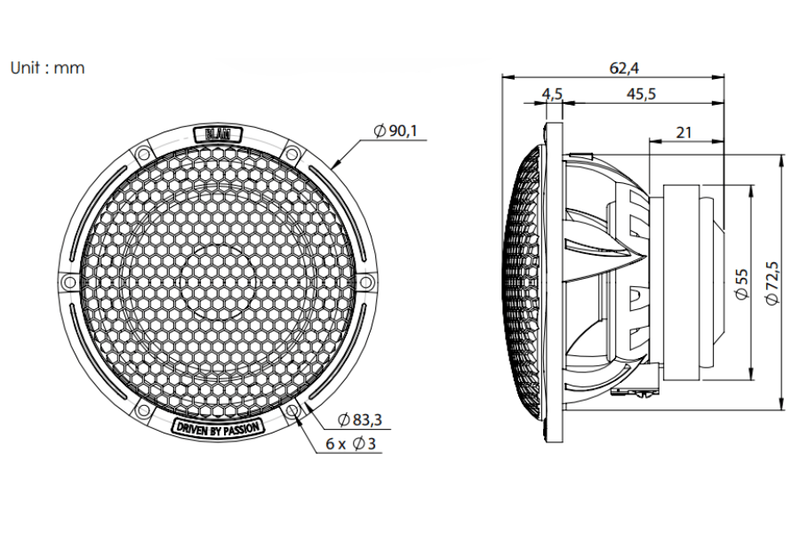

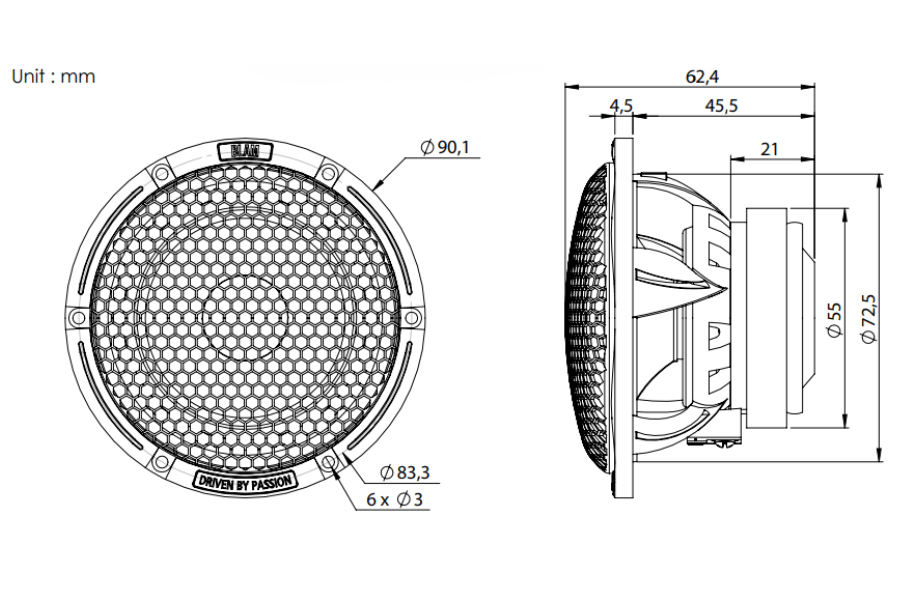

  • Mounting depth 45.5 mm (1.8″)
  • Cast aluminium basket – Fiberglass and epoxy resin composite membrane – Butyl perimeter surround – “Conex” long life spider – 20 mm voice coil on TIL former – 55 mm x 10 mm ferrite magnet
  • Optimized to operate in a sealed volume of 2 L to 30 L.
  • Recommended minimum cut-off frequency 300 Hz 12 dB/octave

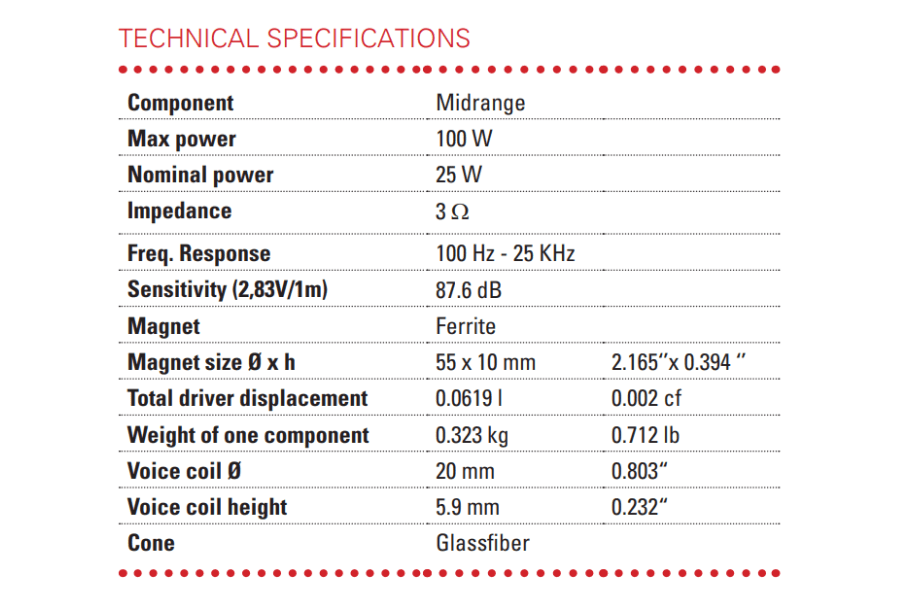

Technical Specifications
  • Component: Midrange
  • Max power: 100 W
  • Nominal power: 25 W
  • Impedance: 3 Ω
  • Freq. Response: 100 Hz - 25 KHz
  • Sensitivity: (2,83V/1m) 87.6 dB
  • Magnet: Ferrite
  • Magnet size Ø x h: 55 x 10 mm 2.165‘’x 0.394 ‘’
  • Total driver displacement: 0.0619 l 0.002 cf
  • Weight of one component: 0.323 kg 0.712 lb
  • Voice coil Ø: 20 mm 0.803“
  • Voice coil height: 5.9 mm 0.232“
  • Cone: Glassfiber

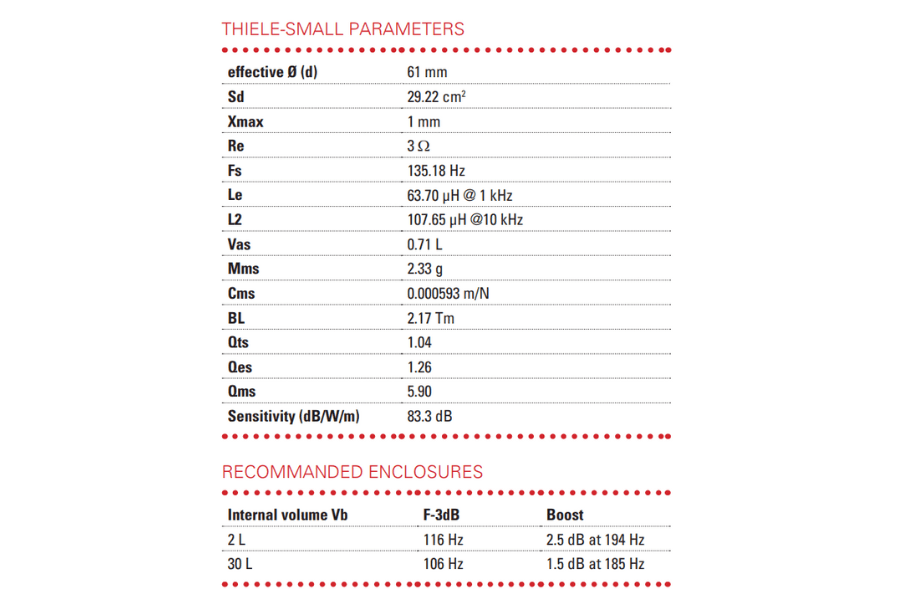

Technical Parameters
  • effective Ø (d) 61 mm
  • Sd 29.22 cm2
  • Xmax 1 mm
  • Re 3 Ω
  • Fs 135.18 Hz
  • Le 63.70 µH @ 1 kHz
  • L2 107.65 µH @10 kHz
  • Vas 0.71 L
  • Mms 2.33 g
  • Cms 0.000593 m/N
  • BL 2.17 Tm
  • Qts 1.04
  • Qes 1.26
  • Qms 5.90
  • Sensitivity (dB/W/m) 83.3 dB
Supplied accessories :
  • Mounting screws
  • Protection grill
  • User manual
