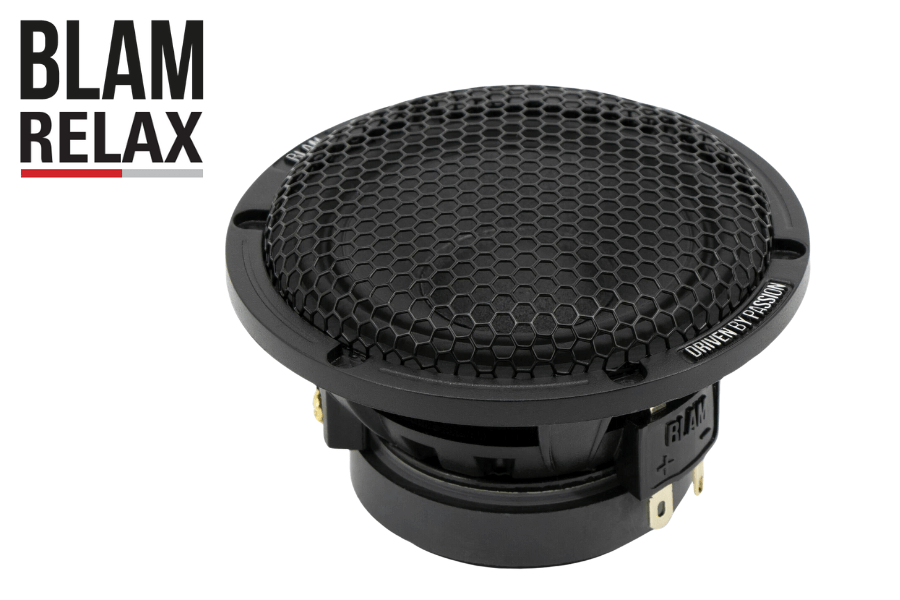

BLAM RELAX R80DB - 3" Midrange Speaker


Price:
£38.99

Description

Sold Individually

THIS ITEM IS A SPECIAL ORDER WHICH MEANS IT CAN TAKE UP TO 2 WEEKS FOR DISPATCH. PLEASE NOTE ONCE WE HAVE ORDERED WE ARE UNABLE TO CANCEL YOUR ORDER.

Discover the Relax R80 DB, a special 3" (8cm) dual-voice coil midrange speaker from BLAM. With its excellent sound quality and robust construction, this model stands for durability and high performance. Equipped with a treated cellulose cone and glass fiber reinforced composite housing, it offers exceptional acoustic performance. It also has a recommended minimum cut-off frequency of 250 Hz 12 dB/octave, an impressive maximum power of 100 W and a high sensitivity of 86 dB at 2.83V/1m. Thanks to the advanced technologies and materials, the Relax R80 DB delivers a powerful and authentic sound.

This kit is composed of One 80mm (3") medium mid-range speaker

Technical Features
  • 80 mm (3‘’) mid-range
  • Max power 100 W – Nominal power 25 W*
  • Glass fiber reinforced composite basket
  • High quality treated cellulose cone
  • Butyl rubber surround
  • Durable "Conex" damper
  • 20 mm voice coil with fiberglass support
  • 55-mm-x-10-mm-Ferritmagnet

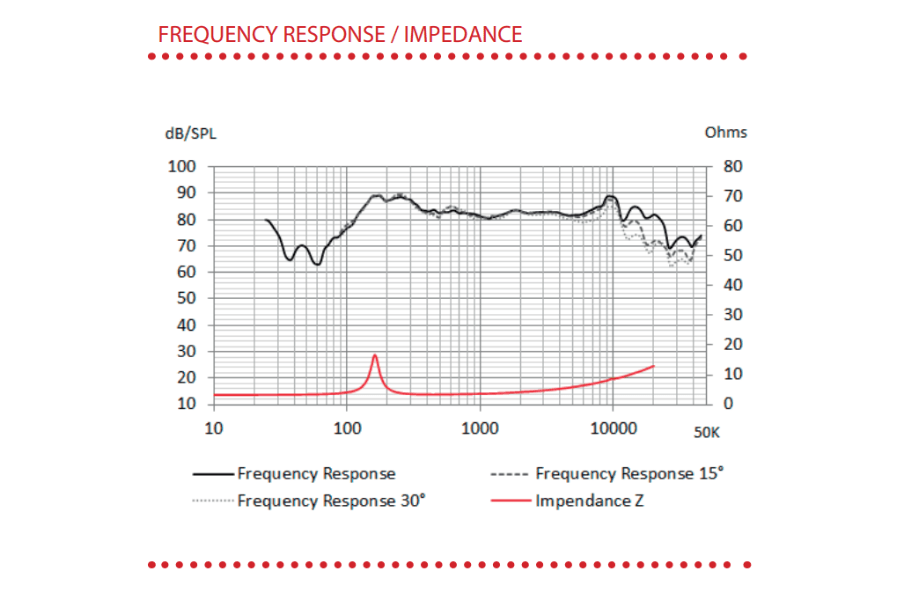

  • Frequency response 150 Hz – 20 kHz
  • Sensitivity 86 dB
  • Impedance 2x3 Ω

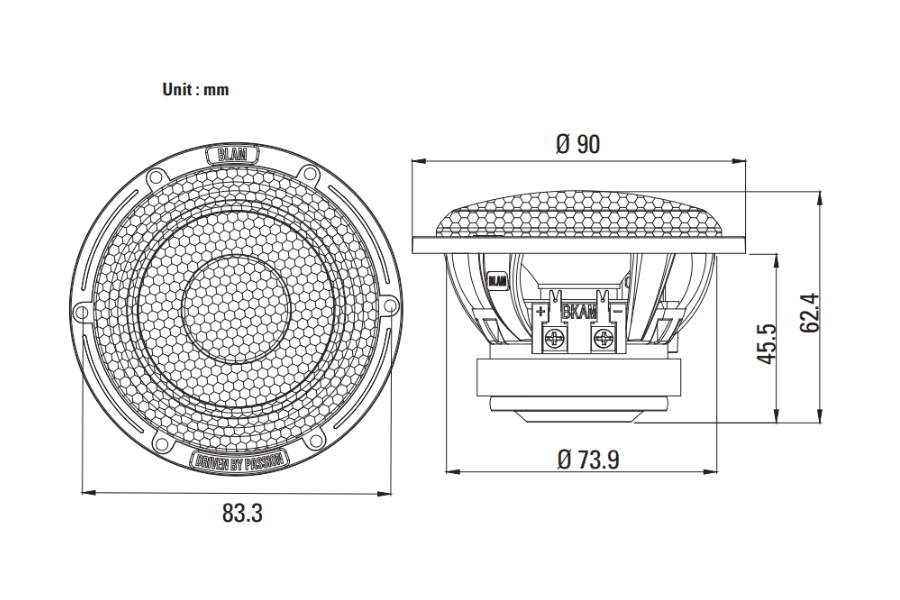

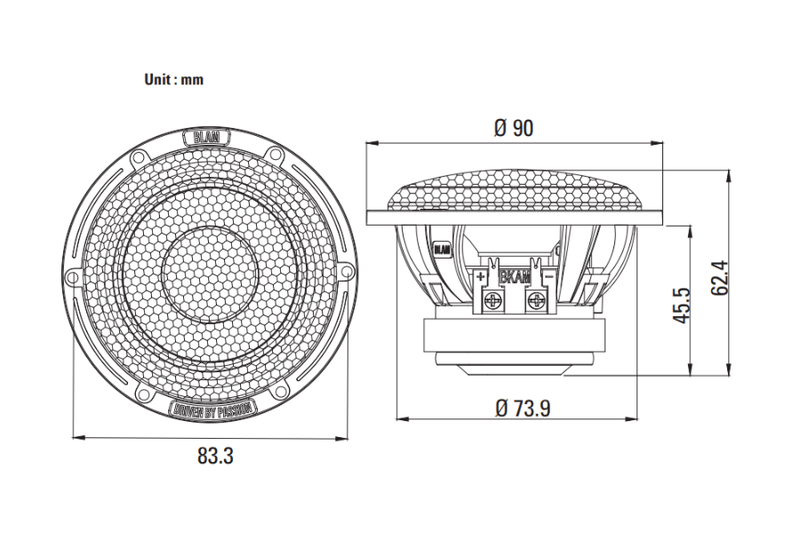

  • Mounting depth 45.5 mm (1.8″)
Composite basket reinforced in fiberglass – High quality treated cellulose pulp membrane – Butyl rubber surround – Long life “Conex” damper – 20 mm ‘0.8”) voice coil on fiberglass former – 55 mm x 10 mm (2.1” x 0.4”) ferrite magnet
Recommended minimum cut-off frequency 250 Hz 12 dB/octave

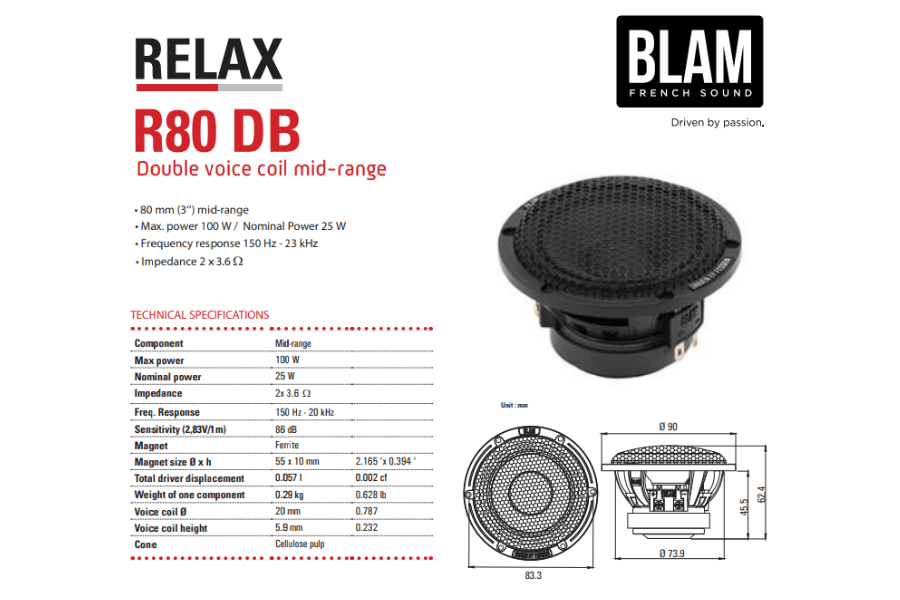

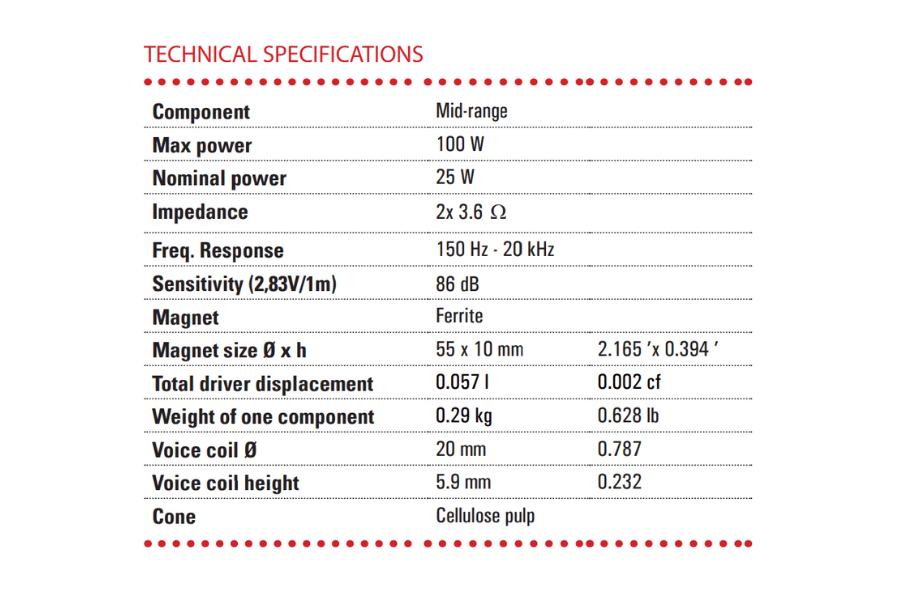

Technical Specifications
  • Component Mid-range
  • Maximum power 100 W
  • Nominal power 25 W
  • Impedance 2 x 3.6Ω
  • Frequency response 150 Hz - 20 kHz
  • Sensitivity (2.83V/1m) 86 dB
  • Magnet Ferrite
  • Magnet size Ø x H 55 x 10 mm
  • Total displacement of the driver 0.057 l
  • Weight of one component 0.29 kg
  • Voice coil Ø 20 mm
  • Height of voice coil 5.9 mm
  • Cone cellulose pulp

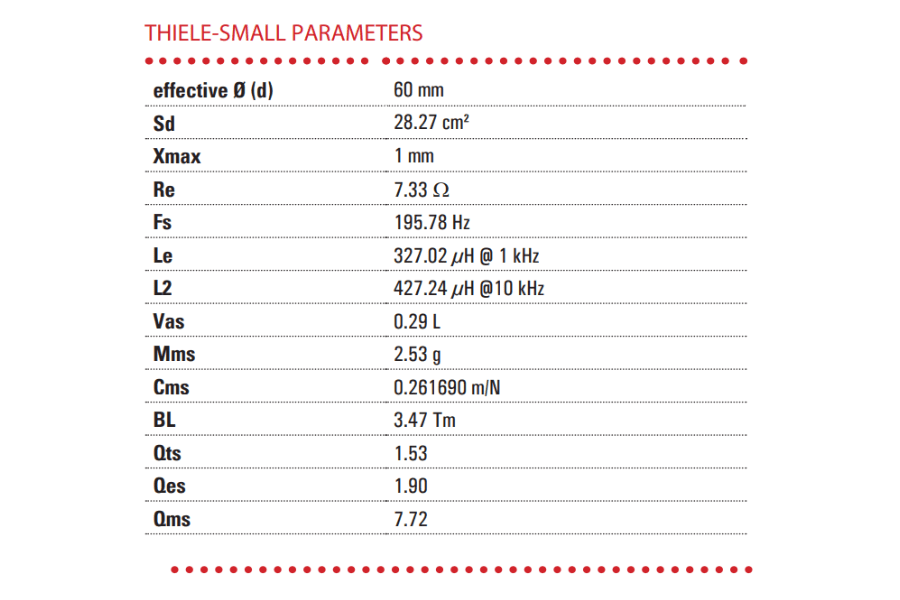

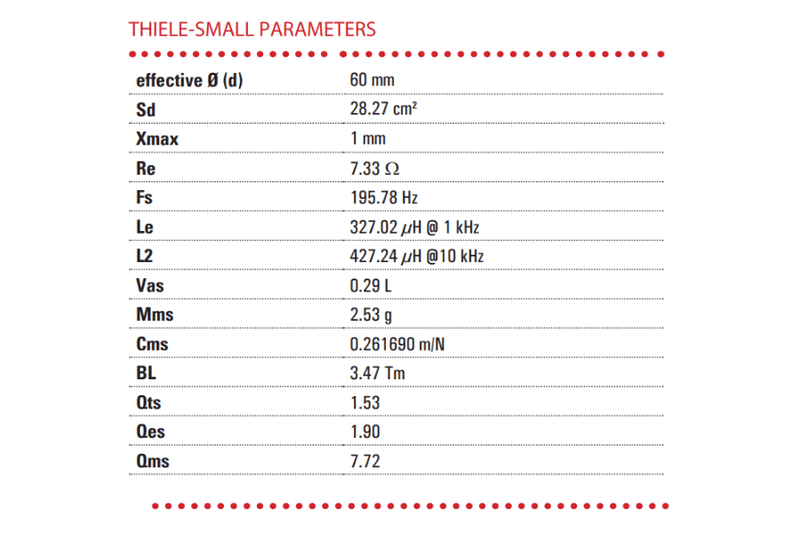

Technical Parameters
  • Effective Ø (d) 60 mm
  • Sd 28.27 cm²
  • Xmax 1 mm
  • Re 7.33 Ω
  • Fs 195.78 Hz
  • Le 327.02 µH @ 1 kHz
  • L2 427.24 µH @ 10 kHz
  • Vas 0.29 L
  • Mms 2.53 g
  • Cms 0.261690 m/N
  • BL 3.47 Tm
  • Qts 1.53
  • Qes 1.90
  • Qms 7.72

Supplied accessories

  • Mounting screws
  • Protection grill
  • User manual
