AudioControl LC2i - 2 Channel Line Output Converter Including AccBass Processor


Price:
£129.99

Description

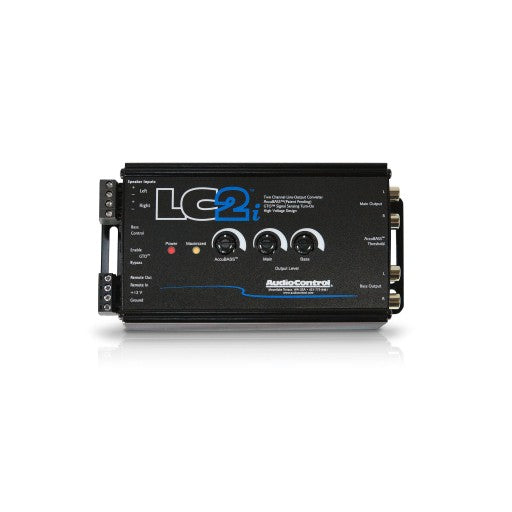

AUDIOCONTROL LC2i

The LC2i, is a compact, two-channel processor with active input circuitry, which allows it to accept speaker-level signals of up to 400 watts per channel from factory-installed source units or amplifiers. It converts them to high-quality pre-amp signals that can then be directed to after-market processors and/or amplifiers. Users can enjoy maximum sound quality while maintaining the use of factory volume and steering wheel controls.

Inputs



Speaker Level Input: 1 (2 channels)

Maximum Speaker Level Input: 400W per channel at 4Ohm

Input Impedance: 20k Ohm



Outputs



Preamp Outputs: 2 (2 channels main, 2 channels bass)

Maximum Output Level: 9.5Vrms/13V peak

Output Impedance: 150 Ohm



Performance



Total Harmonic Distortion: 0.01%

Signal to Noise: >110dB

Frequency Response: 10Hz-100kHz ±1 dB



Control



Remote In

12VDC Remote Out (always active when unit is on)



General



Current Draw: 150mA

Recommended Fuse Rating: 1A

Weights & dimensions

Dimensions: 5.4"L x 3.25"D x 1.5"H (6.5"L including mounting brackets)

Weight: 1.0lbs (0.5kg)
