Description

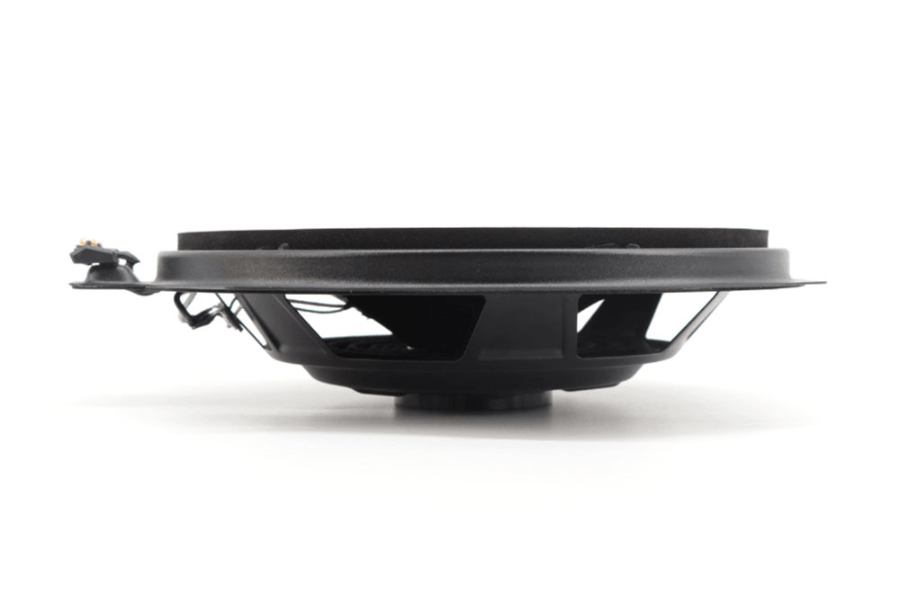

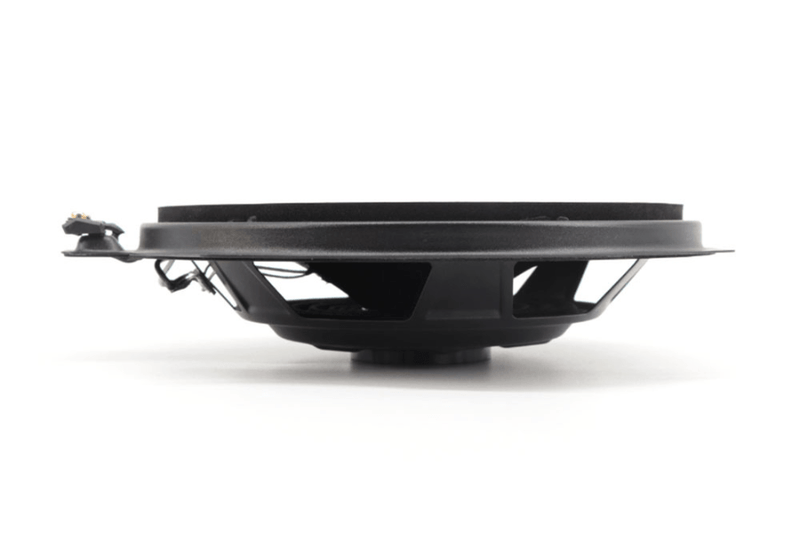

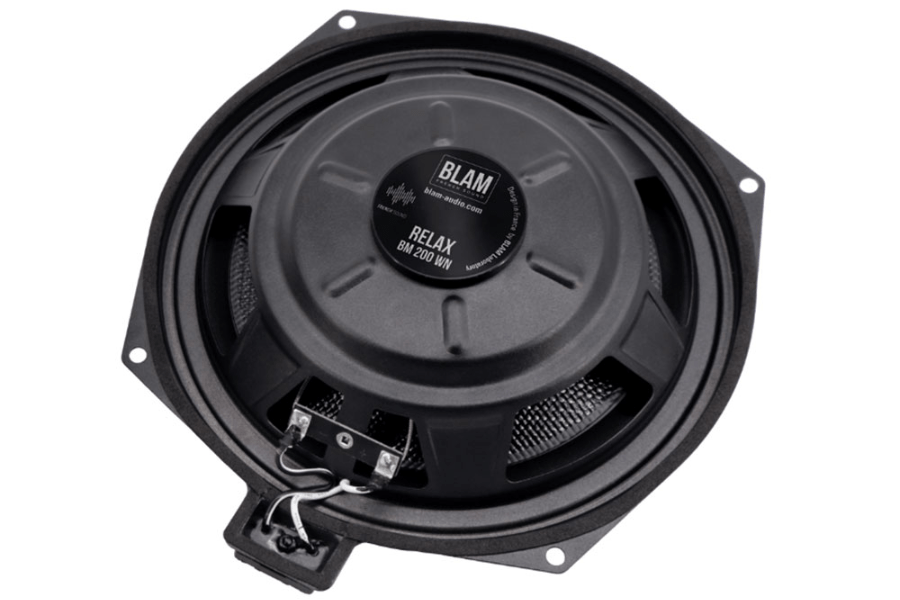

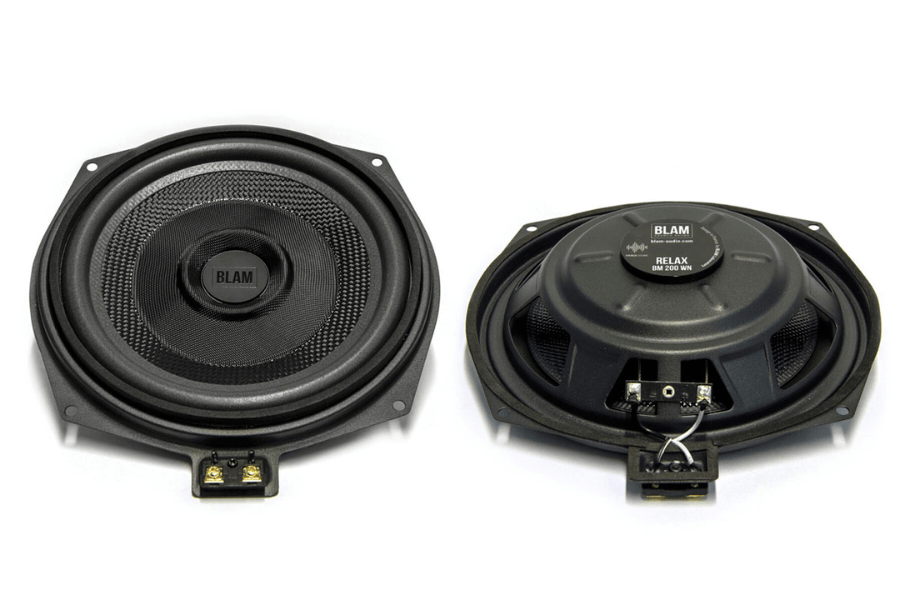

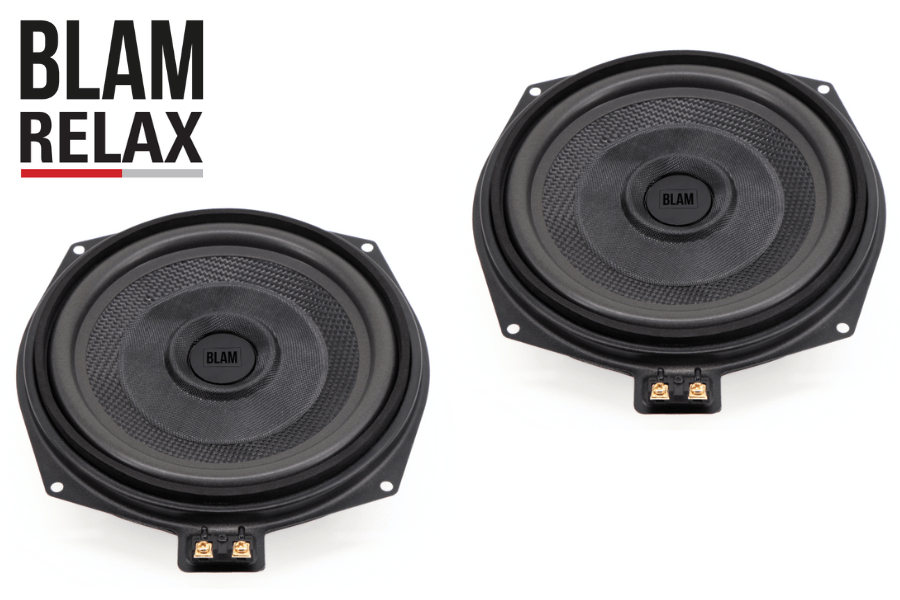

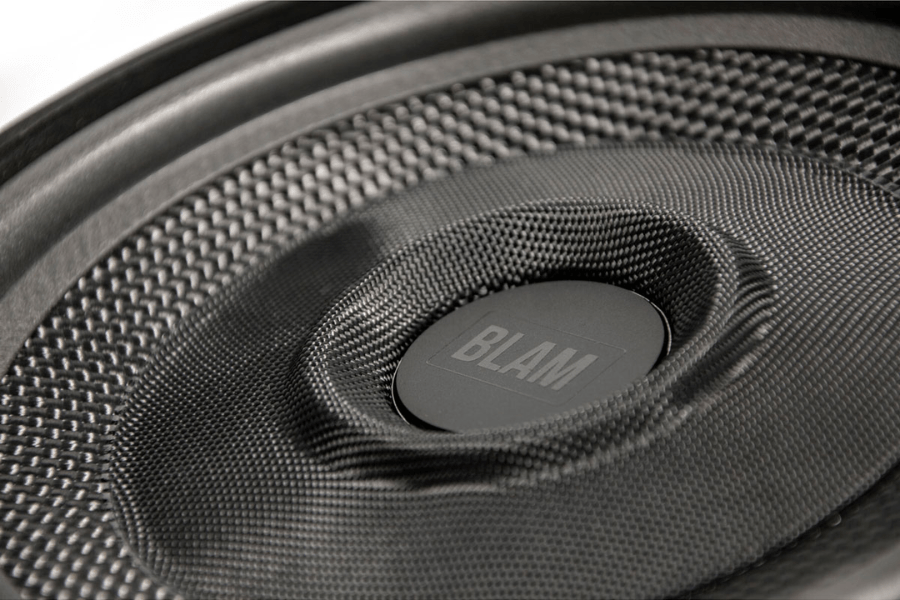

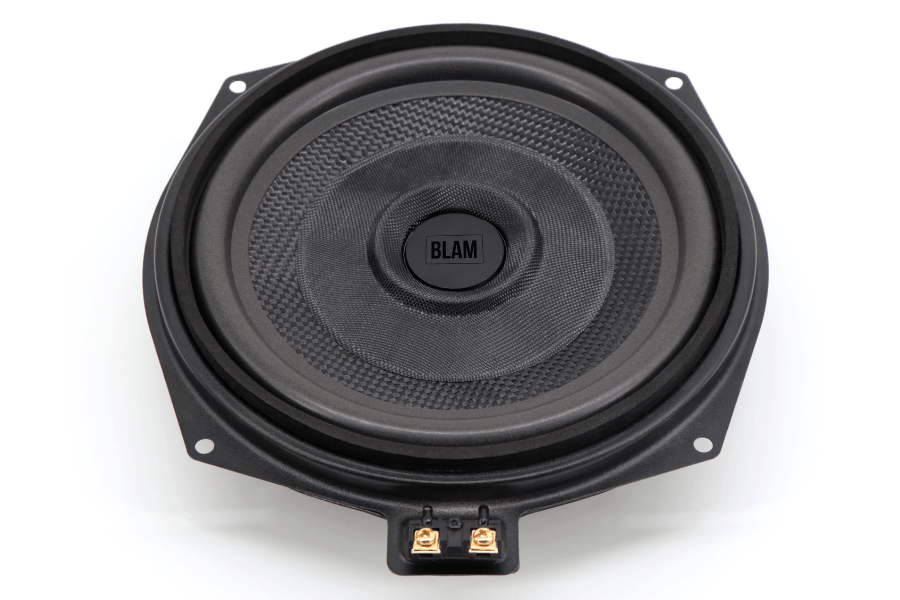

Upgrading the audio system in a BMW can be a daunting task, particularly due to the shallow subwoofers installed under the front seats. However, the BM 200 WN hi-performance subwoofers from BLAM offer a perfect solution. These 200mm (8-inch) extra-flat underseat car subwoofers are specifically designed for BMW models, including the Series 1, 3, 5, 6, 7, and X1, 3, 5, 6. The BM200WN replaces the standard 165mm woofers with ease, enhancing the installation process and delivering a more precise, clear sound. Experience your favourite music like never before with these custom-built upgrades that seamlessly fit into your BMW’s original location. Elevate your driving experience today!
Technical Features
- Subwoofer 200 mm
- Max power 120 W
- Nominal power 60W

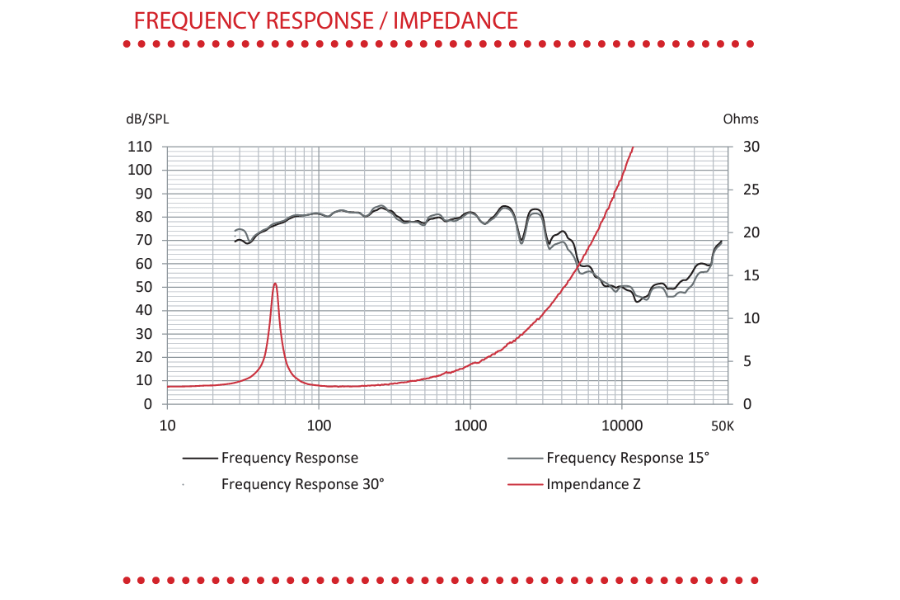

- Frequency response 40 Hz to 1 kHz
- Sensitivity 91 dB
- Impedance 2 Ω
Characteristics
- Steel salad bowl
- Lightweight and rigid fiberglass membrane
- Foam suspension
- Spider long life “Conex
- 35 mm coil on aluminum support
- High-powered neodymium motor 34.5 x 7 mm

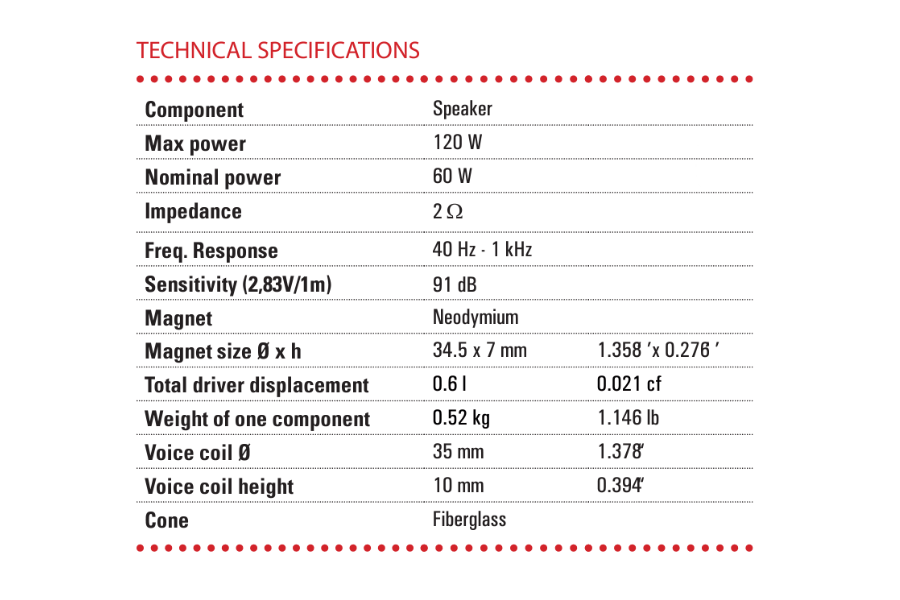

Technical Specifications
- Component: Speaker
- Max power: 120 W
- Nominal power: 60 W
- Impedance: 2 Ω
- Freq. Response: 40 Hz - 1 kHz
- Sensitivity (2,83V/1m): 91 dB
- Magnet: Neodymium
- Magnet size Ø x h: 34.5 x 7 mm 1.358‘’x 0.276‘’
- Total driver displacement: 0.6 l 0.021 cf
- Weight of one component: 0.52 kg 1.146 lb
- Voice coil Ø: 35 mm 1.378“
- Voice coil height: 10 mm 0.394“
- Cone: Fiberglass

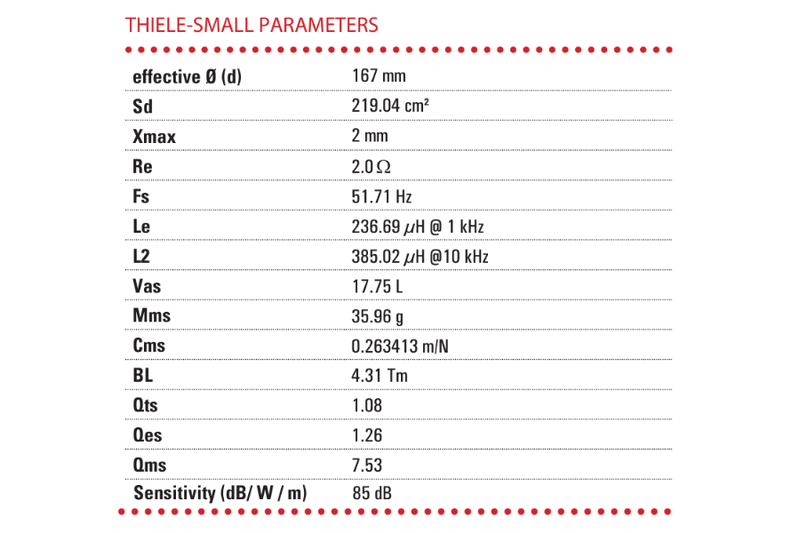

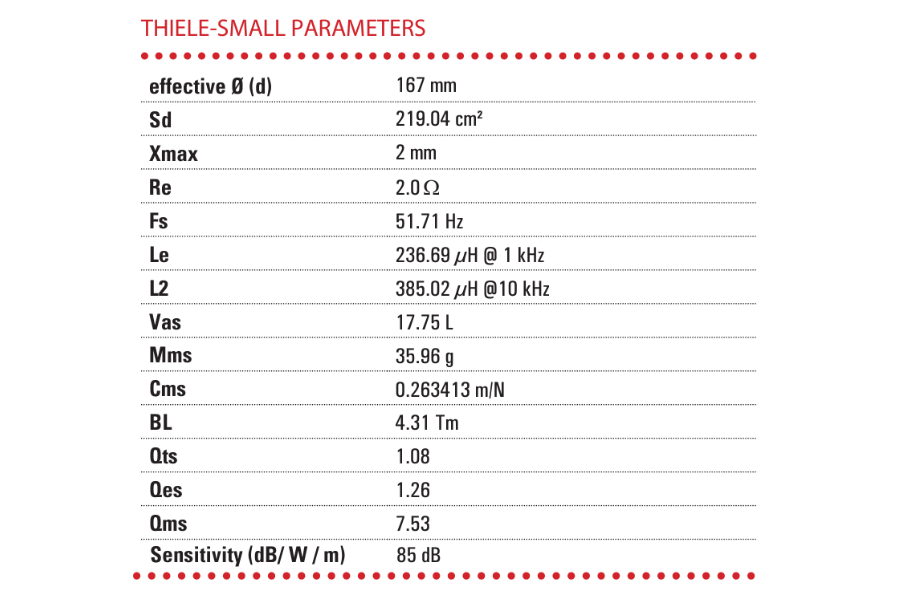

Technical Parameters
- effective Ø (d) 167 mm
- Sd 219.04 cm²
- Xmax 2 mm
- Re 2.0 Ω
- Fs 51.71 Hz
- Le 236.69 µH @ 1 kHz
- L2 385.02 µH @10 kHz
- Vas 17.75 L
- Mms 35.96 g
- Cms 0.263413 m/N
- BL 4.31 Tm
- Qts 1.08
- Qes 1.26
- Qms 7.53
- Sensitivity (dB/ W / m) 85 dB
