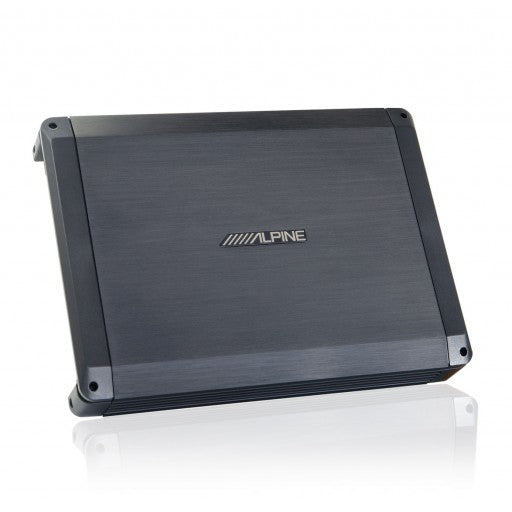

Alpine BBX-F1200 - 4 Channel Amplifier

  • Sale
  • Regular price £109.99
Tax included.


This new BBX amplifier gives you Alpine power performance at an amazing price. And they’re designed to fit easily in virtually any system.
High Power, Great Value

This amp delivers high output power and exceptional performance for their class. A great way to expand your sound system on a limited budget.
High Pass and Low Pass Filters

These two filters let you set the frequency points for the high, mid and bass ranges to match your speakers and ensure optimum efficiency.

Bass EQ for Best Bass

Performance With Bass EQ, you can maximise the performance of your system and get even more powerful bass.

FEATURES
Install

  • Terminal Layout: Two-Sided
  • Screw Mount / Wire Cover: Integrated Wire and Mounting Screw Terminals


General

  • Amplifier Type: Class-A/B
  • Channel Design: 4/3/2 Channel
  • Thermal Control: Thermal Management Control
  • Power Supply: DC-DC PWM Power Supply
  • Power Supply Design: MOSFET Power
  • Current Protection: Over-Current, Over-Voltage and Thermal Protection
  • Crossover: Variable Low-Pass / High-Pass
  • Green/red status LED
  • 2 pair RCA pre-inputs


SPECIFICATIONS

  • Max Power Output Ratings
  • Total Max Power: 600W


RMS Power Ratings

  • Per Channel into 4ohms (≤1%THD+N): 4 x 50W
  • Per Channel into 2ohms (≤1%THD+N): 4 x 70W
  • Bridged into 4ohms (≤1%THD+N): 2 x 130W


Sound Tuning

  • Crossover Frequency (Variable, OFF/LPF/HPF Selectable)
  • 1/2 Ch: LP/HP:  50Hz – 500Hz
  • 3/4 Ch: LP/HP:  50Hz – 500Hz
  • EQ (Equalizer): Bass EQ Fixed Frequency 45 Hz, Q=0.5, Variable Gain  0dB to +12dB (3/4 Ch only)


Dimensions

  • Footprint: 330 mm x 52 mm x 240 mm


General

  • Power Requirements: 14.4 V DC (11 V to 16 V)
  • Input Sensitivity: 0.2 - 8.0 V
  • Frequency Response: 5 Hz - 50 kHz (+ 0,-3 dB)
  • Speaker Impedance: 4 or 2 Ω
  • Signal to Noise: S/N Ratio (IHF A Weighted, Reference: rated power into 4ohms) 95 dB
  • Weight: 2.7 Kg
