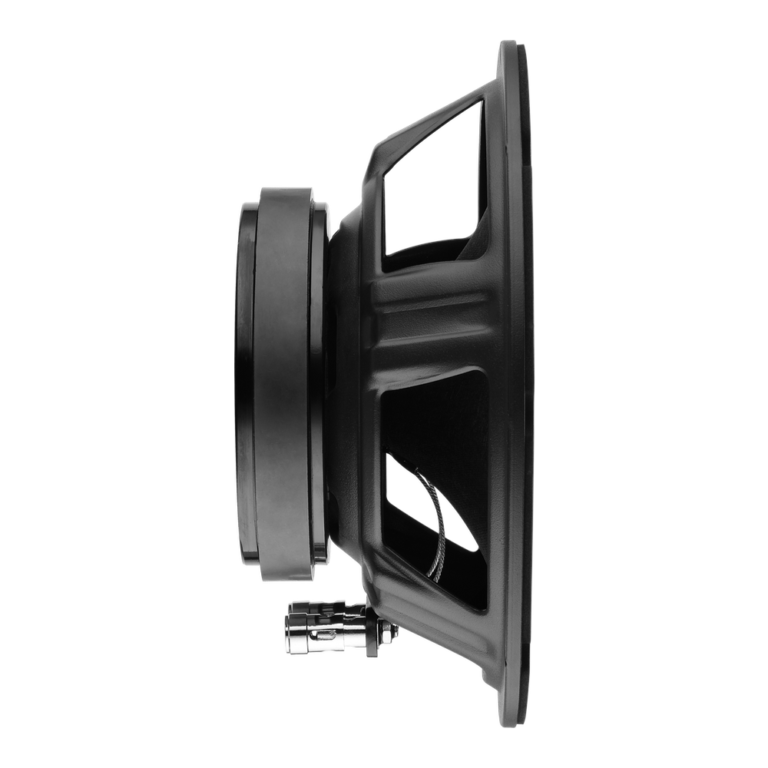

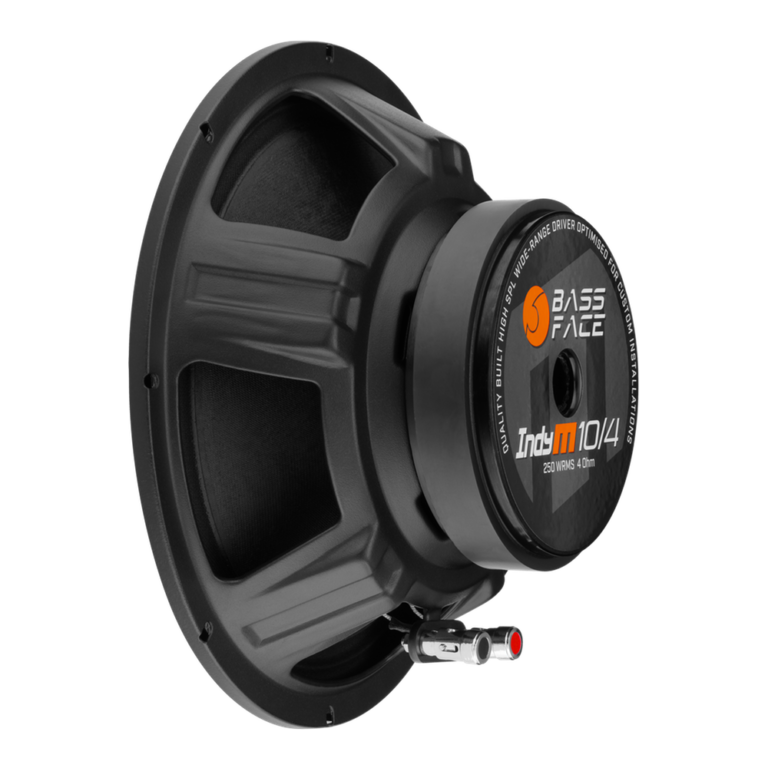

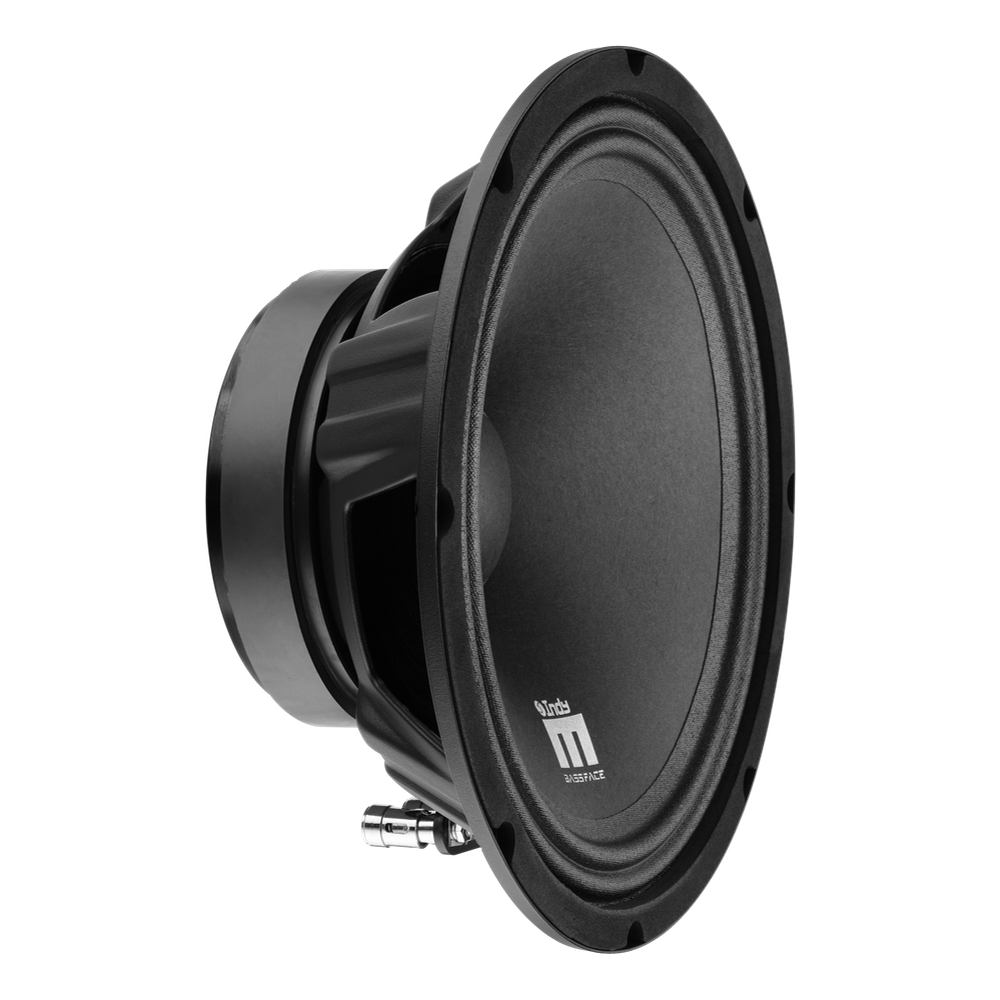

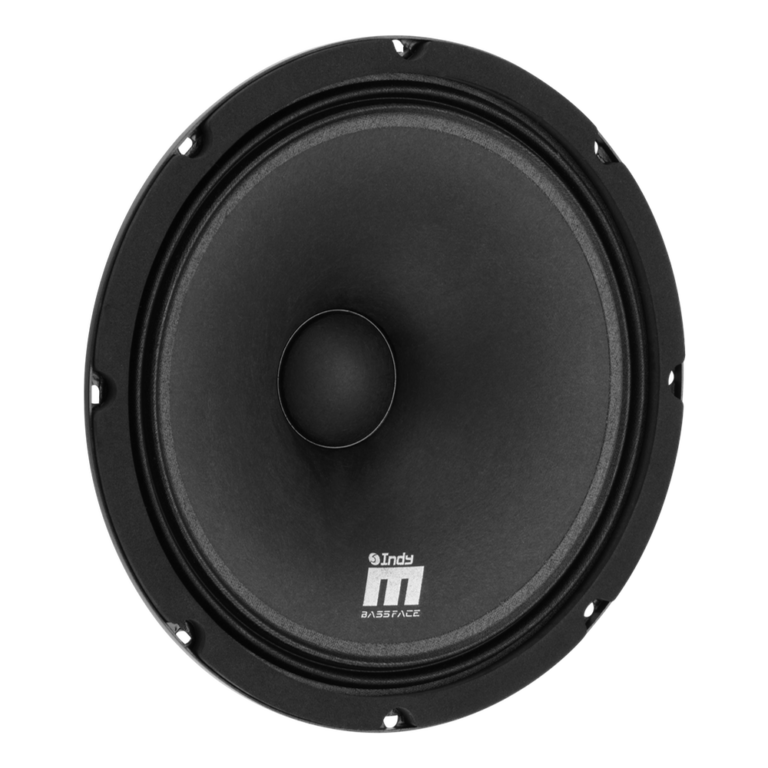

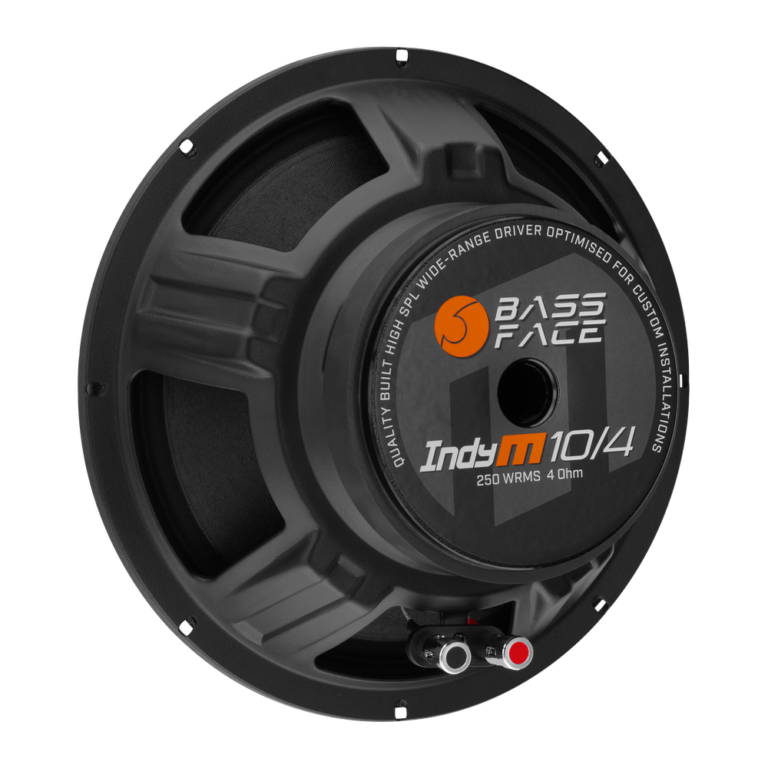

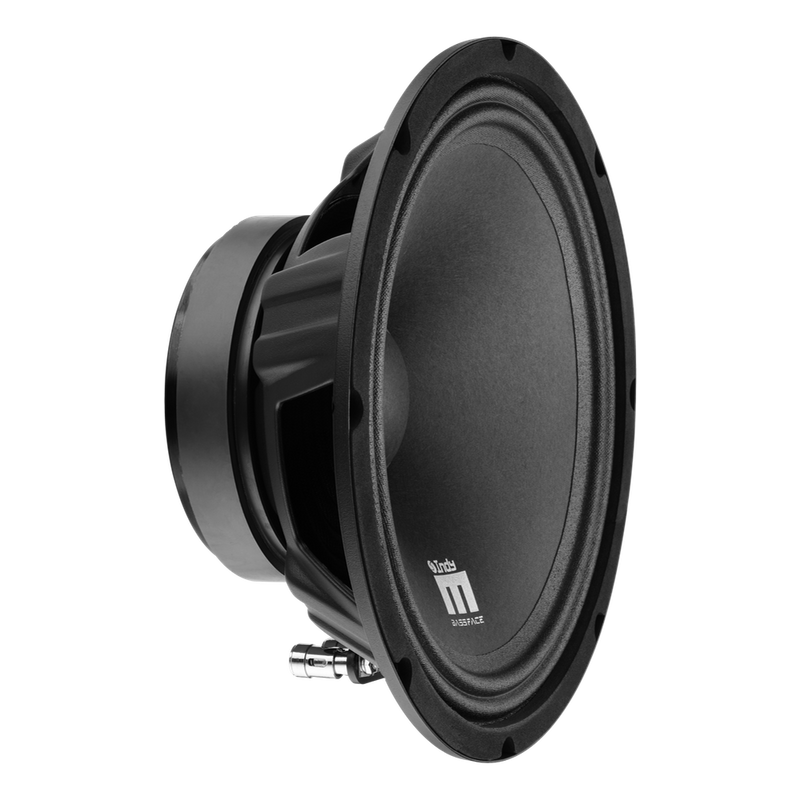

BASSFACE IndyM10/4 - 10" SPL Wide Range Driver

  • Sale
  • Regular price £74.99
Tax included.


 IndyM10/4 10" 1x4Ohm SVC 250WRMS Quality High SPL Wide Range Driver Optimised For Custom Installations

KEY FACTS


Product Category Midbass & Midrange Speakers
Version 1
Series Indy
Date Added 15/02/2021
Date Modified 01/09/2021
Barcode 680044778600
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 2200
Product Height (mm) 105
Product Length (mm) 257
Product Width (mm) 257
Complete Product Pack Weight (g) 2900
Retail Carton L (mm) 277
Retail Carton W (mm) 277
Retail Carton H (mm) 125
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

SPEAKER DATA


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 250
Overall Diameter (mm) 257
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 134
Installation Cut-out Diameter (mm) 230
Overall Depth (mm) 105
Mounting Depth (mm) 99
Front Protrusion From Mounting Plane (mm) 6
System Frequency Response (Hz) (Indicative Of Usable Range But Not Suitability) 100-10,000
Impedance (Ohm) (Nominal) 4
Sensitivity (db/1Wm) 94.2
Total Magnet Weight (Oz) 40
Magnet Size (mm) 145*25
Magnet Type Y30
Magnet Qty 1
Top Plate thickness (mm) 6
Back Plate thickness (mm) 8
Recommended Cable 16AWG/OFC
Voice Coil Former Spec Kapton
Voice Coil Type CCA Round Wire
Voice Coil Diameter (mm) 52.4
Voice Coil Internal Diameter (mm) 50.8
Voice Coil External Diameter (mm) 52.4
Voice Coil Winding Hight (mm) 9.8
Voice Coil Winding (Layers) 2
Cone Type Pressed Paper
Spider Compliance Medium
Spider Type Linear
Spider Diameter (mm) 146
Spider Design Single
Surround Dual Roll
Surround Material Cloth
Tinsel Wire Single
Terminal Push

Indy M concept was designed to offer an all-round high performance midrange device at a reasonable price point. The new engineering team drew up a wish list of specification points and made several prototypes before settling on the current basket, motor and cone layouts. From there detail changes were made to almost every aspect of the basic design focussing on each detail. Performance was optimised to allow the driver to run well in almost any application. The Indy M branding was originally conceived in mid-2019, with outline specifications in place by the end of that year. Prototypes were built throughout 2020 and first production models were made available Q3 2021
