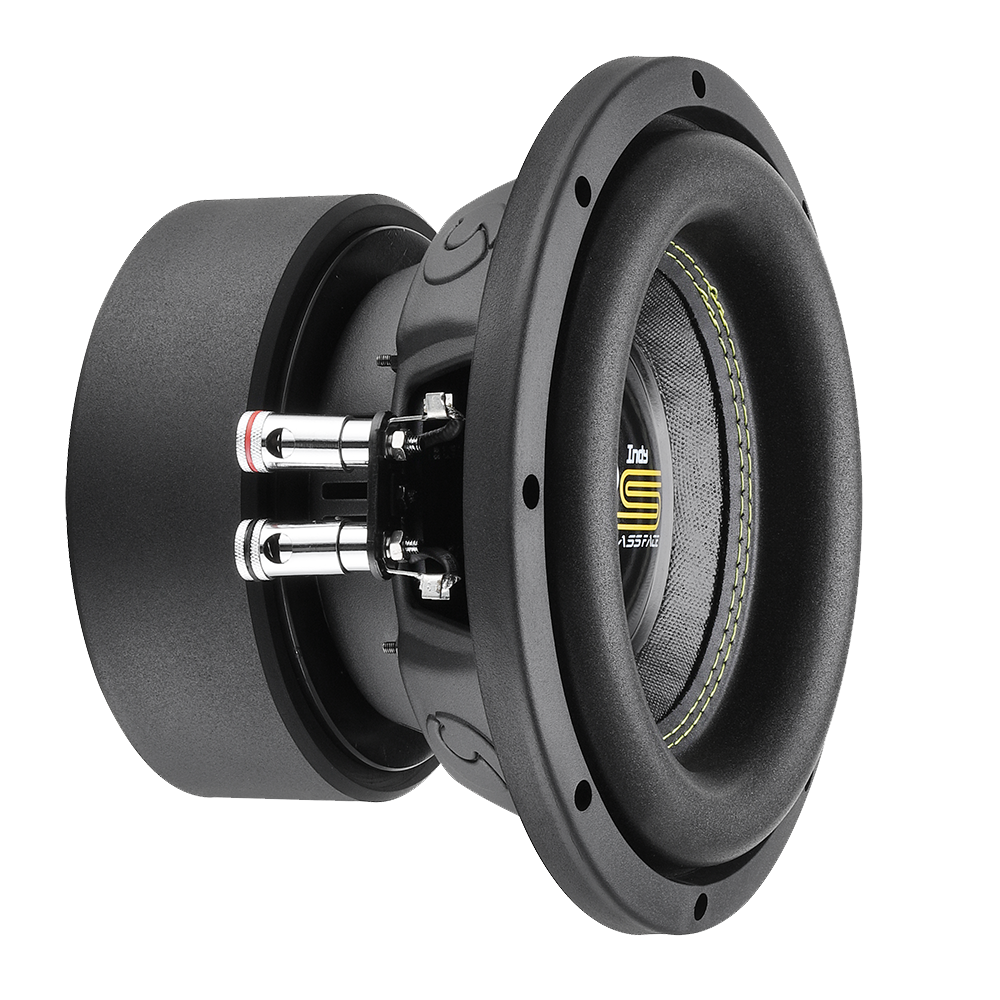

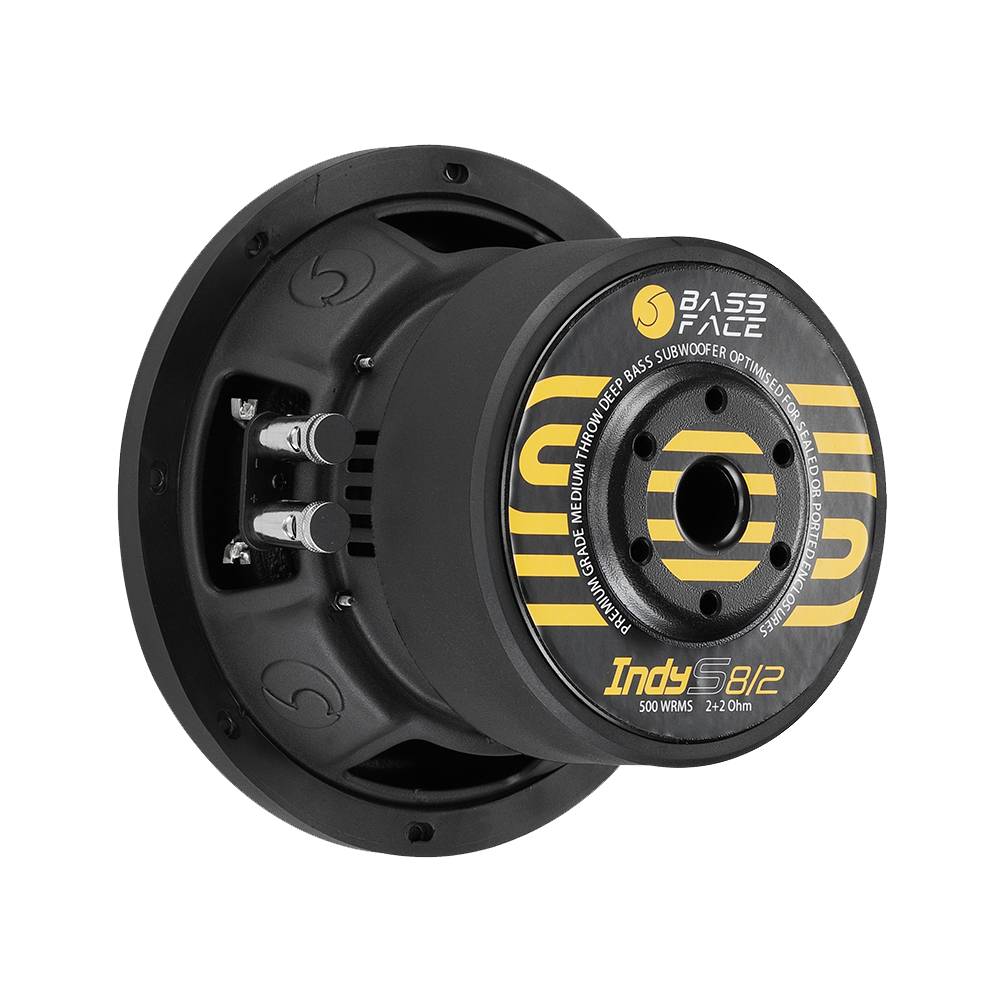

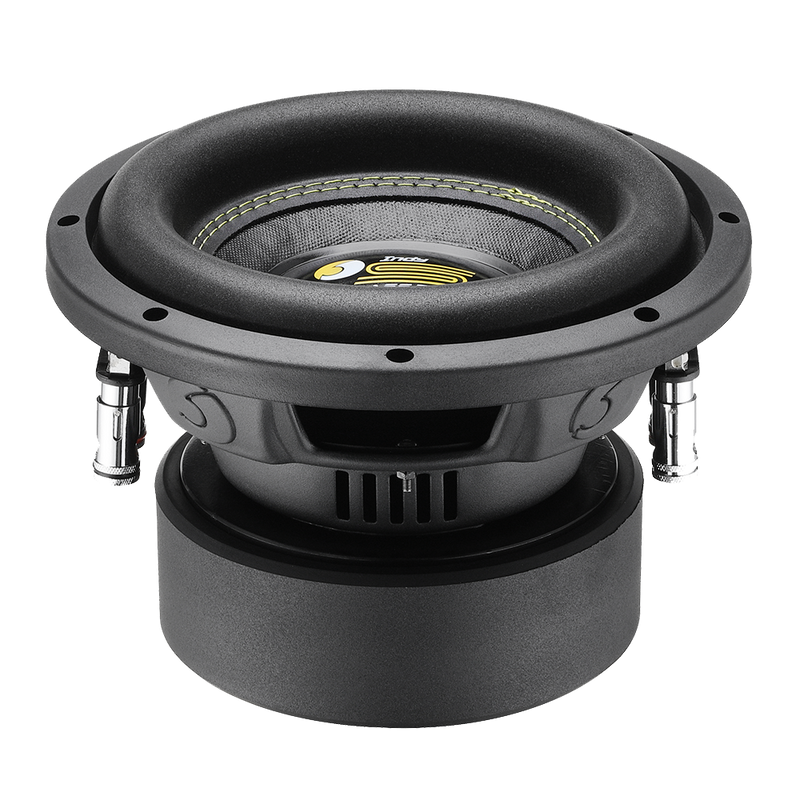

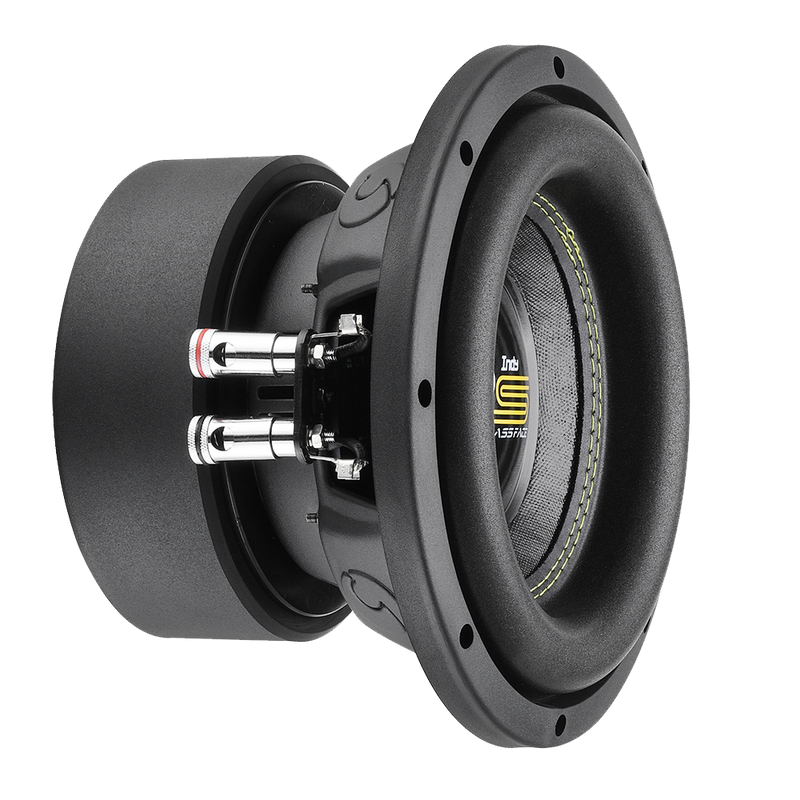

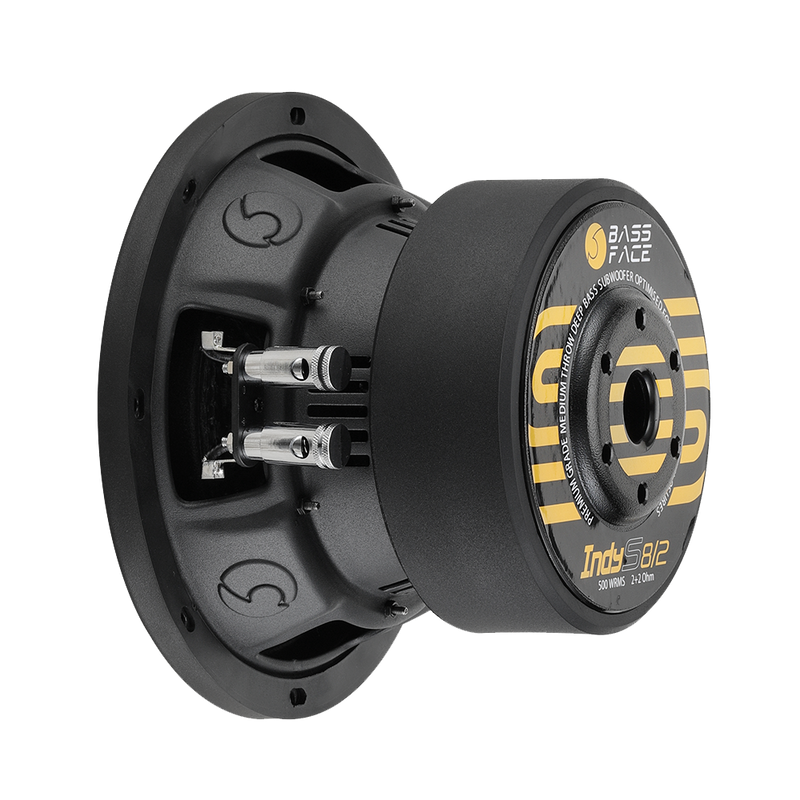

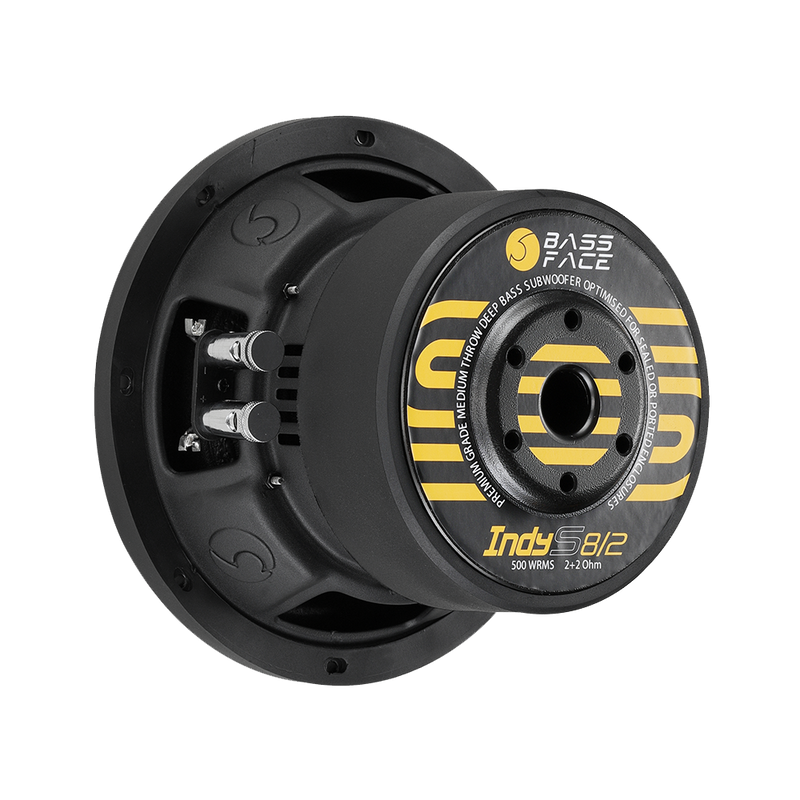

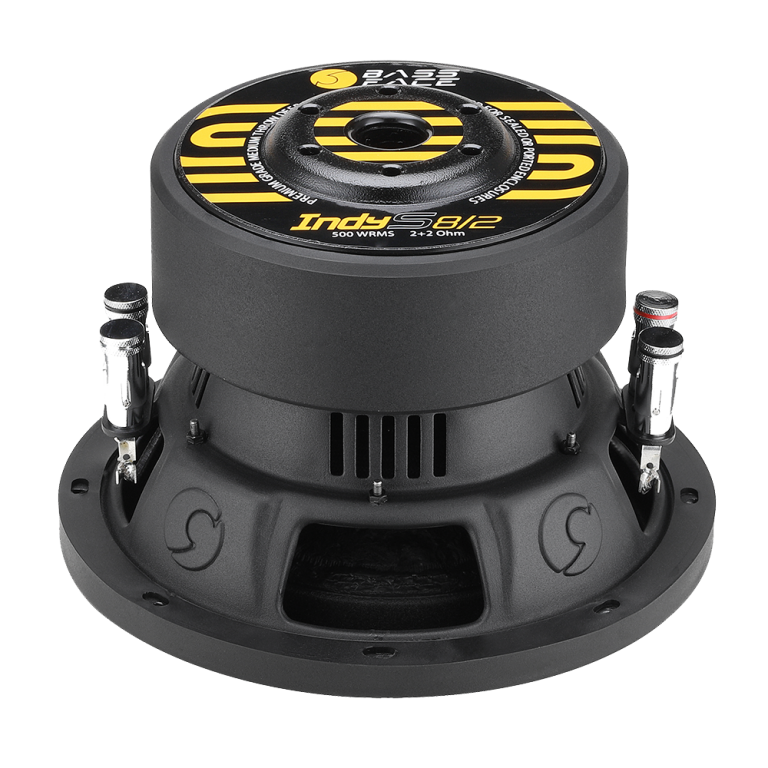

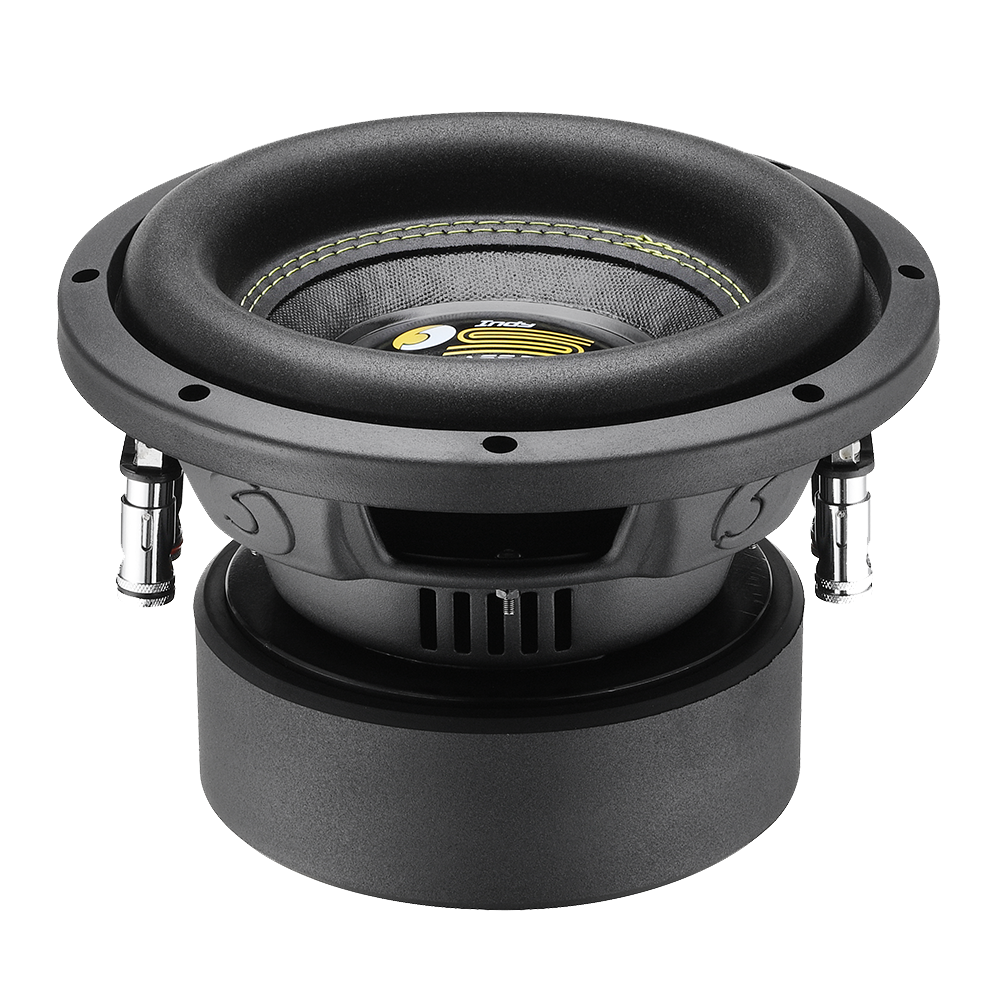

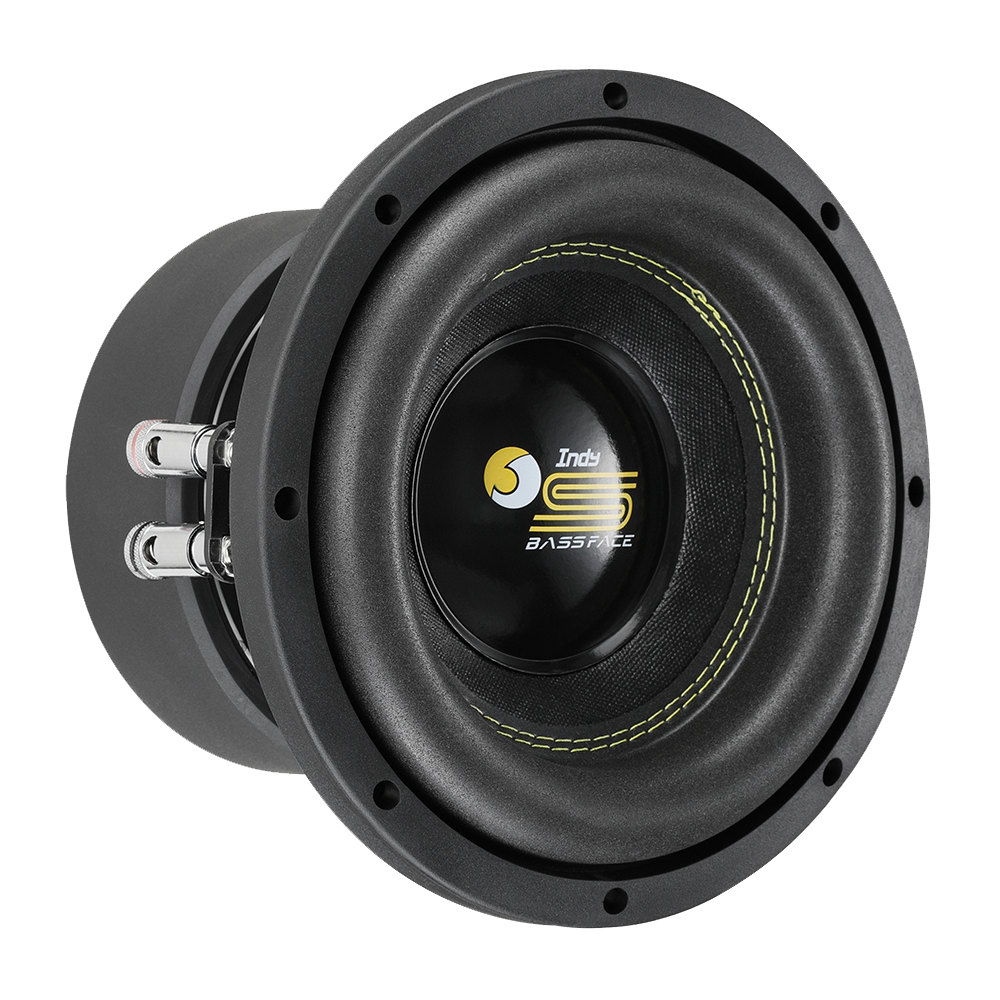

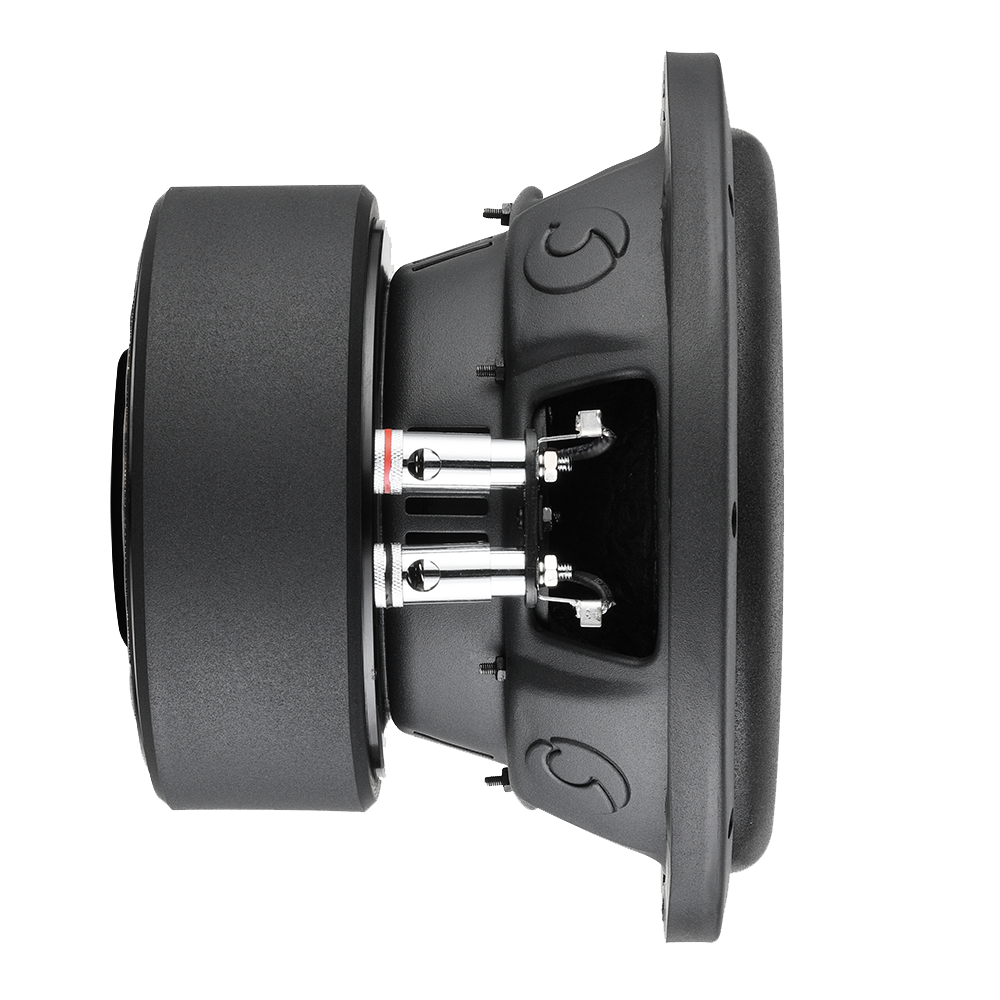

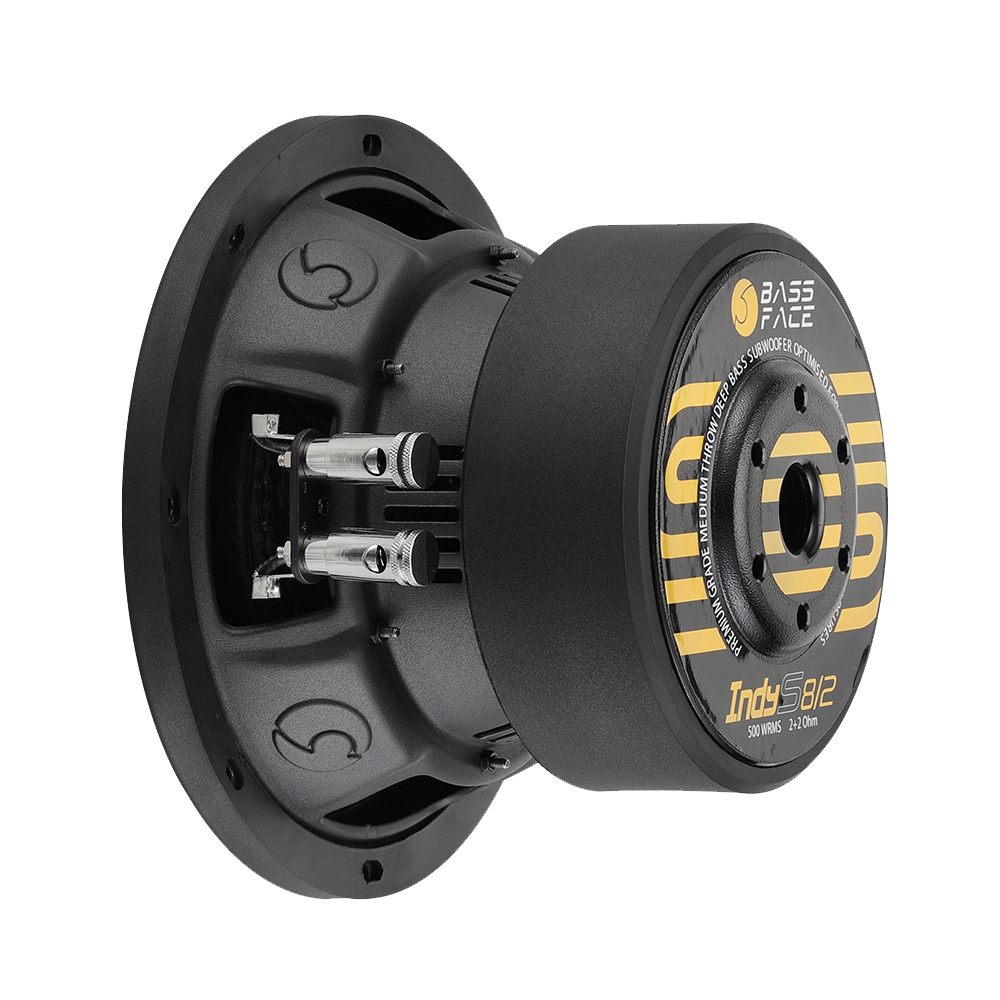

BASSFACE IndyS8/2 - 8" Deep Bass Subwoofer For Sealed Or Ported Enclosures

  • Sale
  • Regular price £119.99
Tax included.


IndyS8/2 8" 2x2Ohm DVC 500WRMS Premium Deep Bass Subwoofer For Sealed Or Ported Enclosures

KEY FACTS


Product Category Subwoofers
Version 1
Series Indy
Date Added 08/01/2020
Date Modified 01/09/2021
Barcode 685757152815
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 5800
Product Height (mm) 162
Product Length (mm) 215
Product Width (mm) 215
Complete Product Pack Weight (g) 7000
Retail Carton L (mm) 260
Retail Carton W (mm) 260
Retail Carton H (mm) 230
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

SPEAKER DATA


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 500
Overall Diameter (mm) 215
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 145
Installation Cut-out Diameter (mm) 185
Overall Depth (mm) 157
Mounting Depth (mm) 132
Front Protrusion From Mounting Plane (mm) 25
Optimum Frequency Range (Hz) 25-150
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 80.24
Total Magnet Weight (Oz) 90
Magnet Size (mm) 145*20
Magnet Type Y30
Magnet Qty 2
Top Plate thickness (mm) 10
Back Plate thickness (mm) 8 And Bump
Recommended Cable 8AWG/OFC
Recommended Bass Enclosure Type Ported/Sealed
Recommended Bass Enclosure Volume (CuFt) 0.7-1.4
Recommended Bass Enclosure Tuning Frequency (Hz) 40
Recommended Box Design Credit Bassface Distribution Ltd
Voice Coil Former Spec Aluminium
Voice Coil Type CCA Round Wire
Voice Coil Diameter (mm) 54.8
Voice Coil Internal Diameter (mm) 50.8
Voice Coil External Diameter (mm) 54.8
Voice Coil Winding Hight (mm) 28
Voice Coil Winding (Layers) 4
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 139
Spider Design Single
Surround Tall Smooth
Surround Material Foam
Tinsel Wire Double Oversized Round Wire Stitched

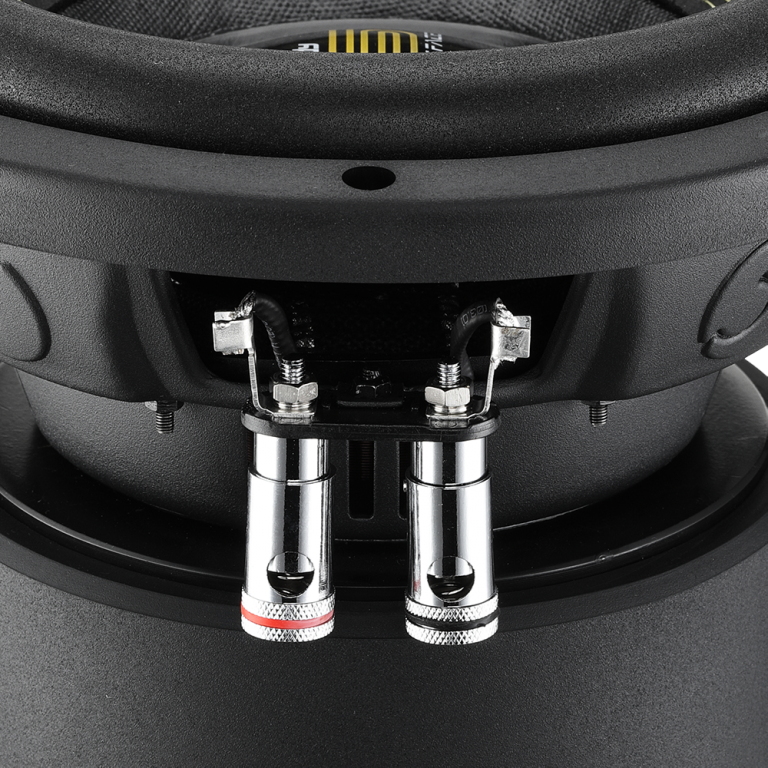

Terminal Push



Indy S concept was designed to offer an all round high performance woofer at a reasonable price point. The new engineering team drew up a wish list of specification points and made several prototypes before settling on the current basket, motor and cone layouts. From there detail changes were made to almost every aspect of the basic design focussing on each detail. Performance was optimised to allow the woofer to run well in almost any enclosure. The Indy S branding was originally conceived in mid 2019, with outline specifications in place by the end of that year. Prototypes were built throughout early 2020 and first production models were made available Q3 2021
