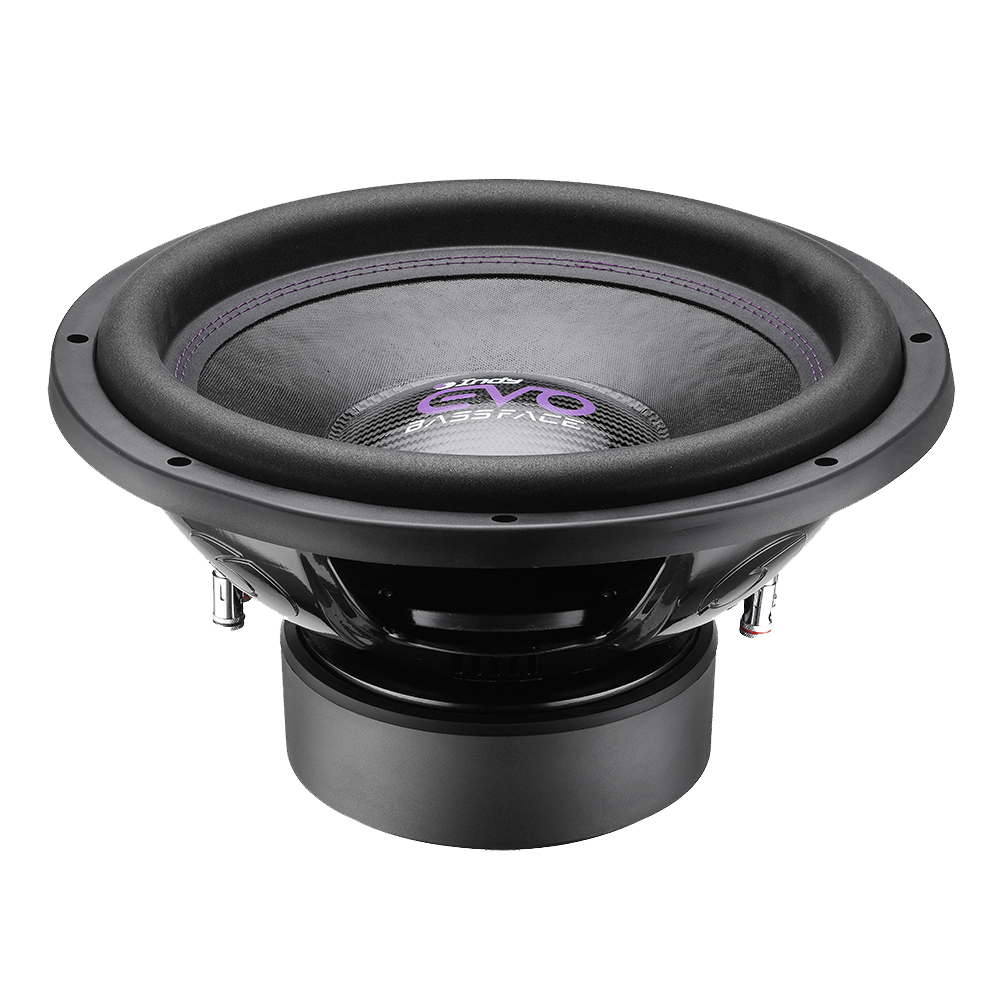

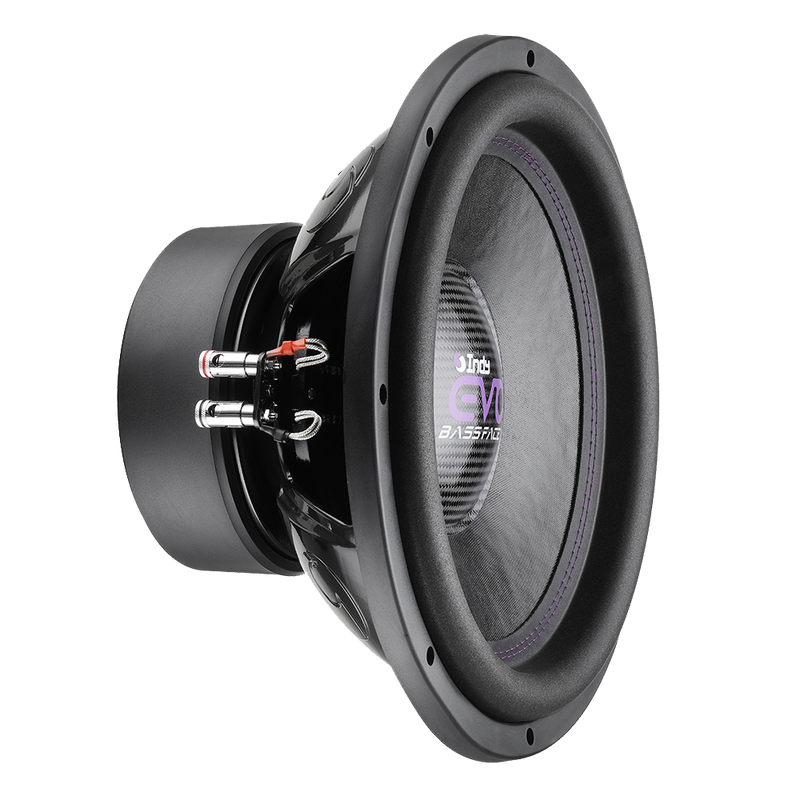

BASSFACE IndyEVO15/2 - 15" Subwoofer For Sealed Or Ported Enclosures

  • Sale
  • Regular price £294.99
Tax included.


BASSFACE IndyEVO15/2 15" 2x2Ohm DVC 2000WRMS Professional Deep Bass Subwoofer For Sealed Or Ported Enclosures

KEY FACTS


Product Category Subwoofers
Version 1
Series Indy
Date Added 08/01/2020
Date Modified 03/09/2021
Barcode 685757152808
Production Status Current
Product Net Weight (g) (For Pairs/Sets Weight Is All Major Parts) 12800
Product Height (mm) 225
Product Length (mm) 392
Product Width (mm) 392
Complete Product Pack Weight (g) 14500
Retail Carton L (mm) 452
Retail Carton W (mm) 452
Retail Carton H (mm) 315
Operating Temperature (Degrees Celsius) 0-50
Warranty (Months) 12
Sold As Single

SPEAKER DATA


Continuous RMS Power (Watts) (One Speaker, Using Appropriate Crossover & 0%THD) 2000
Overall Diameter (mm) 392
Magnet Diameter (mm) (Including Magnet Protector Where Applicable) 190
Installation Cut-out Diameter (mm) 360
Overall Depth (mm) 220
Mounting Depth (mm) 195
Front Protrusion From Mounting Plane (mm) 30
Optimum Frequency Range (Hz) 20-80
Impedance (Ohm) (Nominal) 2+2
Sensitivity (db/1Wm) 87.29
Total Magnet Weight (Oz) 194
Magnet Size (mm) 190*25
Magnet Type Y38
Magnet Qty 2
Top Plate thickness (mm) 12
Back Plate thickness (mm) 10 and Bump
Recommended Cable 8AWG/OFC
Recommended Bass Enclosure Type Ported
Recommended Bass Enclosure Volume (CuFt) 2-5
Recommended Bass Enclosure Tuning Frequency (Hz) 32
Recommended Box Design Credit Bassface Distribution Ltd
Voice Coil Former Spec Aluminium
Voice Coil Type CCA Flat Wire
Voice Coil Diameter (mm) 80.5
Voice Coil Internal Diameter (mm) 75
Voice Coil External Diameter (mm) 80.5
Voice Coil Winding Hight (mm) 40
Voice Coil Winding (Layers) 8
Cone Type Non Pressed Paper
Spider Compliance Medium
Spider Type Progressive
Spider Diameter (mm) 195
Spider Design 1x1, spacer, 1x1
Surround Tall smooth
Surround Material Foam
Tinsel Wire Double round wire stitched
Terminal Push

IndyEVO concept was designed using the IndyS as a base point to offer an all-round Extreme performance woofer at a reasonable price point. The new engineering team drew up a list of specification points and made several prototypes before settling on the current configuration. From there detail changes were made to every aspect of the basic design focussing on each detail. Performance was optimised to allow the woofer to run well in almost any enclosure. The Indy EVO branding was originally conceived in mid-2019, with outline specifications in place by the end of that year. Prototypes were built throughout 2020 and first production models were made available Q3, 2021.
