EDGE EDP122SPL-E3 - 12" SUBWOOFER 1500W RMS D2.


Price:
£194.99

Description

NEW 2024 EDGE EDP122SPL-E3

THE NEW LOOK OF THE OLD EDP122SPL-E6
PERFORMANCE SPECS ARE THE SAME. JUST A GREAT NEW LOOK.!!



STREET BASS SUBWOOFER



EDGE Car Audio presents the EDP122SPL performance subwoofer.

Designed in house by the R&D Team at EDGE the EDP122SPL is high performance subwoofer that offers fantastic bass for both SPL and musical playback. Its wide roll surrounf is perfect for the low bass and smooth transitsions while the stiffer suspension gives added punch and attack for the higher bas notes.

The 3 inch voice coil overs a comprehensive 1500 watts RMS of power handling and is the perfect netry into serious bass!

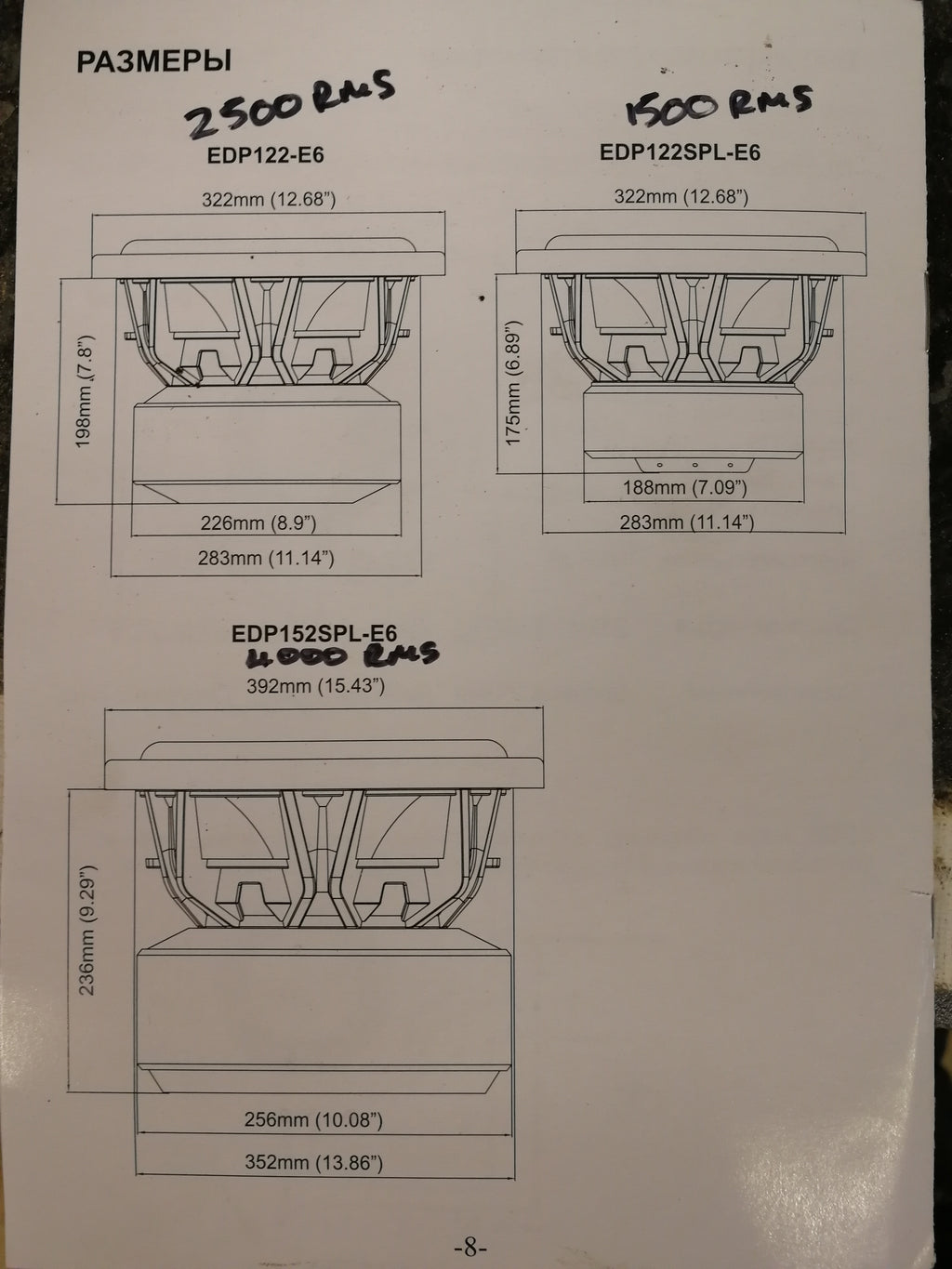

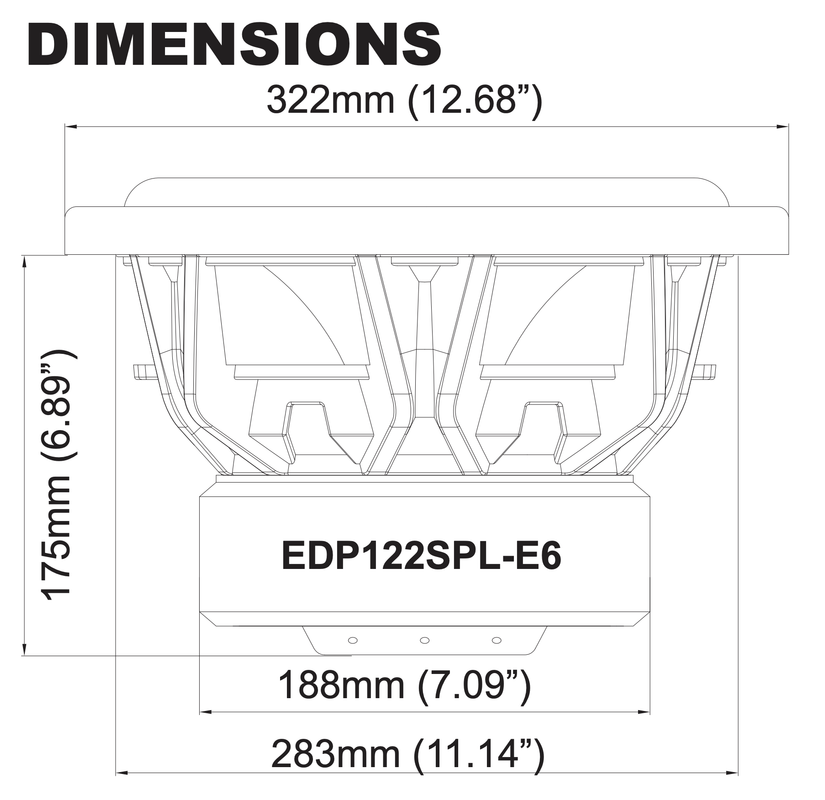

Below are the subwoofer Dimensons

Features and Specification



  • Features

    • Non pressed paper cone
    • Wide roll foam surround
    • Black polycotton spiders
    • Dual Y35 Ferrite magnets
    • 4 layer Black Aluminium voice coil

    Specification

    • Model: EDP122SPL-E3
    • Cone: Non pressed paper
    • Surround: Big roll foam - stitched
    • Voice Coil: 45mm Copper winding
    • Spider: 2pcs PC
    • Gasket: Rubber
    • Top Plate: 13mm Black anodized
    • T-Yoke: 10mm flat
    • Terminal / Wire: 10AWG wire
    • Impedance: Dual 2 Ohms
    • RMS Power: 1500 watts
    • Peak Power: 3000 watts

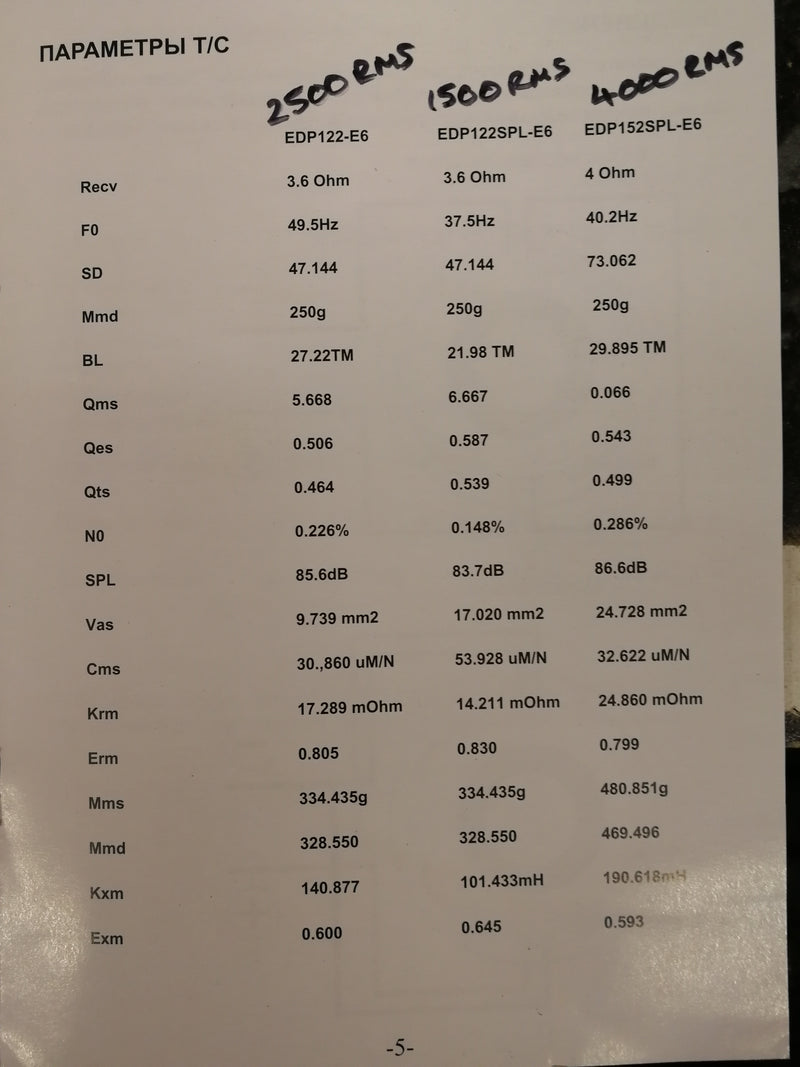

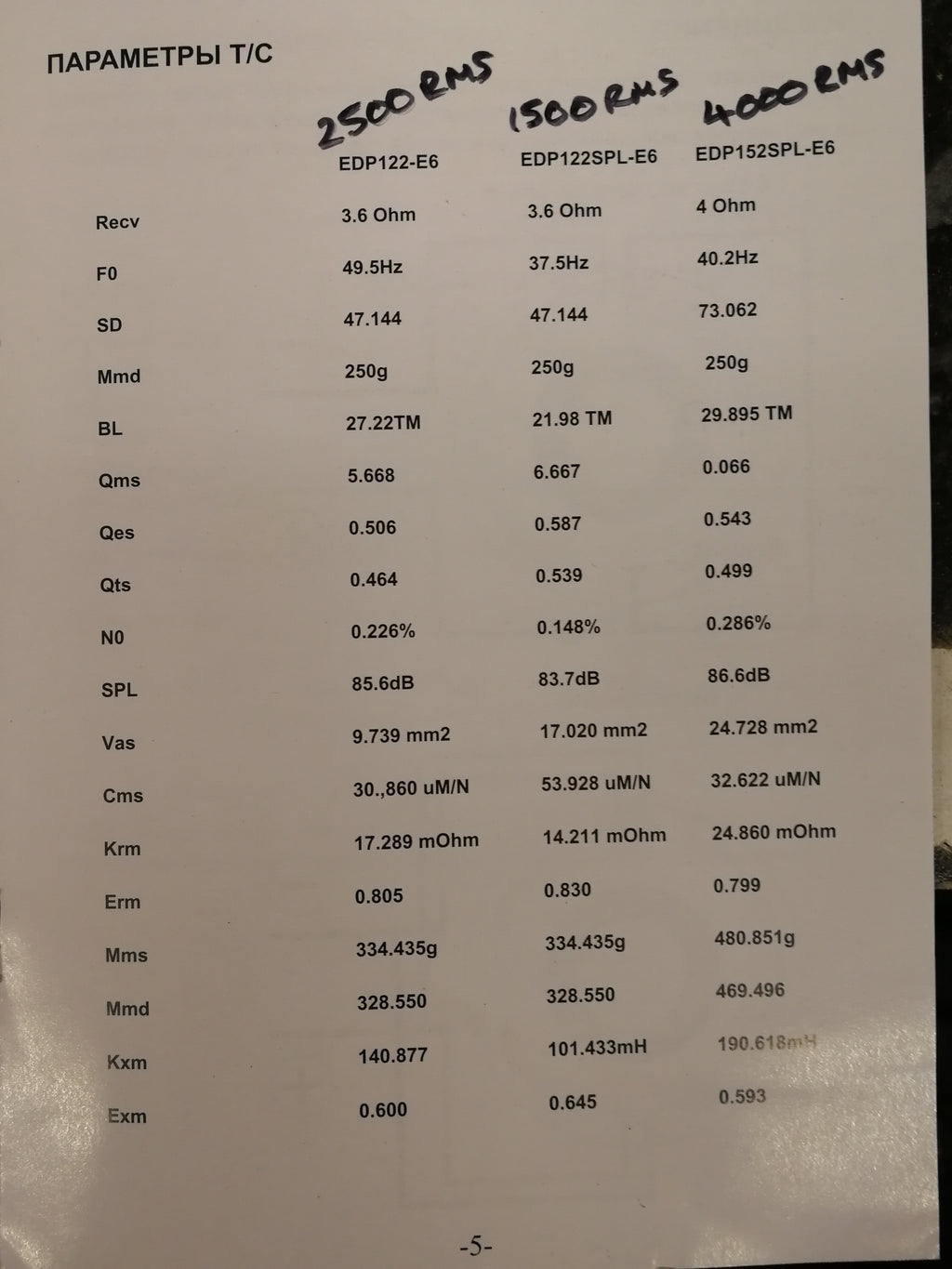

When building the perfect enclosure the below TS parameters are very useful

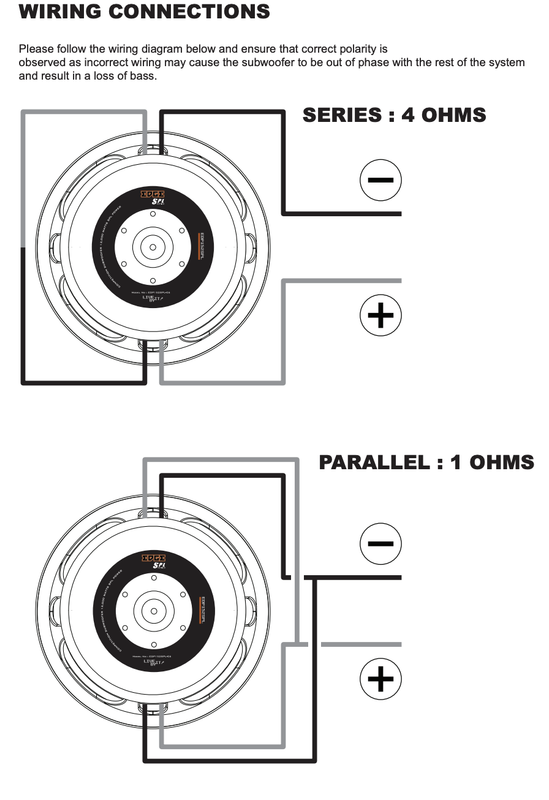

When wiring the EDP122SPL you have the choice of 1ohm of 4ohm loading as displayed below
