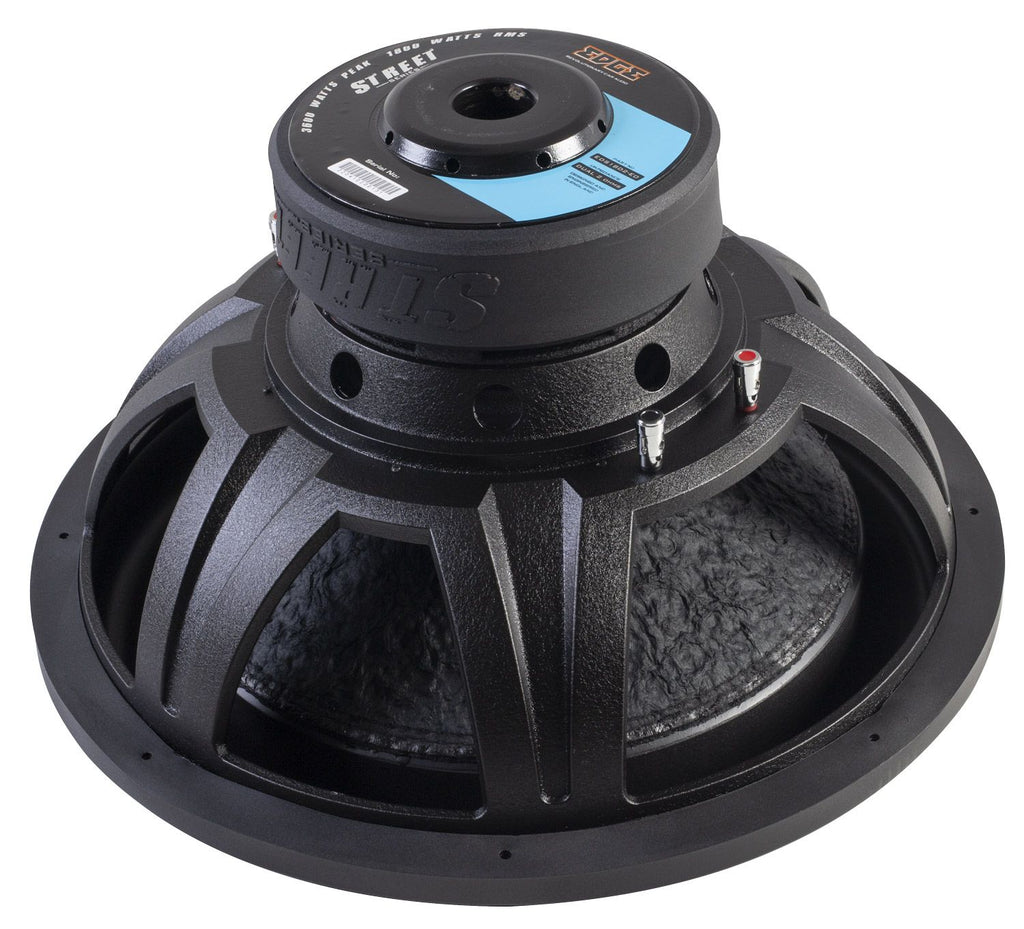

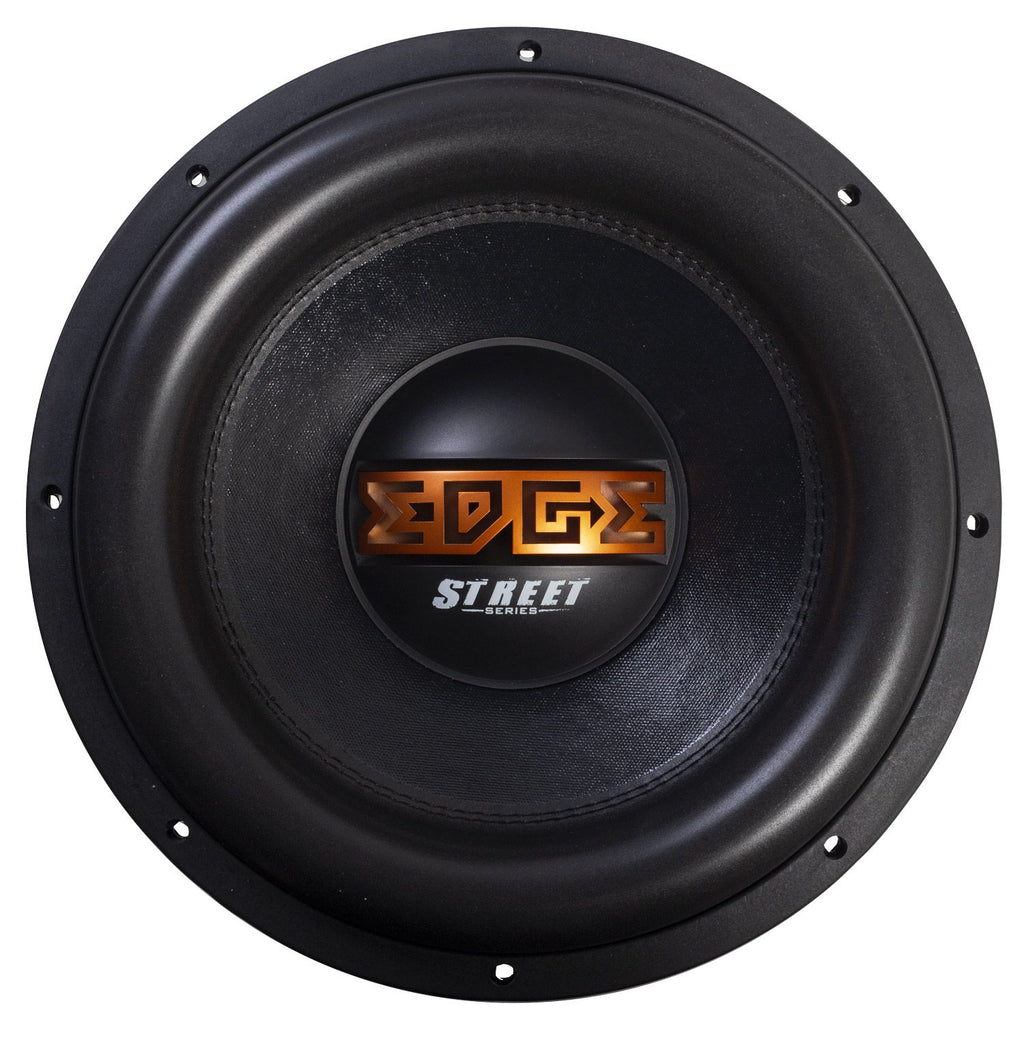

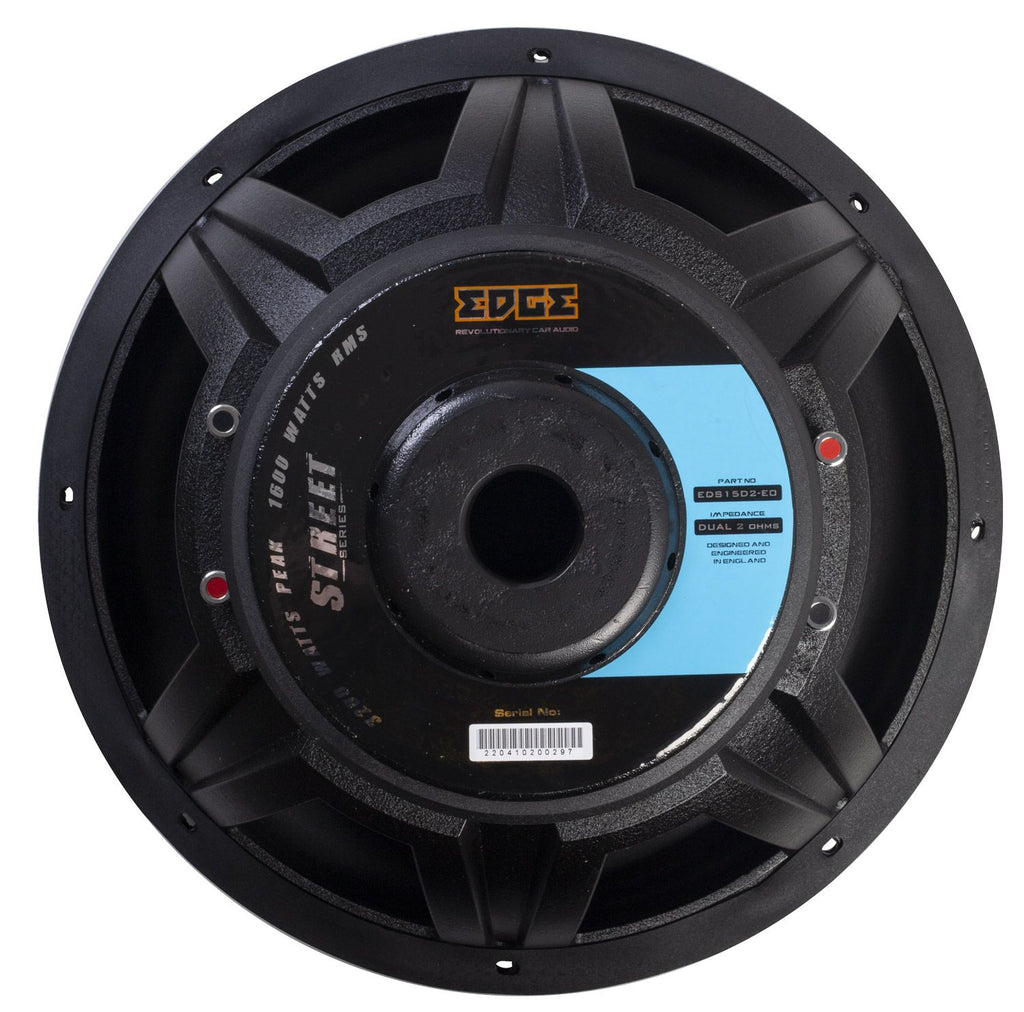

EDS15D2-E0 | EDGE Street Series 15" 3200 watts Subwoofer



Introducing the trunk thumping Street series subwoofers from EDGE.

The Street series subs have been designed from the ground up to produce awesome musical bass, using double stacked magnets to generate large magnetic force we are able to control the subwoofer with pin point accuracy while maintaining a high level of excursion and SPL.

Using polycotton spiders, non-pressed paper cones and stitched tinsel leads, we are able to create a high quality product that produces accurate loud bass.

All models have built in active crossovers and bass boost and can be used to power subwoofers, midrange drivers or tweeters.

For anyone looking for hard hitting street bass look no further than our Street series subs.


  • Non pressed paper cone
  • Wide roll foam surround
  • Black polycotton spiders
  • Dual Y35 Ferrite magnets
  • 3 inch Black Aluminium voice coil
  • Model: EDS15D2-E0
  • Cone: Non pressed paper
  • Surround: Big roll foam - stitched
  • Dustcap: Part IMPP
  • Voice Coil: 45mm Copper winding
  • Spider: 2pcs Black PC
  • Gasket: Rubber
  • Top Plate: 12mm Black anodized
  • T-Yoke: 10mm bumped

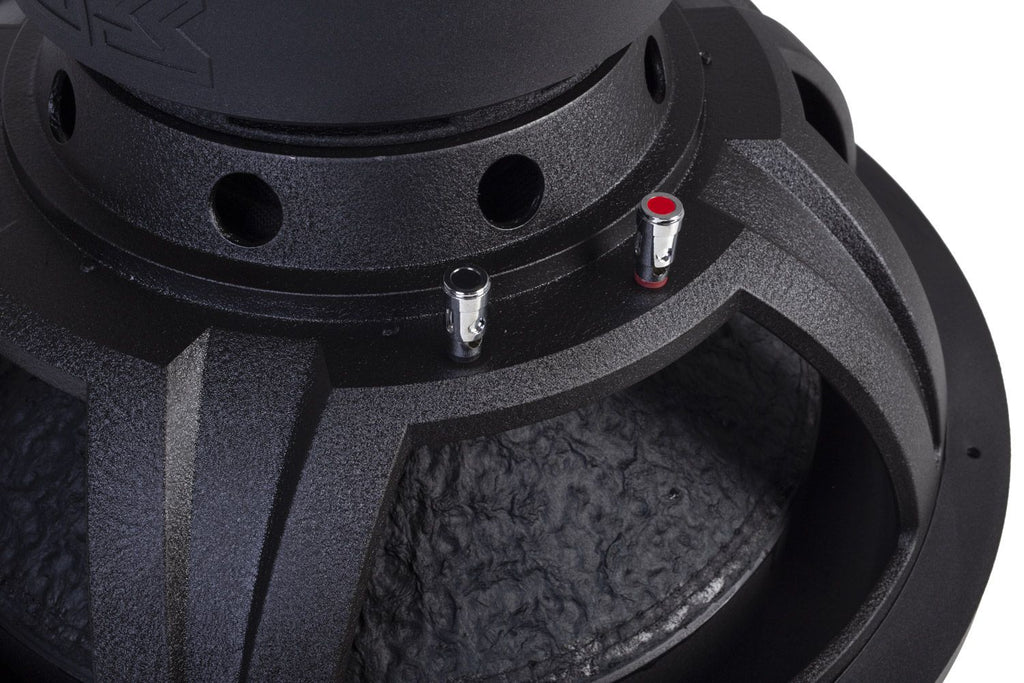

  • Terminal / Wire: Terminal
  • Impedance: Dual 2 Ohms
  • RMS Power: 1600 watts
  • Peak Power: 3200 watts
TS Parameters
  • Equivalent Volume - Vas: 84L
  • Free Air Resonance - Fs: 30.4Hz
  • Mechanical Factor - Qms: 7.389
  • Electrical Factor - Qes: 0.617
  • Total Factor - Qts: 0.569
  • Moving Mass - Mms: 404.303g
  • Compliance - Cms:   67.658μ M/N
  • BI Factor - BI: 21.242 T
  • Voice Coil Inductance - Le:   2.7 mH
  • Diaphragm Area - Sd:   754CM2
  • DC Resistance - Re:   3.6 Ω
  • SPL: 87dB
