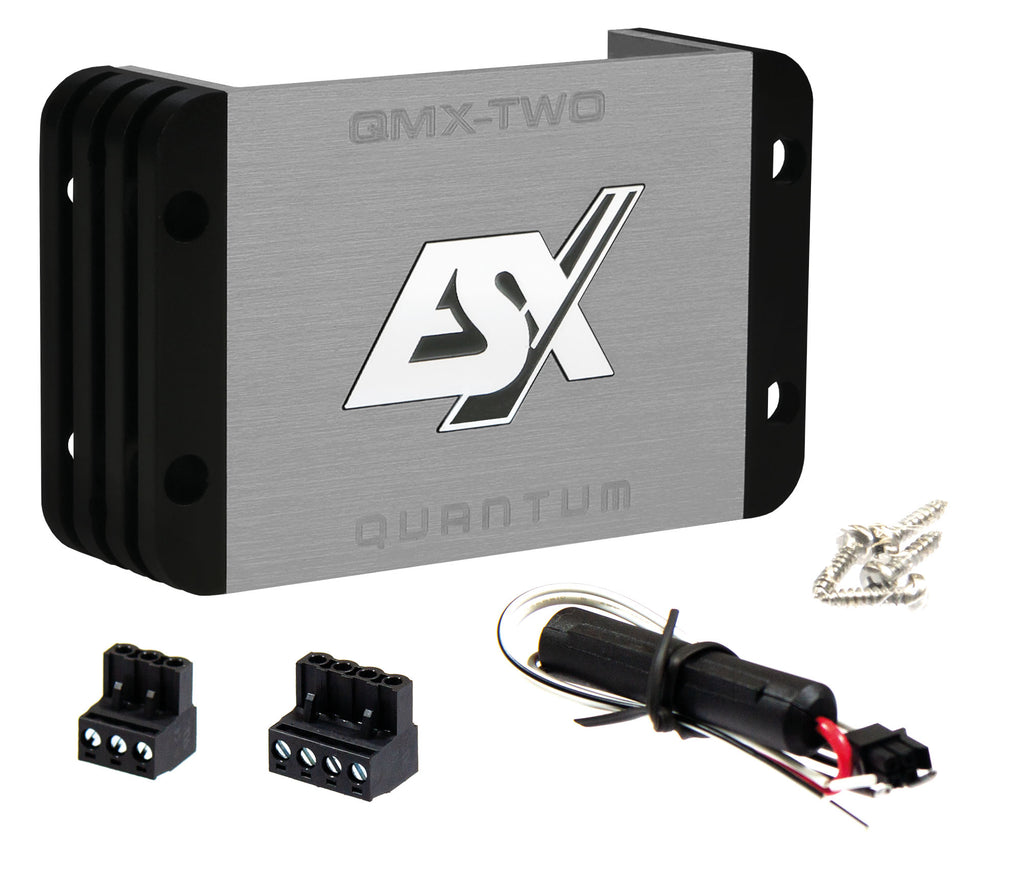

ESX QMX-TWO 2 CHANNEL COMPACT AMPLIFIER


Price:
£149.99

Description

ESX engineers have further refined the already outstanding QM-TWOv3. The result: the new QMX-TWO. With a further 10% increase in efficiency, the amplifier now operates even more energy-efficiently – while simultaneously delivering increased power. This has allowed for an additional 20 watts RMS output without increasing the size of the enclosure. With its ultra-compact dimensions of 120 x 75 mm footprint and a mere 33 mm height, the QMX-TWO is a true miniature powerhouse. Perfect for modern, space-saving installations.



The QMX-TWO delivers 2 x 95 watts RMS into 4 ohms and an even more impressive 2 x 160 watts RMS into 2 ohms. In mono bridged mode, a substantial 320 watts RMS are available – ideal for effortlessly driving even high-performance subwoofers. The amplifier also impresses in terms of features: High-level inputs with EPS technology enable seamless integration into modern factory sound systems – even in vehicles with speaker diagnostic systems – without generating error messages. Thanks to automatic power-on and pluggable connectors, installation is particularly convenient. In addition, classic RCA inputs are available for connecting to DSPs or radios.



Thanks to its optimized circuitry, the QMX-TWO achieves even better energy efficiency and delivers top-notch sound – with an efficiency of over 88%. Perfect for modern vehicles where efficiency and performance are equally important.

Features

  • Efficient Class D Amplifier with ultra-compact Dimensions
  • Heavy die-cast Heatsink with perfect cooling Characteristics
  • Auto Turn-On Function
  • High Level Inputs with Error Protection System (EPS®)



  • Start/Stop Ready
  • Detachable Power and Speaker Connectors
  • RCA Inputs



Specifications

2-Channel Class D Mini Digital Amplifier

2 x 95/160 Watts RMS @ 4/2 Ω

1 x 320 Watts RMS @ 4 Ω bridged

HPF/LPF 50-250 Hz

Dimensions 75 x 33 x 120 mm

Efficiency up to 88%

Downloads

Owner's Manual
