Description

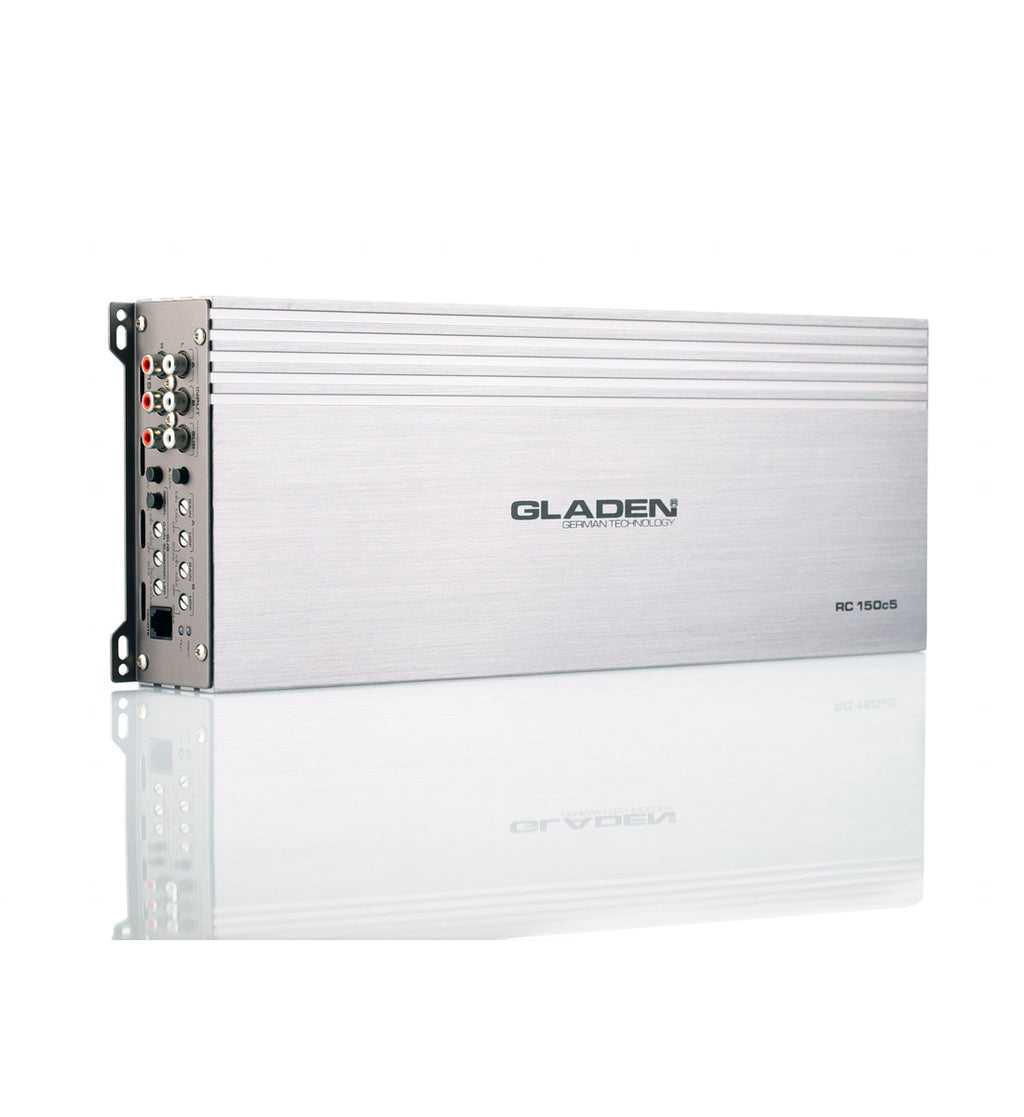

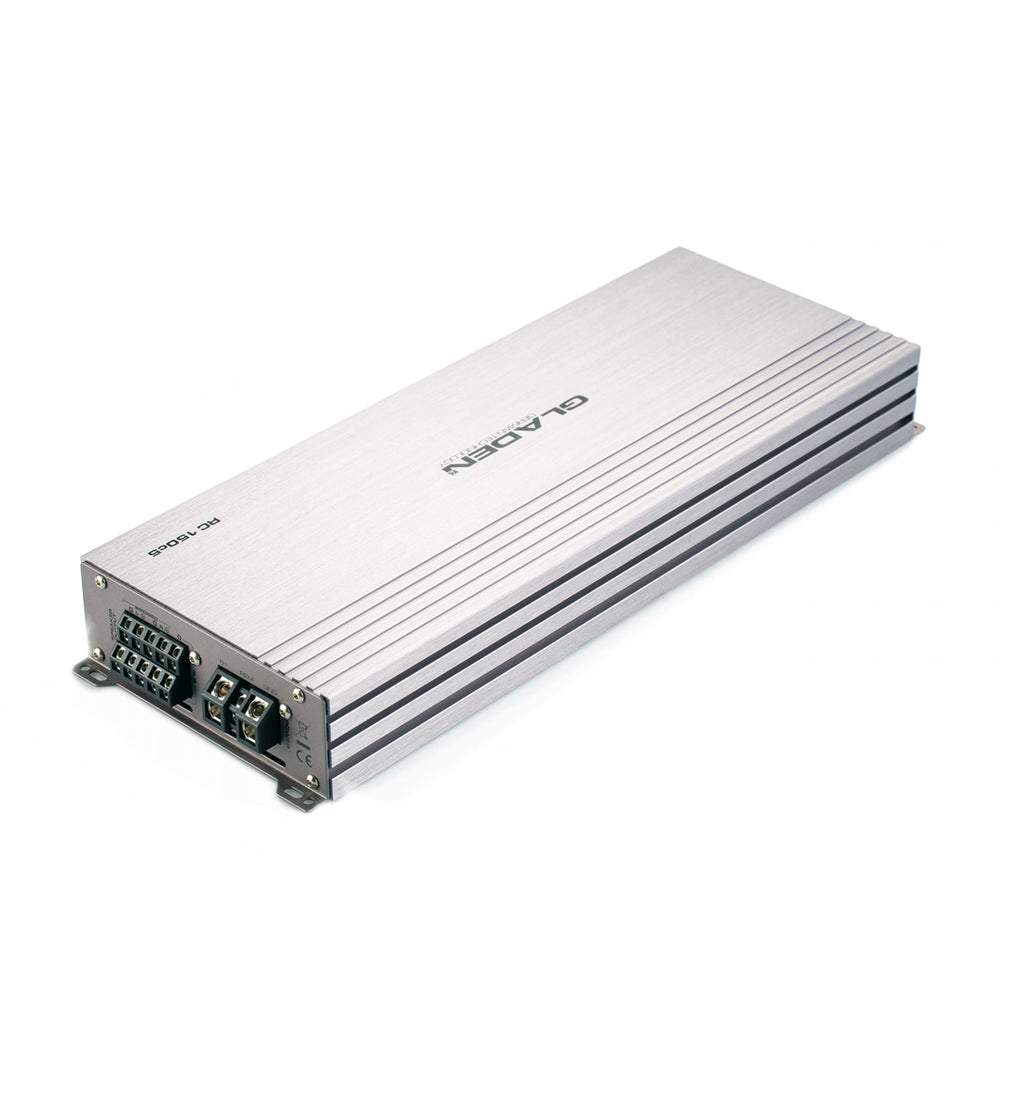

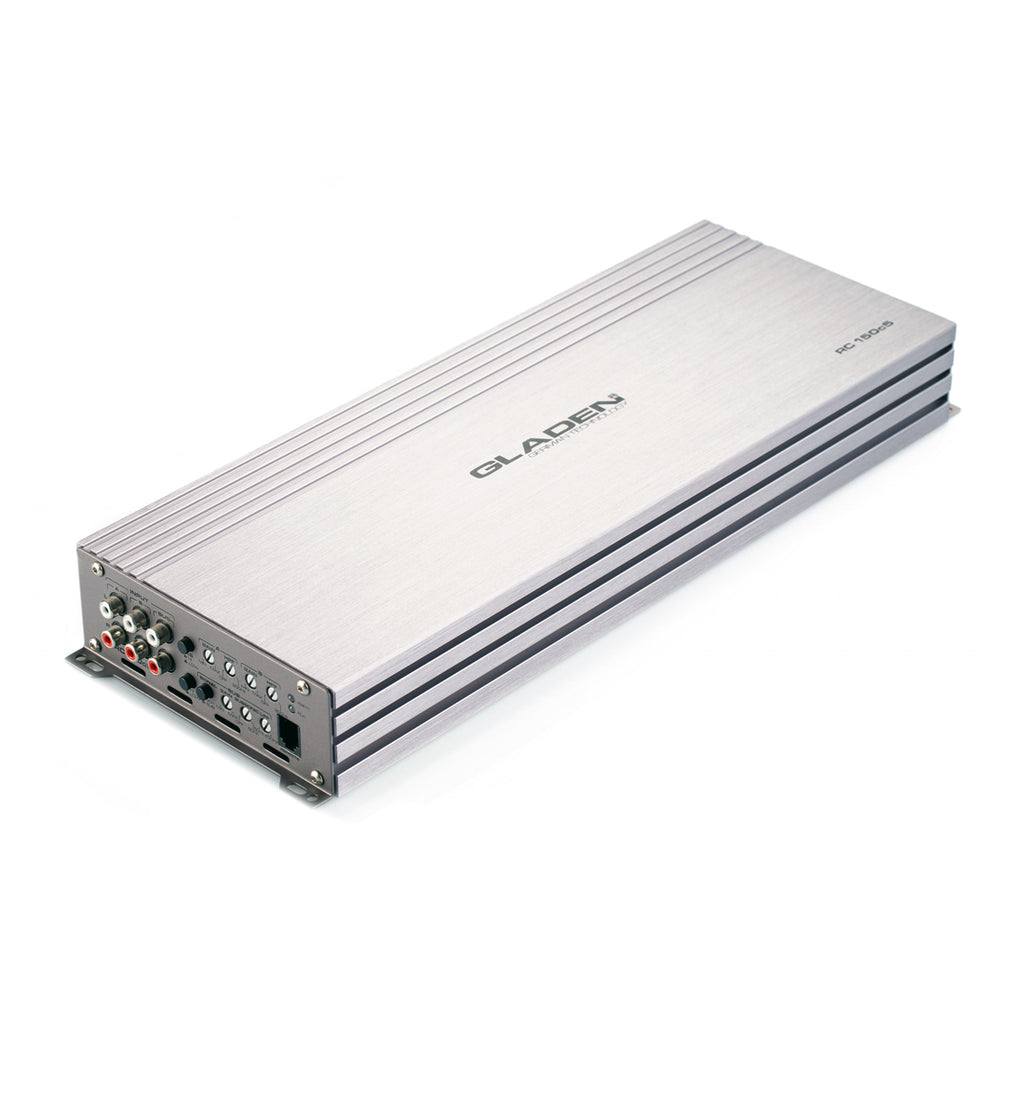

Gladen RC 105c5 – Hybrid Five Channel Amplifier
Gladen Audio’s new RC line of amplifiers is a simple series that includes Class AB stereo amps, along with Class D mono amps. All amps use dual layer printed circuit boards, surface mount devices, flexible crossovers, and high level input with auto sensing circuit. Each mono amp allows the use of an optional sub level control to be used in adjusting output. The RC line boasts a small footprint, and utilizes the highest quality parts in order to ensure absolute reliability.
5 channel Amplifier Class-AB (channel 1-4) + Class-D (channel 5)
• Subsonic filter (HPF) 10Hz-50Hz
• Optional Remote-Control Module

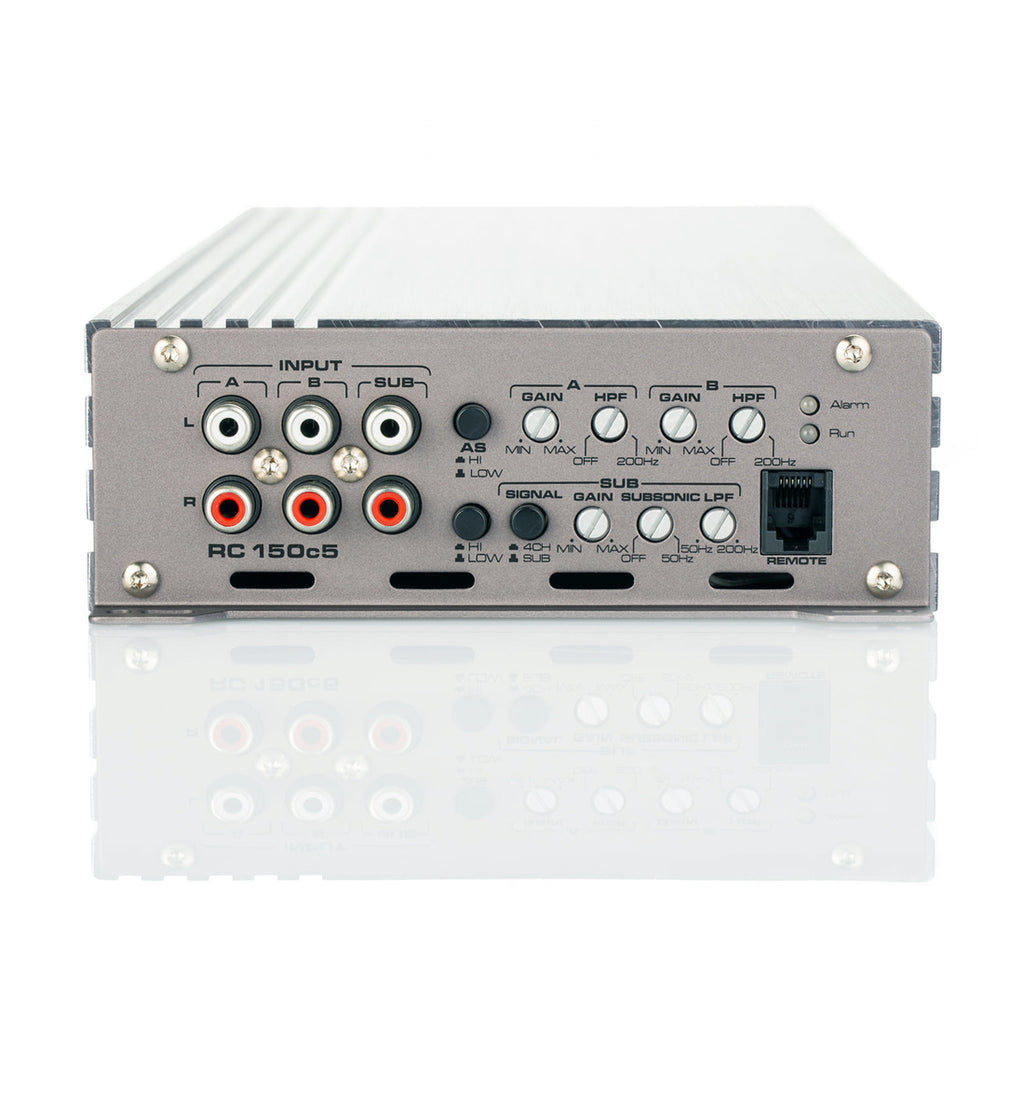

• Input with low- or high-level signal
• Stable at 2ohm stereo per channel and 4 ohm bridge mode
• High-level with autosense function (no remote signal required)
• Variable switchable Low Pass Filter from 45 to 225 Hz
• Variable switchable High Pass Filter from 45 to 225 Hz
• Protection for overheating, overloading, short circuitry and speaker DC protection
• Massive heavy aluminum-heat sink
| Technical Specifications | |
|---|---|
| Power @ 4 Ω Stereo: | 4 x 90 w + 300 w |
| Power @ 2 Ω Stereo: | 4 x 120 w + 560 w |
| Power @ 4 Ω bridge 14.4v < 0.10% THD: | 2 x 200 w + 300 w (Or 560 w @ 2 Ω) |
| Frequency Response: | 10 Hz ~ 25 KHz (+/- 2 dB) |
| Signal to Noise Ratio: | > 89dB |
| Input Sensitivity: | 10 ~ 0.2 V |
| Crossover: | 24 dB / Oct |
| High Pass Crossover: | 20 Hz ~ 200 Hz |
| Low Pass Crossover: | 50 Hz ~ 200 Hz |
| Subsonic Filter: | 10 Hz ~ 50 Hz |
| Damping Factor: | >80 |

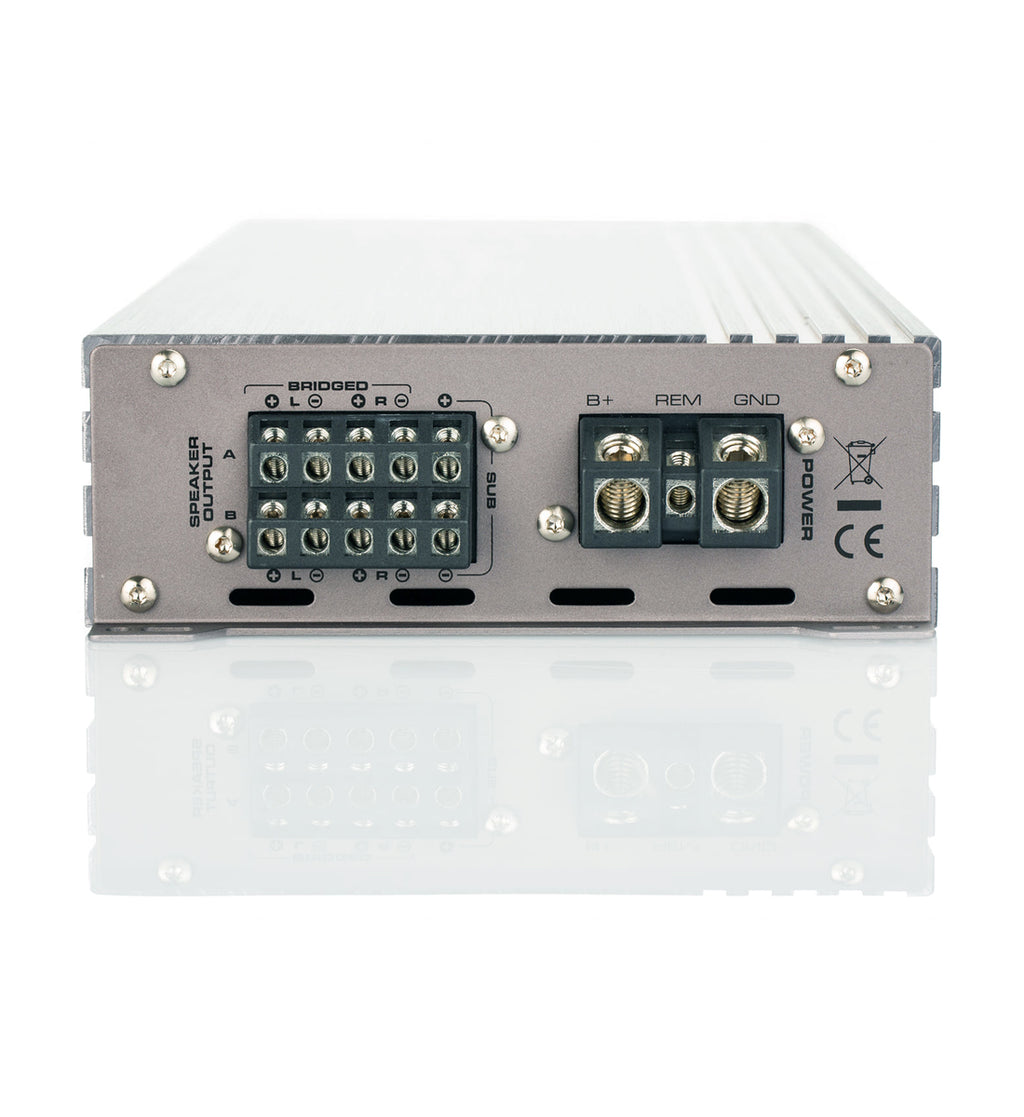

| Power Terminal Gauge: | 4 GA x1 |
| Fuse Rating: | 80 A |
| Operational voltage: | 10 V ~ 16 V |
| Dimensions: | 415 x 150 x 50 MM |
