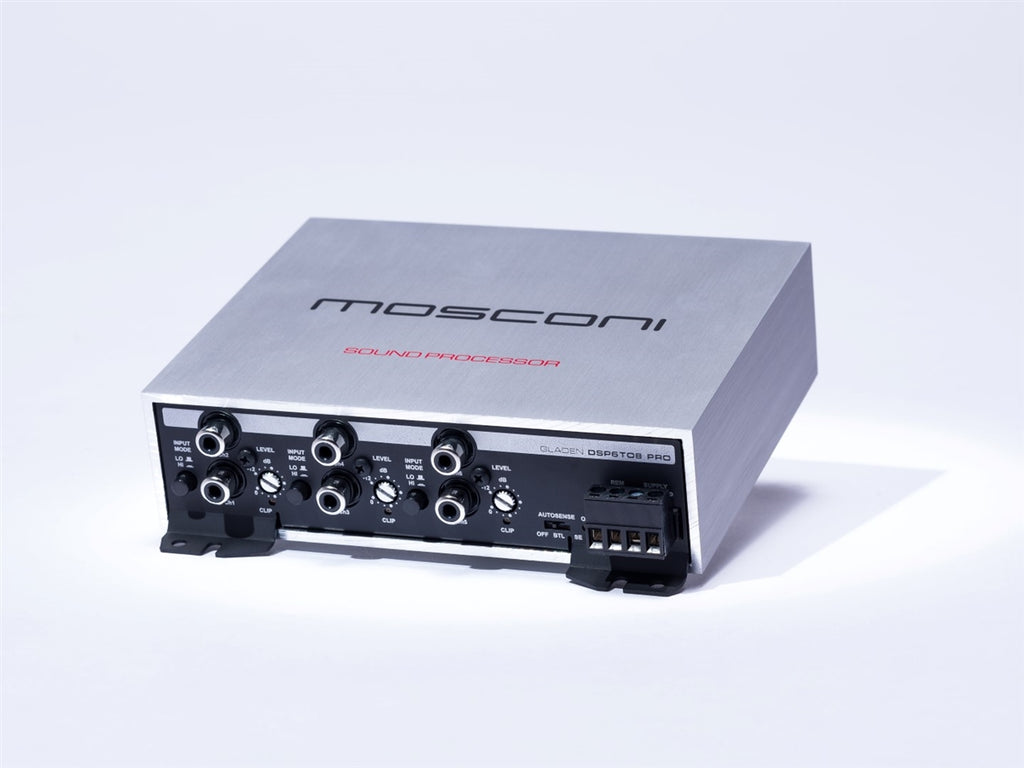

The Digital Signal Processor with 6 inputs and 8 outputs.
Sample rate 48KHz / 24bit.
Highest resolution, e.g. time delay in 0,02 msec/step
All settings in real-time
USB and optional BT adapter (MOS-BTM), for adjusting by PC, Android and BlackBerry (*) smart phone apps
Low-Level or High-Level input with auto-sense (only by High-Level)
Aux input with auto-sense for stereo signal
Hands-free and mobile navigation
Mixer matrix to realize all possible mixtures and couple input and output channels as desired
Intuitive User Interface and video tutorials to avoid an instruction book.
Operating also without mouse, only with keys for an easy adjusting in the car
DSP Technology made by cooperation MOSCONI-GLADEN
- INPUT MODE: Low Level (LL) / High Level (HL)
- INPUT IMPEDANCE: > 10Kohm (LL) / 47ohm (HL)
- INPUT SENSITIVITY: 2Vrms ÷ 8Vrms (LL) / 5Vrms ÷ 20Vrms (HL)
- INPUT VOLTAGE REGULATION: -12dB ÷ 0dB
- MAX OUTPUT SIGNAL: 8Vrms
- OUTPUT IMPEDANCE: 50 ohm
- THD DISTORTION: <0.003% @ 1Vrms
- FREQUENCY RESPONSE: 20Hz ÷ 20KHz (within -0.1dB)
- CHANNEL SEPARATION: >75dB (@ 1KHz)
- SUPPLY VOLTAGE: 11V ÷ 15V
- CURRENT CONSUMPTION: 0.5A @ 12V
- GROUND ISOLATION vs CAR BODY: 1Kohm
- AUTOSENSE: BTL or SE (HL only)
- REMOTE OUTPUT: 130mA max.
- COMMUNICATION PERIPHERALS: on-board USB, Bluetooth socket, Remote controller
- SIZE: 150 x 125 x 40 mm (including fixing feet)
