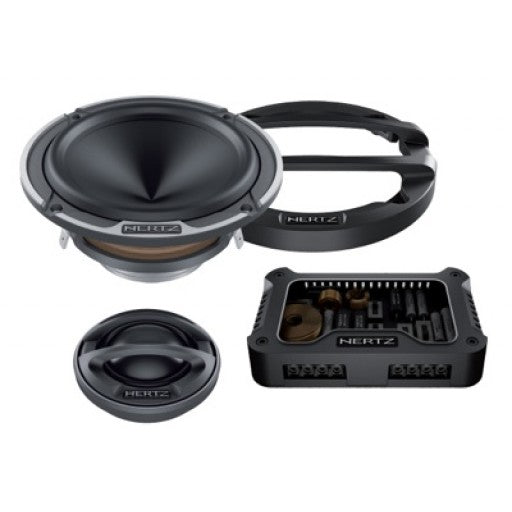

The MLK 700.3 Legend two way system aims at offering a mid-high frequency range of excellence, to combine with a Legend woofer with a choice between ML 1650.3 and ML 1800.3 actively filtered in a multi-amplified configuration. MLK 700.3 Legend is composed of the ML 700.3 Legend Extended Midrange, the ML 280.3 Legend tweeter and the MLCX 2 TM.3 dedicated crossover that features the unique Mid-Countour control with its three-position selector, acting on the mid frequencies of the ML 700.3 Legend midrange by varying the cross-point with the tweeter to obtain the desired sound.
Technical Specification
- Power Handling
- Peak W 200 Power Handling
- Continuous W 100
- Impedance 4 Ohm
- Frequency response Hz 200 ÷ 28k
- Sensitivity dB SPL Midrange 90 Tweeter 92
- Voice coil Ø mm (in.) Midrange 20 (0.8) Tweeter 28 (1.1) Woofer size mm (in.) 70 (3) Tweeter size mm (in.) 35 (1.38) Woofer magnet Neodymium Tweeter magnet Neodymium Woofer cone Pressed-pulp cone with cotton fibres
- Tweeter dome Tetolon
- Crossover type 2 Way Passive Crossover
- Crossover cut off 4.5 kHz - 6/12 dB Oct
