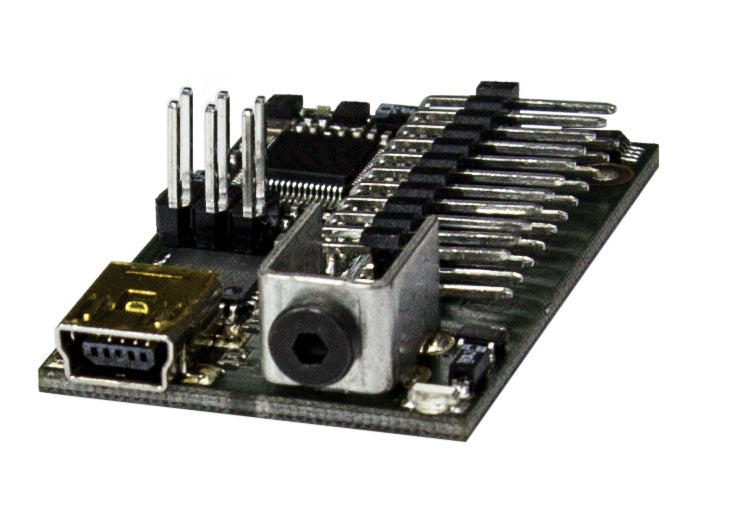

MATCH MEC HD-AUDIO USB-INTERFACE
The HD-AUDIO USB-INTERFACE extends MATCH devices with a High Resolution Audio USB input and converts a PC or smartphone into a HD-Audio player.
The direct digital signal transmission (without additional AD-DA conversion) from the music source to the DSP with up to 192 kHz / 32 Bit allows lossless audio processing and thus assures perfect sound quality.
The module will be delivered with a device-specific side panel are part of the price.
- USB Interface for Windows, macOS, iOS and Android devices
- Lossless HD-audio transmission up to 192 kHz / 32 Bit
- Direct digital signal transmission to DSP for lossless audio processing
- Asynchronous USB connection with own clock generators for highest jitter immunity
- Automatic signal detection
- Device-specific side panel included in delivery
Note: The HD-AUDIO USB-INTERFACE has two operating modes.
Full Speed Mode (default): Highest compatibility with all Android, iOS, macOS and Windows devices. Supports sample rates up to 96 kHz / 32 Bit. No driver installation necessary.
High Speed Mode: Compatible with most of all Android (> Version 6), iOS, macOS and Windows devices. Supports sample rates up to 192 kHz / 32 Bit. An additional driver installation for Windows devices is necessary to use sampling rates higher than 96 kHz / 32 Bit.
Note: No connection wires included. A MiniUSB wire is needed for most configurations. For Android devices an additional MicroUSB OTG cable is required. For Apple devices an additional Camera Connection kit or a Lightning to USB cable is required.
Attention: The HD-AUDIO USB-INTERFACE does not support charging.
|Input sampling rate
|32 kHz to 192 kHz / 16 Bit, 24 Bit or 32 Bit
|Supported device operating systems
|Windows, macOS, iOS, Android
|Asynchronous USB connection
with own clock generators for
highest jitter immunity
- MATCH UP 8DSP
Scope of delivery
1 x MEC HD-AUDIO USB-INTERFACE module
1 x Device-specific side panel
1 x Allen screw
1 x Allen key
1 x Instruction manual
