Description
You didn't find the type of enclosure sub you are looking for? - If none of the four MATCH Plug & Play enclosure subs fits in your car with respect to shape and/or size, then you have the chance to build your “personalized” version by yourself. Therefore we offer the woofers PP 72W-D and PP 8W-Q, which are 100% identical to the drivers that are used in the pre-loaded variants. As long as you choose the net volume and port tuning frequency according to the installation instructions, we guarantee the same acoustical performance as our “standard” subwoofers.
- Extremely stiff, hand-scooped paper cone
- High-temperature resistant voice coil with large winding height
- Double ventilated voice-coil for minimum compression effects
- Powerful magnet for compact-sized vented enclosures
- Connector terminal for MATCH subwoofer cables already included in delivery
DELIVERY CONTENTS

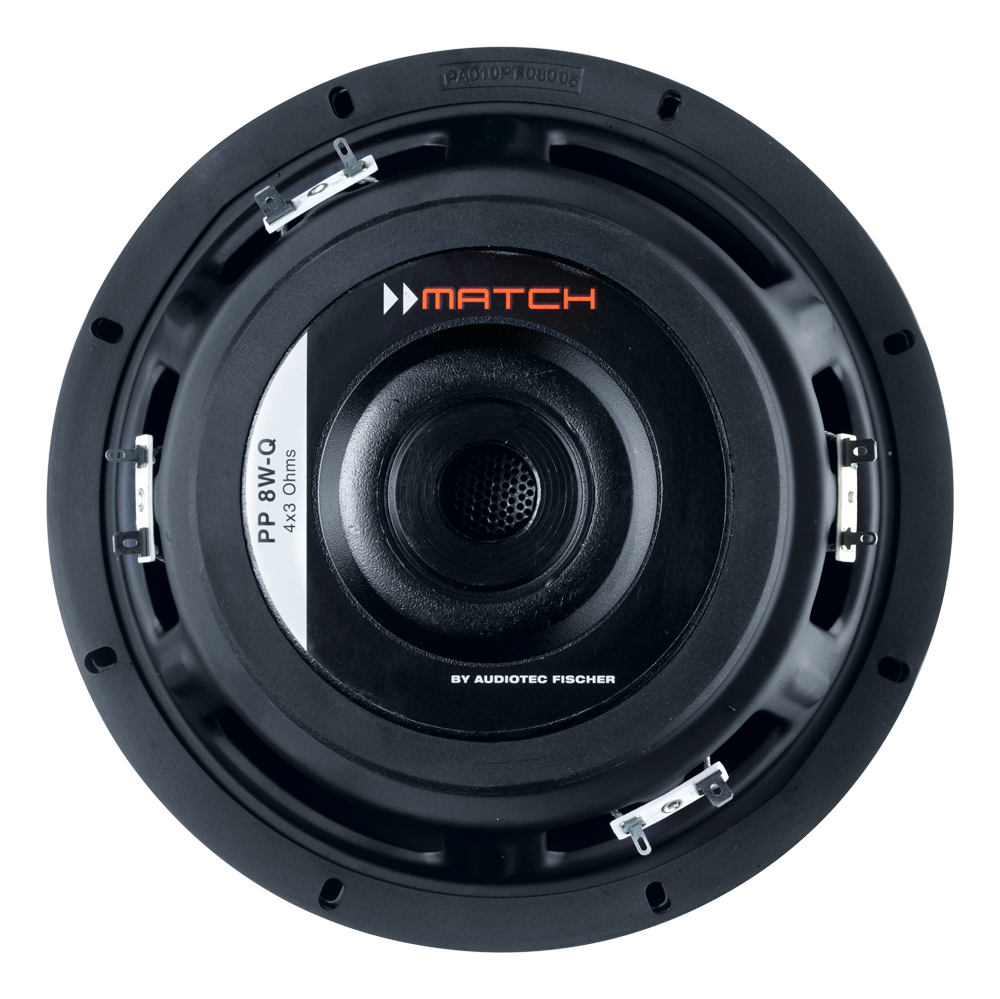

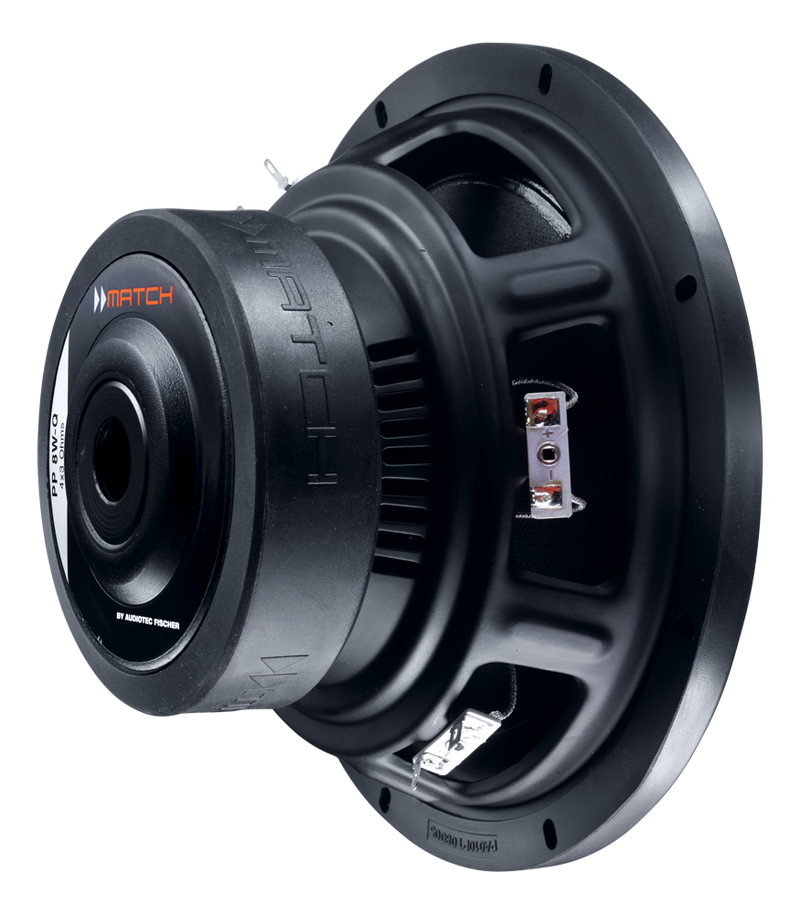

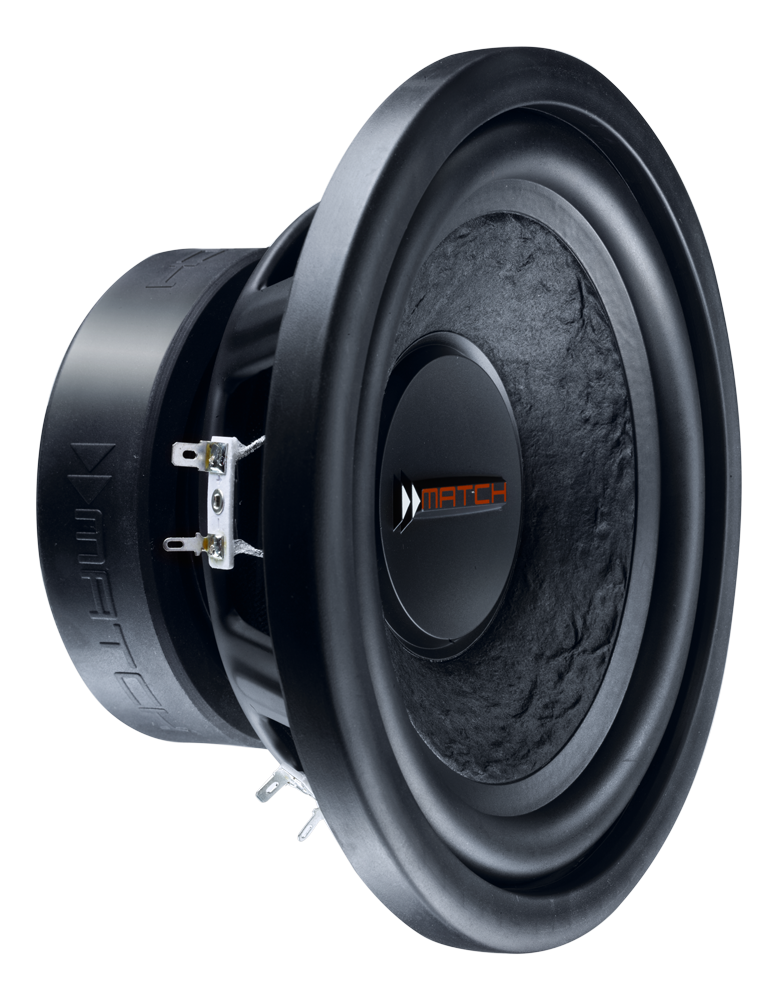

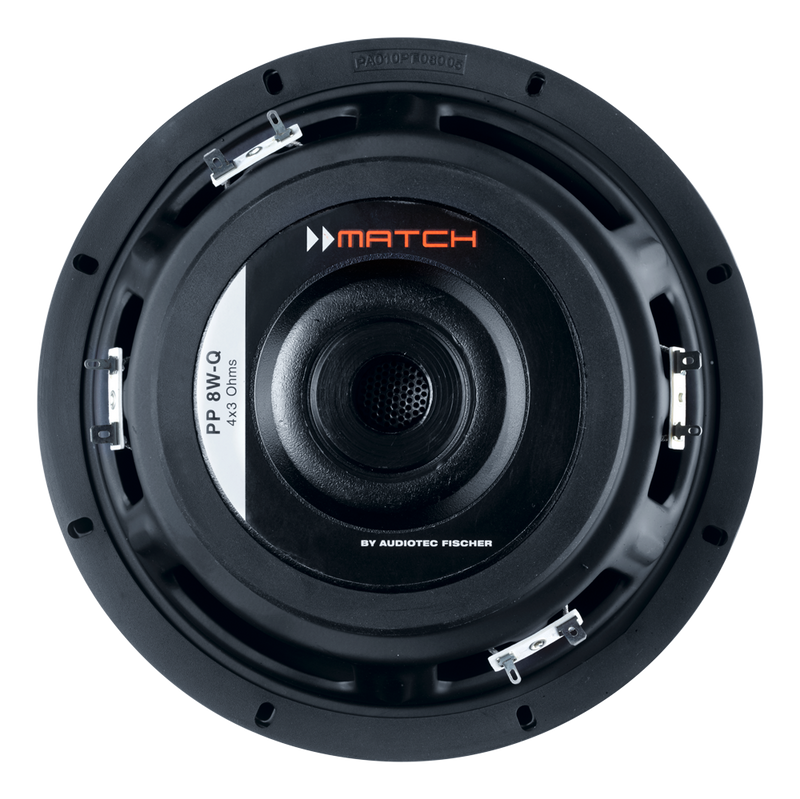

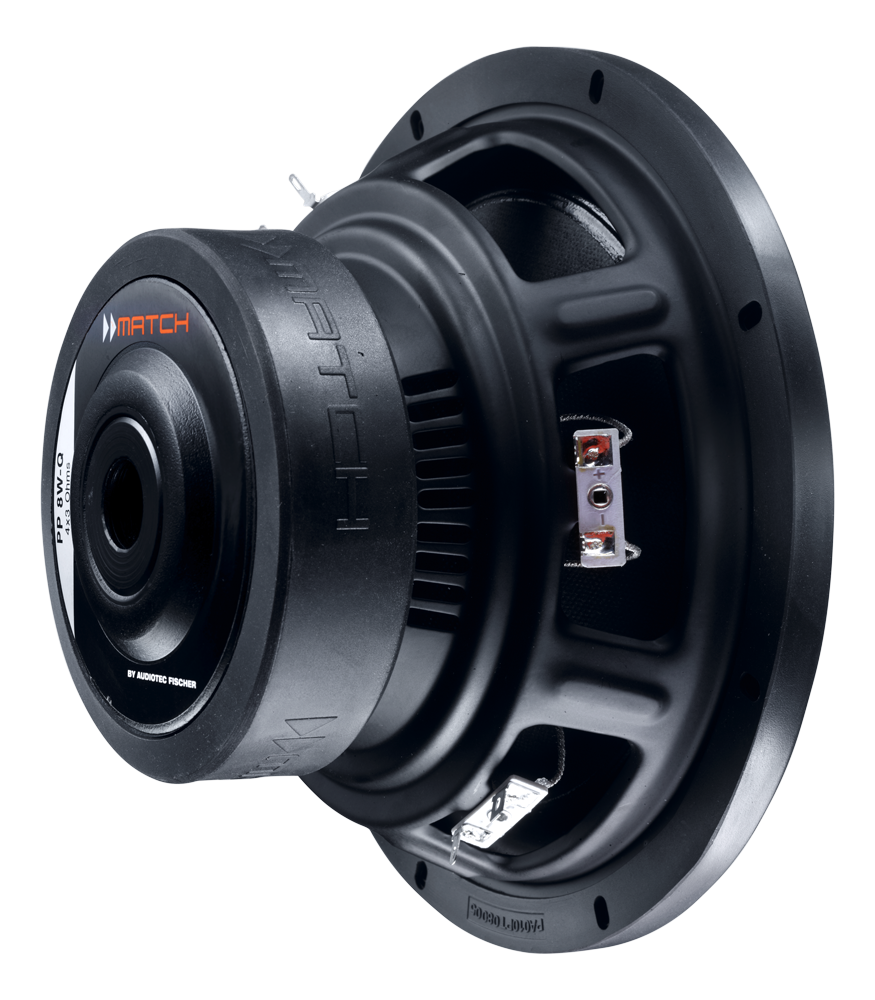

1 x Subwoofer MATCH PP 8W-Q
1 x Connection terminal
Power RMS / max. | P | 200 / 400 Watts |
Impedance | Z | 4 x 3 Ω |
DC resistance | Re | 4 x 2.7 Ω |
Resonance frequency | Fs | 37 Hz |
Mechanical Q factor | Qms | 5.40 |
Electrical Q factor | Qes | 0.57 |
Total Q factor | Qts | 0.51 |
Compliance | Cms | 341 µm/N |
Equivalent air volume | Vas | 23 L |
Force factor | B*I | 7.5 Tm |
Efficiency 1 W / 1 m | SPL | 87 dB |
Cone area | Sd | 222 cm² |
Moving mass | Mms | 53 g |
Cone material | Hand-scooped paper cone | |
Mechanical resistance | Rms | 3.3 kg/s |
Voice coil diameter | ø | 50.8 mm |
Voice coil winding height | 21 mm | |
Max. linear excursion | Xmax | +/- 6.5 mm |
Outer diameter | ø | 212 mm / 8.35" |
Installation diameter | ø | 183 mm / 7.2" |
Installation depth | 105 mm / 4.1" | |
Recommended enclosure volumes | ||
Sealed box | ||
Net volume | - | |
Lower limiting frequency (-3dB) | - | |
Vented box | ||
Net volume | 10 L | |
Port diameter | ø | 60 mm / 2.36" |
Port area | 28 cm² | |
Port length | 25 cm / 9.84" | |
Port tuning frequency | Fb | 47 Hz |
Lower limiting frequency (-3dB) | 45 Hz |
