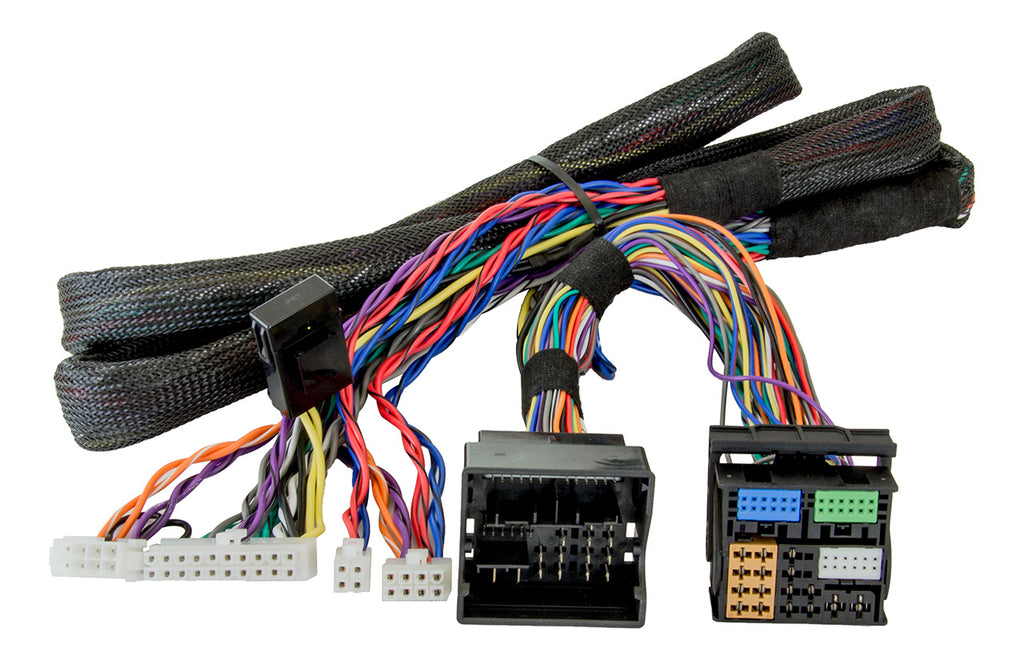

MATCH PP-VAG 1.6 Plug & Play Quadlock cable harness (1m length)

  • Sale
  • Regular price £84.99
Tax included.


The Plug & Play Quadlock cable harness PP-VAG 1.6 is made for the easy connection of a MATCH PP 86DSP or UP 7DSP incl. MEC ANALOG IN amplifier to a 6-channel OEM head unit with Quadlock connection such as Audi and Seat.

Features

  • Plug & Play connectors for an easy connection of a PP 86DSP or UP 7DSP incl. MEC ANALOG IN amplifier and MATCH Plug & Play subwoofer
  • Quadlock-connection for connecting a 6-channel VAG head unit
  • Integrated fuse
  • Snake-Skin jacket to protect single wires
  • Cable length 1.00 meters

Technical data

Cable harness length

1.00 meters

Connections

1 x 8-pole MOLEX female connector for connecting a MATCH Plug & Play subwoofer
1 x 20-pole MOLEX male connector for connection to the system connector input of the amplifier
1 x 4-pole MOLEX male connector for connection to the highlevel input E + F of the amplifier*
1 x 8-pole MOLEX male connector for connection to the speaker output E – H of the amplifier
1 x Quadlock male connector for connection to the OEM head unit
1 x Quadlock female connector for connection to the original cable harness

* Depending on the installed OEM sound system the output channels E + F of the OEM head unit either provides the highlevel signals of the front woofers (front left
and front right) or of the center speaker and subwoofer.

Compatibility

  • MATCH PP 86DSP
  • MATCH UP 7DSP incl. MEC ANALOG IN
