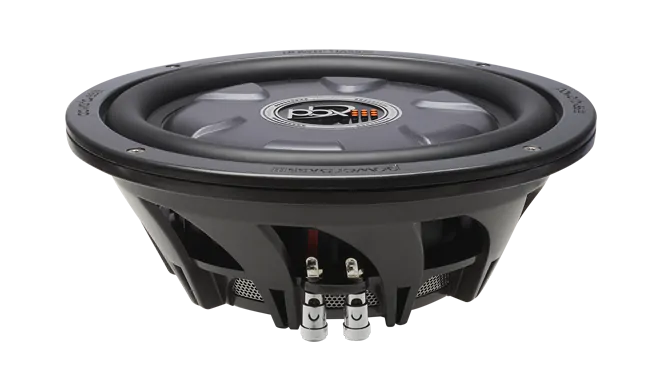

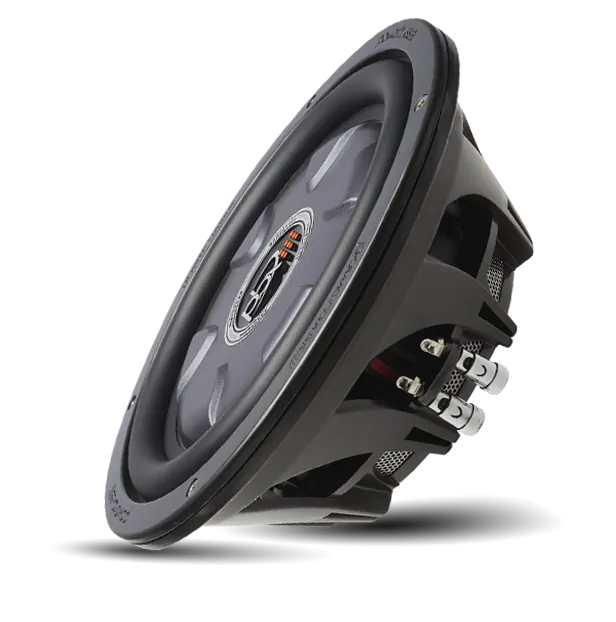

Powerbass XL-1040TD - 10" Dual 4-Ohm Shallow Mount Subwoofer


Price:
£149.99

Description

Updated with our new PBX imprinted dustcap and sand blasted back plate finish, our XL subwoofers are designed to be bulletproof-reliable with all of the features of the rest of the Xtreme range, but in a more affordable package.

Boasting a custom turbine style frame constructed of polycarbonate/glass fiber, this unique basket supports dual stack magnets and a extended dome backplate.

We utilize a combination of perimeter and pole venting to keep air circulating over the voice coil so everything stays cool.

Specifications:

  • New PBX Dust Cap
  • 10" Dual 4-Ohm Subwoofer
  • 350 watt RMS/700 Watts Max
  • Proprietary Non-pressed Paper DDC Coated Cone
  • High Roll Santoprene® Surround
  • 2.0" Vented BASV Voice Coil Former
  • Perimeter Aero-Vent Voice Coil Cooling Vents
  • Proprietary Non Resonance Polycarbonate/Glass Fiber Basket
  • Chrome Push Terminals
  • Optimally Designed for Both Small Sealed or Ported Enclosures
  • Nominal Impedance: Dual 4-ohm
  • BL: 9.04
  • Inputs: Dual Coil
  • Subwoofer Frequency Range: 35 Hz - 500 Hz
  • Voice Coil Size: 2 in
  • Material: Non Pressed Paper
  • Magnet Size: 164 oz
  • Sensitivity (1W / 1M): 89.5 dB
  • Motor Structure: 164 oz
  • Cutout Diameter: 9 5/16" (237mm)
  • Mounting Depth: 5.23 in
  • Xmax: 8.5 mm
  • Spl: 89.5 dB
  • No: 0.18%
  • Qts: 0.534
  • Qes: 0.621
  • Qms: 3.7
  • Mms: 142.9 g
  • Cms: 141.9 uM/N
  • Vas: 26.55 Ltr
  • SD: 363.05 sqCM
  • Fs: 35.34 Hz
  • Test Impedance: 1.6-ohm
  • VC Impedance: 4-ohm + 4-ohm
  • Size: 10 in
  • Sensitivity: 90 dB
  • Frequency Response: 35 Hz - 500 Hz
  • Voice Coil Size: 2 in
  • Power Handling (RMS/Peak): 350 / 700 watts
