PSR CLASS LEGAL 6775G - DUAL BALL BEARING TURBO COMPACT


TURBINE HOUSING OPTION: DUAL V-BAND 1.15 REAR HSG 3" INLET 4" OUTLET
Price:
£1,304.09

Description

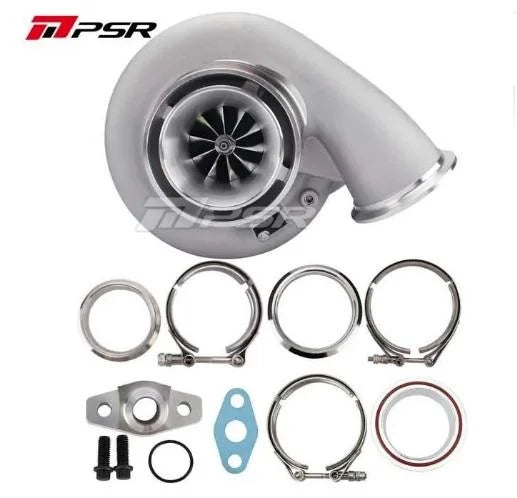

PSR Class Legal 6775G

  • Please note, T51R housing option requires an extra 7 days handling time
  • PSR Class Legal Turbo with 67/98mm Compressor wheel
  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion
  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
  • 9 Blade G-Aero Inconel 713c turbine wheel
  • Anti-Surge ported-shroud compressor inlet, cover with integrated speed sensor port

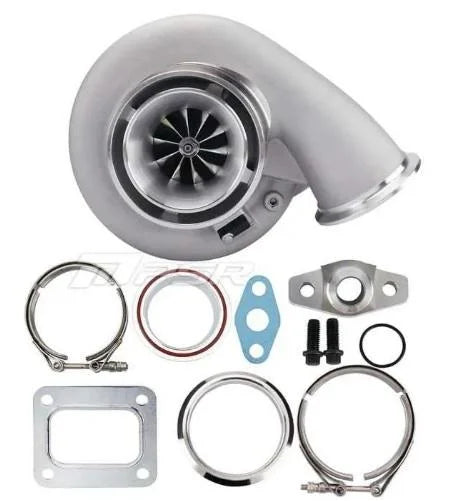

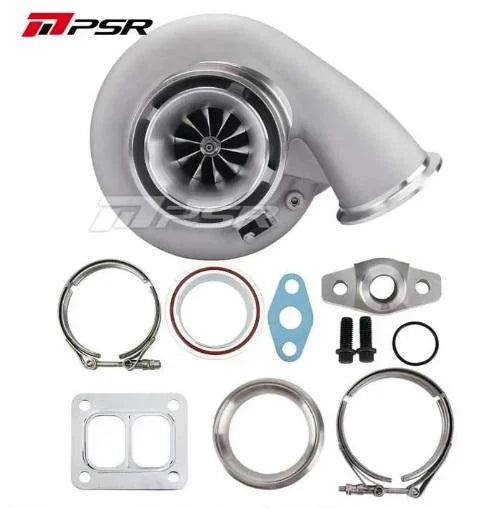

  • 7 Turbine housing options available

SPEC

  • -Compressor Wheel: 67*98mm

    -Turbine Wheel: 82*75mm

    -Compressor Inlet: 5″ Hose

    -Compressor Outlet: 3″ V-Band

    -Turbine Inlet: 3″ V-Band

    -Turbine Outlet: 3.5″ V-Band

    -Water Ports: -6AN

    -Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

    -Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

  • A 4" turbine outlet adapter flange is also available , please contact us at time of ordering if this is required.



It's strongly recommended to run water cooling to aid reliability (needed for warranty)
