PSR CLASS LEGAL 6775G - DUAL BALL BEARING TURBO V-BAND COMPRESSOR COVER OUTLET


TURBINE HOUSING OPTION: DUAL V-BAND 1.15 REAR HSG 3" INLET 4" OUTLET
Price:
£1,304.09

Description

  • PSR Class Legal Turbo with 67/98mm Compressor Wheel

  • Dual ceramic ball bearing system provides optimal turbo response &
    better durability by reducing the shaft-motion

  • 10 Blade G-Aero billet compressor wheel with extended tapered tip technology

  • 9 Blade G-Aero Inconel 713c turbine wheel

  • Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port

  • 6 Turbine housing options

    SPECIFICATION

-Compressor Wheel: 67*98mm

-Turbine Wheel: 82*75mm

-Compressor Inlet: 5″ Hose

-Compressor Outlet: 3″ V-Band

-Turbine Inlet: 3″ V-Band

-Turbine Outlet: 3.5″ V-Band

-Water Ports: -6AN

-Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)

-Oil Drain: Angle 15°, -12AN(O-Ring sealed Flange Kit Incl’)

-6 Turbine Housings options:

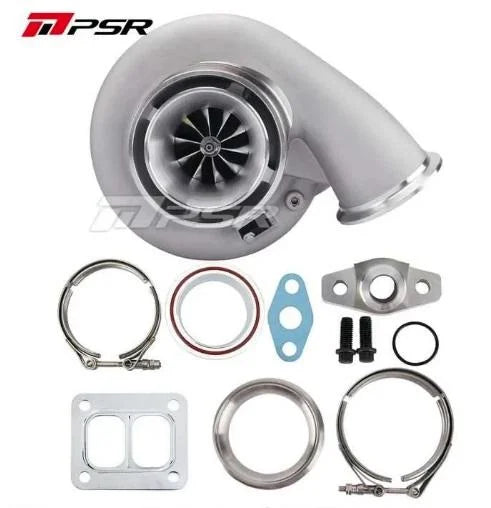

  1. T4(Divided) Inlet V-band Outlet 1.01 A/R

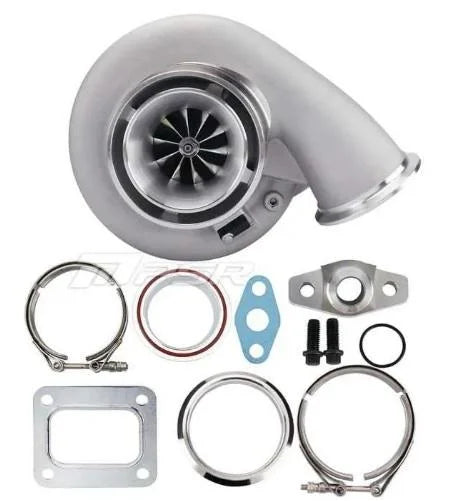

  2. T4(Open) Inlet V-band Outlet 1.15 A/R
  3. T4(Divided) Inlet V-band Outlet 1.15 A/R
  4. T4(Divided) Inlet V-band Outlet 1.28 A/R
  5. V-band Inlet and V-band Outlet 1.01 A/R
  6. V-band Inlet and V-band Outlet 1.15 A/R
  7. V-band Inlet and V-band Outlet 1.28 A/R

Turbochargers come high speed trim balanced ready to use and include fitting hardware.
