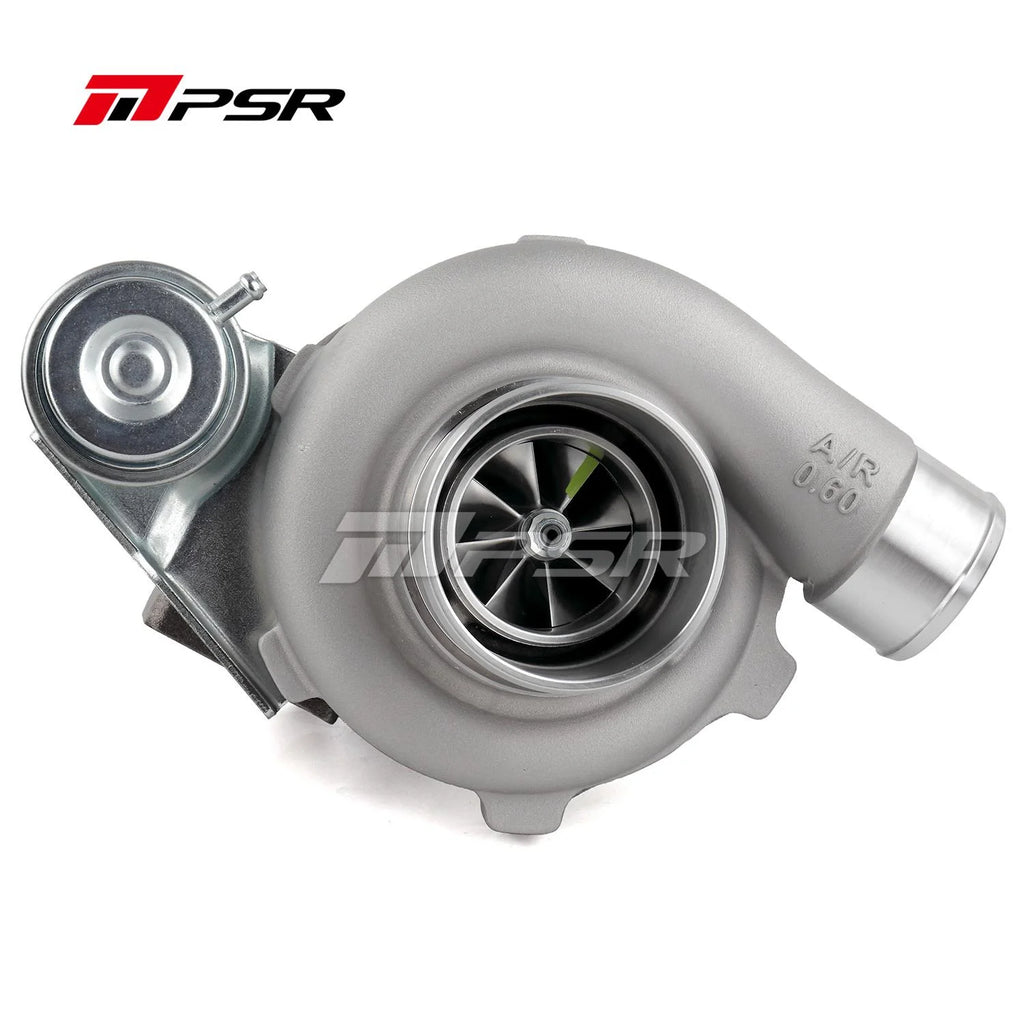

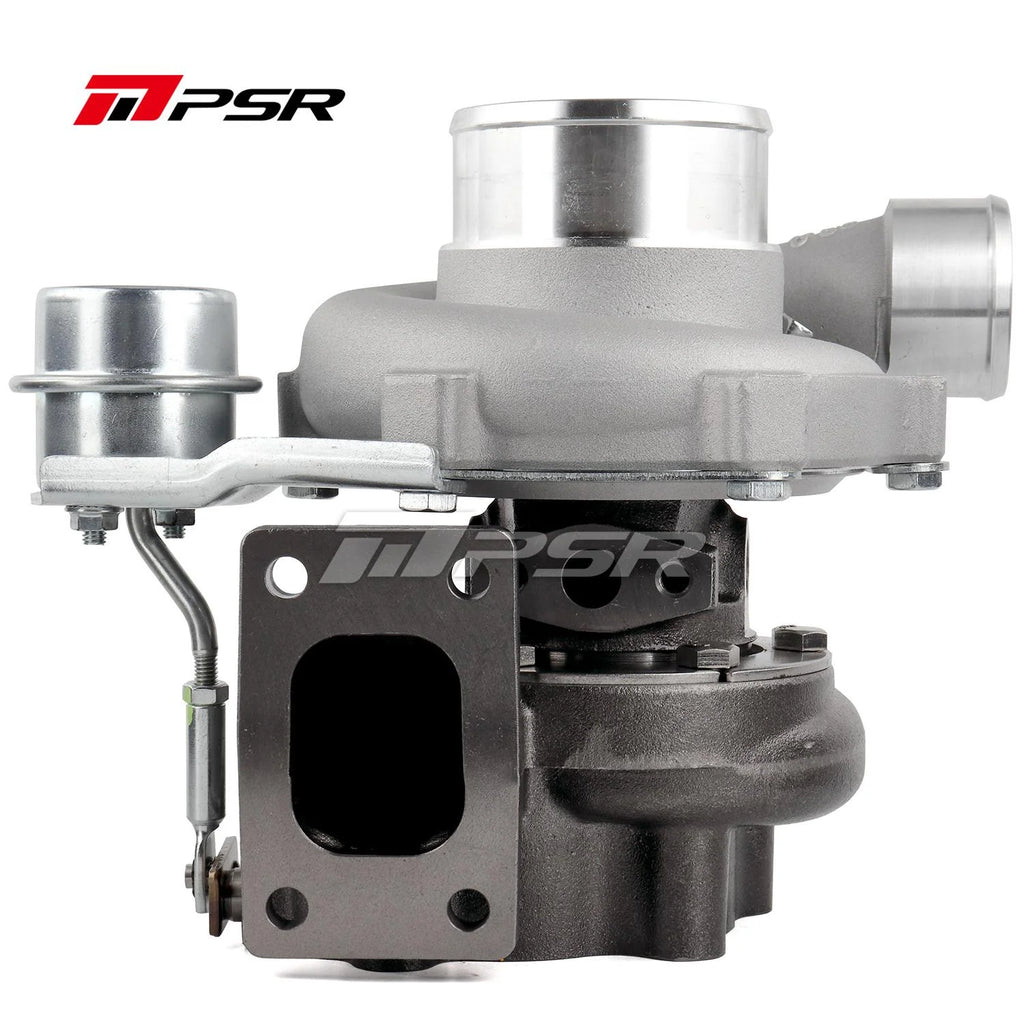

Pulsar PTX2860R Gen 2 - DUAL CERAMIC BALL BEARING TURBOCHARGER


TURBINE HOUSING OPTION: T25 .64 5 BOLT
COMPRESSOR HOUSING OPTION: STANDARD
Price:
£632.59

Description

Pulsar PTX2860R Gen 2

  • Please note, T51R housing option requires an extra 7 days handling time
  • Recommended engine displacement 1.6 to 2.5 litres. Power outputs up to 550 hp possible.
  • Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing shaft movement.
  • 45.64/60.07/62mm 8 blade upgraded billet compressor wheel with extended tapered tip technology and with better flow than the 11 blade Gen 1 wheel.
  • Inconel 713c 54 / 47 mm 9 blade turbine wheel
  • Gen2 cover with integrated speed sensor port and anti surge.

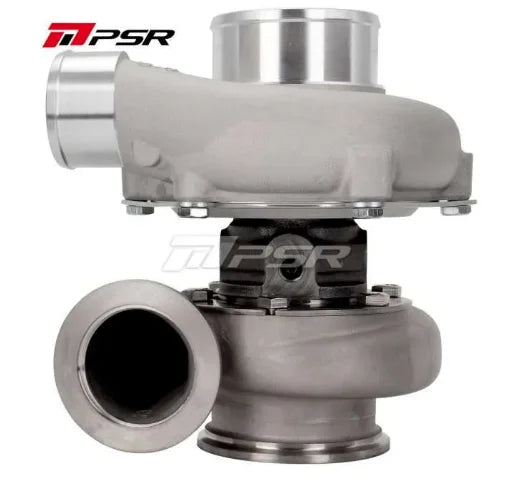

  • 0.64, 0.86 A/R T25 Inlet, 5 Bolt Outlet, 0.82 A/R dual V-BAND stainless steel turbine housing options all available
  • Standard or T51R mod compressor housing options available

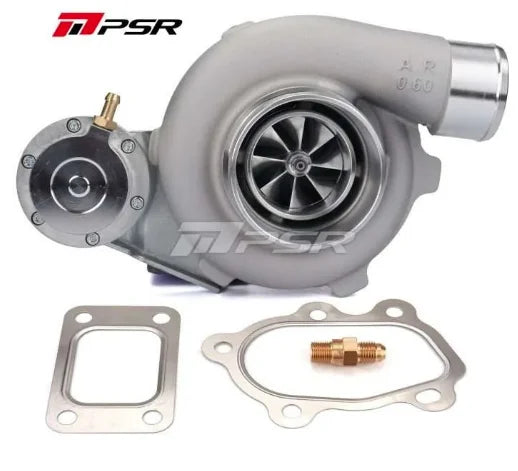

  • Supplied with manifold to turbine gasket and 5 bolt gasket (where applicable). Oil feed restrictor supplied (where applicable).
  • Wastegate actuator supplied on internally gated units with compressor housing.
  • Compressor Inlet :3"
  • Compressor Outlet: 2"
  • Oil Feed: 7/16-24 UNF with -4an connector
  • Oil Drain: Std T3 oil drain flange
  • Water In/Outlet: M14x1.5
  • We highly recommended running water cooling for better durability.

Replaces OE part number:

856800-5001S

856800-5002S

856800-5003S

856800-5004S
