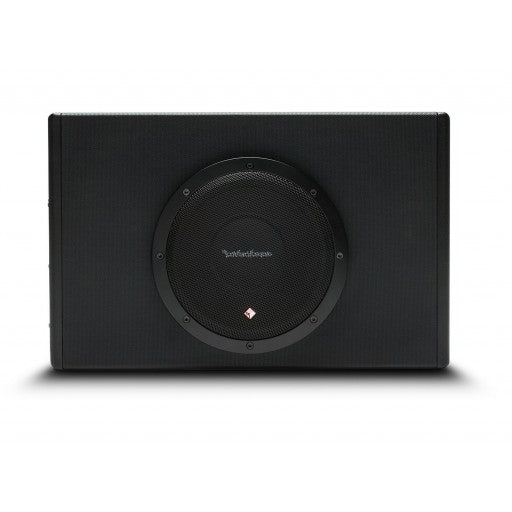

Rockford Fosgate P300-8P - 8" Active Powered Enclosure



The enclosure can be connected via speaker level inputs for connection to factory systems, or traditional line level inputs for aftermarket systems. It also features an intelligent auto turn-on/off circuit that eliminates the need for a separate turn-on wire. The enclosure itself is precision designed and constructed using MDF (Medium Density Fiberboard) for the best acoustical properties and covered with heat activated vinyl finish to resist marks.

  • High-Efficiency, Low Current Amplifier Design
  • Optimized 8" Low Impedance Woofer
  • 300 Watt Class-D Amplifier with Optimized "Closed Loop" Design
  • Adjustable 12db/Octave low pass crossover
  • On Board Phase Switch
  • Intelligent auto turn on/off function
  • Robust Power/Ground connections
  • Quick Input Connections for Easy Removal
  • On Board Adjustable Bass EQ
  • Remote bass level control included
  • Separate low level and speaker level inputs
  • Precision Constructed MDF Enclosure with Heat Activated Vinyl Finish
  • Thermal and over/under voltage protection
  • Slim Design For Truck Applications
  • CEA-2031 Compliant
  • CEA-2031 Compliant
  • Frequency Response 30 Hz to 200 Hz
  • Woofer Quantity 1
  • Woofer Size 8"
  • Woofer Series Proprietary
  • Power Handling (Watts RMS) 300 Watts RMS
  • Enclosure Type Vented
  • Enclosure Material 5/8" MDF (Medium Density Fiberboard
  • CEA-2006 Compliant
  • CEA-2006 Guidelines
  • Integrated Amplifier 300 Watts RMS
  • Crossover Controls Variable 50 Hz to 200 Hz 12dB/Octave Butterworth
  • Tone Controls Bass Boost 0 dB to +12 dB;
  • Phase Control 0° to 180°
  • Remote Control Punch Level Control (Included)
  • Auto Turn-On Selector Remote Trigger, DC Offset Sense, Audio Sense
  • Input Switch High-Level (Speaker Line), Low-Level (RCA)
  • Signal Input Low/High-Level: 1 RCA Pair (L/R Summed)
  • Input Sensitivity Low-Level: 150 mV to 6 V, High-Level: 300 mV to 12 V
  • Input Impedance 20k Ohms
  • Power Input Connector
  • Quick Disconnect Replacement Part: 1040-57860-01
  • Power Wire Gauge B+/GND: 8 AWG REM: 18 AWG
  • Circuit Topology Class Class-D
  • Heatsink Type Extruded Aluminum
  • Cooling Convection
  • Visual Indicators Power/Protect LED
  • Fuses 20 Amp (2 x 10 Amp ATO Fuse)
  • Dimensions
  • Box H x W x D
  • Wedge H x W x D1 x D2
  • 11.4" x 17.6" x 5.6"
  • 289 mm x 448 mm 141 mm
