Description

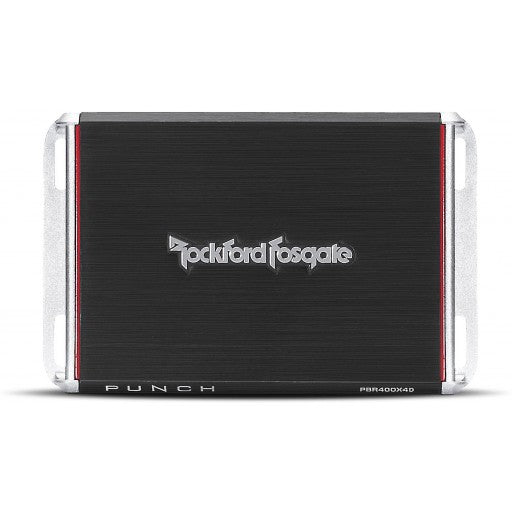

The Rockford PBR400X4D is a full-range 4-channel amplifier designed for stereo front/rear systems that requires little space. The BRT (Boosted Rail Technology) is an ultra efficient design that generates 400 Watts of power! The BRT also has a variable hi-level DC offset turn-on circuit for easy installation into any OEM system. Great for motorcycles and recreational vehicles.
- Full Range Class D
- Differential inputs with high level auto turn-on feature
- 8 AWG power/ground connector
- Remote-Out feature when using high level inputs
- C.L.E.A.N. input/output clip detection and indicator LEDs
- Real time output and power supply thermal sensing
- Extruded aluminum heatsink
- Selectable Fixed 12dB/Octave Butterworth Crossovers
- Muted turn on
- Rockford Fosgate proprietary protection
- Discrete surface mount technology
- Compact design for stealth installations
- CEA-2006 and CE compliant
- 1 Year Warranty
- 2006 Guidelines CEA-2006
- Power Rating 50W x 4 @ 4Ω ≤1.0% THD+N
- Number of Channels 4
- Total Power (Sum of Rated Power) 400 Watts
- Rated Power (RMS Continuous Power)
- 50 Watts x 4 @ 4-Ohm
- 100 Watts x 4 @ 2-Ohm
- 200 Watts x 2 @ 4-Ohm Bridged
- Dynamic Power (PVC/PowerCube®)
- 75 Watts x 4 @ 4-Ohm
- 130 Watts x 4 @ 2-Ohm
- 270 Watts x 2 @ 4-Ohm Bridged
- Bridgeable
- Frequency Response 20Hz - 20kHz +/- 1dB
- Input Sensitivity 150 mV to 12 V
- Circuit Topology Class Class D
- Efficiency (average) > 75%
- Total Harmonic Distortion (THD+Noise) 4-Ohm < 1.0 / 2-Ohm < 1.0
- Signal Input
- Input Switch: 2ch/4ch input switch
- Hi-Level: Variable DC offset sensitivity
- High-Level: Harness Low-Level: 2 Pair RCA
- Crossover Controls
- High-Pass: 60Hz or 80Hz @ 12dB/Octave
- Low-Pass: 80Hz @ 12dB/Octave
- Visual Indicators
- Power: Blue
- Protect: Red
- Input Clip: Red
- Output Clip: Blue/Violet/Red
- LED Color Legend
- BLUE: <0.5% TDH
- VIOLET: 1% THD
- RED: ≥10% THD
- Power Wire Gauge 8 AWG
- Power Input Connector Detachable Compression Terminal
- Speaker Wire Gauge 16 AWG
- Speaker Output Connector
- Front: 4-Pin Harness
- Rear: 4-Pin Harness
- Cooling Convection Heatsink Extruded Aluminum
- Operating Voltage 9 - 16 VDC
- Recommended Fuse (not included) 60 A
- Average Current Draw (13.8V Music) 27 A
- Max. Current Draw (13.8V Sinewave) 50 A
- Suggested Alternator 75 A
- Dimensional Diagram
- Dimensions (H x W x D)
- 1.53 x 4.25 x 6.75 (in)
- 3.9 x 10.79 x 17.16 (cm)
