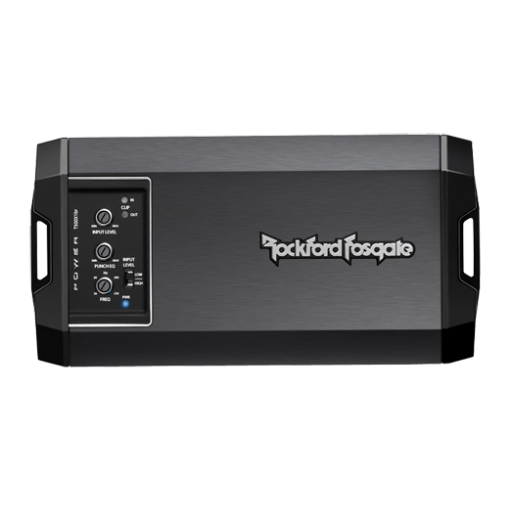

Rockford Fosgate Power T500X1BR - Mono Ultra-Compact 500Watts

  • Sale
  • Regular price £359.95
Tax included.


The Power T500X1br 500 Watt mono ultra-compact amplifier is built on Rockford Fosgate’s patented Boosted Rail technology that sips current while retaining a storage reserve for extended bursts of power. Flexible vehicle integration enabled through low-level and high-level inputs with auto turn-on. Top mounted controls allow easy access to built-in crossover and C.L.E.A.N. input/output clip detection circuits. The 3-stage thermal lock extrusion with dual fan forced induction keeps everything cool while real-time thermal/protection schemes safeguard the amplifier.

  • Number of Channels 1
  • Rated Power (RMS Continuous Power):
  • 175 Watts x 1 @ 4-Ohm
  • 300 Watts x 1 @ 2-Ohm
  • 500 Watts x 1 @ 1-Ohm
  • Total Power: 500 Watts
  • Dynamic Power (PVC/PowerCube® Measurement):
  • 201 Watts x 1 @ 4-Ohm
  • 342 Watts x 1 @ 2-Ohm
  • 540 Watts x 1 @ 1-Ohm
  • Bridgeable: no
  • Efficiency (average):
  • 75% @ 4-Ohm
  • 75% @ 2-Ohm
  • 75% @ 1-Ohm
  • Crossover Controls:
  • Low-Pass (LP):50Hz - 250Hz @ 12dB/Octave Butterworth
  • All-Pass: No
  • Total Harmonic Distortion:
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
  • 1-Ohm: <1.0% above 35 Hz
  • Tone Controls: Bass: 0dB to +18dB @ 45Hz
  • Signal Input: High/Low Level Input: 4-Pin harness
  • Signal Output: N/A
  • Power Input Connector: Detachable Compression Terminal
  • Power Wire Gauge: 8 AWG
  • Speaker Output Connector: Detachable Compression Terminal
  • Speaker Wire Gauge: 12 AWG
  • Heat Sink Type: Extruded Aluminum
  • Cooling: Dual Fan Cooled
  • Remote Controls: Optional PLC2 provides Punch Level Control
  • Visual Indicators:
  • Power: Blue LED
  • Protect: Red LED
  • Input Clip: Red LED
  • Output Clip Blue/Red LED
  • Circuit Topology Class: Class-BR
  • Frequency Response: 20Hz to 220Hz +/-0.1dB
  • Dimensions (HxWxL): 1.6 x 4.25 x 8.3 (in)  / 4.1 x 10.79 x 21.1 (cm)
