Description

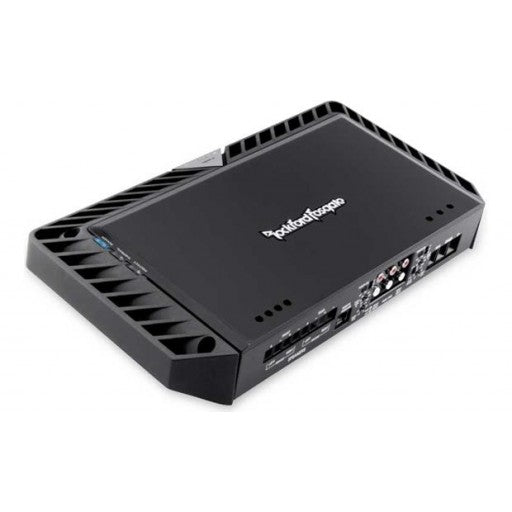

The T600-4 amplifier offers the perfect balance of power output and compact design required for high performance audio systems. The 4-channel configuration allows fine tuning adjustments between front stage component systems and rear surround speakers. The built-in crossover also allows the rear channels to be configured for running one or two subwoofers.
Features
- Number of Channels: 4
- Rated Power(RMS Continuous Power):
- 100 Watts x 4 @ 4-Ohms
- 150 Watts x 4 @ 2-Ohms
- 300 Watts x 2 @ 4-Ohms Bridged
- 2-Ohms x 2 Bridged Stable
- Total Power (Sum of Rated Power): 600 Watts RMS
- Dynamic Power (PVC/PowerCube® Measurement)
- Front Channels
- 139 Watts x 2 @ 4-Ohms 0° Res
- 236 Watts x 2 @ 2-Ohms 0° Res
- Rear Channels
- 140 Watts x 2 @ 4-Ohms 0° Res
- 236 Watts x 2 @ 2-Ohms 0° Res
- Bridgeable: Yes
- Efficiency (average):
- 70% @ 4-Ohm
- 64% @ 2-Ohm
- Crossover Controls:
- Front High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Front Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Rear High-Pass (HP): 50-500Hz 24dB/octave Butterworth
- Rear Low-Pass (LP): 50-500Hz 24dB/octave Butterworth
- Tone Controls:
- Front Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Rear Channels - Punch EQ
- Treble: 0dB to +12dB @ 12kHz
- Bass: 0dB to +18dB @ 45Hz
- Signal Input:
- Front Low level: 1 RCA pair
- Rear Low level: 1 RCA pair
- Signal Output: Low Level: 1 RCA pair
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Screw terminal barrier strip
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Remote Punch EQ
- (overrides rear channel built-in Punch EQ)
- Visual Indicators:
- Power
- Thermal
- Protect
- Circuit Topology Class: Class A/B
- Frequency Response: 20Hz to 20kHz +/- 1dB
- Dimensions (HxWxL):
- 2.14 x 8.14 x 14.91 (in)
- 5.42 x 20.68 x 37.86 (cm)
