Description

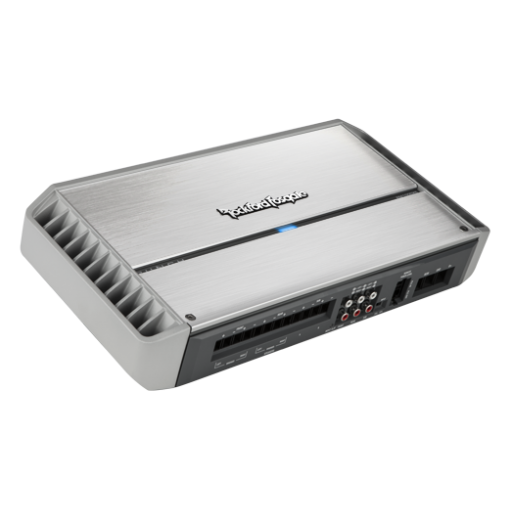

The PM1000X5 is a 500 Watt 5-channel amplifier with high dynamic power using Class-a/b technology on the front/rear channels, Class-bd for the subwoofer channel, and a conformal coated pc board designed for motorsport and marine applications.
- High level input capable with Auto Turn-On circuit
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Infrasonic filter
- 2/4 channel input switch
- Marine grade two part epoxy coating on circuit boards
- Marine grade stainless steel hardware
CEA-2006 Compliant: [CEA-2006 Guidelines] CEA-2006 Power Rating
- 75Wx4 + 150Wx1 @ 4Ω
- ≤1.0% THD+N
Rated Power(RMS Continuous Power):
- 75 Watts x 4 + 150 Watts x 1 @ 4-Ohm
- 125 Watts x 4 + 300 Watts x 1 @ 2-Ohm
- N/A + 500 Watts @ 1-Ohm
Dynamic Power (PVC/PowerCube®):
- 115 Watts x 4 + 299 Watts x 1 @ 4-Ohms 0° Res
- 190 Watts x 4 + 540 Watts x 1 @ 2-Ohms 0° Res
- N/A + 863 Watts x 1 @ 1-Ohm 0° Res
Frequency Response:
- Front/Rear: 20Hz - 20kHz +/-3dB
- Sub: 20Hz - 500Hz +/-3dB
- Total Power (Sum of Rated Power): 1000 Watts
- Number of Channels: 5
- Efficiency (average): Front/Rear: 66% @ 4-Ohm
- Sub Channel: 80% @ 4-Ohm
- Total Harmonic Distortion (THD+Noise): <1.0%
- Crossover Controls: Front: 50Hz - 250Hz High-Pass @ 12dB/Octave
- Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
- Sub: 50Hz - 250Hz Low-Pass
- Sub: 28Hz infrasonic filter @ 12dB/Octave
- Tone Controls: Sub: 0dB to +18dB @ 45Hz
- Input Sensitivity: 150 mV - 12 V
- Signal Input: Input Switch: Hi/Low level input
- Input Switch: 2/4 channel input
- Hi/Low Level: 3 RCA Pair
- Sub: front/sub input switch
- Power Input Connector: Block
- Power Wire Gauge: 4 AWG
- Speaker Output Connector: Block
- Speaker Wire Gauge: 12 AWG
- Heat Sink Type: Cast
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators: Power/Protect/Thermal LED
- Input Clip LED
- Output Clip LED
- Circuit Topology Class:
- Front/Rear: Class-A/B
- Sub: Class-BD
- Operating Voltage: 9 - 16 VDC
- Recommended Fuse (not included): 150 A
- Max. Current Draw (13.8V Sinewave): 150 A
- Average Current Draw (13.8V Music): 75 A
- Suggested Alternator: 100 A
- Shipping Weight: 15.3 Lbs. (6.93 Kg.)
- Dimensions (H x W x D): 2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm)
