Description

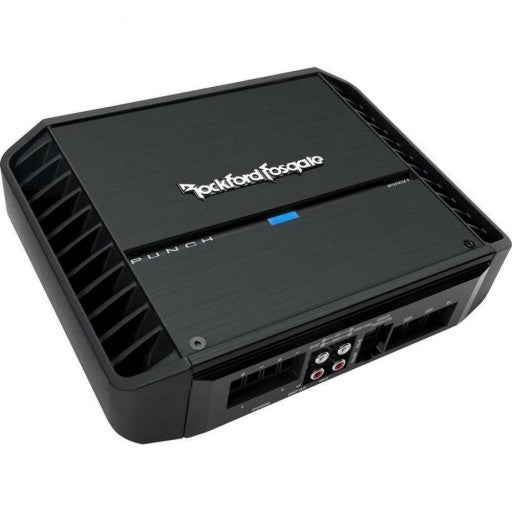

The Punch P300X1 is a mono amplifier capable of producing 300 Watts into a 2-Ohm load. The P300X1 full-range frequency response makes it perfect for a subwoofer system or for powering a dedicated center channel speaker.
- High level input capable with Auto Turn-On circuit
- RCA pass-thru outputs
- Features C.L.E.A.N. Set-up
- Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
- 12dB/octave Butterworth crossover
- On-board Punch EQ with +18dB boost @ 45Hz.
- Muted turn on
- Stealth top mounted control panel
- Cast aluminum heatsink
- Short circuit protection
- Over current protection
- Number of Channels 1
- Rated Power (RMS Continuous Power):
- 200 Watts x 1 @ 4-Ohm
- 300 Watts x 1 @ 2-Ohm
- Total Power (Sum of Rated Power): 300 Watts RMS
- Dynamic Power (PVC/PowerCube® Measurement):
- 260 Watts x 1 @ 4-Ohms 0° Res
- 444 Watts x 1 @ 2-Ohms 0° Res
- Bridgeable: no
- Efficiency (average):
- 74% @ 4-Ohm
- Crossover Controls:
- High-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- Low-Pass: 50Hz-250Hz @ 12dB/octave Butterworth
- All-Pass: Yes
- Tone Control:
- Punch EQ2 Bass: 0dB to +18dB @ 45Hz and/or
- Punch EQ2 Treble: 0dB to +12.5dB @ 12kHz
- Function depends upon LP/AP/HP switch position
- Signal Input: Low level: 1 RCA pair
- Signal Output: Low Level: 1 RCA Pair
- Power Input Connector: Captive C-Clamp
- Power Wire Gauge: 8-4 AWG
- Speaker Output Connector: Captive C-Clamp
- Speaker Wire Gauge: 8 AWG to 18 AWG
- Heat Sink Type: Cast aluminum
- Cooling: Convection
- Remote Controls: Optional Punch Level Control (PLC2) Ready
- Visual Indicators:
- Power
- Thermal
- Protect
- Circuit Topology Class: Class A/B
- Frequency Response: 20Hz to 20kHz +/- 1.0dB
- Shipping Weight: 9.5 Lbs. (4.30 Kg.)
- Dimensions (HxWxL): 2.38 x 7.76 x 9.86 (in)
- 6.05 x 19.71 x 25.04 (cm)
