Description

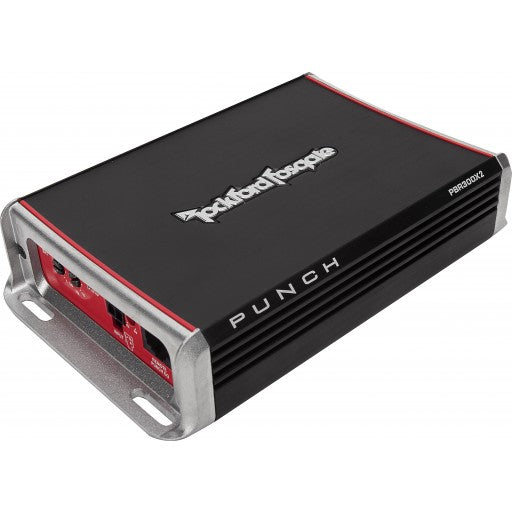

The PBR300X2 is a 300 Watt amplifier with Boosted Rail Technology, allowing it to be compact and efficient while providing big power. This amp is great for smaller stealth installations, motorcycles and recreational vehicles.
- 12dB/octave Butterworth crossover
- MOSFET output stage
- High level inputs
- Ultra compact chassis
- Variable 4-6 volt hi level DC offset voltage input turn-on control
- Number of Channels 2
- Rated Power (RMS Continuous Power):
- 100 Watts x 2 @ 4-Ohms
- 150 Watts x 2 @ 2-Ohms
- 300 Watts x 1 @ 4-Ohm Bridged
- Total Power (Sum of Rated Power): 300 Watts RMS
- Dynamic Power (PVC/PowerCube® Measurement): 300 Watts x 1 @ 1-Ohm
- Bridgeable: Yes
- Efficiency (average): >68% @ 4/2/1-Ohm
- Crossover Controls: 50Hz - 600Hz Low Pass @ 12dB/Octave Butterworth
- Signal Input: High/Low Input Switch
- High/Low Level Input: 4-Pin harness
- Hi-Level Sensitivity: Variable DC offset sensitivity
- Power Input Connector: Block Harness
- Power Wire Gauge: 10 AWG
- Speaker Output Connector: 4-Pin Harness
- Wiring Convenience: 2 Negative Terminals (-) / 2 Positive Terminals (+)
- Speaker Wire Gauge: Harness 12 AWG
- Heat Sink Type: Extruded aluminum
- Cooling: Convection
- Remote Controls: Optional PEQ provides 0dB to +18dB @ 45Hz
- Visual Indicators: Power, Boost (BRT), Protect
- Circuit Topology Class: Class BR
- Frequency Response: 20Hz - 250kHz +/-3dB
- Dimensions (HxWxL): 1.53" x 4.25" x 6.75" / 3.90cm x 10.8cm x 17.2cm
